Summary of Contents for Datavideo BAC-03

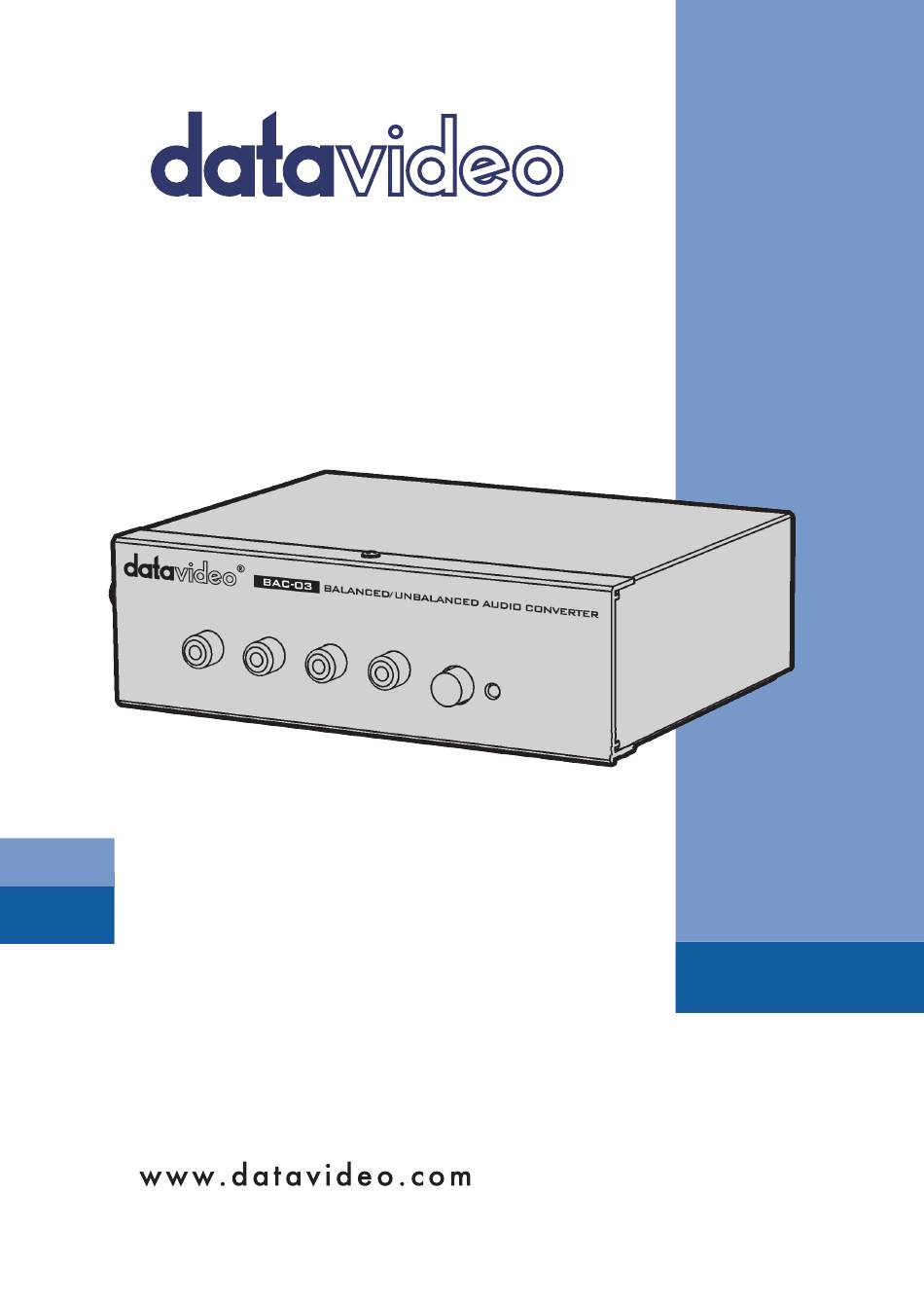

- Page 1 BALANCED/ UNBALANCED Audio BAC-03 Instruction Manual...
-
Page 2: Table Of Contents
Disclaimer of Product & Services The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be... - Page 3 Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual.
-
Page 4: Fcc Compliance Statement
AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed. - Page 5 If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord rating. 10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes.
-
Page 6: Warranty
• The product warranty period begins on the purchase date. If the purchase date is unknown, the product warranty period begins on the thirtieth day after shipment from a Datavideo office. Damage caused by accident, misuse, unauthorized repairs, •... -
Page 7: Disposal
Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year. The three-year warranty must be registered on Datavideo's • official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase. DISPOSAL For EU Customers only - WEEE Marking... -
Page 8: Introduction
Notes All XLR connectors should be wired as: Pin 1= GND Pin 2=HI Pin 3=LO If the BAC-03 is used to feed an unbalanced load, connect to pins 1(GND) and 2(HI) only! DO NOT short pin 3 to ground. -
Page 9: Connection
CONNECTION Front Panel Connect two channels (L/R) Connect two channels of unbalanced input (L/R) of unbalanced output terminals to the lines terminals to the lines outputs from an inputs of an unbalanced unbalanced audio device, audio device, e.g , VCR or e.g, VCR or DAT recorder DAT recorder... -
Page 10: Rear Panel
Rear Panel Connect two channels (L/R) Connect two channels of balanced output terminals (L/R) of balanced input to the lines inputs of a terminals from the lines balanced audio device, e.g, outputs of a balanced Betacam Deck audio device, e.g, Betacam Deck... -
Page 11: Service And Support
It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo.com for answers to DATAVIDEO WORLDWIDE OFFICES common questions, support requests or contact your local office below.
