NOTES
*
As for this model, the tuner of the DSP type is used.
When you exchange it due to the tuner pack(BL101;880-
2091M) trouble, it is necessary to adjust for S-meter etc.
Special JIG is necessary for an accurate adjustment. The
procedure document for the exclusive use jig is appended
to it.
*
This system controller IC M30876FJBGP(IC402) of Main
PWB does not have program. Please use special JIG at
the time of IC ex-change to write the memory.
*
This DSP IC SAF7730HV/N317(IC301) of Main PWB is
exposed die soldering pad type. It cannot remove in an
ordinary soldering iron.
Please use special removal JIG at the time of IC ex-
change
*
The
word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of suchmarks by
CLARION CO.,LTD. is under license.
*
We cannot supply PWB with component parts in prin-
ciple. When a circuit on PWB has failure, please repair it
by component parts base. Parts which are not mentioned
in service manual are not supplied.
*
Specifications and design are subject to change without
notice for further improvement.
SPECIFICATIONS
Radio section
Tuning system:
PLL Frequeency synthesizer sys-
tem
Clarion Co., Ltd.
7-2, Shintoshin, Chuo-ku, Saitama-shi, Saitama 330-0081 Japan
Service Dept.: 7-2, Shintoshin, Chuo-ku, Saitama-shi, Saitama 330-0081 Japan
Tel: +81-48-601-3705 FAX: +81-48-601-3804

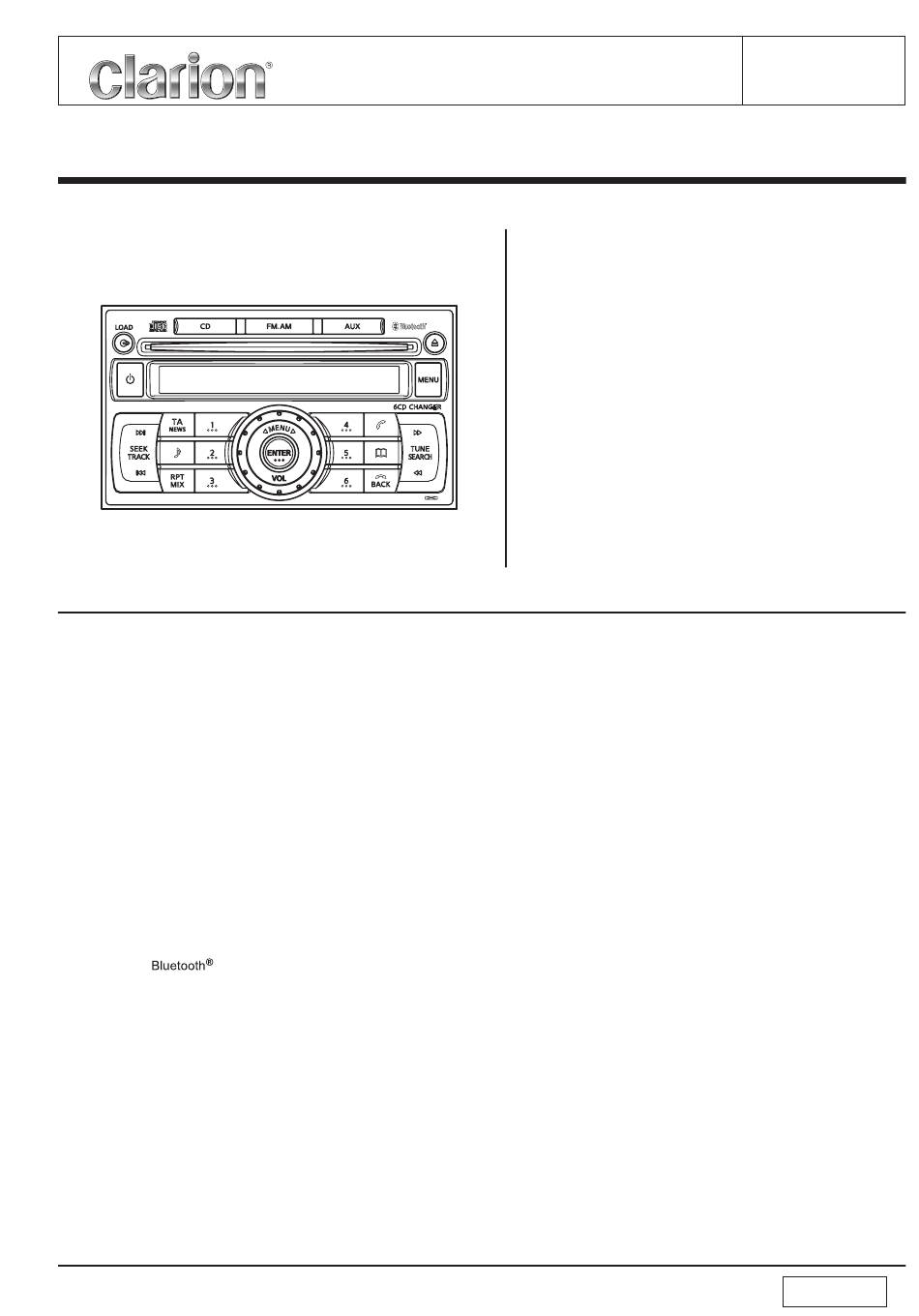

Service Manual
- 1 -
NISSAN Automobile Genuine
6CD LW/MW/FM/RDS Bluetooth
Combination
PN-3000P-A
Model
(Genuine No.28185 9U20A)(ID No. CY03E)
(ES color : Black)
PP-3000M-A
Model
(Genuine No.28184 BG00B)(ID No. CS01E)
(ES color : Brown)
PP-3000M-B
Model
(Genuine No.28184 BG00A)(ID No. CS00E)
(ES color : Black)
Receive range:
LW
MW
FM
Intermediate frequency:
LW/MW/FM
Quieting sensitivity:
LW
MW
FM
Separation:
FM
S/N ratio:
LW
MW
FM
Auto tuning stop sensitivity:
LW/MW
FM
CD section
Disc:
12cm disc
Separation:
More than 50dB
(IkHz,20kHz L.P.F)
S/N ratio:
More than 74dB(JIS-A)
Distortion:
Less than 0.2%(20kHz L.P.F.)
General
Load impedance:
4ohm/CH
Power output:
40W x4
Power supply voltage: DC13.2V(10.8 to 15.6V)
Negative ground
Back-up consumption: Less than 0.3mA
Dimensions(mm):
178(W) x 100(H) x 164(D)
Weight:
2.3kg
Published by Service Dept.
298-6531-00 Nov.2007
Printed in Japan
153kHz to 279kHz
531kHz to 1,602kHz
87.5MHz to 108.0MHz
10.7MHz
Less than 45dBu
(at 20dB S/N)
Less than 32dBu
(at 20dB S/N)
Less than 10dBu
(at 30dB S/N)
22+5/-7dB(1kHz)
More than 40dB
More than 40dB
More than 50dB
40+6/-6dBu
22+6/-6dBu
PN-3000P
PP-3000M
