NOTES
*
The tuner of this unit is BUS-TUNER type. When the
tuner pack(BL101) is exchanged, it is necessary to ad-
just for S-meter etc. with special JIG.
*
Individual data of each unit is recorded in EEPROM
IC(IC401). When EEPROM IC is replaced, it is neces-
sary to write the data.
*
DSP IC(IC301) is fixed with solder. Special JIG is nec-
essary for removing it.
*
This product includes technology owned by Microsoft
Corporation and cannot be used or distributed without a
license from MSLGP.
*
We cannot supply PWB with component parts in prin-
ciple. When a circuit on PWB has failure, please repair it
by component parts base. Parts which are not mentioned
in service manual are not supplied.
*
Specifications and design are subject to change without
notice for further improvement.
SPECIFICATIONS
Radio section
Tuning system:
PLL Frequeency synthesizer system
Receive range:
AM 530kHz to 1,710kHz
FM 87.75MHz to 107.9MHz
Quieting sensitivity:
AM Less than 37dBuV(S/N=20dB)
FM Less than 15dBuV(at 30dB S/N)
Separation:
FM More than 25dB
S/N ratio:
AM More than 40dB
FM More than 50dB
Auto tuning stop sensitivity:
AM 39 +6/-6dBuV
FM 32 +6/-6dBuV
Clarion Co., Ltd.
7-2, Shintoshin, Chuo-ku, Saitama-shi, Saitama 330-0081 Japan
Service Dept.: 7-2, Shintoshin, Chuo-ku, Saitama-shi, Saitama 330-0081 Japan
Tel: +81-48-601-3705 FAX: +81-48-601-3804
(ANT IN 65dBuV,1kHz)
More than 20dB
(ANT IN 65dBuV,7kHz)
(ANT IN 74dBuV,0dB=1.4V)
(ANT IN 55dBuV,0dB=1.4V)
- 1 -

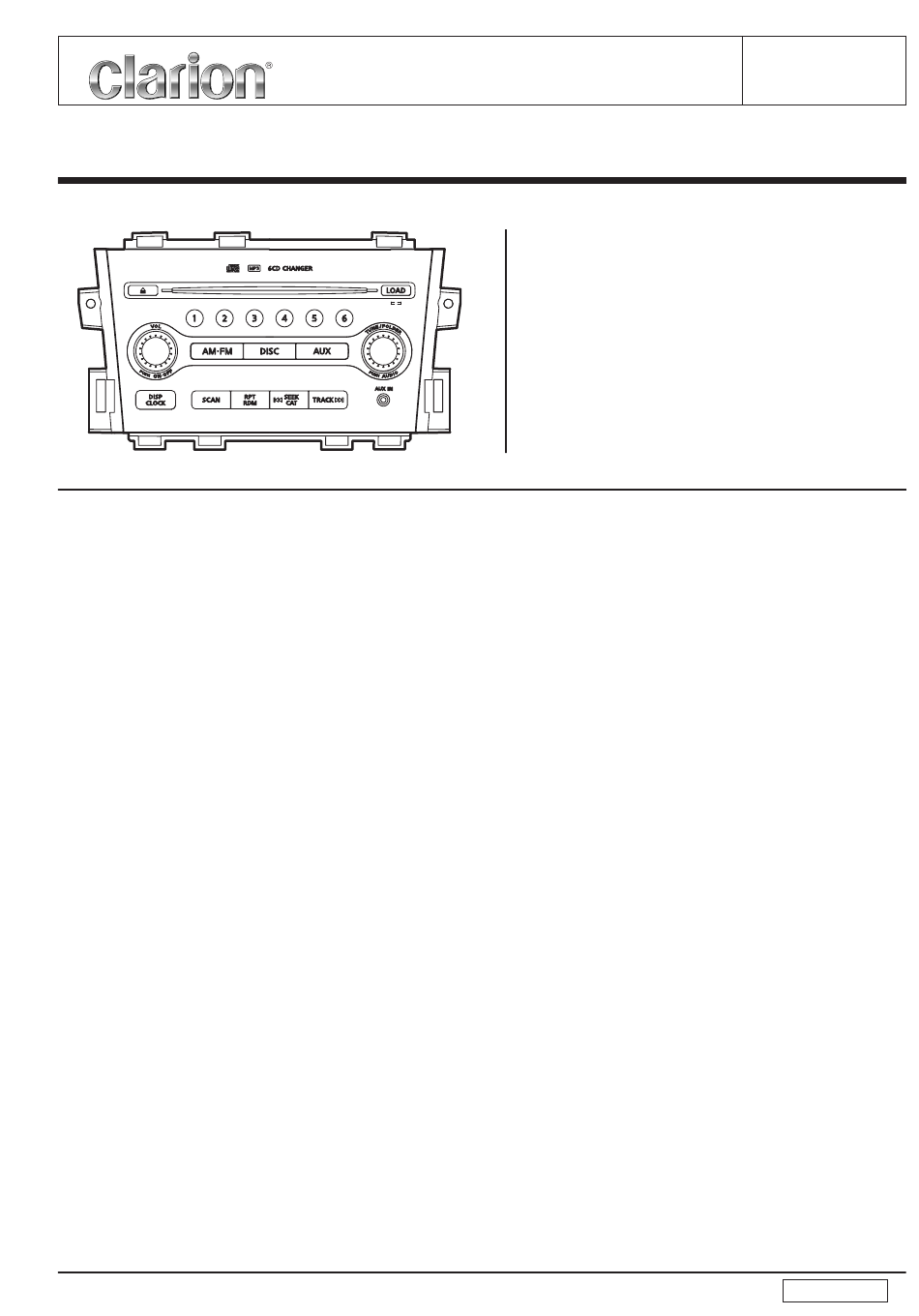

Service Manual
NISSAN Motor Genuine
6CD AM/FM Radio Combination
PN-2955H-A
Model
(Genuine No.28185 1AA0A)
(ID No. CY25D)
CD Player section
Mechanism:
Disc:
Format:
Distortion:
MP3 sampling rate:
MP3 bit rate:
WMA bit rate:
Logical format:
S/N ratio:
Separation:
AUX section
Distortion:
S/N ratio:
Separation:
General
Load impedance:
Power output:
Power supply voltage: DC13.2V(10.8 to 15.6V)
Back-up consumption: Less than 1.0mA
Dimensions(mm):
Weight:
COMPONENT
PN-2955H-A
1.
Main unit
Published by Service Dept.
298-6542-00 Feb.2008
Printed in Japan
6Disc CD Auto Changer
12cm Disc
CD-DA,MP3,WMA
Less than 0.2%(1kHz,20kHz L.P.F.)
8kHz to 48kHz
8kbps to 320kBps/VBR
32kbps to 192kBps/VBR
ISO9660 Level 1,2
Romeo or Joliet
More than 74dB
(1kHz,0dB=4.5V,20kHz L.P.F)
More than 50dB
(1kHz,20kHz L.P.F)
Less than 0.4%(Input 1kHz 300mV,
Output 2.45V=0dB)
More than 65dB(Input 1kHz 300mV,
Output 4.5V=0dB)
More than 52dB(Input 1kHz
300mV[L or R],Output 2.45V=0dB)
2ohm/4CH
45W x 4 Type
Negative ground
242(W) x 145(H) x 190(D)
2.4kg
----------
PN-2955H-A
1
