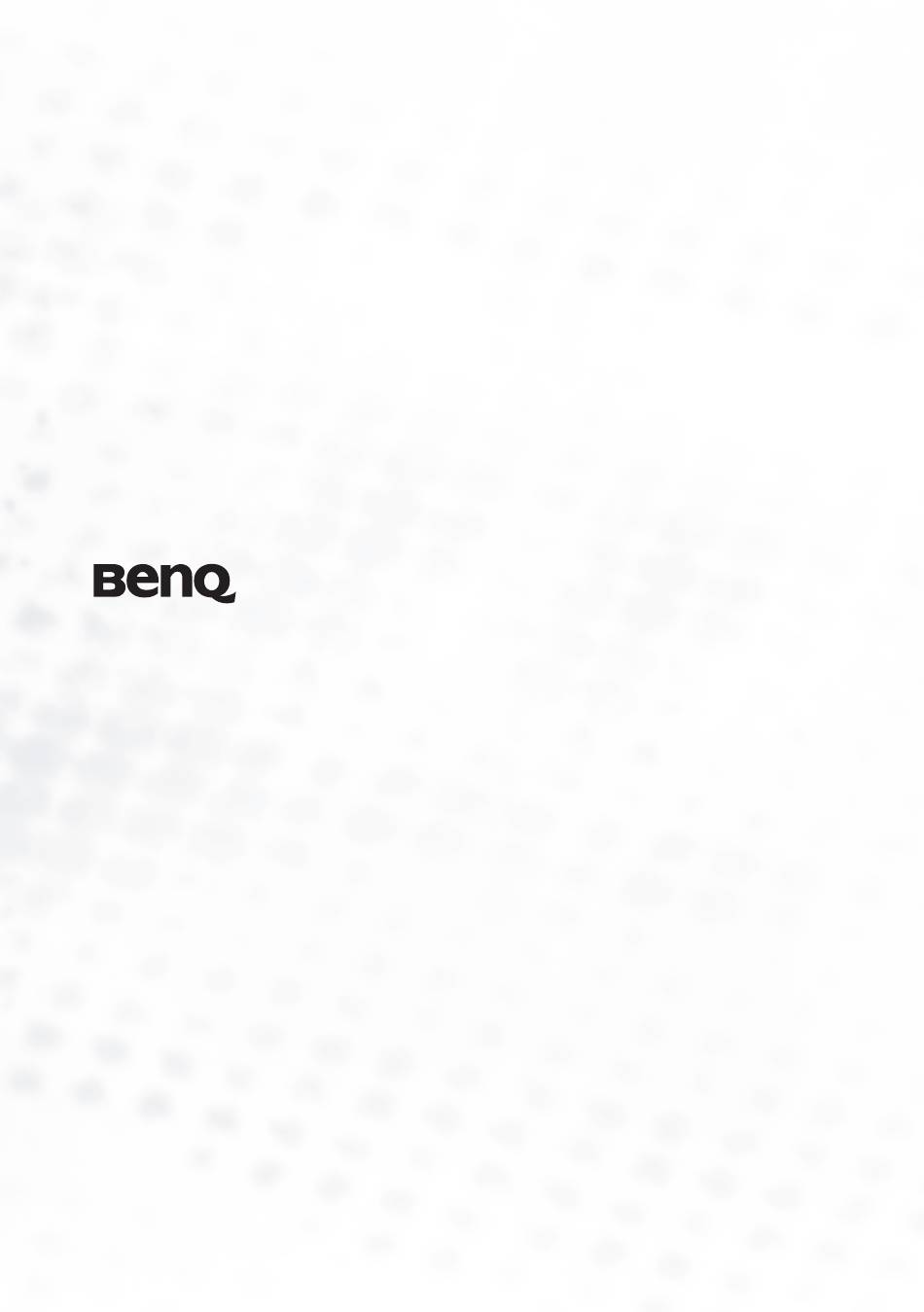

- Page 1 MP720 Digital Projector Mainstream Series User’s Manual Welcome More user manuals on ManualsBase.com...
- Page 2 Copyright Copyright 2005 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation.
-
Page 3: Table Of Contents
Table of contents Important safety instructions ........1 Introduction ............... 5 Projector features ..............5 Shipping contents..............6 Optional accessories ..................6 Projector exterior view ............7 Front / upper side ..................7 Rear side ......................7 Side view ......................8 Lower side ...................... - Page 4 Calculation of lamp hour ................43 Warning message ..................43 Replacing the lamp..................44 Temperature information ................46 Indicators....................... 47 Safety instructions for ceiling mounting of your BenQ projector....49 Troubleshooting............50 Specifications............51 Projector specifications ............51 Timing chart................52 Supported timing for PC input ..............52 Supported timing for Component-YPbPr input ........
- Page 5 Regulation Statements ..........55 FCC statement ..............55 EEC statement ..............55 MIC statement ..............55 WEEE directive ..............55 Table of contents More user manuals on ManualsBase.com...
- Page 6 <Memo> Table of contents More user manuals on ManualsBase.com...
-
Page 7: Important Safety Instructions
Important safety instructions Your BenQ projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product. - Page 8 Safety Instructions The lamp becomes extremely hot Do not place this product on an during operation. Allow the unstable cart, stand, or table. The projector to cool for approximately product may fall, sustaining serious 45 minutes prior to removing the damage.
- Page 9 Safety Instructions (Continued) Do not place this projector in any of the Do not block the ventilation holes. following environments. - Do not place this unit on a blanket, bedding or any other soft surface. - Space that is poorly ventilated or confined. - Do not cover this unit with a cloth or any Allow at least 50 cm clearance from walls other item.
- Page 10 Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply’s wall socket and call BenQ to have the projector serviced. Important safety instructions More user manuals on...
-
Page 11: Introduction
Introduction Projector features The projector integrates high-performance optical engine projection and a user-friendly design to deliver high reliability and ease of use. The projector offers the following features: • Selectable password protected function • Selectable quick cooling function for reducing projector cooling time •... -
Page 12: Shipping Contents
Shipping contents The projector is shipped with the cables required for connection to a PC. Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase. The supplied accessories will be suitable for your region, and may differ from those illustrated. -
Page 13: Projector Exterior View
Projector exterior view Front / upper side External control panel (See "External control panel" on page 9 for detailed information.) Ventilation grill Projection lens Front adjuster button Lens cap Focus ring and Zoom ring Front IR remote sensor Rear side Refer to "Connection"... -
Page 14: Side View
Side view Kensington anti-theft lock slot Lower side Front adjuster foot Lamp cover Rear adjuster foot Introduction More user manuals on ManualsBase.com... -
Page 15: Controls And Functions
When a wireless module is installed and the Wireless Connection menu is displayed, press this button to change among LAN, IEEE 802.11 a, and IEEE 802.11 b/g. (The wireless module is available through BenQ retailers.) Source (Refer to "Switching input signal" on page 29 for more information.) -
Page 16: Remote Control
Power indicator light (Refer to "Indicators" on page 47 for more information.) Lights up or flashes when the projector is under operation. 3 Left Right 4(Refer to "Correcting keystone" on page 28 for more information.) When the on-screen menu is not activated, #9 and #10 function as Keystone -/+ hot keys. - Page 17 When a wireless module is installed and the Wireless Connection menu is displayed, press this button to change the wireless connection mode between IEEE 802.11 a and IEEE 802.11 b/g. (The wireless module is available through BenQ retailers.) Auto (Refer to "Auto-adjusting the image"...
-
Page 18: Remote Control Effective Range
Remote control effective range Infra-Red (IR) remote control sensors are located on the front and the back of the projector. The remote control must be held at an angle within 30 degrees of the projector’s IR remote control sensors to function correctly. The distance between the remote control and the sensors should not exceed 6 meters (~ 20 feet). -
Page 19: Positioning Your Projector
20m away from your notebook, and switch between presentations on different notebooks instantly without fiddling with cables To use the wireless function, you need to install a BenQ wireless module to the projector and enable your notebook/desktop PC with wireless connection. For more information, refer to "Wireless connection (optional)"... - Page 20 II. Ceiling front Select this location with the projector suspended upside-down from the ceiling in front of the screen. Purchase the BenQ Projector Ceiling Mounting Kit from your dealer to mount your projector on the ceiling. in the Advance > Mirror menu after you turn the projector on.
-
Page 21: Obtaining A Preferred Projected Image Size
BenQ has provided a table of 4:3-aspect-ratio screen sizes to assist you in determining the ideal location for your projector. There are two dimensions to consider, the perpendicular horizontal distance from the centre of the screen (projection distance), and the vertical offset height of the projector from the horizontal edge of the screen (offset). -
Page 22: How To Determine The Position Of The Projector For A Given Screen Size
How to determine the position of the projector for a given screen size: Select your screen size. Refer to the table and find the closest match to your screen size in the left columns labelled 'Screen Diameter' Using this value, look across this row to the right to find the corresponding average distance from screen value in the column labelled 'Average'. - Page 23 Maximum zoom Minimum zoom Screen Center of lens Offset Projection distance Screen Diameter Distance from Screen in mm Vertical Offset in mm Feet Inches Min length Average Max length (with max. (with min. zoom) zoom) 1219 1745 1876 2007 1500 2148 2199 2250...
-
Page 24: Connection
Even though the projector may be using a wireless data connection, it still requires physical connection to a power outlet using its power cable. You can purchase a BenQ wireless module from BenQ retailers. You should attach the wireless module to the projector before you connect any other cables. - Page 25 To connect the projector to a notebook or desktop computer (either through a VGA cable or VGA-DVI cable): • With a VGA cable: • With a VGA-DVI cable: Take the supplied VGA cable and Take a VGA-DVI cable and connect connect one end to the D-Sub the VGA end to the D-Sub output output socket of the computer.
- Page 26 Connecting a monitor If you want to view your presentation close-up on a monitor as well as on the screen, you can connect the RGB signal output socket on the projector to an external monitor with a VGA cable by following the instructions below. Note: The D-SUB output only works when an appropriate D-SUB input is made to the projector.
-
Page 27: Connecting Video Source Devices
Connecting Video source devices This section describes how to connect the projector to Video source devices using video cables. Video cable connections are recommended for Video presentations. This projector also supports data (graphic) "PC" connection using Wi-Fi. Wi-Fi connection is not recommended for Video presentations. - Page 28 The audio connections illustrated in the following sections are provided for informational purposes only. You need not connect audio to the projector if there is an alternate sound system available, or if audio is not required. Connecting a Component Video source device Examine your Video source device to determine if it has a set of unused Component Video output sockets available: •...
- Page 29 • The projector is only capable of playing mixed mono audio, even if a stereo audio input is connected. See "Connecting Audio" on page 21 for details. • Component Video is the only video output that delivers native 16:9 aspect ratio picture. If you connect the projector to a High Definition TV (HDTV) tuner, the following standards are supported: •...
- Page 30 • If you have already made a Component Video connection between the projector and this S-Video source device using Component Video connections, you need not connect to this device using an S-Video connection as this makes an unnecessary second connection of poorer picture quality. See "Connecting Video source devices"...
-
Page 31: Operation
The start up procedure takes about 30 seconds after pressing Power. In the later stage of start up, a default BenQ logo is projected. (If necessary) Rotate the focus ring to adjust the image clearness. -
Page 32: To Set A Password
Press and hold Right4 for 5 seconds. The projector will display a coded number on the screen. Seek help from the local BenQ service center to decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector. -
Page 33: Adjusting The Height
IMPORTANT: Write your selected password down here in this manual so that it is available to you should you ever forget it. Password: __ __ __ __ Keep this manual in a safe place. ii. If the password is incorrect, a “Password Error” message displays. Press Up 5 to try again or press Down 6 to cancel. -
Page 34: Fine-Tuning The Image Size And Clarity
Fine-tuning the image size and clarity Adjust the projected image to the size Then sharpen the image by rotating that you need using the zoom ring. the focus ring. Correcting keystone Keystoning refers to the situation where the projected image is noticeably wider at either the top or bottom. -
Page 35: Selecting An Application Mode
Selecting an application mode The projector is preset with several predefined application modes so that you can choose one to suit your operating environment and input source picture type. To select a operation mode that suits your need, press Mode. The picture modes available for different types of signals are shown below. -
Page 36: Remote Paging Operations
Remote paging operations You can operate your display software program (on a connected PC) which responds to page up/down commands (like Microsoft PowerPoint) by Page Up and Page Down on the remote control pressing . See "Connecting SWAP a computer" on page 18 for details. -
Page 37: Menu Operation
Menu operation Menu system Please note that the on-screen display (OSD) menus vary according to the signal type selected. Functions available when receiving different signal types... Wireless / Video / S- Component Sub-Menu PC / DVI-A DVI-D Video Video Application Mode Application Mode Keystone Keystone... -
Page 38: Using The Menus
Using the menus The projector is equipped with on-screen display (OSD) menus for making various adjustments and settings. There are 17 different menu languages. (Refer to page "4. Advance menu" on page 37 more details.) The following example describes the adjustment of the keystone. Press 6 Menu on the projector or Menu Adjust keystone values by pressing 3/ 4on the projector... -
Page 39: Picture Menu
1. Picture menu Some picture adjustments are available only when certain input sources are in use. Unavailable adjustments are not shown on the screen. FUNCTION (default setting DESCRIPTION / value) Pre-defined application modes are provided so you can optimize your projector image set-up to suit your program type. - Page 40 There are four color temperature* settings are available. T1: With the highest color temperature, T1 makes the image appear the most bluish white than other settings. Color Temp T2: Makes images appear bluish white. (depends on T3: Maintains normal colorings for white. the selected T4: Makes images appear reddish white.
-
Page 41: Pro-Picture Menu
2. Pro-Picture menu Some picture adjustments are available only when certain input sources are in use. Unavailable adjustments are not shown on the screen. FUNCTION (default DESCRIPTION setting / value) Automatically resizes the input signal pixel resolution to the native resolution of the projector. -
Page 42: Setting Menu
3. Setting menu FUNCTION (default setting DESCRIPTION / value) Toggles projector audio between on and off. Mute (off) Adjusts audio volume level. Volume (5) Sets the length of time the OSD will remain active after your last button OSD Time press. -
Page 43: Advance Menu
Use Left 3/ Right 4on the projector or Left 3/ Right 4on the remote (English) control to select your desired language. Allows you to select which logo screen will display during projector start- Splash up. Three modes are available: Default (BenQ logo), black screen or blue Screen screen. (BenQ logo) Operation More user manuals on ManualsBase.com... - Page 44 A mode for operation in areas like high altitude or high temperature. We recommend you use the High Altitude Mode when your environment is higher than 3000 feet above sea level, or is hotter than 40 , or whenever °C the projector will be used for extended periods of time (>10 hours) without shutdown.
-
Page 45: Information Menu
5. Information menu This menu shows you the current operating status of the projector. Some picture adjustments are available only when certain input sources are in use. Unavailable adjustments are not shown on the screen. FUNCTION DESCRIPTION Shows the current signal source. Source Shows the native resolution of the input signal. -
Page 46: Maintenance
Maintenance Care of the projector Your projector needs little maintenance. The only thing you need to do on a regular basis is to keep the lens clean. Never remove any parts of the projector except the lamp. Contact your dealer if other parts need replacing. - Page 47 A warning message like the one pictured to the right will be displayed for 10 seconds Please check if the filter is clean every 500 hours to remind you to clean the Clean the filter or replace with a new one filter.
- Page 48 Refit the filter case by aligning and inserting it into the projector slot. Press the case back until it clicks into place. Turn the projector back on. If the case is not correctly seated in place, the projector will display an on-screen message as Please check pictured to the right every three minutes.
-
Page 49: Lamp Information
Lamp information Calculation of lamp hour When the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in timer. The method of calculating the equivalent lamp hour is as follows: Total (equivalent) lamp hour = hours used in Economic mode + hours used in normal mode "Economic Mode (off)"... -
Page 50: Replacing The Lamp
Replacing the lamp • To reduce the risk of electrical shock, always turn the projector off and disconnect the power cord before changing the lamp. • To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp. - Page 51 Loosen the screw that secures the lamp. Pull the lamp from the projector. • Pulling it too quickly may cause the lamp to break and scatter broken glass in the projector. • Do not place the lamp in locations where water might splash on it, children can reach it, or near flammable materials.
-
Page 52: Temperature Information
Replace the lamp cover on the projector. Tighten the screw that secures the lamp cover. • Loose screw may cause a bad connection, which could result in malfunction. • Do not over tighten the screw. Restart the projector. Do not turn the power on with the lamp cover removed. Resetting the lamp counter Do not reset if the lamp is not replaced as this could cause damage. -
Page 53: Indicators
Indicators Illustration Blank - : Light OFF • • : Orange light • : Light flashing • R : Red light • G : Green light • : Light ON Light Status & Description Power Temp Lamp Power events The projector has just been connected to a power outlet. Stand-by mode. - Page 54 Thermal events The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance. Maintenance More user manuals on ManualsBase.com...
-
Page 55: Safety Instructions For Ceiling Mounting Of Your Benq Projector
Safety instructions for ceiling mounting of your BenQ projector We want you to have a pleasant experience using your BenQ projector, so we need to bring this safety matter to your attention to prevent damage to person and property. If you intend to mount your projector on the ceiling, we strongly recommend that you use a proper fitting BenQ projector ceiling mount kit and that you ensure it is securely and safely installed. -
Page 56: Troubleshooting
Troubleshooting THE PROJECTOR DOES NOT TURN ON. Cause Remedy Plug the power cord into the AC inlet on the There is no power from the power projector, and plug the power cord into the cable. power outlet. If the power outlet has a switch, make sure that it is switched on. -
Page 57: Specifications
Specifications Projector specifications All specifications are subject to change without notice. General Product name Digital Projector Model name MP720 Optical 1024 x 768 XGA Resolution Display system 1-CHIP DMD Lens F/Number F=2.6 to 2.77, f= 20.4 to 23.5 mm Lamp 230W lamp Electrical Power supply... -
Page 58: Timing Chart
Timing chart Supported timing for PC input Horizontal Vertical Pixel Resolution Frequency Frequency Frequency Mode (kHz) (Hz) (MHz) 640 x 400 640 x 400_70 31.47 70.089 25.176 31.469 59.940 25.175 VGA_60 37.861 72.809 31.500 VGA_72 640 x 480 37.500 75.000 31.500 VGA_75 43.269... -
Page 59: Dimensions
Dimensions Unit: mm Specifications More user manuals on ManualsBase.com... -
Page 60: Warranty
Proof of purchase date will be required with any warranty claim. In the event this prod- uct is found to be defective within the warranty period, BenQ’s only obligation and your exclusive remedy shall be replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects. - Page 61 Regulation Statements FCC statement CLASS B: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inter- ference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
