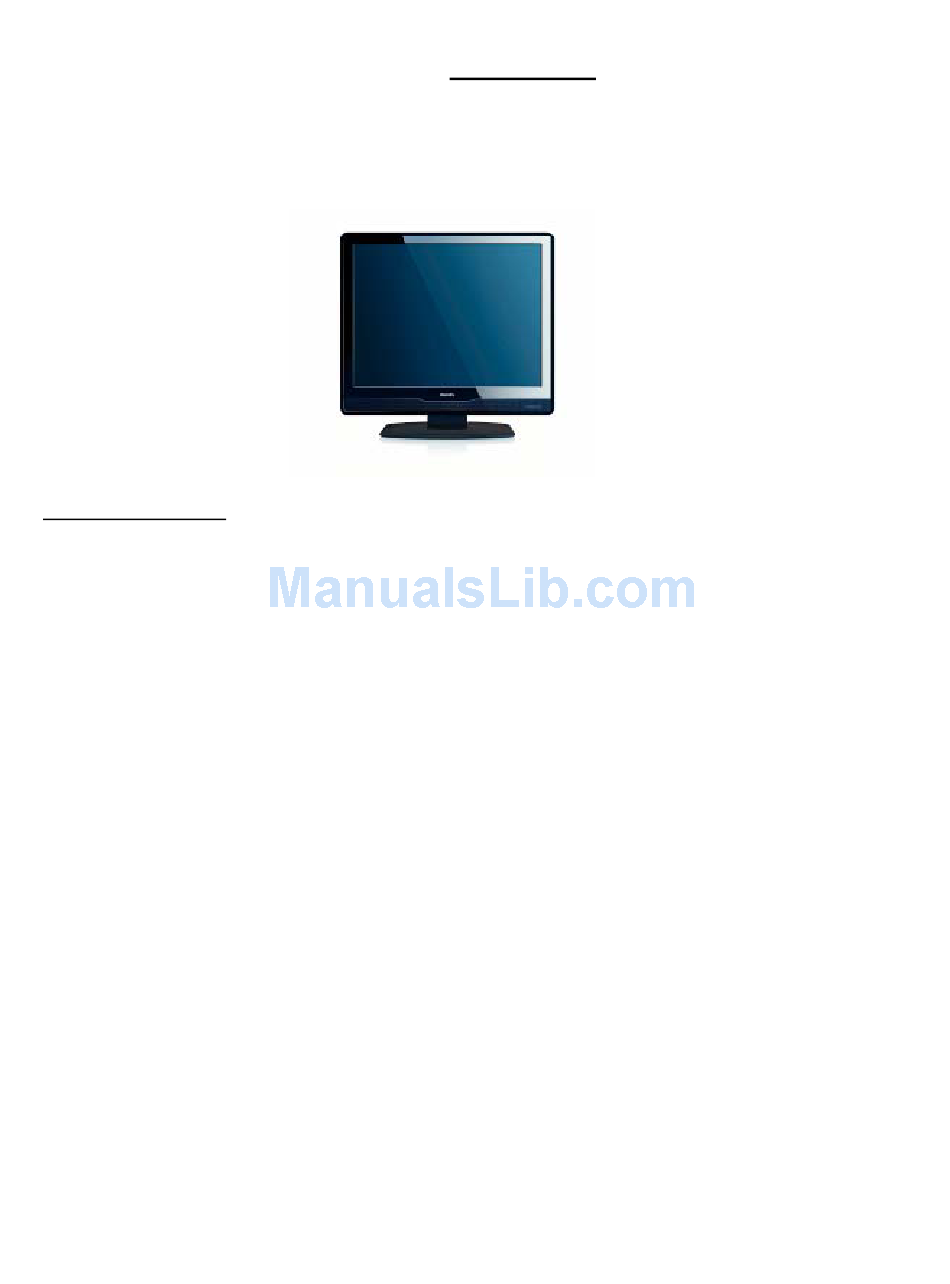

- Page 1 Philips Hospitality LCD TV: Pro range EN 20HFL3330D/10 Please ask your local sales support for additional information on correct installation/ positioning of the TV in the room and complementary accessories PHILIPS DFU-AUG2008 PB1 ...
-
Page 2: Table Of Contents
Table of contents 1 INTRODUCTION FOR PBS MODE 2 REMOTE CONTROL 2.1 Remote control 2573 overview (optional) 2.2 Guest Remote control overview 3 INITIAL SETUP 3.1 Virgin mode – Out of box Setting 4 SETUP MENU AND PBS MODE BEHAVIOR 4.1 PBS MODE 4.2 APPLICATION 4.3 SWITCH ON SETTINGS... -
Page 3: Introduction For Pbs Mode
1 INTRODUCTION TO PBS MODE The Professional Business Solutions (PBS) mode defines a specific TV or monitor mode (similar to hotel mode). This mode limits the amount of TV controls (e.g. like volume limitation), that a normal user (i.e. hotel guest) can use. The amount of access can be configured in the setup menu by a super-user (e.g. - Page 4 7. OK Accesses the All channels menu or activates a setting. Navigate the menu. 9. SLEEP Display the sleep timer menu and adjust the sleep timer. 10. P +/- Switches to the next or previous channel. 11. NUMBER KEYS Selects a channel, page or setting. Selects a picture format.
-
Page 5: Initial Setup
3 INITIAL SETUP Virgin mode – Out Of Box Setting and Initial Setup This TV set includes an installation feature that, at initial set-up of the TV, guides you through the installer menu to apply the proper installation settings. This feature, named Virgin Mode, active when the TV set is unpacked and first powered on, is normally used for installation/setting of first TV set. -
Page 6: 4.1 Pbs Mode
4 DISPLAY SETUP MENUS The TV can display PBS Setup menu by pressing RC2573 MENU key in SETUP mode or by following Guest RC key sequence “319753 seconds if high security mode set to Off. The following menu appears. PB6 ... -
Page 7: 4.3 Switch On Settings
4.3 SWITCH ON SETTINGS • SWITCH ON VOLUME - The TV will always switch on (via mains-switch or standby) to this preset value. The On volume setting cannot exceed the max volume. The current volume should follow the on volume, and adjusting on volume should also affect the current volume. -
Page 8: 4.5 Blank Channel
• REMOTE CONTROL LOCKED – Enable or disable the operation of the normal remotes. However, when the High Security Mode is OFF, to enter PBS Mode Menu, using the “319753 ”” key sequence is not blocked, even when Remote Control Locked is ON. •... - Page 9 TV in the most optimal situation. If the TV is placed above a certain height, it’s • advised to always tilt the TV. Philips has wall mounts with tilt for hotel TVs as optional accessories. Philips is recommending to position the TV as mentioned above. Positioning the TV differently might have impact on the viewing angle. Philips is not responsible for ...
- Page 10 A B C © 2008 Koninklijke Philips Electronics N.V. All rights reserved. 72-E330MD-X411A PB10 ...
- Page 11 Register your product and get support at www.philips.com/welcome USER MANUAL BENUTZERHANDBUCH MANUEL DE L’UTILISATEUR GEBRUIKERSHANDLEIDING MANUALE D’USO MANUAL DEL USUARIO MANUAL DO UTILIZADOR ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ...
- Page 12 Serbia Slovakia Slovenia Spain Sweden Switzerland Turkey Ukraine This information is correct at the time of press. For updated contact information, refer to www.philips.com/support. www.philips.com/support Number 0810 000205 078250145 +3592 489 99 96 01 3033 754 800142840 3525 8759 09 2311 3415...
- Page 13 Table of contents 1 Important � � � � � � � � � � � � � � � � � � � � � 3 1.1 Safety ......3 1.2 Screen care .
- Page 14 No components are user- serviceable. Do not open or remove covers to the inside of the product. Repairs may only be done by Philips Service Centres and official repair shops. Failure to do so shall void any warranty, stated or implied.
-
Page 15: Guest Remote Control Overview
Important Congratulations on your purchase and welcome to Philips! Read this user manual before you start to use this product. Pay close attention to this section and follow the safety and screen care instructions. The product warranty does not apply if damage is caused by failing to follow these instructions. -
Page 16: Screen Care
Power consumption The TV consumes minimal energy in standby mode to minimise environmental impact. Active power consumption is displayed at the back of the TV. For more product specifications, see the product leaflet at www.philips.com/support. -
Page 17: Your Tv
Your TV This section gives you an overview of commonly-used TV controls and functions. 2�1 TV overview Side controls and indicators POWER PROGRAM +/- MENU VOLUME +/- Standby indicator/remote control sensor Side connectors VOLUME Use the TV side connectors to connect to MENU mobile devices such as a high-definition camcorder or game console. - Page 18 Remote control EN-6 Power SOURCE TELETEXT Colour keys Selects tasks or teletext pages , Æ, Î, ï, OK Í Navigation or cursor keys MENU P +/- Program up or down ” Volume up or down For advanced information about the remote control, see Section 5.1 Remote control overview.
-
Page 19: Get Started
3�2 Wall mount the TV WARNING: Wall mounting of the TV should only be performed by qualified installers. Koninklijke Philips Electronics N�V� bears no responsibility for improper mounting that results in accident or injury. Step 1 Purchase a VESA-compatible wall bracket... -
Page 20: Connect The Antenna Cable
3�3 Connect the antenna cable Locate the TV ANTENNA connector at the back of the TV. Connect one end of an antenna cable (not supplied) to the TV ANTENNA connector. Use an adaptor if the antenna cable does not fit. Connect the other end of the antenna cable to your antenna outlet, ensuring that the cable is tightly secured at both ends. -
Page 21: Store
3�5 Manage cables Route your mains cord, antenna cable and all other device cables through the cable holder (1) at the back of the TV. 3�6 Insert the remote control batteries Slide the battery cover off the back of the remote control. -
Page 22: Use Your Tv
Use your TV This section helps you perform basic TV operations. Instructions on advanced TV opera- tions are provided in Section 5 Use more of your 4�1 Switch your TV on/off or to standby Switch on your TV • If the power indicator (1) is off, press POWER on the side of the TV. -
Page 23: Watch Connected Devices
Press ” + or - on the remote control, or Press VOLUME + or - on the side controls of your TV. Press [ on the remote control to mute the sound. Press [ again to unmute on the sound. Note: If headphones are connected, adjust headphone volume as described in Section... -
Page 24: Use More Of Your Tv
Use more of your TV 5�1 Remote control overview Switches the TV on from standby or back to standby. SOURCE Selects connected devices. ∏ Selects a picture format. SUBTITLE Activates or deactivates subtitles. EN-12 Colour keys Selects tasks or teletext pages. INFO Displays programme information, if available. -
Page 25: Use Tv Menus
5�2 Use TV menus On-screen menus help you install your TV, adjust picture and sound settings and access other features. This section describes how to navigate the menus. Access the main menu Press MENU on the remote control to display the main menu. The following menu appears. - Page 26 Picture Brightness Contrast Brightness Colour Sharpness Tint Color temperature Picture format Noise reduction Press ï to select Brightness� Picture Brightness Contrast Brightness Colour Sharpness Tint Color temperature Picture format Noise reduction Press Æ to enter the Brightness setting. Brightness Press Î...
-
Page 27: Adjust Picture And Sound Settings
5�3 Adjust picture and sound settings Adjust picture settings Press MENU on the remote control and select Picture. TV Menu Picture Smart settings Contrast Picture Brightness Sound Color Features Sharpness Install Tint Color temperature Picture format Noise Reduction Press Æ to enter the list. Press Î... - Page 28 Change picture format Change the picture format to suit your content. Press ∏ (PICTURE FORMAT) on your remote control. Alternatively, press MENU and select Picture > Picture format. Press Î or ï to select one of the following picture formats, available display formats are determined by the type of model you own For 20 inch model...
-
Page 29: Change To Shop Or Home Mode
Adjust sound settings This section describes how to adjust sound settings. Press MENU on the remote control and select Sound. Press Æ to enter the list. TV settings Sound Smart settings Settings Picture Incredible surround Sound Volume-visually impaired Features Audio language Install Dual l-ll Mono/Stereo... -
Page 30: Use Advanced Teletext Features
5�5 Use advanced teletext features Your TV has a 100 page memory that stores broadcasted teletext pages and subpages. Select teletext subpages A teletext page can hold several subpages. Subpages are displayed on a bar next to the main page number. Press TELETEXT on the remote control. -
Page 31: Adjust Feature Settings
to activate available actions. Viewing Date: 01/03/2002 Current Time:wed 02 Apr 04:02:15 BBC TWO 16:30 Ready Steady Cook 17:15 The Weakest Link BBC CHOICE BBCi BBC NEW 24 BBC PARLMNT BBC knowledge Eurosport TERRA NOVA Prev Day Next Day Detail Use the colour keys to view 7 or 8 day EPG. - Page 32 Automatically switch the TV to standby (Sleeptimer) Sleeptimer switches the TV to standby after a defined period of time. Press MENU on the remote control and select Features > Timer > Sleeptimer. Press Æ to enter the Sleeptimer menu Press Î...
-
Page 33: Use Subtitles
Press Æ to enter. Press Î or ï to select channel lock� Press Æ to lock or unlock the channel. To set parental ratings Some digital broadcasters rate their programmes according to age. You can set your TV to display only programmes with age ratings higher than your child’s. -
Page 34: Install Channels
select Install > Current software info. Update software (digital broadcasts) If using (DVB-T) digital broadcasts, your TV automatically receives software updates. If you receive a message on-screen prompting you to update your software: • Select Now (recommended) to update the software immediately. -
Page 35: Manually Install Channels
In addition to menu language, you can configure the following language settings via the Language menu (digital channels only): • Preferred audio language: Select one of the available audio languages as your preferred audio language. For more information, see Section 5.3 Adjust sound settings. -
Page 36: Rearrange Channels
Step 2 Search and store new TV channels Press MENU on the remote control and select Install > Channel installation > Analogue: Manual installation > Search. Press Æ to enter the Search menu. Press the red key and the number keys on the remote control to enter the three digit frequency. -
Page 37: Manually Update The Channel List
the channel. Press MENU to exit. 6�6 Manually update the channel list You can manually update the channel list. Press MENU on the remote control and select Install > Channel installation > Installation update. Press Æ to enter the Installation update menu. -
Page 38: Connect Devices
Connect devices 7�1 Connection overview Back connectors Digital Audio Out Sound output cinch connectors for home theatres systems etc. TV (75Ω) TV antenna. EXT 1 - SCART (input-output) For a range of equipment, including video recorders, camcorders (VHS, 8 mm or Hi 8 format), decoders, satellite receivers, DVD players, games consoles or devices producing an RGB signal. -
Page 39: Connect DEvices
7�2 Connect devices This section describes how to connect various devices with different connectors and supplements examples provided in the Quick Start Guide. Caution: Disconnect the mains cord before connecting devices. Note: Different types of connectors may be used to connect a device to your TV, depending on availability and your needs. -
Page 40: Setup Devices
Game console or camcorder The most practical connection for a mobile game console or camcorder may be at the side of the TV. You can, for example, connect the game console or camcorder to VIDEO/S-Video and AUDIO L/R connectors at the side of the TV. -
Page 41: Use Philips Easylink
Press Í to return to the previous menu. Press MENU to exit. 7�4 Use Philips EasyLink Your TV supports Philips EasyLink, which enables one-touch play and one-touch standby between EasyLink-compliant devices. Compliant devices must be connected to your TV via HDMI and assigned as described in Section 7.4.1... - Page 42 • After inserting and activating the CAM, press MENU on the remote control and select TV menu > Features > Common interface. This menu option is only available if the CAM is correctly inserted and activated. On-screen applications and content are provided by your digital TV service operator.
-
Page 43: Technical Specifications
Technical specifications Supported display resolutions • Computer formats (PC) Resolution Refresh rate 720 x 400 70Hz 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1680 x 1050(22” only) 60Hz 60Hz 1366 x 768(26" only) Notes Model 20PFL3403D supports the format 640x480 60Hz only. -
Page 44: Troubleshooting
Troubleshooting This section describes commonly-encountered issues and accompanying solutions. 9�1 General TV issues The TV does not switch on: • Unplug the mains cord, wait for one minute and plug in the mains again. • Verify that the mains cord is properly connected and that the mains are powered. -
Page 45: Sound Issues
• Check that the devices are connected properly. • Verify that picture settings are correctly set. See Section 5.3 Adjust picture settings. The TV did not save my settings: • Verify that the TV is set to which offers you complete flexibility to change settings. - Page 48 © 2008 Koninklijke Philips Electronics N.V. All rights reserved. 72-E340M5-X411E...
