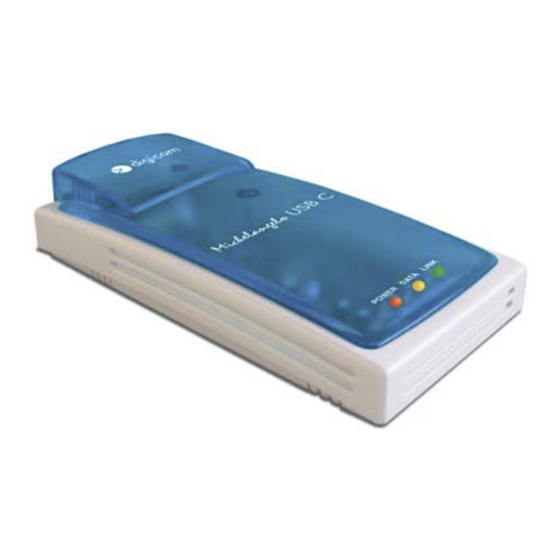

Digicom MICHELANGELO USB C User Manual

Hide thumbs Also See for MICHELANGELO USB C:
Table of Contents

Advertisement

Quick Links

Download this manual
User's Guide
rev. 1.0 del 10/2002
http://www.digicom.it

Advertisement

Table of Contents
loading

Related Manuals for Digicom MICHELANGELO USB C

Summary of Contents for Digicom MICHELANGELO USB C

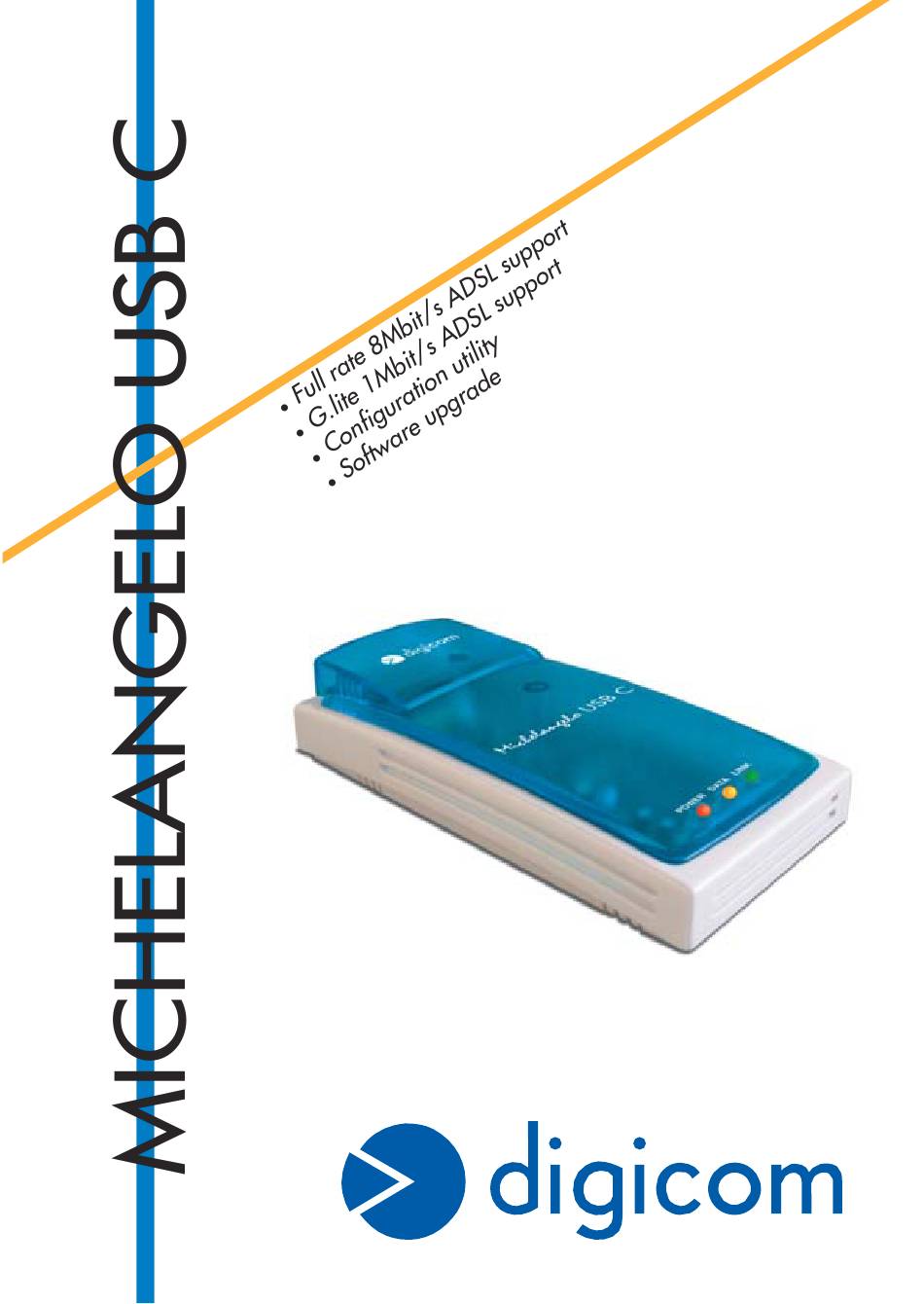

  • Page 1 User's Guide rev. 1.0 del 10/2002 http://www.digicom.it...

  • Page 3: Table Of Contents

    MICHELANGELO USB C Index INDEX PREFACE ENVIROMENTAL CONDITIONS CLEANING THE TERMINAL VIBRATIONS OR DROPPING WARNING: THIS IS A CLASS B PRODUCT. DECLARATION CE OF CONFORMITY GENERALITY 1.1. PRODUCT FEATURES 1.2. THE FRONT PANEL 1.3. REAR PANEL HARDWARE INSTALLATION SOFTWARE INSTALLATION (WINDOWS®...

  • Page 4: Preface

    All rights reserved; no part of this publication may be reproduced, stored in a retrieval system, or trasmitted in any form or by any means, electronic, otherwise, without the priorwritten permission of Digicom S.p.A. The contents of this booklet may be modified without prior permission. Every possible care has been taken in testing and putting together all the documentation contained in this booklet, however Digicom can not take any responsability brought by the use of this booklet.

  • Page 5: Generality

    MICHELANGELO USB C Generality GENERALITY Asymmetric Digital Subscriber Line (ADSL) technology provides high- speed data access over regular phone lines. ADSL service is able to co-exist on the same line with your telephone service. The ADSL has an unbalanced connection speed.

  • Page 6: The Front Panel

    MICHELANGELO USB C Generality Windows® Plug&Play Flash upgradable CE mark Driver for Windows® 98SE/2000/ME/XP 1.2. THE FRONT PANEL The following table explains the functions of the LEDs on the Front Panel: Name Color Status Meaning Power Red Flashing Power on...

  • Page 7: Hardware Installation

    MICHELANGELO USB C Hardware Installation HARDWARE INSTALLATION Remove Michelangelo USB from its package and check its integrity. During the software installation, you will be asked to connect the modem to your computer USB port. If you have any problems identifying the USB socket on your Computer, refer to the User’s Manual of your PC.
  • Page 9 Before connecting the modem, you have to perform a Setup.exe file, present in the Driver\ Michelangelo USB C folder in the CdROM. In the “Install the DSL Device” Windows click on the “Next>” button.

  • Page 10: Software Installation (Windows® 98Se, Me, 2000 E Xp)

    MICHELANGELO USB C Software Installation You have to select the right configuration. Ask your Provider for the profile to be used. Name Protocol Default Bridged IP over ATM LLCSNAP (RFC1483) Routed IP over ATM LLCSNAP (RFC1483) Bridged IP over ATM VCMUX (RFC1483)
  • Page 11 The utility configuration will now install Michelangelo USB. This could take a few minutes. Note: confirm with Continue Anyway the eventual informative Microsoft Windows®. The software you are instaling has sucessfully passed digicom’s tests and the compatibility with the supported Microsoft operating sytstems has been verified.
  • Page 12 MICHELANGELO USB C Software Installation Connect Michelangelo USB to your computer. The utility configuration will now configure and test the driver . This could take a few minutes. Click on “Finish” to confirm the installation.
  • Page 13 MICHELANGELO USB C Verify and change the Configuration VERIFY AND CHANGE THE CONFIGURATION To check the installation use the “Michelangelo Control Panel” utility. By pressing the “ALT” + “A” key, you’ll see more information.

  • Page 14: Verify And Change The Configuration

    MICHELANGELO USB C Verify and change the Configuration With the Protocol Setup menu you can change the VPI, VCI parameters and Encapsulation Mode.

  • Page 15: Adsl Connection (Pppoa-Pppoe)

    MICHELANGELO USB C Verify and change the Configuration 4.1. ADSL CONNECTION (PPPOA-PPPOE) You can use the remote access connection if your ISP uses the RFC2364 (PPPoA) profiles or RFC2516 (PPPoE). You can use the Michelangelo USB ADSL utility (Shortcut on the desktop) to carry out an easy connection.

  • Page 17: Uninstall

    MICHELANGELO USB C Uninstall UNINSTALL To uninstall the modem use the “Michelangelo USB ADSL” utility. You will find it in Start Menu, Program and Michelangelo DSL. Choose “Uninstall Michelangelo USB ADSL”, click on the “Next” button, then follow the instructions.
  • Page 19 Cancel the automatic driver installation and then perform the configuration utility. To cancel the automatic installation press “Cancel” in the window “Add New New Hardware Wizard”. Double click the Setup.exe file, present in the Driver\Michelangelo USB C folder in the CdROM. add.1...
  • Page 20 ITALY 21010 Cardano al Campo VA via A. Volta 39...
