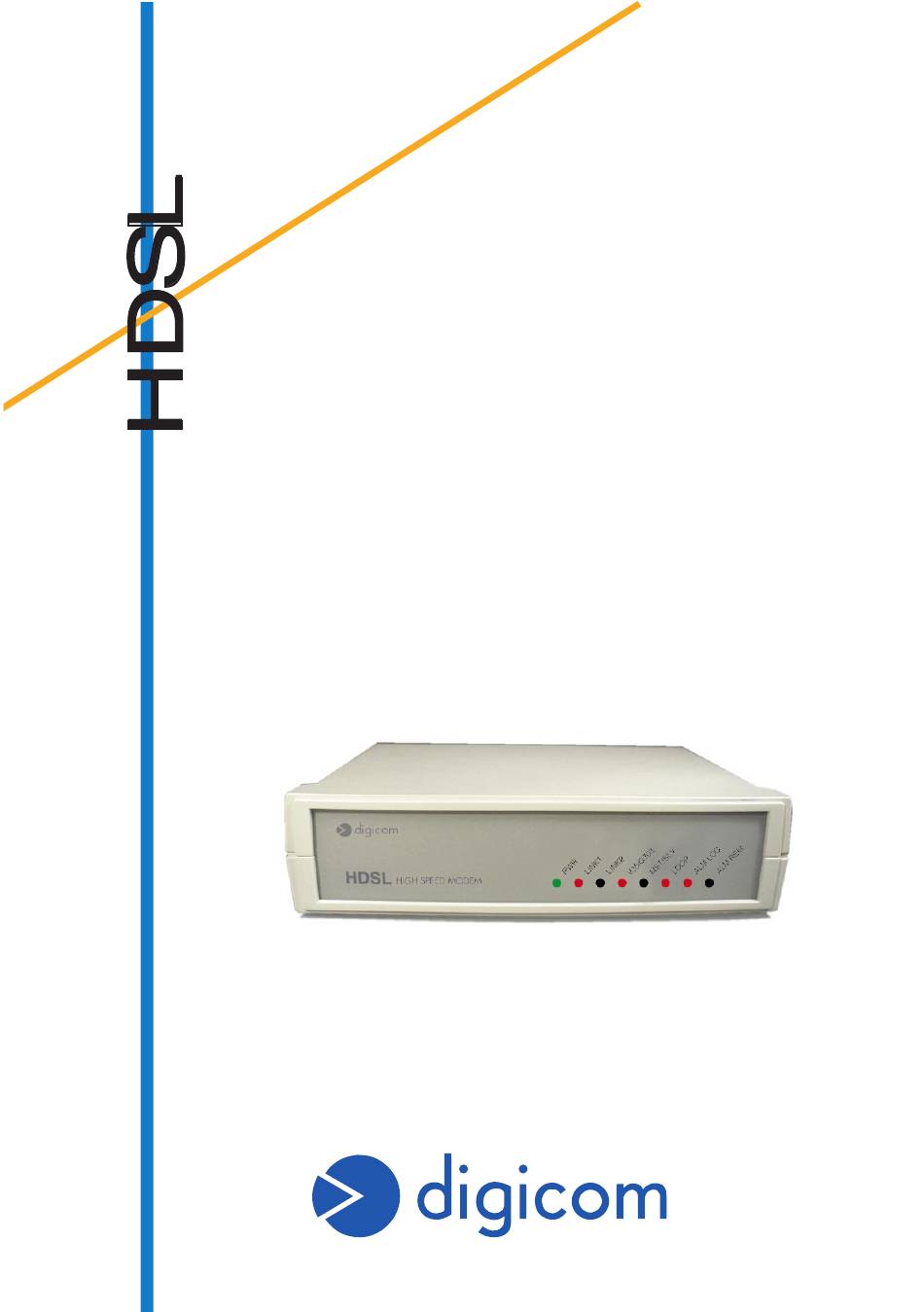

  • Page 1 User's Guide rev. 1.0 05/2000 http://www.digicom.it...

  • Page 2: Declaration Ce Of Conformity

    2. INSTALLATION 2.1. CONFIGURATIONS DESCRIPTION DECLARATION CE OF CONFORMITY Digicom S.p.A. via Alessandro Volta 39 21010 Cardano al Campo -Varese- declares that this product satisfies the basic requirements of Electromagnetic Compatibility and Safety of the below indicated Directive: 89/336/CEE of 3 may 1989 with subsequent modifications (Directive 92/31/CEE of april 28, 1992, Directive 93/68/CEE of July 22,1993 and Directive 93/97/CEE of 29 october 1993).

  • Page 3: Cleaning The Terminal

    Digicom’s HDSL modems uses the HDSL technology (High-bit-rate Digital Subscriber Line) that allows very high transfer speeds (2 Mbps) over leased lines. It is possible to connect Digicom’s HDSL modems either over 2 wires and 4 wires lines. The main requirement for a HDSL Lines is the wire metal continuity.

  • Page 4: Front Panel View

    SLAVE Picture 1 The connection is carried out using 2 HDSL devices: one placed in the main centre (Master) and the other one in the remote place (Slave). The Master and Slave devices have different configurations but are equal as for the electric or mechanic features.

  • Page 5: Rear Panel View

    Function Power supply CONFIG 9pin female connector for device configuration LINE HDSL line connector RJ11 4 contacts G.703 120 ohm G.703 interface 120 ohm 9 pin female connector 120/75 ohm switch G.703 interface setup at 120 ohm or 75 ohm G.703 75 ohm TX...

  • Page 6: Installation

    2.1. CONFIGURATIONS DESCRIPTION To configurate the Digicom’s HDSL modems it is necessary to use the Digicom “SetHDSL” program. The user can choose among seven base configurations (A-G) depending on the interface, the wires of the line and the line speed.
  • Page 7 HDSL INSTALLATION NOTE: For further and complete information on the “SetHDSL”, please refer to the program help on line.
  • Page 8 HDSL INSTALLATION Interface speed “N” Line speed for each couple Line speed [Kbit/s] Time Slot of wire (4 wires) (2 wires) [Kbit/s] [Kbit/s] 1024 (1Mbps) 1040 1088 1104 1152 1168 1216 1232 1280 1296 1344 1360 1408 1424 1472 1488...
  • Page 9 21010 Cardano al Campo VA via A. Volta 39...
