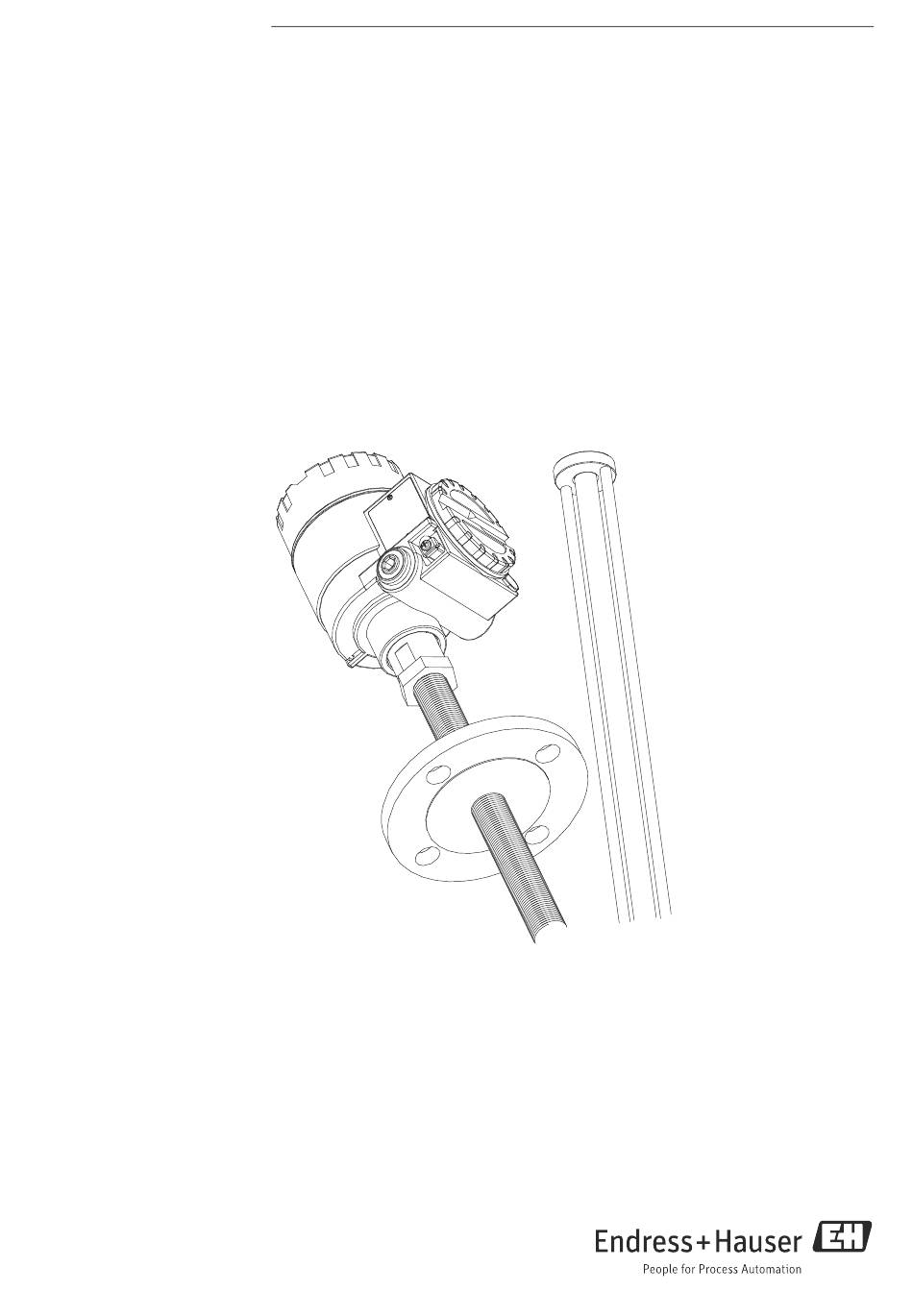

BA01026G/08/EN/18.15
71282283
Products
Operating Instructions and
Description of Instrument Function
Prothermo NMT539
Temperature
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Prothermo NMT539

Summary of Contents for Endress+Hauser Prothermo NMT539

  • Page 1 BA01026G/08/EN/18.15 Products Solutions Services 71282283 Operating Instructions and Description of Instrument Function Prothermo NMT539 Temperature...
  • Page 2 NRF590 Figure 1: System Layout 1 Average Temperature Prothermo NMT539 Installation on Tank Top • The actual installation may require an installer to work in a hazardous area. Safety must be taken into account in order to avoid any harmful conditions.

  • Page 3: Table Of Contents

    Table of Contents Prothermo NMT539 Table of Contents Notes on Safety Conventions and Symbols . . . 4 Operation and Description of Instrument Function....... . . 9 Symbols for Certain Types of Information .

  • Page 4: Notes On Safety Conventions And Symbols

    1 Notes on Safety Conventions and Symbols Prothermo NMT539 Notes on Safety Conventions and Symbols To highlight safety-relevant or alternative operating procedures in this manual, the following conven- tions have been used, each indicated by a corresponding symbol on the left.

  • Page 5: Initial Set Up

    2.1.1 Endress+Hauser Tank Gauging Instrument NMT539 is developed and designated primarily to work with Endress+Hauser tank gauging host instruments Tank Side Monitor NRF590 or Proservo NMS5/NMS7. Both temperature and / or water bottom information are transmitted on a two wire i.s local HART loop to the host instrument.

  • Page 6: Device Setup: Nrf590

    Connect the loop powered local HART communication cable from the NRF590 (intrinsically safe side compartment) to NMT539 according to BA01025G "Installation Instructions." Since NRF590 has been designed to recognize NMT539 as a specific Endress+Hauser local HART instrument, set up is easy.

  • Page 7: Device Setup: Nms5/Nms7

    NMS5/NMS7. WARNING WB (Water Bottom) sensor information is not available on NMS5/NMS7 before ROM version 4.24. Consult with Endress+Hauser representatives to update the installed NMS5/NMS7 function. Typical NMT539 parameters are displayed on the matrix of NMS5/NMS7 G0 Static Matrix GVH010: Liquid Temp Display average liquid temperature.
  • Page 8 2 Initial Set Up Prothermo NMT539 GVH460 to 469: Element Position No.1 to 10 Display each element position in the probe. Indicating element position above 11 to 16 must be selected at the GVH470 "Select Point", then the positions are shown at GVH474 "Element Position"...

  • Page 9: Operation And Description Of Instrument

    3 Operation and Description of Instrument Function Prothermo NMT539 Operation and Description of Instrument Function This section is described for description for FieldCare. NMT539 has segmented local HART device code depending on measurement function. Following 4 local HART device codes are normally pre-set at the factory by jumper setting.

  • Page 10: Temperature Measurement

    3 Operation and Description of Instrument Function Prothermo NMT539 Temperature Measurement These 2 local HART device codes 184 is designated to perform only temperature measurement func- tion. Available parameter and function are follows. Description of these parameters are the informa- tion based on FieldCare menu.
  • Page 11 3 Operation and Description of Instrument Function Prothermo NMT539 3.3.2 Element Temperature 1: VH10 to VH19 VH10 to 19: Temperature 1 to 10 Item type: read only Range: -200°C to 240°C Display individual measured element temperature. 3.3.3 Element Temperature 2: VH20 to VH29...
  • Page 12 3 Operation and Description of Instrument Function Prothermo NMT539 NOTICE V = # of additional volume factor and related parameters are determined at VH53, 54, and 55. Element #5: 4.5°C (T5) Element #4: 4.0°C (T4) 2.0°C 2.0°C 2.0°C 2.0°C Element #3: 2.0°C (T3) Element #2: 3.0°C (T2)
  • Page 13 3 Operation and Description of Instrument Function Prothermo NMT539 Multi: When different or number of elements are located in each input cable; average temperature is consid- ered as the closest submerged element to the liquid level. To Converter Input Signal Cable Cu100 Element #5: 24.5°C (T5)
  • Page 14 3 Operation and Description of Instrument Function Prothermo NMT539 3.3.5 Element Position 2: VH40 to VH49 VH40 toVH45: Position 11 to 16 Item type: read and write Range: 0mm to 99999mm Individual element position from tank bottom Calculation is automatically performed when element spacing "Even" is selected at VH85. All of element position must be manually entered when "Not Even"...
  • Page 15 3 Operation and Description of Instrument Function Prothermo NMT539 VH49: Liquid Offset Item type: read and write Default: 300mm Range: 0mm to 99999mm When a temperature element in the liquid phase is within the range of 300mm shown below, it is not used for the average temperature calculation of the gas temperature.
  • Page 16 3 Operation and Description of Instrument Function Prothermo NMT539 3.3.7 Temperature Adjustment: VH70 to VH79 VH70: Element Select Item type: select Range: 0 to 19 Select "need adjustment" temperature element (0 = #1 element, 15 = #16 element, 19 = reference 100 Ohm resistor).
  • Page 17 3 Operation and Description of Instrument Function Prothermo NMT539 VH76: Resistance Adjustment Item type: read and write Default: 0 Range: -1000.0 to 1000.0 Adjust the element resistance at VH70. Minor resistance adjustment can be applied on the reading value. NOTICE Set "-0.3 Ohm"...
  • Page 18 3 Operation and Description of Instrument Function Prothermo NMT539 3.3.8 Device Setting 1: VH80 to VH89 VH80: Present Error Item type: read only Display the error message. Following code will be indicated. Error Code 0: No error presence 1: Common line open...
  • Page 19 3 Operation and Description of Instrument Function Prothermo NMT539 VH81: Temperature Unit Item type: select Default: °C Selection: °C, °F, °K Select the temperature display unit. Based on universal local HART setting, °C(HART code: 32), °F (HART code: 33), or °K (HART code: 35) is available.
  • Page 20 3 Operation and Description of Instrument Function Prothermo NMT539 VH86: Bottom Point Item type: read and write Default: 500mm Range: 0mm to 99999mm Position of #1 element that is also called "Bottom Point." #1 element position becomes critically important when "Even Interval" is selected at VH85 because remaining element positions rely on this location of Bottom Point.
  • Page 21 3 Operation and Description of Instrument Function Prothermo NMT539 VH93: Custody Mode Item type: read Default: Set default setting depending on the specification at factory. NOTICE Write protection of hardware is located on main CPU board (CN3 connector). VH94: Polling Address...

  • Page 22: Water Bottom Measurement

    3 Operation and Description of Instrument Function Prothermo NMT539 Water Bottom Measurement A local HART device codes "185" is designated to perform only water bottom (water interface) measure- ment function. NOTICE local HART device code will be only displayed when default header position or VH99 "Device Type Code"...
  • Page 23 3 Operation and Description of Instrument Function Prothermo NMT539 VH58: Offset Water Item type: read and write Default: about 100 to 110 This value is configured individually at the factory Range: -200 to +2000 Set WB level offset of measuring value.
  • Page 24 3 Operation and Description of Instrument Function Prothermo NMT539 VH61: Full Frequency Item type: read and write Default: about 3600 to 4400Hz, this value is configured individually at the factory Range: 0 to 9999Hz Enter measured frequency (VH52 value) when WB probe detects water I/F at 300mm or more.
  • Page 25 3 Operation and Description of Instrument Function Prothermo NMT539 Formula: (VH61 - VH60) / VH62 = VH63 Example at factory default: • VH57 = 1000mm • VH58 = 108.1mm • VH60 = 2127.4Hz • VH61 = 4291.8Hz • VH62 = 797.2mm •...
  • Page 26 3 Operation and Description of Instrument Function Prothermo NMT539 Hand Dipping: VH61 Full Frequency: Hand Dipping: VH60 Empty Frequency: Water I/F = 950mm 3000Hz Water I/F = 500mm 1500Hz Figure 11: Re-calibration e.g.: 950mm - 500mm = 450mm Re-calibrated WB probe linearity in operating tank (3000Hz - 1500Hz) / 450 = 3.33Hz / 1mm...
  • Page 27 3 Operation and Description of Instrument Function Prothermo NMT539 VH61 Full Frequency: 3000Hz at 950mm VH63 Water Factor: 3.33Hz change per 1mm Liquid VH61 Empty Frequency: 1500Hz at 500mm Figure 12: Water Factor NOTICE Once Water Factor is determined by given parameters, actual water I/F measurement is calculated from detected frequency to distance conversion.

  • Page 28: Temperature + Water Bottom Measurement

    3 Operation and Description of Instrument Function Prothermo NMT539 3.4.4 Temperature Adjustment: VH70 to VH79 NH79: Protect Code Item type: read and write Default: 0 Range: 0 to 999 Access code 530 is to enable selection and configuration Temperature + Water Bottom Measurement Local HART device code "186"...

  • Page 29: Replacement

    4 Replacement Prothermo NMT539 Replacement After replacing CPU board of NMT539, the parameters must be manually re-entered into the replaced CPU board for proper functions. After replacing CPU board, check the following Matrix parameters. NMS5/NMS7 GVH FieldCare/Contents Level Select 450 to 459 Element position No.
  • Page 30 www.addresses.endress.com...
