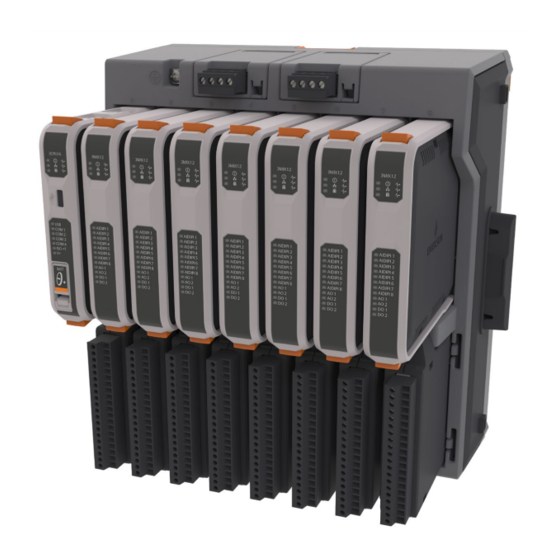

- Page 1 FB3000 RTU Personality Module Field Installation Guide D301872X012 June 2021 FB3000 Remote Terminal Unit (RTU) Personality Module (3CPU16) Field Installation Guide Remote Automation Solutions...
-
Page 2: System Training
Our full-time professional instructors can conduct classroom training at several of our corporate offices, at your site, or even at your regional Emerson office. You can also receive the same quality training via our live, interactive Emerson Virtual Classroom and save on travel costs. For our complete schedule and further information, contact the Remote Automation Solutions Training Department at 800-338-8158 or email us at education@emerson.com. - Page 3 FB3000 Personality Module Field Installation Guide D301872X012 June 2021 Removing/Replacing a Personality Module DANGER Ensure the RTU is in a non-hazardous area. Never open the enclosure in a hazardous area. DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous.
- Page 4 FB3000 Personality Module Field Installation Guide D301872X012 June 2021 Using a ¼” slotted blade screwdriver, loosen the captive fastening screw at the top of the personality module and slide the module straight out of the slot. Removing a Personality Module Press the new replacement personality module into the slot until it is properly seated, then tighten the captive fastening screw.
- Page 5 FB3000 Personality Module Field Installation Guide D301872X012 June 2021 If you replaced an existing personality module with an identical replacement, and were able to re-use the terminal blocks, reattach the terminal block by pressing it into place; otherwise, wire the new terminal block as required.
- Page 6 FB3000 Personality Module Field Installation Guide D301872X012 June 2021 Wiring the Personality Module If you were unable to reuse the existing terminal block wiring, follow the wiring instructions for your particular module. If you need more detail than is presented here, refer to the FB3000 RTU Instruction Manual (D301851X012).
- Page 7 FB3000 Personality Module Field Installation Guide D301872X012 June 2021 COM1 Configured as RS-485 (4-wire) RS-485 (4-wire) port on device Cable shield connection to chassis ground (use either pin 19 or 20) COM1 Configured as RS-485 (2-wire) RS-485 (2-wire) port on device...
- Page 8 FB3000 Personality Module Field Installation Guide D301872X012 June 2021 COM2 Configured as RS-232 RS-485 port on device Cable shield connection to chassis ground (use either pin 19 or 20) COM2 Configured as RS-485 (4-wire) RS-485 (4-wire) port on device Cable shield connection to chassis ground (use either pin 19 or 20)
- Page 9 FB3000 Personality Module Field Installation Guide D301872X012 June 2021 COM2 Configured as RS-485 (2-wire) RS-485 (2-wire) port on device Cable shield connection to chassis ground (use either pin 19 or 20) COM3 Configured as RS-485 (2-wire) Enable AC termination using switch...
- Page 10 FB3000 Personality Module Field Installation Guide D301872X012 June 2021 COM4 Configured as RS-485 (2-wire) Enable AC termination using switch RS-485 bus, twisted pair required Cable shield connection to chassis ground (use either pin 19 or 20)
- Page 11 FB3000 Personality Module Field Installation Guide D301872X012 June 2021 Ethernet and Micro USB Ports Location of Ethernet and USB Ports Ethernet Port 1 Ethernet Port 2 Micro A-B USB Port...
-
Page 12: Analog Input (Ai)
FB3000 Personality Module Field Installation Guide D301872X012 June 2021 Wiring I/O on the Mixed I/O Module (3MIX12) Analog Input (AI) AI Wiring Using 1–5 Vdc or 4–20 mA External Voltage Source External Current Source Power Supply 30VDC Max... -
Page 13: Analog Output (Ao)
FB3000 Personality Module Field Installation Guide D301872X012 June 2021 AI Wiring Using Loop Power External Current Source Analog Output (AO) AO Wiring... -
Page 14: Digital Input (Di)
FB3000 Personality Module Field Installation Guide D301872X012 June 2021 Digital Input (DI) DI Wiring (internal pull-up enabled) Digital Output (DO) Digital Output (DO) Wiring –High Side Internal Switch with 24V Loop Supply 50 mA load max field device High Side Switch - INTERNAL... - Page 15 FB3000 Personality Module Field Installation Guide D301872X012 June 2021 DO Wiring: Low Side Internal Switch Power Supply 30VDC Max 50 mA load max field device Low side switch - internal Suppression diodes Relay coil or inductive load Digital Output (DO) Wiring – Dry Contact Closure using 24V Loop Supply...
- Page 16 FB3000 Personality Module Field Installation Guide D301872X012 June 2021 Digital Output (DO) Wiring –Dry Contact Closure [img=DO_Wiring_Example2.jpg,cdr] 500 mA load max field device 30VDC Max Power Supply DOHI_1/DOLO_1 configured as an external low side switch (LSS) DOHI_2/DOLO_2 configured as an external high side switch (HSS)
- Page 17 FB3000 Personality Module Field Installation Guide D301872X012 June 2021 Pulse Input (PI) Pulse Input (PI) Wiring External Device (Because no power supply, requires internal pull-up to be enabled.) External Device 30VDC Max Power Supply Control signal...
