MPC-X100 100 Hz Subwoofer Crossover
For JBL MPC and MPA amplifiers
Owner's Manual and Installation Guide
I. Description
*TD-000084-00*
TD-000084-00
Rev. A
All manuals and user guides at all-guides.com
100 Hz
Linkwitz-Riley
Low-Pass Filter
Channel 1
(subwoofer)
Programmable
Linkwitz-Riley
Low-Pass Filter
(factory preset @ 20 kHz)
Channel 2
(high-pass or full-range)

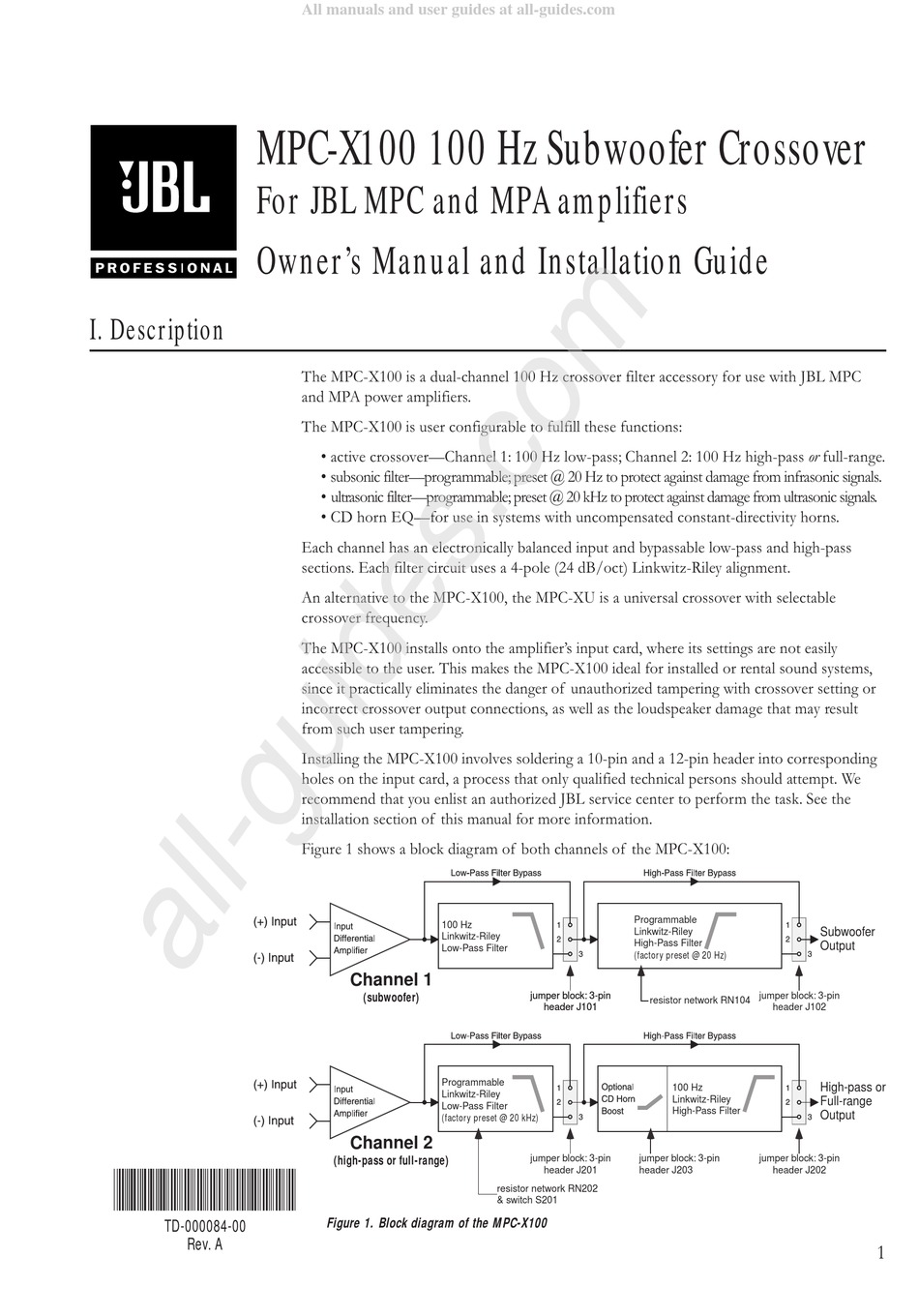

Figure 1. Block diagram of the MPC-X100
Programmable
Linkwitz-Riley
High-Pass Filter
(factory preset @ 20 Hz)
jumper block: 3-pin
jumper block: 3-pin
resistor network RN104
header J101
header J101
jumper block: 3-pin
jumper block: 3-pin
header J201
header J203
resistor network RN202
& switch S201
or
Subwoofer
Output
jumper block: 3-pin
header J102
High-pass or
100 Hz
Linkwitz-Riley
Full-range
High-Pass Filter
Output
jumper block: 3-pin
header J202
