Sony XM-ZR602 Service Manual

Sony XM-ZR602 Service Manual

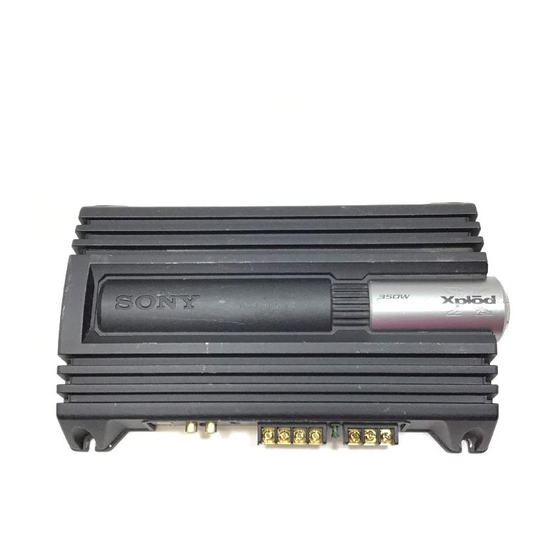

Stereo power amplifier
Hide thumbs Also See for XM-ZR602:

Advertisement

Quick Links

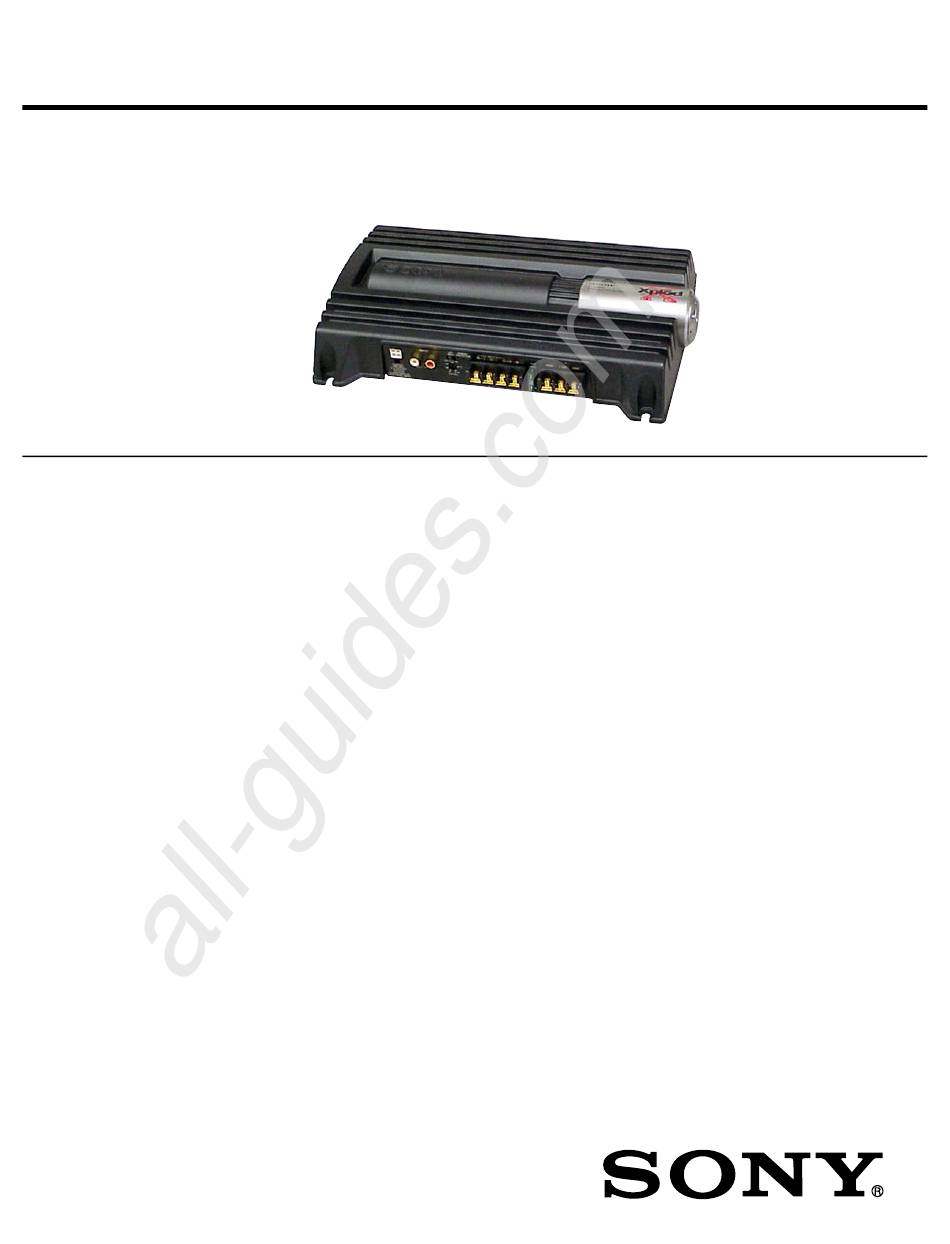

SERVICE MANUAL
Ver. 1.1 2007. 08
Sony Corporation
9-887-769-02
2007H04-1
eVehicle Division
© 2007. 08
Published by Sony Techno Create Corporation
All manuals and user guides at all-guides.com
Photo: Red Logo
SPECIFICATIONS
Circuit system
OTL (output transformerless) circuit
Pulse power supply
Inputs
RCA pin jacks
High level input connector
Input level adjustment range
0.3 – 6 V (RCA pin jacks),
2.8 – 12 V (High level input)
Outputs
Speaker terminals
Speaker impedance
2 – 8 Ω (stereo)
4 – 8 Ω (when used as a bridging amplifier)
110 W × 2 (at 4 Ω)
Maximum outputs
350 W (BTL, at 4 Ω)
Rated outputs (supply voltage at 14.4 V)
60 W × 2 (20 Hz – 20 kHz, 1% THD, at 4 Ω)
65 W × 2 (20 Hz – 20 kHz, 0.1% THD, at 2 Ω)
130 W (BTL) (20 Hz – 20 kHz, 0.1% THD, at 4 Ω)
Frequency response
5 Hz – 50 kHz (
Harmonic distortion
0.005% or less (at 1 kHz, 4 Ω)
Low-pass filter
80 Hz, –18 dB/oct
Power requirements
12 V DC car battery (negative ground)
Power supply voltage
10.5 – 16 V
at rated output : 15 A (at 4 Ω, 60 W × 2)
Current drain
Remote input : 1 mA
Dimensions
Approx. 321 × 55 × 200 mm (w/h/d)
not incl. projecting parts and controls
Mass
Approx. 2.0 kg not incl. accessories
Supplied accessories
Mounting screws (4)
High level input cord (1)
Protection cap (1)
Design and specifications are subject to change without
notice.
XM-ZR602
+0
dB)
–3
STEREO POWER AMPLIFIER
AEP Model
UK Model
E Model
1
