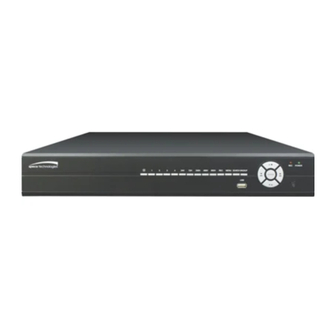

- Page 1 Speco Technologies 200 New Highway Amityville, NY 11701 800-645-5516 www.specotech.com EZVR4/8 DVR SATA HDD User’s Manual...
-
Page 3: Safety Precautions
Safety Precautions CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of insulated dangerous Voltage within the product’s enclosure that may be of sufficient magnitude to constitute risk of electrical shock to persons. -
Page 4: About This Document
About this document Before installing the unit, be sure to thoroughly review and follow the instructions in this User’s Manual. Pay particular attention to the parts that are marked NOTICE. When connecting with external application, first turn the power OFF and follow manual instructions for appropriate installation. - Page 5 FCC Statement: WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation."...
-
Page 6: Installation
INSTALLATION 1. The package 3. Take the unit out from the package 5. Connect your camera cables to the BNC connectors on the rear. 2. Un-packed 4. Put on a flat desk 6. Connect your monitor cable to the BNC connector labeled “Monitor”... -
Page 7: Front Panel Keypad
FRONT PANEL KEYPAD Please operate the keypad function according to the DVR model that you purchased Screen mode EZVR4 : Quad screen mode button : Channel 1 full screen button CHANNEL 1 : Channel 2 full screen button CHANNEL 2 : Channel 3 full screen button CHANNEL 3 : Channel 4 full screen button... - Page 8 Record mode EZVR4 / EZVR8 : 24 hour recording mode : 72 hour recording mode : 240 hour recording mode 240H : 480 hour recording mode 480H : 960 hour recording mode 960H : Press this button to start recording. Press again to stop. Miscellaneous EZVR4 / EZVR8 : Press this button to display the menu setup...
-
Page 9: Rear Panel Connector
REAR PANEL CONNECTOR Power cord in 12VDC / 5A, Power Switch (ON / OFF) EZVR4: Camera 1 ~ 4 input BNC type EZVR8: Camera 1 ~ 8 input BNC type Main monitor output x 2 Audio channel input x 4 and output x 2 – RCA Type Alarm / Relay / RS485 connector... - Page 10 Booting Up Indicator: Live: HDD installed Live mode Alarm Input Playback: Forward Detecting the hard disk Recording Overwrite Video loss Key lock Alarm Output Reverse Pause Live screen...
- Page 11 Remote controller The keys on the remote control have the same functions as the front keyboard of the unit. User please operate according to the DVR model that you purchased...
- Page 12 Main MENU – Time Setup Press ENTER to select Time Set. Press ENTER again to display the cursor. Use the left or right buttons to select the item you wish to adjust, then press ENTER to change the value. Press MENU to return to the previous screen and move the cursor to Apply. Press ENTER to confirm.
- Page 13 Main MENU – Audio Record Use direction buttons to select Audio Record. Diagram Speaker Microphone Notice: 1. Audio channel input x 4 and output x 2 2. Audio is always on input 1 when DVR is on QUAD screen of live/playback mode 3.
- Page 14 Main MENU – Alarm Input Main MENU – Alarm Output Use direction buttons to select Alarm Output. Press the Enter button to turn the output relay on or off. Use direction buttons to select Alarm Input. Press the Enter button to choose the type of sensor input (Normally Open - NO or Normally Closed - NC).
- Page 15 Alarm Input The Alarm Signal type depends upon the Alarm Sensor polarity defined as NO (Normal Open) or NC (Normal Close). Alarm Output: Relay: NO + COM or NC + COM Relay: NO (Normal open) Door closed Alarm trigger Relay: NC (Normal Close) Door open...
- Page 16 Use direction buttons to select Overwrite Enable. Press the Enter button to choose Yes or No. When Auto Record is set to On, the EZVR4/8 will start recording again after 2 minutes of inactivity after being manually stopped. YES – Recording continues to overwrite the...
- Page 17 Main MENU – Status Bar Use direction buttons to select Status Bar . Then press ENTER to select ON or Off . Main MENU – Language If set ON, the status bar will show date-time and status icons . If set Off the status bar will hide date-time and status icons .
- Page 18 Main MENU – Exit Playback mode – Note: Instructions appear on the screen after selecting “Search” Press SEARCH to enter the playback mode. Use the left or right arrows to select the item you wish to change, then press ENTER to change the value Use direction buttons to select Exit.
- Page 19 Press ENTER to start the searching. Backup mode Note: Plug in a USB device before starting the backup You must first playback an event using instructions from the previous page. Wait until the unit starts to playback. When the event you wish to backup appears on the screen, press the BACKUP button to select the start time.
- Page 20 Player Software Main Screen Please operate the player software according to the DVR model that you purchased Click icon to select the file to play. It will be in .vvf format...
- Page 21 Starts to play; 2 3 4 5 6 Open File Fast Reverse Play Reverse Previous Frame Pause Next Frame Play AVI Button: .vvf file export to .avi format Percentage of the export AVI progress 9 10 11 12 13 Fast Forward Capture (Save to C:\ Capture &...
- Page 22 Specifications EZVR4 Model 4 CH Inputs 1.0Vp-p, 75ohm Input (BNC Type) Output Main monitor composite video (BNC type) x 2 S/N Ratio More than 40dB Color 6.7 Million Monitoring Method Channel Display 1 / 4 channel display 720(H) x 448(V) Active Pixels(NTSC); Live Screen Resolution 720(H) x 544(V) Active Pixels (PAL) Display Rate...
- Page 24 85-DM4063-A004G B...
