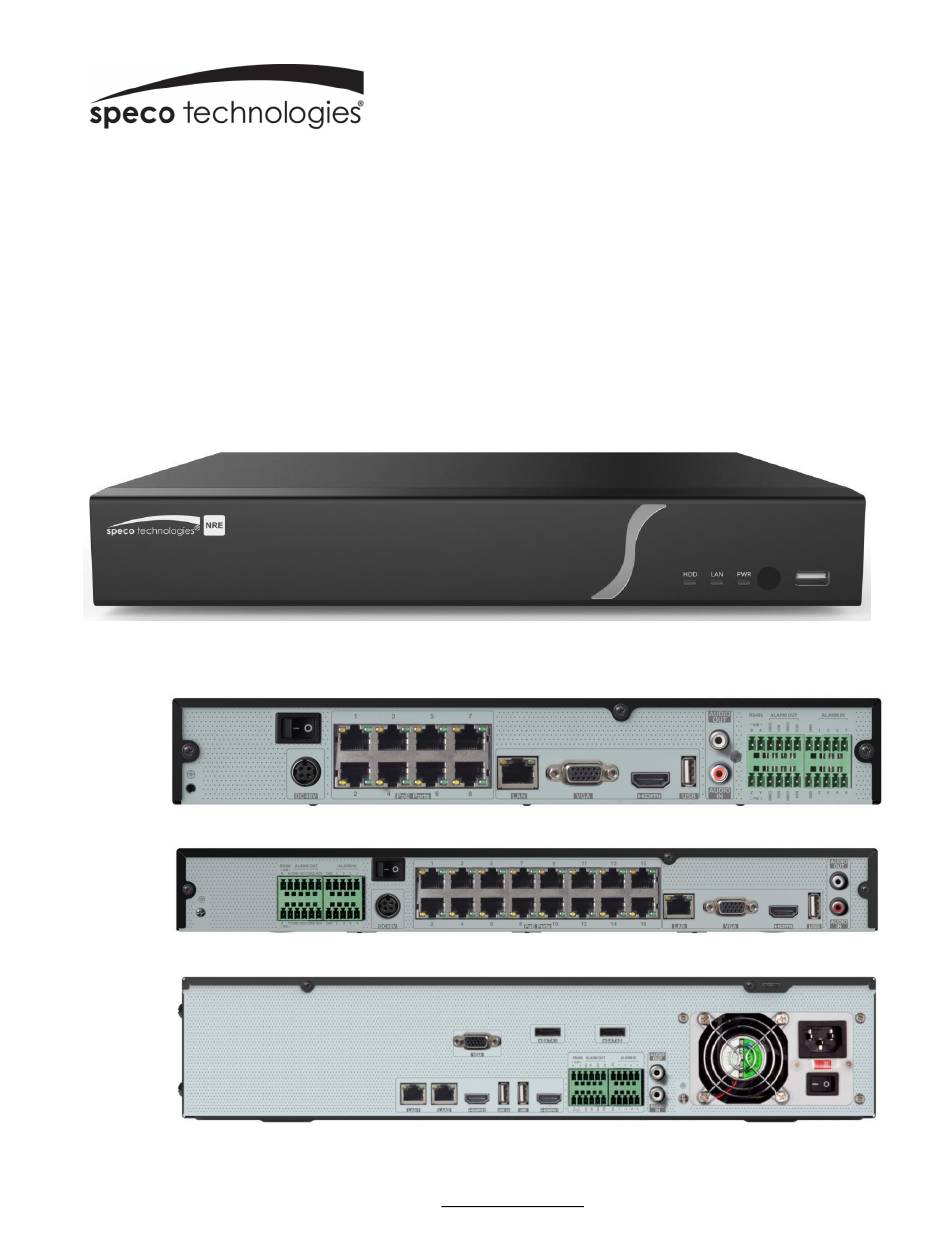

- Page 1 NRE (8/16/32 Channel) User Manual N8NRE N16NRE N32NRE Version 1.0 Features and specifications are subject to change, please check www.specotech.com for firmware updates.
-
Page 2: Table Of Contents
Notes& Contents NVR User Manual Notes Please read this user manual carefully to ensure that you can use the device correctly and safely. There may be several technically incorrect places or printing errors in this manual. The updates will be added into the new version of this manual. - Page 3 Notes& Contents NVR User Manual 5.3.5 Fisheye Settings ....................................24 PTZ .......................................... 25 6.1 PTZ Control Interface Introduction .................................. 25 6.2 Preset Setting ........................................28 6.3 Cruise Setting ........................................29 6.4 Cruise Group Settings ...................................... 30 6.5 Trace Settings ........................................30 6.6 Task Settings ........................................
- Page 4 Notes& Contents NVR User Manual 10.2.1 Face Search ......................................65 10.2.2 Track Playback ....................................69 10.2.3 Face Search by Snapshot ..................................70 10.2.4 Human Body Search ................................... 71 10.2.5 Vehicle Search ....................................71 10.2.6 Combination Search ................................... 72 10.3 View Statistical Information ..................................73 10.4 Face Attendance ......................................
- Page 5 Notes& Contents NVR User Manual Remote Surveillance ....................................97 14.1 Mobile Client Surveillance ..................................... 97 14.2 Web LAN Access ......................................97 14.3 Web WAN Access ......................................97 14.4 Web Remote Control ..................................... 98 14.4.1 Remote Preview ....................................98 14.4.2 Remote Playback ....................................101 14.4.3 Remote Export ....................................
-
Page 6: Introduction
NVR will not be changed if that of the web client is changed Disk Management N8NRE supports 1 SATA HDD: N16NRE supports 2 SATA HDDs; N32NRE supports 8 SATA HDDs and 2 3-SATA HDDs Each SATA interface of the NVR supports the HDDs with max 14TB storage capacity ... - Page 7 Introduction NVR User Manual Supports time scale operation in quick playback and the playback date and time can be set randomly by scrolling the mouse; the time interval of the time scale can be zoomed Supports record searching by time slice/time/event/tag ...
-
Page 8: Front Panel Descriptions
Power indicator, when connection , the light is blue 1.4 Rear Panel Descriptions To quickly get started, connect the following to your recorder in the following order, please refer to the following figure (N8NRE shown for reference). Connect IP cameras to the PoE ports of the recorder. -
Page 9: Basic Operation Guide
Basic Operation Guide NVR User Manual 2 Basic Operation Guide 2.1 Startup & Shutdown Please make sure all the connections are done properly before you power on the unit. Proper startup and shutdown are crucial to expending the life of your device. 2.1.1 Startup ①... -
Page 10: Mouse Control
Basic Operation Guide NVR User Manual Button Function Switch off—to stop the device Power Button Record Button To start recording -/-- /0-9 Input number or choose camera Fn1 Button Unavailable temporarily Multi Button To choose multi screen display mode Next Button To switch the live image To go to sequence view mode Audio... -
Page 11: Common Button Operation
Basic Operation Guide NVR User Manual The system includes two input boxes. Refer to the above pictures. The left box is the number input box and the right box is the input box which provides inputs of numbers, letters and punctuation characters. The introductions of keys on the input boxes are shown below. Button Meaning Button... -
Page 12: Ez Setup & Main Interface
EZ Setup & Main Interface NVR User Manual 3 EZ Setup & Main Interface 3.1 EZ Setup The disk icons will be shown on the top of the startup interface. You can view the number and status of each disk quickly and conveniently through these icons ( : no disk;... - Page 13 EZ Setup & Main Interface NVR User Manual ③ Disk Settings. You can view the disk number, disk capacity of the NVR and serial number, R&W status of the disk. Click “Format” to format the disk. Click “Next” to continue. Then click “EZ Setup”. ④...
- Page 14 NVR User Manual ⑥ Add Camera. Add cameras via PoE first before adding any cameras from the LAN. Speco cameras added via the PoE ports will automatically be added to the corresponding channel. To add cameras from the LAN, make sure all cameras are set to DHCP. Click “Refresh” to refresh the list of online IP cameras which are in the same local network with NVR and then click to add the searched camera.
-
Page 15: Main Interface
EZ Setup & Main Interface NVR User Manual Manual: Set the “Sensor Record”, “Motion Record” and “Schedule Record” of each camera. Click “OK” to save. See 7.1.1 Mode Configuration for details. ⑧ QRCode. Enable the NAT function in the interface or set it in the network configuration after exiting the wizard (please refer to 13.1.8 NAT Configuration for details). - Page 16 EZ Setup & Main Interface NVR User Manual The buttons in area ① are introduced in the table below. Button Meaning Start button. Click it to pop up area ③. Full screen button. Click it to show full screen; click it again to exit the full screen.
-
Page 17: Setup Panel
EZ Setup & Main Interface NVR User Manual 3.2.2 Setup Panel Click StartSettings to pop up the setup panel as shown below. The setup panel includes seven modules. Each module provides some function entries with links for convenient operation. Here we take Camera module as an example. The Camera module provides convenient links such as “Add Camera”, “Edit Camera”, “Image Settings”, “Motion”, “Intelligence Analysis”... - Page 18 EZ Setup & Main Interface NVR User Manual Configuration for details), Motion (see 11.2.1 Motion Configuration for details), and PTZ (see Chapter 6 PTZ for details) and so on. Record The module covers the functions such as Encode Parameters and Record Schedule and so on. Please see Chapter 7 Record & Disk Management for details.
-
Page 19: Camera Management
Camera Management NVR User Manual 4 Camera Management 4.1 Add/Edit Camera 4.1.1 Add Camera The network of the NVR should be set before adding IP camera (see 13.1.1 TCP/IP Configuration for details). Refer to the pictures below. Click Add Camera in the setup panel or in the top right corner of the preview window to pop up the “Add Camera”... -
Page 20: Edit Camera
Camera Management NVR User Manual and password before clicking “Add” button). Click to delete the camera. Click “Default Password” to set the default username and password of each camera. Note: Some models may not support this function. Click StartSettingsSystemBasicGeneral Settings to check “Enable Add IPC by Zero Operation”. If the NVR has unoccupied channels, it can add IPC without any operation by restarting. -
Page 21: Add/Edit Camera Group
Camera Management NVR User Manual The IP cameras with PoE function which directly connect to the PoE port of the NVR will be displayed automatically in the camera list. Refer to the picture below. The IP camera which occupies the PoE resource has a prefix shown before its camera name. The prefix consists of PoE plus PoE port number. -
Page 22: Ip Planning
Camera Management NVR User Manual Click to modify the group information such as group name and dwell time. Click to delete the group. 4.2.3 IP Planning Some models may not support this function. Click “IP Planning” to go to the interface as shown below. This function supports searching other NVRs/DVRs that is in the same local network as the local NVR. -
Page 23: Live View Introduction
Live View Introduction NVR User Manual 5 Live View Introduction 5.1 Live View Interface Introduction You should add camera first after logging on to the system (see 4.1.1 Add Camera for details). Refer to the interface as shown below, drag one camera in the preview window to another window for camera window exchanging. -
Page 24: View Mode
Live View Introduction NVR User Manual 5.2 View Mode 5.2.1 Display Mode Set different screen modes and cameras’ display sequences as needed and then save the display modes classified by surveillance areas, priorities and so on. Refer to the picture below. Double click one display mode in the display mode list to view the live images in this mode. ... -
Page 25: Quick Sequence View
Live View Introduction NVR User Manual name; click to delete the display mode. 5.2.2 Quick Sequence View You can start quick sequence view if the scheme has not been created. If the scheme has been created, please refer to 5.2.4 Scheme View in Sequence for details. -
Page 26: Scheme View In Sequence
Live View Introduction NVR User Manual to modify the group name and sequence interval. Click to delete the group. 5.2.4 Scheme View In Sequence Click StartSettingsSystemBasicOutput Settings to go to the interface as shown below. Area ① displays all the dwell schemes; area ② shows the detailed information of the scheme; area ③ displays all the cameras and groups; area ④... -
Page 27: Image Settings
Live View Introduction NVR User Manual 5.3.2 Image Settings Click StartSettingsCameraImageImage Settings to go to the following interface. Select the camera and then set the brightness, contrast, saturation and hue of the camera. Click “Advanced” button or in the camera list on the right side of the interface to pop up “Image Adjust” interface and then set the relevant setting items. -
Page 28: Image Adjustment
Live View Introduction NVR User Manual 5.3.4 Image Adjustment Go to the live view interface and then click button on the tool bar under the camera window to go to the image adjustment interface. Image Adjustment Select the camera and then click “Image Adjustment” to go to image adjustment tab. Refer to the above picture. Drag the slider to set the camera’s brightness, contrast, saturation and hue value. -
Page 29: Fisheye Settings
Live View Introduction NVR User Manual The introductions of these parameters and buttons are as follows. Button/Parameter Meaning Click to zoom in/out the image. If manual mode is selected, focus button & “One Key Focus” & “Day/night Focus Mode mode switch autofocus” will be available; if auto mode is selected, the time interval setup will be available. -
Page 30: Ptz
NVR User Manual 6 PTZ 6.1 PTZ Control Interface Introduction You can control the IP dome or PTZ which connects to the IP camera for PTZ control. Click on the tool bar at the bottom of the live preview window to go to the PTZ control interface as shown below. The direction, zoom, focus, iris and speed can be controlled in the small PTZ control window. - Page 31 NVR User Manual stop dragging the analog joystick. 3D Control Click the camera image on any area and then the image will be centered on the clicked point. Refer to the picture as shown below. Drag the mouse from A to B to get a green rectangle and the rectangle area will be zoomed in. Refer to the picture as shown below.
- Page 32 NVR User Manual Adjust the dome’s direction and then click “Save Position” to save the current preset position (you can also click another preset in the preset list and then save the preset position after adjusting the dome’s direction); click in the preset list to call the preset;...
-
Page 33: Preset Setting
NVR User Manual In the “Add Cruise” window, select the cruise line name. After that, click “Play” to play the cruise lines in sequence. Trace Settings On the right panel, click to go to the trace setting tab. Click “Add” to add the trace name. Then click “OK” to save this name. Please refer to the following picture. -
Page 34: Cruise Setting
NVR User Manual Add preset Select camera and then click “Add” button to add preset; or click in the camera list on the right side of the interface to display the preset information of the dome and then click to add preset. -
Page 35: Cruise Group Settings
NVR User Manual details. Edit Cruise Select the camera and cruise in the “Cruise” interface. Enter the new cruise name and then click to save the cruise name. Click “Add Preset” to add preset to the cruise. Click to edit the preset. Click to delete the preset from the cruise. -
Page 36: Task Settings
NVR User Manual Play or Stop Trace Select the trace and click to play the trace; click to stop the trace. Modify the Trace Name On the left panel, enter new trace name and click to modify and save the trace name. ... -
Page 37: Record & Disk Management
Record & Disk Management NVR User Manual 7 Record & Disk Management 7.1 Record Configuration 7.1.1 Mode Configuration Please format the HDDs before recording (refer to 7.4 Disk Management for details). Click StartSettingsRecordMode Settings to go to the mode settings interface. You can set the record time under the “Manual Record Settings” and then click “Apply” to save the settings. There are two record modes: auto mode and manual mode. -
Page 38: Schedule Settings
Record & Disk Management NVR User Manual Video Encode: the available options will be H.265 and H.264 if the connected IP camera supports H.265, or the option will be H.264 only. GOP: group of pictures. Resolution: the higher the resolution is, the clearer the image is. FPS: the higher the frame rate is, the more fluency the video is. - Page 39 Record & Disk Management NVR User Manual Set the schedule name and schedule time and then click “Add” to save the schedule. You can set day schedule or week schedule. : add button; : delete button. Set Day Schedule Click and then drag the cursor on the time scale to set record time;...
-
Page 40: Advanced Configuration
Record & Disk Management NVR User Manual Click “All” to set all week recording; click “Reverse” to swap the selected and unselected time in a week; click “Clear All” to clear all the selected area in a week. 7.1.3 Advanced Configuration Click StartSettingsRecordAdvanced to go to the following interface. -
Page 41: Timing Recording
Record & Disk Management NVR User Manual 7.3.2 Timing Recording Timing Recording: the system will record automatically according to the schedule. Set the timing record schedule of each camera. See 7.1.2 Schedule Settings for details. 7.3.3 Motion Based Recording Motion Based Recording: the system will start motion based recording when the motion object appears in the setup schedule. The setup steps are as follows: ①... - Page 42 Record & Disk Management NVR User Manual RAID ① Enable RAID (Go to StartSettingsDiskDisk Mode) ② Create an array. (Go to StartSettingsDiskPhysical Disk) a. Click “Physical Disk” tab and then click “Create an array”. b. Enter the user name and password which has the authority of Disk Management. If you don’t have one, you can use the user name and password that you login system (the default username: admin;...
-
Page 43: Storage Mode Configuration
Record & Disk Management NVR User Manual RAID Rebuilding If one of your disks is broken, the disk indicator on the front panel will turn red. Of course, a warning tip will pop up if the relevant HDD exception alarm is set. -
Page 44: View Disk And S.m.a.r.t. Information
Record & Disk Management NVR User Manual Each group can add the disks and cameras from other groups. Each disk and camera can only be added into one group. Select a disk group and then click in the disk or camera row to pop up a window. Check the disks or cameras in the window and then click “Add”. For the model with 2 or 4 HDD slots, BK group can be added. -
Page 45: Playback & Backup
Playback & Backup NVR User Manual 8 Playback & Backup 8.1 Instant Playback Click on the tool bar at the bottom of the preview camera window to play back the record (click on the tool bar at the bottom of the live view interface to set the default playback time). - Page 46 Playback & Backup NVR User Manual Button Meaning Start button. Click it to pop up area ②. Full screen button. Click it to show full screen; click it again to exit the full screen. Screen mode button. OSD ON button. Click it to enable OSD; click it again to disable OSD. Quick channel selection button Stop button.
-
Page 47: Smart Playback
Playback & Backup NVR User Manual Close Camera Click it to close the playback camera. Introduction of area ④: Click to set the date; click to set the time and then the playback camera will play the record from the time you set. You can check the record type as required for record playback;... -
Page 48: Smart Playback Settings
Playback & Backup NVR User Manual 8.3.1 Smart Playback Settings Click to set the speed of non-interest video (Please skip this one if you click “Skip non-interest video”), “Speed of interest video” and “Intrusion percentage”. You can disable “Non-Focus” to view the video you interest in the right corner of the smart playback interface. 8.3.2 Smart Playback Based on Motion Detection ... -
Page 49: Smart Search By License Plate
Playback & Backup NVR User Manual ① In the smart playback interface, click to pop up the following window. ① Set similarity. The higher the sensitivity value is, the lower the searching accuracy is, and vice versa. ② Select targets. You can select targets from recent, face database, snapshot gallery or external faces. ③... -
Page 50: Record Search, Playback & Export
Playback & Backup NVR User Manual Select the plate from “Recent”, “Plate Database” or “Customization” and then click “Search” to search recorded files and play. Here we take an example of search plate from “Plate Database”. Click to choose a group. Then plates will be listed in the table automaticaly. Click “Search” to play. 8.4 Record Search, Playback &... -
Page 51: Time Search
Playback & Backup NVR User Manual ③ Click the image box to play the record in the small playback box on the left side of the interface (the box which has image inside indicates that the record data exist). ④ Refer to the picture below. Drag the color blocks on the time scale to select the record data and then click “Export” button to pop up the “Record Backup”... -
Page 52: Event Search
Playback & Backup NVR User Manual set the backup start time and end time) and then click “Export” button for record backup. Click “Playback” button to play the record in the playback interface. 8.4.3 Event Search ① Click StartSearch and ExportEvent Search to go to “Event Search” tab as shown below. ②... -
Page 53: Snapshots
Playback & Backup NVR User Manual Click in the interface to play the record. Click to edit the tag name. Click to delete the tag. 8.4.5 Snapshots Click StartSearch and ExportSnapshots to go to “Snapshots” tab. The system will display all the captured images automatically in the list. Click to delete the image. -
Page 54: Ai Event Management
AI Event Management NVR User Manual 9 AI Event Management 9.1 Face Recognition Please set face recognition function according to the following procedures for the first time. Set face detection and alarm linkage Add face group Add faces to the face group Enable and set successful recognition (or stranger) ... -
Page 55: Face Database Management
AI Event Management NVR User Manual ⑥ Enable “Save Source Information” or/and “Save Face Information” as needed. If enabled, the system will automatically save the corresponding images on the SD card. For the models with LED light, white light mode also can be set. ⑦... - Page 56 AI Event Management NVR User Manual For the first time, you can click “+” or “Add Group” to add groups. ② To add targets for each group. ② Select a list and then click to expand the list as shown below. ③...
-
Page 57: Face Recognition Settings
AI Event Management NVR User Manual Add external faces Save the face pictures in your USB storage device and then insert the USB storage device into the USB port of the NVR. Go to the face database interface. Click to expand the group and then click “Add”. Select “External faces” to select face pictures. You can select one face to add or multiple faces to add. - Page 58 AI Event Management NVR User Manual ① Enable “Successful Recognition” or “Stranger”. Click “Parameter Settings” to set the similarity of the matching face group. Disable live display: if checked, the live view interface (target detection tab) will not display captured faces in real time. ②...
-
Page 59: License Plate Recognition
AI Event Management NVR User Manual Configure the schedule Set the text prompt and voice prompt. The text will show on the captured picture and the voice will be broadcasted when detecting a stranger. Trigger record, snapshot, alarm-out, buzzer, push, pop-up video, E-mail and pop-up message box as needed. The alarm linkage settings are similar to the face detection alarm (See 9.1.1 Face Detection Settings for details). -
Page 60: Plate Database Management
AI Event Management NVR User Manual Set the alarm area. Click “Draw” and then drag the mouse to draw a detection area. Click “Clear” to delete the alarm area. 9.2.2 Plate Database Management In the LPR interface, click the “Plate Database” tab to go to the plate database management interface as shown below. For the first time, you can click “+”... -
Page 61: Tripwire
AI Event Management NVR User Manual ② Set the successful recognition alarm linkage. Select one or more plate groups and then choose the schedule. Click “Manage” to set the schedule. Set the text prompt. When the captured plate is matched successfully, the text will appear on the right of the live view interface. ... -
Page 62: Intrusion Detection
AI Event Management NVR User Manual A<-B: the alarm triggers when the target crosses over the alert line from B to A. ④ Draw line. Refer to the interface as shown above. Check “Draw line” and then drag the mouse in the image to draw an alert line. Uncheck the “Draw line”... -
Page 63: Crowd Density Detection
AI Event Management NVR User Manual Missing object: Alarms will be triggered if there are articles missing in the detection area drew by the users. ③ Select the alarm area and area name. A maximum of 4 alarm areas can be set. ④... -
Page 64: Line Crossing Counting
AI Event Management NVR User Manual for details). ⑤ Click “Apply” to save the settings. 9.7 Line Crossing Counting Only some IPCs may support this function. People counting in the pre-defined area: This function is to calculate the number of people entering or exiting in the detected area on the video by detecting, tracking and counting the head shapes of people. -
Page 65: Tampering Detection
AI Event Management NVR User Manual ② Enable line crossing counting. ③ Check “Draw line” and then drag the mouse on the small window to draw the crossing line. Uncheck “Draw line” to finish the drawing. Click “Clear” to delete the alert line. Direction: A->B and A<-B are optional. -
Page 66: Intelligent Analytics
Intelligent Analytics NVR User Manual 10 Intelligent Analytics 10.1 Target Detection View 10.1.1 Human Body/Vehicle Detection View Only when the camera supports human body/vehicle detection, can you view the real-time captured people or vehicle pictures. The setting steps are as follow: ①... - Page 67 Intelligent Analytics NVR User Manual For unknown faces, you can select this face and click under the captured face to register this face (see the following picture); click quickly go to the smart face search interface where you can search the matching face information; click to quickly go to the smart face playback interface;...
- Page 68 Intelligent Analytics NVR User Manual Double click the face picture to see the snapshot details, such as snapshot picture, original image, snapshot time and camera. Click “more” and then a dropdown list will display. Click “Register” to register the current snapshot. Click “Search” to go to face search interface. Click “Playback” to go to the playback interface.
-
Page 69: License Plate Detection/Recognition View
Intelligent Analytics NVR User Manual When the captured face pictures are successfully recognized, click the picture on the right to pop up a face detail window as shown below. In this window, you can see the captured face picture, the matched picture of face library and the relevant information. You also can view the original image, search image by snapshot, play back by snapshot and export the face details by clicking “More”... -
Page 70: Smart Search
Intelligent Analytics NVR User Manual Click to view the captured detail information. Click to quickly enter the vehicle search interface. You can search the matched plate information in this interface. Click to go to the smart playback interface. ② Enable license plate recognition function and set the alarm linkage items (see 9.2.3 License Plate Recognition Settings for details). ③... - Page 71 Intelligent Analytics NVR User Manual ② Click to choose face detection cameras. ③ Select all events, successful recognition or stranger. ④ Click “Search” to search face pictures. You can view face pictures by time or by camera. ⑤ Click the searched face picture to play in the small playback window; select a face picture and click “Backup” to export it. Click “Original”...
- Page 72 Intelligent Analytics NVR User Manual Face Search by Face In the face picture search interface, click “By Face” to go to the following interface. ① Click to add the target face which can be searched and added from recent, face database, snapshot gallery and external faces. A single face picture or multiple face pictures can be added and searched.
- Page 73 Intelligent Analytics NVR User Manual ④ Select the searched image and click “Backup Picture” or “Backup Record”. Then click “Backup” to build backups for pictures or records. View Image by List Click “List” tab to view images by time as shown below. Click the searched image to play.
-
Page 74: Track Playback
Intelligent Analytics NVR User Manual 10.2.2 Track Playback Select “Track” to go to the following interface. Note: Only when two or more cameras detect this person, can his/her track can be viewed here. Descriptions of buttons on the track interface Fixed Window Frame Followed Window... -
Page 75: Face Search By Snapshot
Intelligent Analytics NVR User Manual Click to switch play speed. 1x and 2x can be switched. Click to view event list. Click one item to play this event. Click “Exchange Window” to switch the position of the map window and the playback window. Click button to go to the following interface. -
Page 76: Human Body Search
Intelligent Analytics NVR User Manual Drag the mouse to select a face and then click “Search by Face” to go to the face search by face interface. You can see its snapshot pictures, match pictures, original pictures and so on by clicking the corresponding tab. 10.2.4 Human Body Search Click Start... -
Page 77: Combination Search
Intelligent Analytics NVR User Manual Attribution: Vehicle or non-vehicle can be selected. You can view face pictures by time or by camera. Click a searched vehicle picture to play it in the small window. Select vehicle pictures and check “Backup Picture” and/or “Backup Record” and then click “Backup”... -
Page 78: View Statistical Information
Intelligent Analytics NVR User Manual Click to add a favorite group and save the current searched pictures to the favorite group. Then you can quickly view these pictures by clicking and choosing the group name. 10.3 View Statistical Information Click Start Intelligent AnalyticsStatistics to go to the following interface. In this interface, you can view the people and vehicle statistical information or you can customize the statistical information. -
Page 79: Face Check-In
Intelligent Analytics NVR User Manual To search attendance information ① Click behind camera and group to choose the desired cameras and groups. ② Set the attendance date. You can choose day, week, month and today or customize the time period. ③... - Page 80 Intelligent Analytics NVR User Manual ① Click behind camera and group to choose the desired cameras and groups. ② Set the check-in date. You can choose day, week, month and today or customize the time period. ③ Set the start time and the end time of face check-in. ④...
-
Page 81: General Event Management
Intelligent Analytics NVR User Manual 11 General Event Management 11.1 Sensor Alarm To complete the entire sensor alarm settings, you should enable the sensor alarm of each camera and then set up the alarm handling of each camera. ① Click StartSettingsAlarmSensor to go to the following interface. ②... -
Page 82: Motion Alarm
General Event Management NVR User Manual Pop-up Video: After camera setting, the system will pop up the corresponding video automatically when the sensor alarm is triggered. To set the duration time of the video, please see 11.6.3 Display for details. Pop-up Message Box: if enabled, the system will pop up the corresponding alarm message box automatically when the sensor alarm is triggered. -
Page 83: Combination Alarm
General Event Management NVR User Manual 11.3 Combination Alarm ① Click StartSettingsAlarm Combination Alarm to go to the following interface. ② Customize combination alarm. Set alarm name and click “Configure” under the Combined Alarm Configuration item. Then select alarm type and alarm source. -
Page 84: Alarm Event Notification
General Event Management NVR User Manual ③ Click “Apply” to save the settings. 11.6 Alarm Event Notification 11.6.1 Alarm-out ① Click StartSettingsAl/EventEvent Notification to go to the following interface. ② Set the delay time and the schedule of each alarm-out. You can click “Edit Schedules” to edit the schedules (see 7.1.2 Schedule Settings for details). -
Page 85: Digital Deterrent
General Event Management NVR User Manual 11.6.6 Digital Deterrent Click StartSettings AI/Event Event NotificationDigital Deterrent to go to the interface as shown below. Camera audio settings: For perimeter alert cameras, voice broadcast can be set up. Select the camera, voice, broadcast times, volume and language. Then click “Apply” to save the settings. -
Page 86: Light
General Event Management NVR User Manual In this interface, you can set the volume of local audio. Click “Add” to upload the audio file. Choose the uploaded audio file and then click “Listen” to listen to it; click “Delete” to delete this file. 11.6.7 Light Click StartSettingsAlarmEvent NotificationLight to go to the interface as shown below. - Page 87 General Event Management NVR User Manual Click “Clear” to stop the buzzer when the buzzer alarm happens. Click to view the detail information as shown below. If the exception information is more than one page, you can enter the number in the box and then click to jump to the specified page.
-
Page 88: Account & Permission Management
Account & Permission Management NVR User Manual 12 Account & Permission Management 12.1 Account Management Click StartSettingsAccount and AuthorityAccountEdit User to go to the interface as shown below. Area ① displays the user permissions. Area ② displays the user list. Click the user in the list to display its user permissions in area ①. There are three default permission groups (“Administrator”, “Advanced”... - Page 89 Account & Permission Management NVR User Manual Edit Security Question You can set password security only for admin. Click “Edit Security Question” and then set questions and answers in the popup window. If you forget the password for admin, please refer to Q4 in Appendix A FAQ for details. The passwords of other users can be recovered by admin or the users that have the “Account and Authority”...
-
Page 90: User Login & Logout
Account & Permission Management NVR User Manual 12.2 User Login & Logout Login: Click StartLogin or directly click the preview interface and then select username and enter the password in the popup window. Click “Login” button to log in the system. Logout: Click StartLogout or click StartShutdown to pop up the “Shutdown”... -
Page 91: Edit Permission Group
Account & Permission Management NVR User Manual 12.3.2 Edit Permission Group Go to “Edit Permission Group” interface and then click in the group list to edit the permission group (the operations of the “Edit Permission Group” are similar to that of the “Add Permission Group”, please see 12.3.1 Add Permission Group for details). Click to save the group as another group. -
Page 92: Network Security
Account & Permission Management NVR User Manual 12.6 Network Security Click StartSettingsAccount and AuthoritySecurityNetwork Security to go to the following interface. You can enable APR Guard. ARP Guard: Address Resolution Protocol Guard. This function can protect the LAN from APR attack and make the network run stably. If it is enabled, you can enable auto gateway MAC or manually set gateway MAC. -
Page 93: Device Management
Device Management NVR User Manual 13 Device Management 13.1 Network Configuration 13.1.1 TCP/IP Configuration Click StartSettingsNetworkTCP/IP to go to the following interface. Check “Obtain an IPv4 address automatically”, “Obtain an IPv6 address automatically” and “Obtain DNS automatically” to get the network addresses automatically, or manually enter the network addresses. You can modify the MTU value according to the network condition (MTU, Maximum Transmission Unit, can be modified according to network condition for higher network transmission efficiency). - Page 94 Device Management NVR User Manual HTTP Port: the default HTTP port of the NVR is 80. The port number can be changed to others like 81. The port is mainly used to web client access. If you want to access the NVR through a web browser, you should enter IP address plus HTTP port in the address bar of the web browser like http://192.168.11.61:81.
-
Page 95: Pppoe Configuration
Device Management NVR User Manual Note: The HTTP port and server port of the NVR should be mapped to the router before you access the NVR via WAN. API Server: You can log in the media player which supports the RTSP protocol by the username and password here. Moreover, the third-party can further develop through API service. -
Page 96: Ddns Configuration
13.1.4 DDNS Configuration The DDNS is used to control the dynamic IP address through domain name. Speco Technologies provides free DDNS service with US-based servers. You can access to the NVR easily if the DDNS is enabled and configured. Click StartSettingsNetworkDDNS to go to the interface as shown below. The default DDNS type will be “specoddns.net”. -
Page 97: Upnp Configuration
Device Management NVR User Manual Click “Add” and then enter the recipient’s e-mail address and select the schedule (if a schedule is selected, the system will send the alarm email and the recipient will receive it only in the selected schedule time) in the popup window. Click “Add” in the window to add the recipient. You can also change the recipient’s receiving schedule by clicking in the “Schedule”... -
Page 98: Nat Configuration
Device Management NVR User Manual Protocol type and EAPOL version: Please use the default settings. User name and password: The user name and password must be the same with the user name and password applied for and registered in the authentication server. -
Page 99: Date And Time Configuration
Device Management NVR User Manual Device Name: The name of the device. It may display on the client end or CMS that help user to recognize the device remotely. Video Format: Two modes: PAL and NTSC. Select the video format according to the camera. Sequence Automatically: Check it and set “wait time”.The system will sequence automatically if it is not operated during the time you set. -
Page 100: Factory Default
Device Management NVR User Manual 13.3 Factory Default Click StartSettingsSystemMaintenanceFactory Default and then click “Reset to factory default” button in the interface to reset to the factory default settings(check “Reset retain Network Configuration” to retain the network settings). Note: Resetting to the factory default settings will not change time zone. 13.4 Device Software Upgrade ... -
Page 101: View Log
Device Management NVR User Manual 13.7 View Log Click StartSettingsSystemMaintenanceView Log to go to the log view interface. Select the log main type, click to set start time and end time and then click “Search” button. The searched log files will be displayed in the list. Choose the log file in the list and then click “Export”... -
Page 102: Remote Surveillance
① Enable NAT in the NVR. Refer to 13.1.8 NAT Configuration for details. ② Scan the QRCode through the Speco Blue App available for iOS and Android to easily and securely view your cameras. ③ Run the mobile client, go to the “Add Device” interface and then click to scan the QRCode of the NVR (Go to StartSettingsSystemInformationBasic to view the QRCode of the NVR). -
Page 103: Web Remote Control
Remote Surveillance NVR User Manual PPPoE Access ① Click StartSettingsNetworkPPPoE to go to the “PPPoE” interface. Check “Enable” in the “PPPoE settings” and then enter the username and password you get from your ISP. Click “Apply” to save the settings. ②... - Page 104 Remote Surveillance NVR User Manual Start Preview Select a window in the preview area and then click one online camera on the left panel to preview the camera in the window. You can click the tool bar to view all the cameras. ...
- Page 105 Remote Surveillance NVR User Manual Button Meaning Click it to enable talk with the NVR. Right Panel Introduction Click on the right panel to show the panel and click to hide the panel. Click at the bottom of the panel to go to “PTZ” panel. Click to go to “Lens Control”.
-
Page 106: Remote Playback
Remote Surveillance NVR User Manual Button Meaning Click to increase/ decrease the focal length. Click to increase/decrease the iris of the dome. Click it to view the preset list and then click the button in the list to call the preset. Click it to view the cruise list and then click the corresponding buttons in the list to start or stop the cruise. -
Page 107: Intelligent Analysis
Remote Surveillance NVR User Manual 14.4.4 Intelligent Analysis Click “Intelligent Analysis” in the remote interface to configure smart search, statistics, face database, face attendance and face check in. All of these settings are similar to that of the NVR. See the configurations of the NVR for details. 14.4.5 Remote Configuration Click “Function Panel”... -
Page 108: Appendix A Faq
NVR User Manual Appendix A FAQ Q1. Why can’t I find the HDD? Please check the power and SATA data cables of the HDD to make sure they are well connected. For some NVRs with the 1U or small 1U case, the power of the adapter may be not enough for operating them. Please use the power adaptor supplied along with the NVR. - Page 109 NVR User Manual connecting the IP cameras directly. In this situation, if you directly connect one IP camera to PoE5, PoE6, PoE7 or PoE8, the IP camera will be displayed in the camera list automatically; if you connect it to PoE1, PoE2, PoE3 or PoE4, it won’t be displayed in the camera list by showing resource conflict; if you just need to connect it to PoE1, PoE2, PoE3 or PoE4, you should first delete the IP camera which occupies the PoE port resource and then reconnect it to the PoE port.
- Page 110 NVR User Manual Q10. ActiveX control cannot be downloaded. How can I do? IE browser blocks ActiveX control. Please do setup as per the steps mentioned below. Internet Options. ① Open IE browser. Click ② Select SecurityCustom Level. Refer to Fig 10-1. ③...
- Page 111 NVR User Manual format. Record backed up through web. The record can only be backed up with AVI format through web. The record can be backed up to PC and played by the video player which supports this format. Fig 11-1 Fig 11-2...
-
Page 112: Appendix B Calculate Recording Capacity
Calculate Recording Capacity NVR User Manual Appendix B Calculate Recording Capacity The recording capacity is mainly up to the record resolution, record stream and bitrate. Different image quality parameters decide different disk capacity occupation in equal times. The bigger the record resolution, record stream and record bitrate is, the more disk capacity is taken up in equal times. -
Page 113: Appendix C Specifications
Specifications NVR User Manual Appendix C Specifications Model N8NRE Compression Standard H.265 System Embedded Linux IPC Input Network Access Bandwidth 80Mbps Video Network Access Format 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P@25/30fps HDMI×1: 4K×2K/1920x1080/1280×1024， Output VGA×1：1920x1080/1280×1024 Network Input 8CH IPC audio input Audio 2-way Audio RCA×1 Local Output RCA×1... - Page 114 Specifications NVR User Manual Model N16NRE Compression Standard H.265 System Embedded Linux IPC Input 16CH Network Access Bandwidth 160Mbps Video Network Access Format 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P@25/30fps HDMI×1: 4K×2K/1920x1080/1280×1024， Output VGA×1：1920x1080/1280×1024 Network Input 16CH IPC audio input Audio 2-way Audio RCA×1 Local Output RCA×1 Record Stream Dual stream recording...
- Page 115 Specifications NVR User Manual Model N32NRE Compression Standard H.265 System Embedded Linux IPC Input 32CH Network Access Bandwidth 256Mbps Video Network Access Format 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P@25/30fps HDMI×1: 4K×2K/1920x1080/1280×1024， Output VGA×1：1920x1080/1280×1024 Network Input 32CH IPC audio input Audio 2-way Audio RCA×1 Local Output RCA×1 Record Stream Dual stream recording...
- Page 116 Model: N8NRE/N16NRE/N32NRE Federal Communications Commission (FCC) Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
