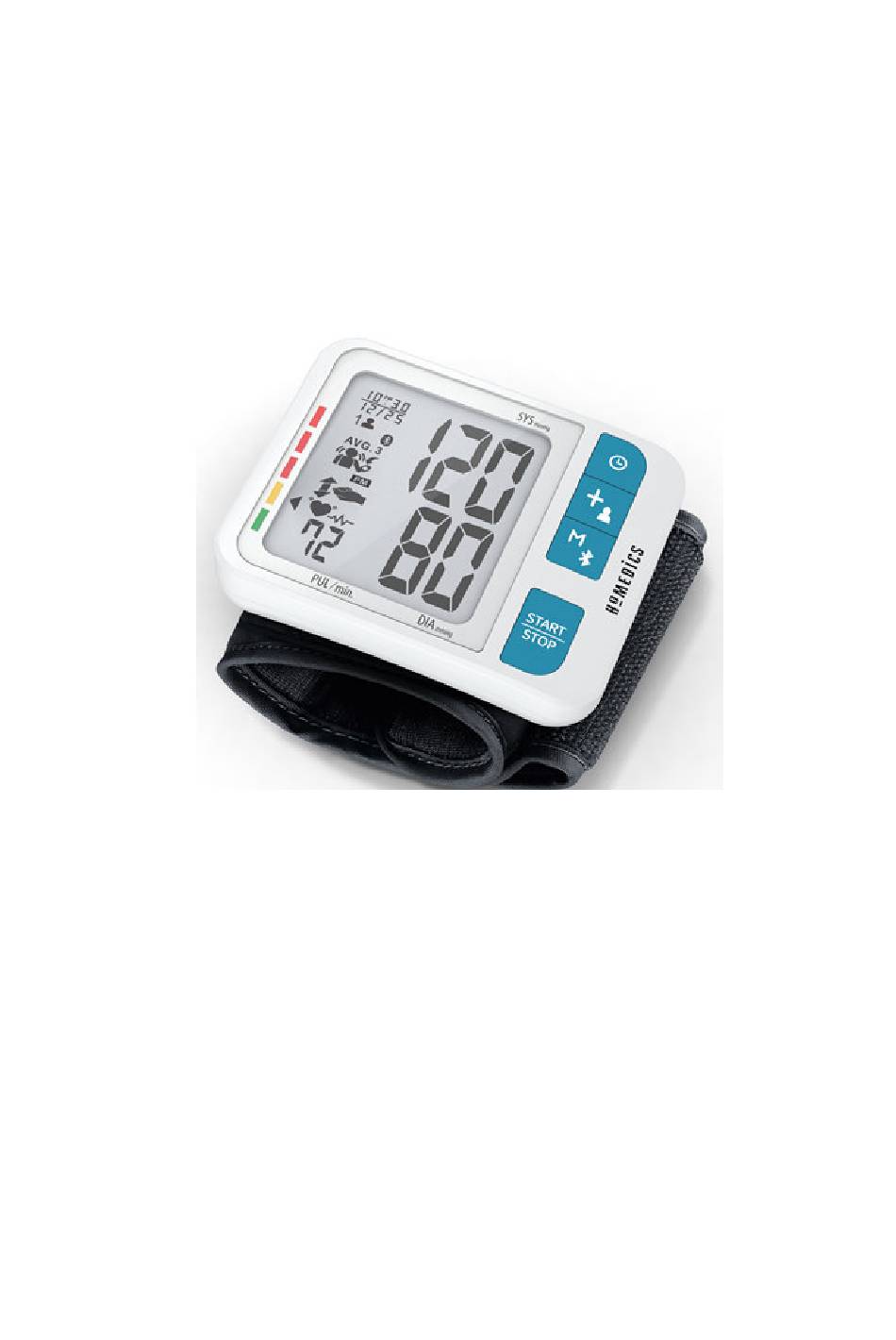

- Page 1 Automatic Wrist Blood Pressure Monitor VER:A001 20220325U...
-
Page 2: Table Of Contents
Table of Contents Medical Disclaimer ................2 Intended Use ................. 2 About Blood Pressure ..............3 Measurement Method ..............5 Accuracy ..................6 Precautions ................... 7 Device Overview ................9 Symbol Definitions ............... 11 Features ..................12 Bluetooth Transmission ..............15 Installing Batteries ............... -
Page 3: Medical Disclaimer
5.3 inches to 7.7 inches (approx. 135 mm to 195 mm) and for home use. HL158B1-BD detects the appearance of irregular heartbeats during measurement; an indicated symbol will appear with measuring reading. And the Risk Category Indicator will show the information with the readings on the screen for the user tracking their blood pressure level. -
Page 4: About Blood Pressure
About Blood Pressure 1. What is Blood Pressure? Blood pressure is the measurement of the force of blood pushing against the walls of the arteries. Arterial blood pressure is constantly fluctuating during the course of the cardiac cycle. The highest pressure in the cycle is called the systolic blood pressure, and represents the pressure in the artery when the heart is beating. - Page 5 About Blood Pressure A. AHA Blood Pressure Classifications: Standards for assessment of high or low blood pressure without regard to age, have been established by the American Heart Association (AHA 2017), as shown in the chart. DIASTOLIC SYSTOLIC mmHg BLOOD PRESSURE CATEGORY mmHg (Upper Number) (Lower Number)
-
Page 6: Measurement Method
Measurement Method HL158B1-BD Automatic Wrist Blood Pressure Monitor measures blood pressure and heart rate by oscillometric method, meaning the fluctuations in pressure are measured. Once the cuff is wrapped around your wrist, just turn on the monitor and inflation automatically starts. The inflation of the cuff creates pressure around the arteries inside the wrist. -
Page 7: Accuracy
Accuracy HL158B1-BD Automatic Wrist Blood Pressure Monitor has been clinically tested against a scientific device called a mercury sphygmomanometer, considered the gold standard in blood pressure measurement. All HL158B1-BD Automatic Wrist Blood Pressure Monitors have performed equivalent to measurements taken with this scientific... -
Page 8: Precautions
Precautions Read the Instruction Manual thoroughly before measuring and keep it at hand for your reference at any time. The device is designed for home use and not suitable for clinical use. The patient is an intended operator, who can operate the device by himself or herself, not necessarily by a physician or operator. - Page 9 Precautions This product is not suitable for: Pregnant women People with arrhythmias Undergoing intravenous injection on any limb Currently in a dialysis treatment In pre-eclampsia condition For those who have had a mastectomy or lymph node clearance, it is recommended to take a measurement on the unaffected side.
-
Page 10: Device Overview
Device Overview Product Components LCD Display Risk Category Indicator Mode Button Set/User Button Wrist Cuff Memory/ Bluetooth Button Start/Stop Button AAA “LR03” (1.5V) Storage Case Alkaline Battery X 2... - Page 11 Device Overview Unit Display Hour：Minute (Also Represents Year in Setting Mode) Month/Date Systolic Pressure User Number Bluetooth Symbol Low Battery Symbol Average of Last 3 Measurements 1. Excessive Body Motion AM/PM Last 3 Detector Averaging 2. Cuff Fitness Detection Wrist Position Guide Pulse Symbol Irregular...
-
Page 12: Symbol Definitions
Symbol Definitions SYMBOLS Definitions This symbol appears when the battery power is excessively low or the polarity reverses. We suggest you replace all batteries with new ones, and make sure Low Battery Symbol the +/- polarities are properly positioned. Once pulse is detected, the symbol flashes with each pulse beat. -
Page 13: Features
Features Risk Category Indicator (AHA 2017) This device is equipped with Risk Category Indicator which classifies your blood pressure measurements into five stages (Normal, Elevated, Hypertension stage 1, Hypertension stage 2 and Hypertensive crisis) based on the blood pressure standards established by the American Heart Association (AHA). - Page 14 Features Irregular Heartbeat Detector The symbol will appear on screen indicating a certain heartbeat irregularity was detected during measurement. The heartbeat rhythm that is more than or less than 25% from the average rhythm is usually defined as an irregular heartbeat rhythm. Talking, moving, shaking or an irregular pulse during the measurement can result in the appearance of this symbol.
- Page 15 Features HL158B1-BD has a built-in Wrist Position Guide function used as an aid to help user determining if the device is at appropriate height. Turning Wrist Position Guide ON/OFF This function default setting is on. User can switch the function ON and OFF.
-
Page 16: Bluetooth Transmission
Bluetooth Transmission HL158B1-BD features a Bluetooth transmission function, which enables the device automatically transmit measured results to paired Bluetooth-enabled device after measurement. When connection established, the device would transmit, systolic pressure, diastolic pressure, and pulse with time to the Bluetooth enabled device. - Page 17 Bluetooth Transmission 2. If HL158B1-BD is connected successfully to your smart device, Bluetooth symbol will appear on the screen. 3. If the monitor cannot be connected to paired Bluetooth-enabled device over 45 seconds, LCD will display Error message “E4” and Bluetooth will be turned off.
-
Page 18: Installing Batteries
Installing Batteries When LOW BATTERY SYMBOL appears on the display, or no reaction toward operation, please change batteries. Replace all worn-out batteries with new ones and do not mix new and used batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (cadmium) batteries either. -
Page 19: Applying The Cuff
Applying the Cuff Do not place the pressure cuff over a jacket or sweater sleeve. Wrap the pressure cuff around the bare wrist with the monitor facing you. Wrap the cuff snugly. Do not make it too tight. ... -
Page 20: Positioning Guide
Positioning Guide It is extremely important that the cuff be at the same height as the heart. Having the cuff higher or lower may cause inaccurate results. 1. Sit on a chair comfortably, put your feet flat on the floor and lay your forearm on the table, make sure your back and arm supported, legs uncrossed. -
Page 21: Measurement Procedure
Measurement Procedure Switch on the Monitor A) Put in 2 AAA 1.5V (LR03) alkaline batteries. B) All segments appear on the screen for 3 seconds. C) The monitor will automatically turn to sleeping mode (all LCD segment cleared). Setting Year, Date and Time Year, date and time can be set by two methods, either set manually using the buttons or sync automatically... - Page 22 Measurement Procedure Taking a Measurement Press button to select User 1 ( ) or User 2 ( Start a Measurement: B-1. Measurement with Wrist Position Guide Off With the cuff wrapped around your wrist, press START/STOP button to start measurement.
- Page 23 Measurement Procedure B-2-3. Even if the monitor is not in the ideal position after 10 seconds, the measurement will still begin. If this occurs, the wrist symbol will appear and be stored in the memory with the measurement. C. As the cuff inflates, the monitor automatically determines your ideal level.
-
Page 24: Memory Function
Memory Function Storing Data After each measurement, your systolic, diastolic, heart rate and corresponding Risk Category Indicator, Irregular Heartbeat Detector, Excessive body motion detector and wrist position guide (if any) with the time and date will be automatically stored. The monitor features 2 user memory capabilities. - Page 25 Memory Function Recalling Data A. Press button to select User 1 or User 2. B. Press button to enter Memory Mode. If there is no data stored before, nothing (except month, date, and time) will appear on the display. If yes, the first reading will be the average of last 3 measurements.
-
Page 26: Storage And Maintenance
Storage and Maintenance General Use Do not twist the cuff in any way. Do not press START/STOP button if the cuff is not wrapped around your wrist. Do not drop the product and avoid any strong impacts. ... - Page 27 Storage and Maintenance According to the use environment of the sphygmomanometer, the recommended disinfection method and frequency are as follows: Only use it yourself (home use), it can be cleaned at ordinary times, and wipe it once a month with a commercially available 75% alcohol cotton sheet (for the cuff) for more than 30 seconds each time.
-
Page 28: Troubleshooting
Troubleshooting SYMBOLS/SYMPTOMS CONDITIONS/CAUSES INDICATION/CORRECTION Unit does not turn on when Worn-out batteries. Replace them with 2 new AAA START/STOP button is (LR03) alkaline batteries. pushed. Battery polarities have been Re-insert the batteries in the positioned incorrectly. correct positions. Measuring Error Symbol Wrap the cuff properly so that it is Cuff has been placed appears when blood... - Page 29 Troubleshooting SYMBOLS/SYMPTOMS CONDITIONS/CAUSES INDICATION/CORRECTION The cuff was wrapped incorrectly Please reference “applying the (for example too loosely or too Cuff” section to wrap the cuff Cuff Fitness tightly). correctly. Detection Symbol Please re-pairing the BPM and Paring has not been completed. Bluetooth -enabled device with each other.
-
Page 30: Warranty & Recalibration
Warranty & Recalibration Warranty for Two Years from the Manufacturing Date Please note that this warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration product; improper installation; unauthorized repairs modifications; improper electrical/power supply;... -
Page 31: Specifications
Specifications Model Number HL158B1-BD Measurement Method Oscillometric Rated Range of Cuff Pressure 0~300 mmHg Rated Range of Determination 40~280 mmHg Measurement Range of Heart Pulse：40 ~ 199 Beats / Minute Rate Pressure: ± 3 mmHg Accuracy Pulse: ± 5 % Max. -
Page 32: Note
Note Explanation of Symbols: Symbol Explanation Health & Life Information Refer to instruction manual/booklet TYPE BF Applied Part Warning: Portable RF communications equipment (including To avoid inaccurate results peripherals such as antenna cables and external antennas) should be used no closer than 30cm (12 caused by electromagnetic inches) to any part of the device, Otherwise, interference... - Page 33 *Note “Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment”. HL158B1-BD essential performance per IEC 80601-2-30 additional essential performance requirements: 201.12.1.102 Limits of the error of the manometer from environmental ...
-
Page 34: Appendix
Appendix Guidance and manufacturer’s declaration – electromagnetic emissions The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Electromagnetic environment – guidance Emissions test Compliance RF emissions RF energy is used only to maintain device’s CISPR 11 operation. - Page 35 Appendix Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: – IEC 60601 test level Compliance Electromagnetic environment Immunity level guidance test Not Applicable Portable and mobile RF communications...
- Page 36 Appendix Test specifications for enclosure port immunity to RF wireless communications equipment. IMMUNITY Test frequency Modulation TEST LEVEL (MHz) (V/m) Pulse modulation 18 Hz FM ± 5 kHz deviation 1kHz sine Pulse modulation 217 Hz Pulse modulation 18 Hz 1720 1845 Pulse modulation 217 Hz 1970...
-
Page 37: Blood Pressure Diary
Blood Pressure Diary □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □... - Page 38 P/N：323103672 VER： A001 20220325...
