  • Page 1 Automatic Wrist Blood Pressure Monitor...

  • Page 2: Table Of Contents

    Table of Contents Medical Disclaimer…………………………….………………………………………………03 Intended Use………………………………………….……………………………………..…03 About Blood Pressure……………………………….………………………………………04 Measurement Method…………………………………….…………………………………06 Accuracy……………………………………………………………………………………………07 Precautions…………………….…………………………………………………………………08 Device Overview……………………………………………………………………………….10 Symbol Definitions………………………………….……………………………………….13 Features……………………………………………………..…………………………………….14 Installing Batteries……………………………………….………………………………….20 Applying the Cuff…………………………………………………..………………………….21 Positioning Guide…………………………………………………….……………………….22 Measurement Procedure………….……………………..……………………………….23 Bluetooth Transmitting………………………………………………………………….…27 Memory Function………………………………………………….………………………….29 Storage and Maintenance…………………………………….………………………….30 Troubleshooting……………………………………………………….……………………….31 Warranty & Recalibration……………….……………………….……………………….33 Specifications…………………………………………………………….…………………….34 Note…………………………………………………………………………….…………….…….35 Appendix…………………………………………………………………………………….…….37 Blood Pressure...

  • Page 3: Medical Disclaimer

    5.3 inches to 7.7 inches (approx. 135 mm to 195 mm) and for home use. HL158VA detects the appearance of irregular heartbeats during measurement; an indicated symbol will appear with measuring reading. And the Risk Category Indicator will show the information with the readings on the screen for the user tracking their blood pressure level.

  • Page 4: About Blood Pressure

    About Blood Pressure 1. What is blood pressure? Blood pressure is the measurement of the force of blood pushing against the walls of the arteries. Arterial blood pressure is constantly fluctuating during the course of the cardiac cycle. The highest pressure in the cycle is called the systolic blood pressure, and represents the pressure in the artery when the heart is beating.
  • Page 5 About Blood Pressure AHA blood pressure classifications: Standards for assessment of high or low blood pressure without regard to age, have been established by the American Heart Association (AHA 2017), as shown in the below chart. SYSTOLIC mm Hg DIASTOLIC mmHg BLOOD PRESSURE CATEGORY (upper number) (lower number)

  • Page 6: Measurement Method

    Measurement Method HL158VA Automatic Wrist Blood Pressure Monitor measures blood pressure and heart rate by oscillometric method, meaning the fluctuations in pressure are measured. Once the cuff is wrapped around your wrist, just turn on the monitor and inflation automatically starts. The inflation of the cuff creates pressure around the arteries inside the wrist.

  • Page 7: Accuracy

    All HL158VA Automatic Wrist Blood Pressure Monitors have performed equivalent to measurements taken with this scientific device and are within the accuracy limits prescribed by the American National Standard...

  • Page 8: Precautions

    Precautions * Read the Instruction Manual thoroughly before measuring and keep it at hand for your reference at any time. * The device is designed for home use and not suitable for clinical use. * This monitor is not intended for use in the MR environment. ...
  • Page 9 Precautions For those who have had a mastectomy or lymph node clearance, it  is recommended to take a measurement on the unaffected side. When used among medical electronic equipment on the same limb,  pressurization of the cuff may cause temporarily malfunction to other device.

  • Page 10: Device Overview

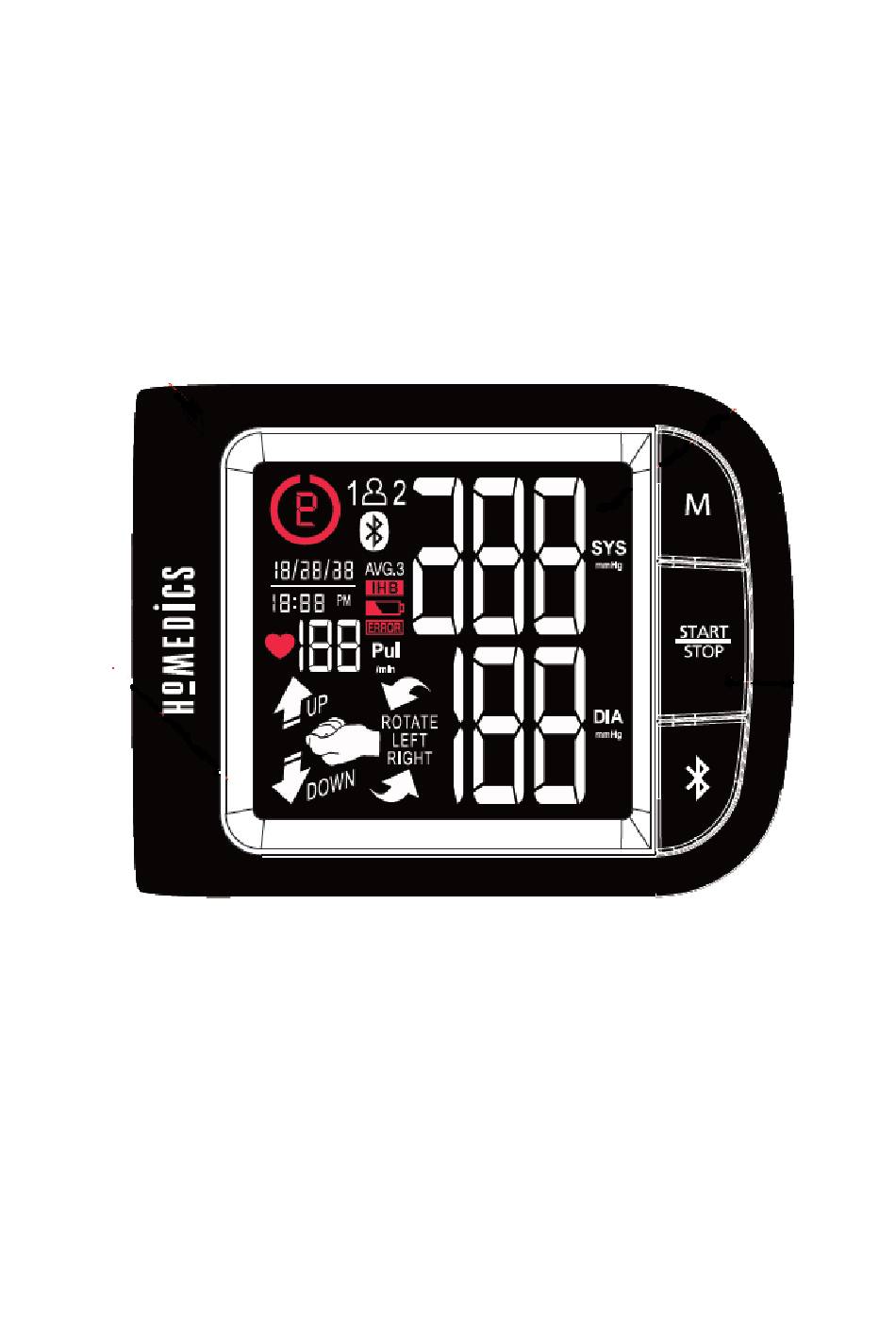

    Device Overview  Product components MEMORY BUTTON LCD DISPLAY START / STOP BUTTON WRIST CUFF BLUETOOTH BUTTON Battery Cover (located on bottom of unit)
  • Page 11 Device Overview SET BUTTON USER BUTTON DATE / TIME BUTTON AAA (LR03) (1.5V) ALKALINE BATTERY X 2 *Caution ！ Substitution of a component different from that supplied might result in measurement error.
  • Page 12 Device Overview  Unit display User selected for User 1 or 2 Bluetooth Symbol Risk Category Indicator Systolic pressure Date: MM/DD/YY Display average of last 3 reading Time: hour/minute with PM icon Irregular Heartbeat Detector Pulse Symbol Low Battery Symbol Heart Rate Error Indicator Wrist Position Guide...

  • Page 13: Symbol Definitions

    Symbol Definitions SYMBOLS Definitions This symbol appears when the battery power is excessively low or the polarity reverses.  We suggest you replace all batteries with new ones, and Low Battery Symbol make sure the +/- polarities are properly positioned. Error Symbol: Error display.

  • Page 14: Features

    Features  WRIST POSITION Guide HL158VA has a built-in the Wrist Position Guide will be used as an aid to help user determining if the device is at appropriate angle and height. After you press button, the display will illuminate with different icons that are designed to guide you move your wrist.
  • Page 15 Features Risk Category Indicator(AHA 2017)  This device is equipped with Risk Category Indicator which classifies your blood pressure measurements into five stages (Normal, Elevated, Hypertension stage 1, Hypertension stage 2 and Hypertensive crisis) based on the blood pressure standards established by the American Heart Association (AHA).
  • Page 16 Features After measurement, LCD displays the systolic and diastolic pressure, heart rate, date and time along with Risk Category Indicator symbols. Compare the symbol of LCD display, to know the classification of your blood pressure based on American Heart Association standard (AHA 2017). *Note ！...
  • Page 17 Features  Irregular Heartbeat Detector The symbol will appear on screen indicating a certain heartbeat irregularity was detected during measurement. The heartbeat rhythm that is more than or less than 25% from the average rhythm is usually defined as an irregular heartbeat rhythm. Talking, moving, shaking or an irregular pulse during the measurement can result in the appearance of this symbol.
  • Page 18 Features Bluetooth Data Transmission  HL158VA features a built-in “Bluetooth Data Transmission” function, which enables the device automatically transmit measuring results to paired Bluetooth-enabled device after measurement. When connection established, BPM would transmit memory data such as Measure Date, Systolic, Diastolic and Pulse to the Bluetooth enabled device.
  • Page 19 Features Application Software for Bluetooth  To fully utilize this feature, users need to ensure Bluetooth support of Wireless (usually under settings menu) on their Android or iOS device contactless data exchange. Then, download install “DailyChek ® ” application software from Google Play on the Bluetooth-enabled device which is compatible with Android 4.3 or iOS 7.0 or above.

  • Page 20: Installing Batteries

    Installing Batteries When LOW BATTERY SYMBOL appears on the display, or nothing appears on the display when the power is switched on, please change the batteries. Replace all worn-out batteries with new ones and do not mix new and used batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (cadmium) batteries either.

  • Page 21: Applying The Cuff

    Applying the Cuff Do not place the pressure cuff over a  jacket or sweater sleeve. Wrap the pressure cuff around the bare wrist with the monitor facing you. Wrap the cuff snugly. Do not make it too tight.  Fold the remaining part of the cuff back ...

  • Page 22: Positioning Guide

    Positioning Guide It is extremely important that the cuff be at the same height as the heart. Having the cuff higher or lower may cause inaccurate results. 1. Sit on a chair comfortably, put your feet flat on the floor and lay your forearm on the table, make sure your back and arm supported, legs uncrossed.

  • Page 23: Measurement Procedure

    Measurement Procedure  Switch on the monitor A. Put in 2 AAA 1.5V (LR03) alkaline batteries. B. All segments appear on the screen for 3 seconds. C. The monitor will automatically turn to sleeping mode (all LCD segment cleared).  Setting time, date, and year A.
  • Page 24 Measurement Procedure  Turning Bluetooth Feature ON/OFF User can press and hold button 3 seconds to turn the Bluetooth feature ON/OFF in Sleeping Mode. Bluetooth icon ON Bluetooth icon OFF Note: The Bluetooth icon switch default setting is ON  Taking a Measurement A.
  • Page 25 Measurement Procedure *Note ！  If the cuff does not stop inflating, remove the cuff at once.  To stop measurement, press button. The cuff will deflate immediately after the button is pressed. After the monitor has determined your blood pressure and heart rate, the cuff automatically deflates.
  • Page 26 Measurement Procedure 3. As the cuff inflates, the monitor automatically determines your ideal inflation level. This monitor detects your blood pressure and pulse rate during inflation. The Pulse ( ) Symbol flashes at every pulse beat. Remain still and do not move until the entire measurement process is completed.

  • Page 27: Bluetooth Transmitting

    Bluetooth function (Bluetooth Symbol flashing) 2. While connecting to your Bluetooth-enabled Device, HL158VA Bluetooth Symbol will remain steady on the screen. 3. HL158VA can only pair up with one Bluetooth-enabled device at a time. To transmit measuring results to other...
  • Page 28 Bluetooth Transmitting A. Date/Time Synchronization BPM’s Date/Time Setting synchronized -enabled Bluetooth device (e.g. smart phone) which has downloaded and installed DailyChek ® application software. 2. When Bluetooth connection is established, the Bluetooth -enabled device can send commend with the date/time information to BPM and the BPM’s date/time will be updated.

  • Page 29: Memory Function

    Memory Function  Storing data After each measurement, the systolic and diastolic pressure, heart rate, Risk Category Indicator and Irregular heartbeat detector (if any) with date and time will be automatically stored. The monitor can store up to 120 memory sets for per user, and automatically replace the oldest data with new one.

  • Page 30: Storage And Maintenance

    Storage and Maintenance General Use  Do not in any way twist the cuff.  Do not press button if the cuff is not wrapped around the wrist.  Do not drop the product and avoid any strong impacts.  Maintenance ...

  • Page 31: Troubleshooting

    Can’t determine blood pressure & keep steady. Measure measurement data. Measuring Error Symbol again. If HL158VA cannot be connected to & Please press and hold paired Bluetooth-enabled device over 45 seconds, LCD will display Error Measuring Error Symbol button for 3 seconds to message “E4”...
  • Page 32 Troubleshooting INDICATION/ SYMBOLS/SYMPTOMS CONDITIONS/CAUSES CORRECTION Please re-pairing the BPM and Paring has not been completed. Bluetooth-enabled device with each other. Please press and hold Bluetooth function is not turn on. button for 3 seconds under sleep mode. Please make sure the The distance between BPM and acceptable distance (≦10 Bluetooth-enabled device is out...

  • Page 33: Warranty & Recalibration

    Warranty  Warranty For Two Years from the manufacturing date Please note that this warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration product; improper installation; unauthorized repairs modifications; improper electrical/power supply; loss of power; dropped product; malfunction damage operating part...

  • Page 34: Specifications

    Specifications Model Number HL158VA Measurement Oscillometric Method Rated Range of Cuff 0 ~ 300 mmHg Pressure Rated Range of 40 ~ 280 mmHg Determination Measurement 40 ~ 199 beats/minute Range of Heart Rate Pressure: ± 3 mmHg Accuracy Pulse: ± 5 % Max.

  • Page 35: Note

    Specifications RF Type Bluetooth 4.2 BLE System requirement of the Bluetooth 4.2 for Android 6.0 or above, Bluetooth -enabled device Bluetooth 4.2 for iOS 7.0 or above *The contents of this manual and the specifications of the device covered by this manual are subject to change for improvement without notice.
  • Page 36 *Note ！ “Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment”. HL158VA essential performance per IEC 80601-2-30 additional essential performance requirements: 201.12.1.102 Limits of the error of the manometer from ...

  • Page 37: Appendix

    Appendix Guidance and manufacturer’s declaration – electromagnetic emissions  The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Electromagnetic environment – Emissions test Compliance guidance RF emissions RF energy is used only to maintain device’s operation.
  • Page 38 Appendix Guidance and manufacturer’s declaration – electromagnetic immunity  The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Immunity IEC 60601 test level Compliance – Electromagnetic environment test level guidance Not Applicable Portable and mobile RF communications...
  • Page 39 Appendix Test specifications for enclosure port immunity to RF wireless communications equipment. Test frequency Modulation IMMUNITY (MHz) TEST LEVEL (V/m) Pulse modulation 18 Hz FM ± 5 kHz deviation 1kHz sine Pulse modulation 217 Hz Pulse modulation 18 Hz 1720 Pulse modulation 217 Hz 1845 1970...

  • Page 40: Blood Pressure Diary

    Blood Pressure Diary □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □...
