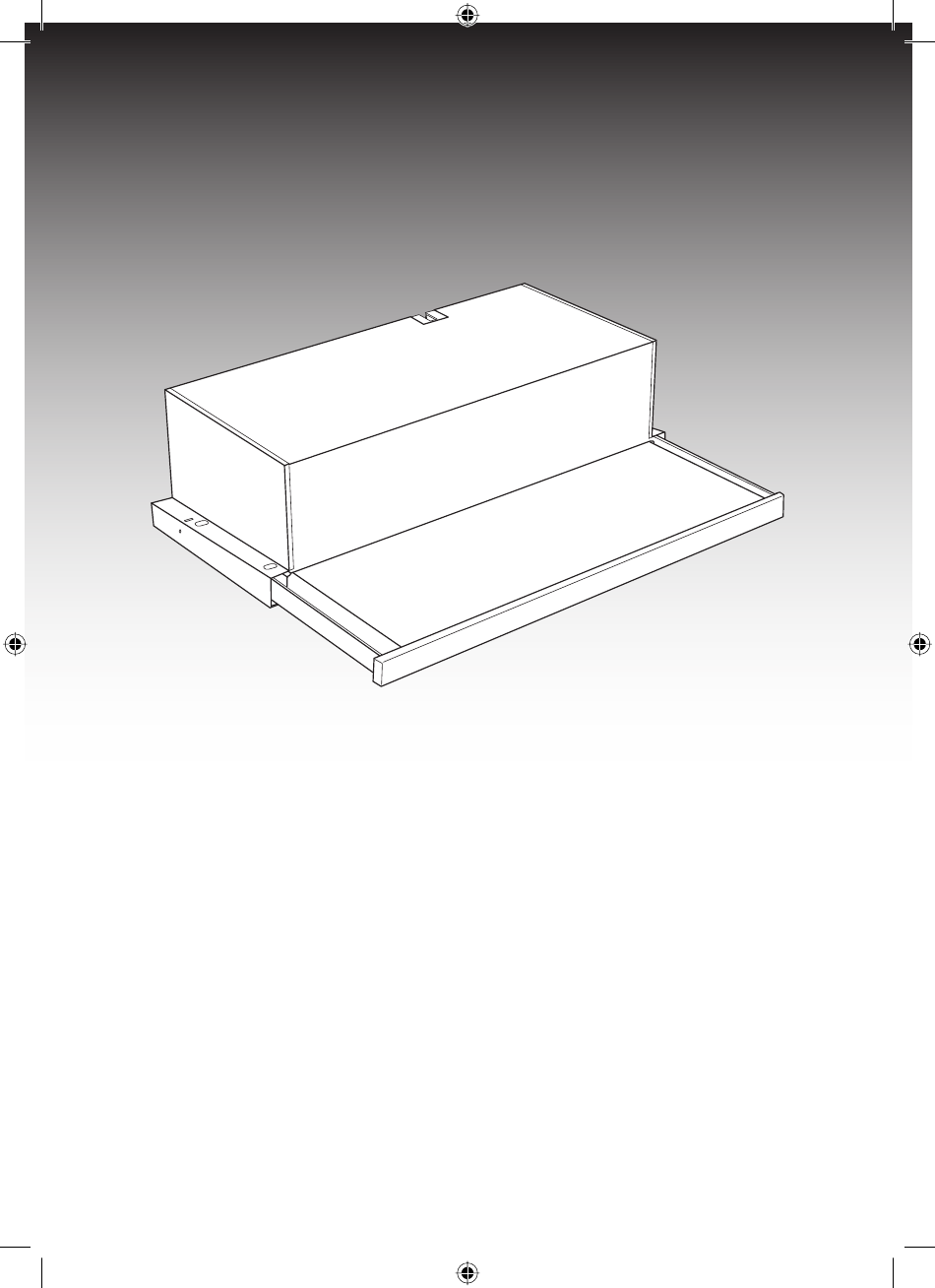

RETRACTABLE COOKER HOOD
OPERATION GUIDE
INSTALLATION INSTRUCTIONS
Model: REHR6* WRH605I* WRH608I* WRR614*A WRH908I*
These cooker hoods are domestic appliances which have been manufactured and tested to comply with
Australian and New Zealand Standard AS/NZS 60335.2.31
13427_Rangehood_Electrolux.indd
1
Advertisement
Table of Contents
Related Manuals for Electrolux REHR6 Series
Summary of Contents for Electrolux REHR6 Series
- Page 1 RETRACTABLE COOKER HOOD OPERATION GUIDE INSTALLATION INSTRUCTIONS Model: REHR6* WRH605I* WRH608I* WRR614*A WRH908I* These cooker hoods are domestic appliances which have been manufactured and tested to comply with Australian and New Zealand Standard AS/NZS 60335.2.31 13427_Rangehood_Electrolux.indd...
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS Safety Warnings • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. -
Page 3: Cooker Hood
INSTALLATION INSTRUCTIONS Please read instructions carefully. Service calls resulting from incorrect installation will be charged for. Exhaust air from the cooker hood must not be discharged into any heating flue which may carry combustion products from other sources. In addition, exhaust air must not be discharged into a wall cavity, unless the cavity is designed for the purpose. - Page 4 AR125F FLEXIBLE DUCT AR125FD BEND AR125B FLUE JOINER AR125FJ WALL VENT KIT AR125WV CARBON FILTER ARCFD (quantity depends on model) Accessories can be bought through your local appliance retailer, or in Australia online at: shop.electrolux.com.au RETRACTABLE COOKER HOOD 13427_Rangehood_Electrolux.indd 4...
- Page 5 INSTALLATION INSTRUCTIONS STANDARD DUCTED INSTALLATION 1. Drilling holes 2. Fixing duct spigot Drill the holes on top wooden support. Snap in duct spigot to the cooker hood. - drill φ7 hole - drill φ45 hole - cut φ130 hole φ7, for hood φ...
- Page 6 INSTALLATION INSTRUCTIONS INSTALLATION USING THE SUPPLIED DRAWER FASCIA FOR MODELS: REHR6* WRH605I* WRH608I* WRH908I* Standard ducted installation calls for a door extension of 130mm whether the client opts to use the supplied draw fascia or a custom fascia of the same dimensions as that supplied. RECIRCULATING VENT INSTALLATION FOR MODELS: WRH608I* WRH908I (WRR614*A already fitted with 70mm front panel) Note: If the cooker hood is to be vented using the recirculating vent rather...
- Page 7 INSTALLATION INSTRUCTIONS DUCTED RECIRCULATING INSTALLATION FOR MODELS: REHR6* WRH605I* WRH608I* WRR614*A WRH908I* AR125WV ALL MODELS OPTIONAL CARBON FILTER An optional carbon fi lter will diminish cooking odours in the recirculated air. Depending on the frequency of use and the type of cooking, the expected life of carbon fi lters is from 1 to 6 months. Replacement is required.
-
Page 8: Operation And Maintenance
The lamp assembly includes a silicone seal, this must be replaced when a new lamp is used. The silicone seal is placed over the lamp thread and then the lamp is screwed into the holder. Ensure replacement lamp is tightened firmly. Replacement lamps from Electrolux Parts Centres are supplied with silicone seals. RETRACTABLE COOKER HOOD... - Page 9 OPERATION & MAINTENANCE MAINTENANCE To maintain effi ciency and reduce fi re risk, fi lters should be removed every four weeks (maximum) for cleaning. Soak and agitate fi lters in hot soapy water or washing soda. Rinse, drain, shake well and replace. Do not use caustic solutions or other corrosive agents.
-
Page 10: Warranty
5. To the extent permitted by law, you will bear the cost of transportation, 12. For Appliances and services provided by Electrolux in New Zealand, the travel and delivery of the Appliance to and from Electrolux or its ASC. If you Appliances come with a guarantee by Electrolux pursuant to the provisions... - Page 11 NOTES 13427_Rangehood_Electrolux.indd 10...
- Page 12 PLEASE LEAVE THIS BOOKLET WITH THE COOKER HOOD OWNER. THANK YOU. www. electrolux.com.au Version: 00 www. electrolux.com.nz 02-Nov 2015...
