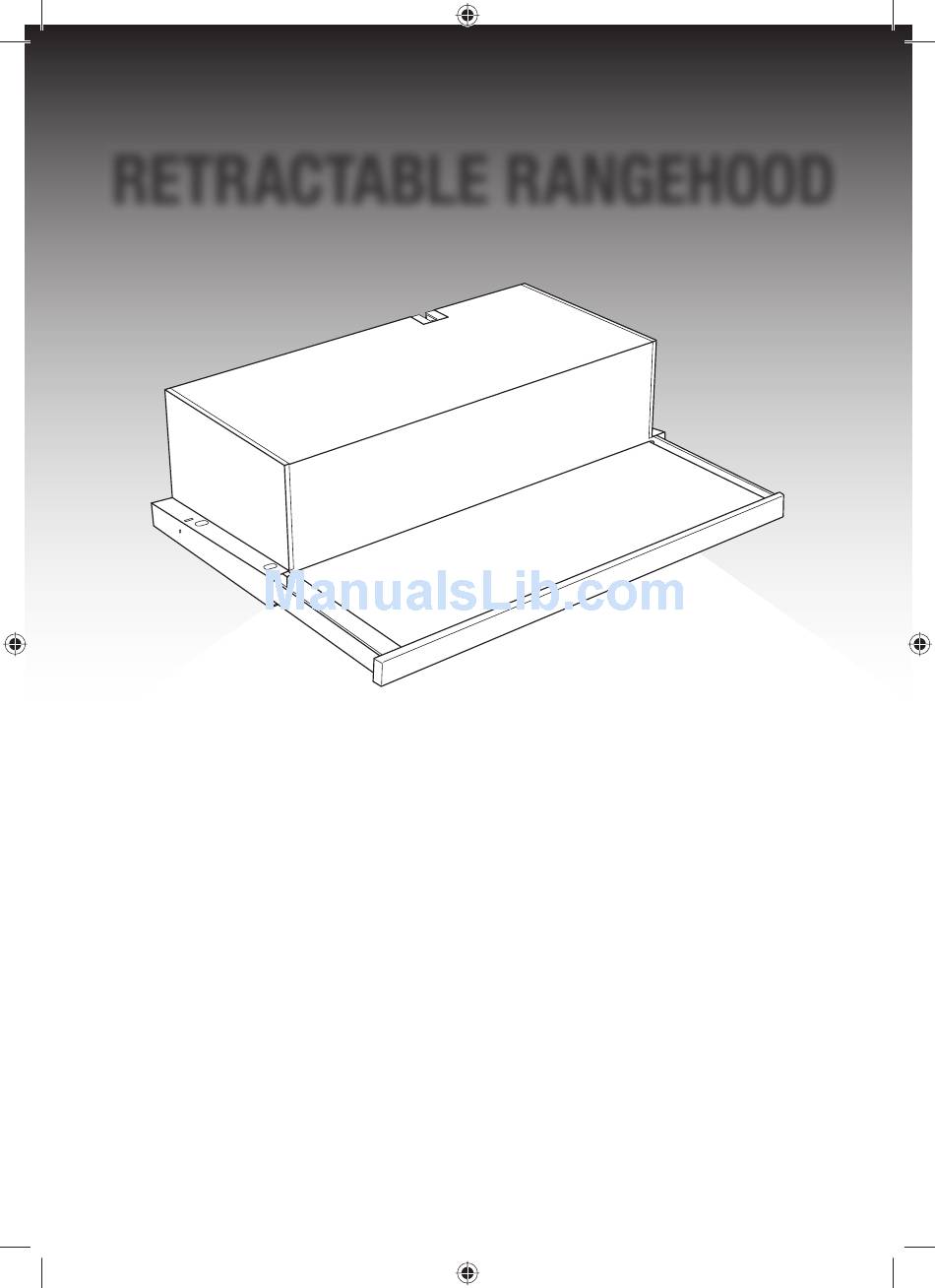

RETRACTABLE RANGEHOOD
OPERATION GUIDE
INSTALLATION INSTRUCTIONS
Models: WRH605I • WRH608I • WRH908I • REHR6 • REHR9 • RRE634 • RRE635 • RRE934
These cooker hoods are domestic appliances which have been manufactured and tested to comply with
Australian and New Zealand Standard AS/NZS 3350.2.31.
13427_Rangehood_Electrolux.indd 1
13427_Rangehood_Electrolux.indd 1
3/11/05 6:28:19PM
Advertisement
Table of Contents
Related Manuals for Electrolux WRH605I
Summary of Contents for Electrolux WRH605I
-
Page 1: Installation Instructions
OPERATION GUIDE INSTALLATION INSTRUCTIONS Models: WRH605I • WRH608I • WRH908I • REHR6 • REHR9 • RRE634 • RRE635 • RRE934 These cooker hoods are domestic appliances which have been manufactured and tested to comply with Australian and New Zealand Standard AS/NZS 3350.2.31. -
Page 2: Safety Warnings
Safety Warnings • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or insruction concerning use of the appliance by a person responsible for their safety. •... - Page 3 INSTALLATION INSTRUCTIONS Please read instructions carefully. Service calls resulting from incorrect installation will be charged for. Exhaust air from the Rangehood must not be discharged into any heating fl ue which may carry combustion products from other sources. In addition, exhaust air must not be discharged into a wall cavity, unless the cavity is designed for the purpose.
- Page 4 INSTALLATION INSTRUCTIONS STANDARD DUCTED INSTALLATION Models: WRH605I • WRH608I • WRH908I • REHR6 • REHR9 • RRE634 • RRE635 • RRE934 DUCTING ACCESSORIES For best performance 125mm ducting is recommended. AR125RC AR125F AR125FD AR125B AR125FJ (without damper) AR125FJD (with damper)
-
Page 5: Recirculating Vent Installation
INSTALLATION INSTRUCTIONS INSTALLATION USING THE SUPPLIED DRAWER FASCIA FOR MODELS: WRH605I WRH608I WRH908I REHR6 REHR9 RRE634 RRE934 ● ● ● ● ● ● Standard ducted installation calls for a door extension of 130mm whether the client opts to use the supplied draw fascia or a custom fascia of the same dimensions as that supplied. - Page 6 INSTALLATION INSTRUCTIONS DUCTED RECIRCULATING INSTALLATION FOR MODELS: REHR6* REHR9* WRH605I* AR125WV ALL MODELS OPTIONAL CARBON FILTER An optional carbon fi lter will diminish cooking odours in the recirculated air. Depending on the frequency of use and the type of cooking, the expected life of carbon fi lters is from 1 to 6 months.
-
Page 7: Operation And Maintenance
IMPORTANT: The Edison Screw lamps may have come loose during transportation. Ensure that lamps are tightened firmly into the socket before power is applied. MODELS: WRH605I* REHR6* REHR9* The operation of the light and the two-speed fan are controlled by the drawer action. (see diagram) MODELS: WRH608I* WRH908I* RRE634* RRE635* RRE934* The operation of the lights and the three speed fans are controlled by the drawer action. - Page 8 OPERATION & MAINTENANCE MAINTENANCE To maintain effi ciency and reduce fi re risk, fi lters should be removed every four weeks (maximum) for cleaning. Soak and agitate fi lters in hot soapy water or washing soda. Rinse, drain, shake well and replace. Do not use caustic solutions or other corrosive agents.
- Page 10 NOTES RETRACTABLE RANGEHOOD 13427_Rangehood_Electrolux.indd 10 13427_Rangehood_Electrolux.indd 10 3/11/05 6:2...
- Page 11 NOTES OPERATION GUIDE & INSTALLATION INSTRUCTIONS 13427_Rangehood_Electrolux.indd 11 13427_Rangehood_Electrolux.indd 11 3/11/05 6...
- Page 12 C, June 2015...
