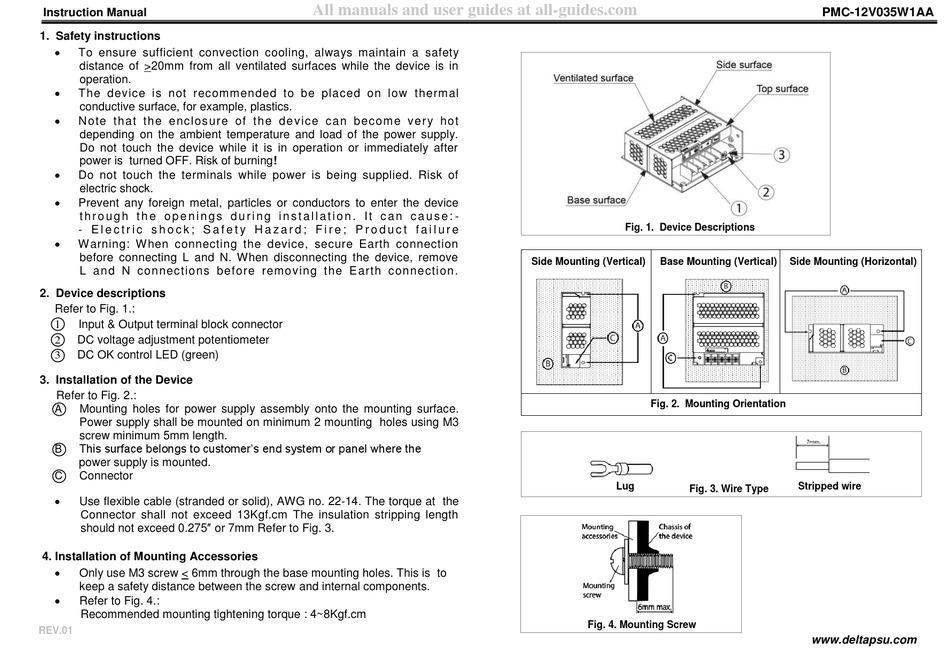

Instruction Manual
1. Safety instructions
To ensure sufficient convection cooling, always maintain a safety
distance of >20mm from all ventilated surfaces while the device is in
operation.
The device is not recommended to be placed on low thermal
conductive surface, for example, plastics.
N ote t hat t he enc l os ure of t he de v ic e c an bec om e v er y hot
depending on the ambient temperature and load of the power supply.
Do not touch the device while it is in operation or immediately after
power is turned OFF. Risk of burning!
Do not touch the terminals while power is being supplied. Risk of
electric shock.
Prevent any foreign metal, particles or conductors to enter the device
t h r o u g h t h e o p e n i n g s d u r i n g i n s t a l l a t i o n . I t c a n c a u s e : -
- E l e c t r i c s h o c k ; S a f e t y H a z a r d ; F i r e ; P r o d u c t f a i l u r e
W arning: W hen connecting the device, secure Earth connection
before connecting L and N. When disconnecting the device, remove
L and N connec tions before removing t he E art h c onnecti on.
2. Device descriptions
Refer to Fig. 1.:
Input & Output terminal block connector
1
DC voltage adjustment potentiometer
2
3
DC OK control LED (green)
3. Installation of the Device
Refer to Fig. 2.:
Mounting holes for power supply assembly onto the mounting surface.
A
Power supply shall be mounted on minimum 2 mounting holes using M3
screw minimum 5mm length.
This surface belongs to customer's end system or panel where the
B
power supply is mounted.
Connector
C
Use flexible cable (stranded or solid), AWG no. 22-14. The torque at the
Connector shall not exceed 13Kgf.cm The insulation stripping length
should not exceed 0.275" or 7mm Refer to Fig. 3.
4. Installation of Mounting Accessories
Only use M3 screw < 6mm through the base mounting holes. This is to
keep a safety distance between the screw and internal components.
Refer to Fig. 4.:
Recommended mounting tightening torque : 4~8Kgf.cm
REV.01
All manuals and user guides at all-guides.com
Fig. 1. Device Descriptions
Side Mounting (Vertical)
Base Mounting (Vertical)
Fig. 2. Mounting Orientation
Lug
Fig. 3. Wire Type
Fig. 4. Mounting Screw
PMC-12V035W1AA
Side Mounting (Horizontal)
Stripped wire
www.deltapsu.com
