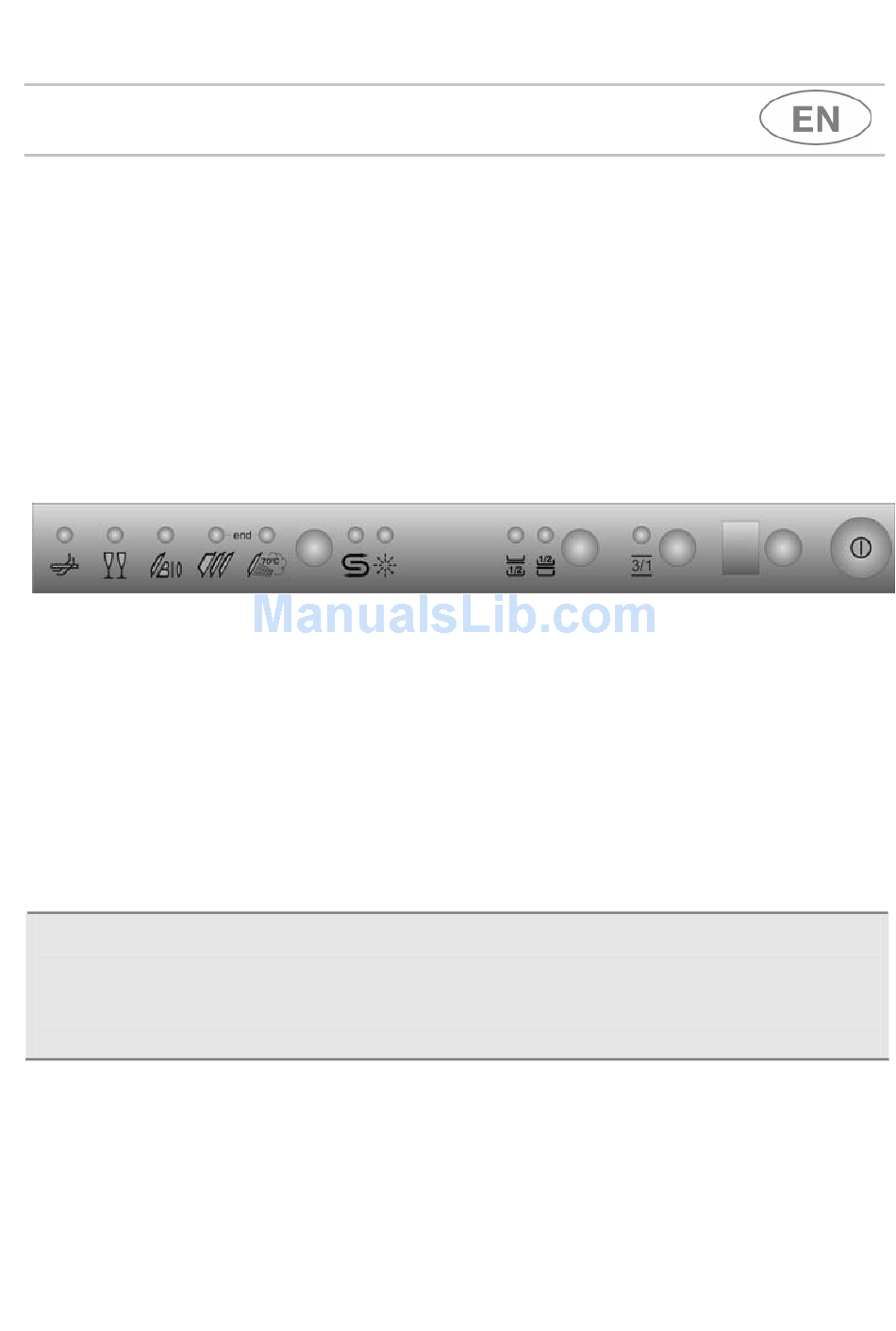

INSTRUCTION MANUAL
G
U
I
D
E
F
O
R
G
U
I
D
E
F
O
R
U
S
I
N
G
T
H
E
D
I
S
H
U
S
I
N
G
T
H
E
D
I
S
H
W
A
S
H
E
R
A
N
D
T
W
A
S
H
E
R
A
N
D
T
H
E
W
A
S
H
I
N
G
P
R
H
E
W
A
S
H
I
N
G
P
R
O
G
R
A
M
S
O
G
R
A
M
S

Advertisement

Table of Contents
loading

Related Manuals for Smeg ST147

Summary of Contents for Smeg ST147

  • Page 1 INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    Following the cleaning instructions provided here will keep your dishwasher's performance at peak levels in the long term. This user-friendly manual will provide answers to all your questions about use of the dishwasher.

  • Page 3: Safety And Operating Instructions

    PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION. IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR, ENSURE THAT OPENINGS UNDERSIDE OBSTRUCTED. ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID WASTING ELECTRICITY.

  • Page 4: Safety Instructions

    OFFICE, YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP WHERE YOU PURCHASED THE PRODUCT. IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP. DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER.
  • Page 5 NEVER LEAVE THE DISHWASHER DOOR OPEN; PEOPLE MIGHT TRIP OVER IT. DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE. KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST BE PLACED IN THE CUTLERY BASKET BLADE-DOWN, OR LAID HORIZONTAL IN THE TOP BASKET.

  • Page 6: Installation And Hook-Up

    A dishwasher can be built-in underneath a conventional hob provided there is no break in the kitchen worktop, and the dishwasher and hob are installed and secured correctly, so that no hazards are generated. When installing the dishwasher in a compartment next to one or more other appliances, it is essential to comply with all the recommendations provided by the appliance’s manufacturer (minimum distances, installation...

  • Page 7: Drain Connection

    The dishwasher can also be connected to a hot water supply not exceeding 60°C. Supplying the appliance with hot water cuts down the washing time by approximately 20 minutes, but slightly reduces its effectiveness.
  • Page 8 Installation instructions 2.2 Electrical connection and precautions CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON THE INNER EDGE OF THE DOOR. THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN FORCE.
  • Page 9 Installation instructions FOR GREAT BRITAIN ONLY: THIS APPLIANCE MUST BE EARTHED. Fuse replacement If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A.

  • Page 10: Description Of The Controls

    User instructions 3. Description of the controls 3.1 Upper panel All the dishwasher controls are grouped on the upper panel. Switch-on, programming, switch-off etc. procedures are only possible when the door is open. ON/OFF BUTTON Pressing this button energises the appliance.
  • Page 11 HALF LOAD BUTTON Press this button to activate the half load wash option. HALF LOAD LIGHTS One of the two light illuminates to indicate that the half load wash option in the top or bottom basket has been selected. PROGRAM DELAY BUTTON Press this button to delay the start of the program by up to 9 hours.
  • Page 12 The cycle duration and power consumption may vary according to the water and room temperatures, and the type and amount of dishes. The washing cycle will not take place if the dishwasher door is left open or not properly closed.
  • Page 13 “3 in 1” or “triple action” products; in this case the dishwasher will use the product in an optimal way avoiding salt and rinse-aid consumption, which could already be found in the dishwasher.
  • Page 14 The PROGRAM DELAY button (10) can be pressed to delay the start of the program by up to 9 hours. This means that the dishwasher can be operated at the time of day of your choice. Press the button several times in succession and the display will show the delay with which the appliance will start, beginning from 9 hours.
  • Page 15 • Do not carry out any preliminary rinsing. • If available, connect the dishwasher to a hot water supply up to 60°C. TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT THE ENVIRONMENT The phosphates contained in dishwasher detergents are harmful to the environment.
  • Page 16 4 and 5 start blinking (the word "end" is displayed on the window). To switch off the dishwasher, open the door and press the ON/OFF button (1). REMOVING THE DISHES At the end of the washing program, wait at least 20 minutes before removing the dishes, to allow them to cool down.

  • Page 17: Operating Instructions

    Before replacing the cap, remove any salt residues from around the opening. • When using the dishwasher for the first time, in addition to the salt it is also necessary to add one litre of water to the container. •...
  • Page 18 User instructions • Do not use table salt as it contains insoluble substances which, over time, may damage the water softening system. • When necessary, refill the regenerating salt container before starting the washing program. In this way, the excess saline solution will be immediately removed by the water;...
  • Page 19 WATER HARDNESS TABLE German Degrees (°dH) 0 - 4 5 - 15 16 - 23 24 - 31 32 - 47 48 - 58 Contact your local water board for information on the hardness of your water supply. 4.2 Using the rinse aid and detergent dispensers detergent dispensers are situated on the inner part of the door: the detergent...
  • Page 20 ADJUSTING THE RINSE AID DISPENSER SETTING The dishwasher is factory set for medium water hardness. However it possible to change the setting by turning the dispenser’s selector to the desired position: the amount of rinse aid dispensed is proportional to the selector position.
  • Page 21 • Do not use detergents formulated for washing dishes by hand, because they produce a great deal of foam and may negatively affect the operation of the dishwasher. • Add the correct amount of detergent. An insufficient amount of detergent will result in a partial removal of dirt from the dishes, whereas an excessive amount is wasteful and does not improve the washing results.
  • Page 22 - not enough detergent released during the cycle, with poor washing results; - the detergent forms a solid block in the distributor and is released during the final rinse cycle. The introduction of detergent into the rinse aid dispenser, even in liquid form, will damage the dishwasher.
  • Page 23 4.3 General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading. There are generally no constraints on the washing of domestic dishes, but in certain cases it is necessary to take their characteristics into account.
  • Page 24 • Glass and crystal: in general, glass and crystal objects can be washed in the dishwasher. However, certain types of glass and crystal may become dull and lose their clearness after many washings. Therefore, for these items we recommend using the least aggressive program available.
  • Page 25 User instructions 4.4 Using the baskets The dishwasher has a capacity of 14 place-settings, including serving dishes. LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling.
  • Page 26 In the front there are one or two supports (depending on the models) for small plates (B). To use them, they have to be turned towards the front of the dishwasher. LOADING THE LOWER BASKET Carefully load flat plates, soup plates, dessert and serving dishes, positioning them vertically.
  • Page 27 User instructions CUTLERY BASKET Cutlery must be placed with the tips facing downward. Long items of cutlery (ladles, wooden spoons, kitchen knives, etc.), which might interfere with the upper spray arm must be placed in the upper basket, ensuring that knife tips do not project from the basket. The cutlery basket features an exclusive system of independent sliding tip-up supports, offering a series of combinations to allow optimum use of the space available.
  • Page 28 User instructions UPPER BASKET It is recommended to load the upper basket with small- or medium-sized items such as glasses, small plates, tea or coffee cups, shallow bowls and light objects made from heat resistant plastic. If the upper basket is used in the lowermost position, it can also be loaded with serving dishes, provided they are only slightly soiled.
  • Page 29 ADJUSTING THE UPPER BASKET Version A: the upper basket can be adjusted in two positions, according to the user’s needs and according to the height of the dishes in the lower basket. Proceed as follows: • pull out the right-hand basket guide •...
  • Page 30 User instructions Version C: the top basket can be set in three different positions on both sides. The rack must be level on both sides. To raise the basket lift it, pulling on the front edge (1), to the first or second catch depending on the height required.

  • Page 31: Cleaning And Maintenance

    5.1 General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces. Clean the door gaskets with a damp sponge.
  • Page 32 • It is essential to thoroughly clean the filters according to the above instructions: the dishwasher cannot function if the filters are clogged. • Carefully replace the filters in their seats, to avoid damaging the wash pump.
  • Page 33 In some cases it is possible to remedy minor problems by referring to the following instructions: If the program fails to start, check that: • the dishwasher is connected to the electrical power supply; • there is no power failure; •...
  • Page 34 User instructions If the dishes fail to dry or remain dull, check that: • there is rinse aid inside the special container; • the rinse aid dispenser setting is correct; • the detergent used is of good quality and has not lost its effectiveness (for example, through incorrect storage, with the box left open).

  • Page 35: Troubleshooting

    6. Troubleshooting The dishwasher is capable of signalling a number of faults through the simultaneous illumination of several indicator lights, with the following meanings: FAULT User instructions DESCRIPTION Acquastop failure The anti-flooding system has been activated (for the relevant models only). The system is tripped in case of water leaks.
  • Page 36 • The alarm E7 is visualized at the end of the cycle that comes, however, brought to the end since the operation of the dishwasher is not harmed. To “reset” an alarm is necessary: •...
  • Page 37 TECHNICAL DATA Width Depth Height (depending on models) Capacity Water supply pressure Electrical characteristics User instructions 597 ÷ 599 mm 550 mm from 820 mm to 870 mm from 860 mm to 910 mm 14 Standard place settings min. 0,05 - max. 0,9 MPa (min. 0.5 – max. 9 bar) See rating plate...
  • Page 38 Allineare al bordo superiore del pannello porta. Align with the top edge of the door panel. Aligner au bord supérieur du panneau de la porte. Mit der Oberkante der Dekorplatte fluchten. ATTENZIONE: Quota Alinhar com o rebordo superior do painel da porta. ACHTUNG: Maß...
  • Page 39 SOLO PER MODELLI CON APERTURA AUTOMATICA smeg ST147AT I modelli con apertura automatica sono dotati di una cordicella (raggiungibile dalla parte anteriore anche in presenza di massello) che permette l’apertura della porta in assenza di alimentazione elettrica tirandola semplicemente verso il basso.
  • Page 40 MODELLO Altezza Anta mm. Min. STL 867 A STLA 868 A STL 827 A STLA 828 A STL 827 B STLA 828 B 25 mm. Minimo Peso Kg. Max. 2,5 - 9 2,5 - 9 2,5 - 9 2,5 - 9 2,5 - 9 2,5 - 9 19560002902...
  • Page 42 1) Appoggiare la dima in cartoncino sulla parte interna del pannello, centrare la dima sul pannello, vedi figura 1 Fig. 1 2) Fare collimare il bordo superiore della dima con il bordo superiore del pannello (installazione standard con il filo superiore anta allineato a filo superiore del frontalino lavastoviglie), come in figura 2,3 Fig.
  • Page 43 Fig. 4 4) Eseguire le pre-forature sul pannello utilizzando la punta Ø 2,5 mm. quindi praticare i fori per le boccole con una punta Ø 6 mm fino ad una profondità di 10-12 mm. MAX vedi figura 7. pre-foratura max. Ø 2,5 fori boccole max.
  • Page 44 Fig. 9 7) Applicare nella parte inferiore del massello gli inserti in plastica (I) e fissarli utilizzando le 8 viti a testa svasata (H), vedi figura 11. 6) Applicare le bussole (A) sul pannello, avvitandole fino a portarle a filo con la superficie del pannello stesso, vedi figure 9,10.
  • Page 45 8) Applicare gli inserti in plastica (B) utilizzando le viti (E) e le rondelle dentellate (D), Fig. 12 non stringere completamente le viti dovrà infatti essere eseguita una regolazione prima del serraggio definitivo vedi figure 12. 9) Posizionare la dima metallica a cavallo degli inserti in plastica superiori (v.fig.
  • Page 46 10) Agganciare il pannello alla porta della lavastoviglie infilandovi gli inserti in plastica nelle asole presenti sulla parte frontale della porta stessa, vedi figure 19,20,21 ATTENZIONE : al termine dell’operazione verificare manualmente la scorrevolezza in verticale del massello. Fig. 19 Fig.
  • Page 47 11) Infilare i supporti in plastica (G) in dotazione sugli inserti (I) già applicati sull’ anta 13) Fissare le viti in ottone utilizzando il dado (M) 12) Collegare i braccetti delle cerniere con i supporti in plastica tramite le viti in ottone (L) 14) Tenendo premuto il supporto verso il basso eseguire i 3 pre-fori con una punta Ø...
  • Page 48 SOLO PER MODELLI CON APERTURA AUTOMATICA I modelli con apertura automatica sono dotati di una cordicella (raggiungibile dalla parte anteriore anche in presenza di massello) che permette l’apertura della porta in assenza di alimentazione elettrica tirandola semplicemente verso il basso. La regolazione fine del pulsante deve essere effettuata ad anta montata utilizzando un cacciavite a taglio, agendo sulla zigrinatura del pulsante.
