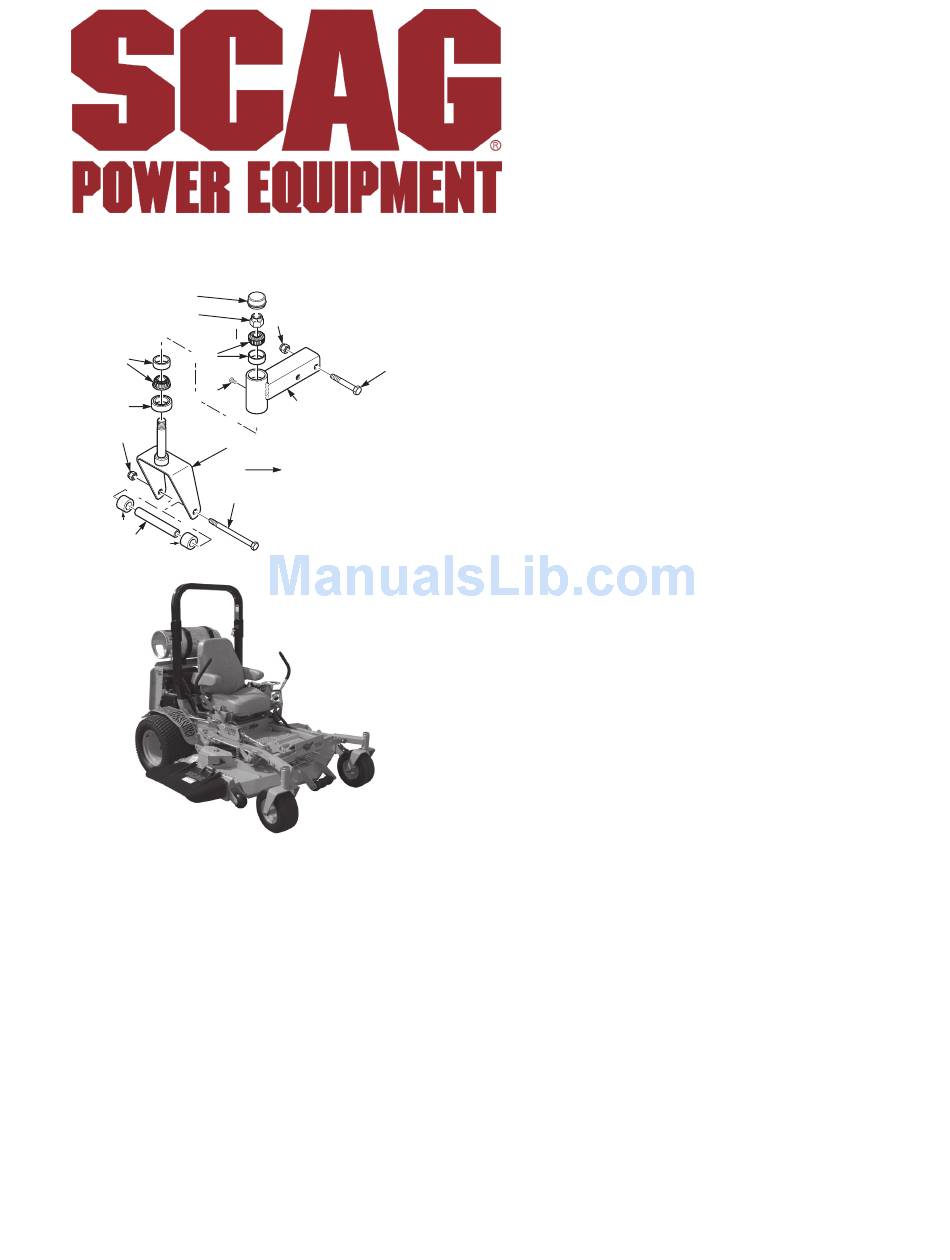

This manual conTains The illusTraTed parTs lisT for models:
sTT52V-25ch-lp
sTT61V-25ch-lp
© 2011
Scag Power Equipment
Division of Metalcraft of Mayville, Inc.
30
29
35
Model STT-25CH-LP
Turf Tiger
with a serial number of f5300001 to f5399999
with a serial number of f5500001 to f5599999
ILLUSTRATED
PARTS
MANUAL
Part No. 06214
Printed 3/2011
Printed in USA
Advertisement
Table of Contents
Related Manuals for Scag Power Equipment TURF TIGER STT-25CH-LP
Summary of Contents for Scag Power Equipment TURF TIGER STT-25CH-LP
- Page 1 This manual conTains The illusTraTed parTs lisT for models: sTT52V-25ch-lp sTT61V-25ch-lp © 2011 Scag Power Equipment Division of Metalcraft of Mayville, Inc. ILLUSTRATED PARTS MANUAL Model STT-25CH-LP Turf Tiger with a serial number of f5300001 to f5399999 with a serial number of f5500001 to f5599999 Part No.
-
Page 3: Table Of Contents
Table of contents Table of contents 52V cuTTer decK ...2 61V cuTTer decK ...4 cuTTer decK conTrols ...6 sheeT meTal componenTs ...8 sTT roll-oVer proTecTion sYsTem ...10 sTT suspension seaT ...12 decK driVe componenTs ...14 enGine and aTTachinG parTs - Kohler lp ...16 BraKe and sTeerinG componenTs ...18 hYdraulic sYsTem - Kohler lp ...20 lp sYsTem - Kohler ...22... -
Page 4: 52V Cutter Deck
52V cuTTer decK section 8 44 61 63 85 86 STT 2008 CD... - Page 5 section 8 ref. part no. description 461859 Cutter Deck Velocity Plus 04003-40 Bolt, Carriage 7/16-14 x 1-1/4” 04019-04 Nut, Hex Serr. Flng 3/8-16 481625-01 Wing nut, 3/8-16 481632 Anti-Scalp Wheel 04003-26 Bolt, Carriage 3/8-16 x 4” 422478 Anti-Scalp Wheel Bracket 04017-27 Bolt, Hex Serr.
-
Page 6: Cutter Deck
61V cutter deck 44 61 63 85 70 section 8 STT-EFI 2008 CD... - Page 7 section 8 ref. part no. description 461863 Cutter Deck Velocity Plus 04003-40 Bolt, Carriage 7/16-14 x 1-1/4” 04019-04 Nut, Hex Serr. Flng. 3/8-16 481625-01 Wing Nut, 3/8-16 481632 Anti-Scalp Wheel 04003-26 Bolt, Carriage 3/8-16 x 4” 422478 Anti-Scalp Wheel Bracket 04017-27 Bolt, Hex Serr.
-
Page 8: Cutter Deck Controls
cuTTer decK conTrols CUTTER DECK section 8 STT-28CAT 2008CDC... - Page 9 section 8 ref. part no. description 481764 Link, Deck Lift 04020-28 Nut, Jam 1/2-20 LH 481766 Rod End, Female - 1/2-20 LH 04050-10 Ring, Retaining 1/2” External “E” 45905 Bellcrank Weldment, RH Rear 43487 Pin, Decklift 482429 Slide Weldment, Height Adjustment 04009-02 Bolt, Shoulder 1/2 x 3/4”...
-
Page 10: Sheet Metal Components
sheeT meTal componenTs section 8 STT-25CH-LP 2011 SMC... - Page 11 section 8 ref. part no. description 451481 Fender Weldment, RH 04001-09 Bolt, Hex Head, 5/16-18 x 1, Zinc 483371 Spring, Seat Latch 482621 Bearing w/ Race 491729 Seat Plate w/Decal 424819 Guard, Fuel Line 04001-117 Bolt, Hex Head 7/16-14 x 1-3/4” 04019-05 Nut, 7/16-14 Serrated Flange Battery (not avail.
-
Page 12: Stt Roll-Over Protection System
section 8 sTT roll-oVer proTecTion sYsTem... - Page 13 section 8 sTT roll-oVer proTecTion sYsTem ref. part no. description 462210 STT, ROPS 04001-87 Bolt, Hex Head 1/2-13 x 4” 04021-19 Nut, Center Lock 1/2-13 04040-13 Flatwasher, 1/2-.562 x 1.375 x .109 484168 Pin Assembly (incl. #9 & #10) 04001-163 Bolt, Hex Head 1/2-13 x 3-3/4”...
-
Page 14: Stt Suspension Seat
ref. part no. description 9292 Suspension Seat Assembly w/seat belt 04001-178 Bolt, Hex Head 7/16-20 x 1” 04040-11 Flatwasher, 7/16-.500 x 1.25 x .083 483594 Retractable Seat Belt 482950 Armrest Only 482945 Armrest Assembly Kit, LH 482946 Armrest Assembly Kit, RH 482940 Back Cushion Kit 482943... - Page 15 section 8 noTes...
-
Page 16: Deck Drive Components
Frame decK driVe componenTs 28 29 30 25 26 27 6 64 63 62 24 49 50 STT 2005 DDC section 8... - Page 17 section 8 ref. part no. description 423925 Belt Guard, Rear 481531 Hinge, Belt Guard 481309 Latch, Hood 482845 Rod Assembly, Clutch Anti-Rotation 48030-09 Clamp, Cable 461661 Clutch, Ogura GT-3.5 482876 Belt, Deck Drive 483088 Spring, Transmission Idler 48181 Pulley, Idler 5” Dia. 481536 Tapered Hub, 1”...
-
Page 18: Engine And Attaching Parts - Kohler Lp
enGine and aTTachinG parTs - Kohler lp REF. PUMP MTG. WELDMENT FRAME section 8 STT 2005 EAPKH... - Page 19 section 8 enGine and aTTachinG parTs - Kohler lp ref. part no. description 422593 Muffler Guard 04017-05 Screw, Hex Serrated Flange 1/4-20 x 3/4” Muffler, Part Of Engine (Available only through Kohler) 482510 Oil Drain Extension 04110-01 U-Nut, 1/4-20 424691 Rear Cover 483537 Hour Meter...
-
Page 20: Brake And Steering Components
BraKe and sTeerinG componenTs 61 59 section 8 TO RH PUMP TO LH PUMP STT2006B&SC REV 1... - Page 21 section 8 BraKe and sTeerinG componenTs ref. part no. description 482340 Grip, Handle Bar 461914 Handle Bar, LH (Includes item 1) 461923 Handle Bar, RH (Includes item 1) 04001-09 Bolt, Hex Head 5/16-18 x 1” 04030-03 Lockwasher, 5/16” 483250 Rubber Spacer 483238 Bar, Control Lever 451483...
-
Page 22: Hydraulic System - Kohler Lp
hYdraulic sYsTem - Kohler lp DUMP VALVE 43 (2) 43 (2) 44 45 17 section 8 2009 STT-25CH-LP HS.eps... - Page 23 section 8 hYdraulic sYsTem - Kohler lp ref. part no. description 04110-01 U-Nut 1/4-20 48136-13 Hose Clamp, 0.69” Dia. 04001-03 Bolt, Hex Head 1/4-20 x 2.0” 48811 Hose, 3/8” ID Pushlock - (order by inch) 48136-07 Clamp, Hose 1/2” 481301-03 Elbow, 90 Degree - 1/4”...
-
Page 24: Lp System - Kohler
lp sYsTem - Kohler TO VAPORIZER TO CARBURETOR FROM VAPORIZER section 8... - Page 25 section 8 ref. part no. description 04001-12 Bolt, Heax Head 5/16-18 x 1-3/4" 04001-18 Bolt, Head Head 3/8-16 x 3/4" 04001-19 Bolt, Hex Head 3/8-16 x 1" 04019-03 Nut, Serrated Flange 5/16-18 04019-04 Nut, Serrated Flange 3/8-16 04041-07 Flatwasher, 3/8-.391 x .938 x .105 422386 Brace 425254...
-
Page 26: Bdp-16A Hydraulic Pump Assembly
Bdp-16a hYdraulic pump assemBlY PORT "A" SIDE PORT "B" SIDE section 8... - Page 27 section 8 Bdp-16a hYdraulic pump assemBlY ref. part no. description HG70740 Overhaul Seal Kit HG51455 Valve Plate HG70735 Cylinder Block Kit - 16cc HG51462 Thrust Ball Bearing Assembly HG51436 Variable Swashplate HG2000015 Slot Guide HG2000014 Trunnion Arm HG2000025 Block Spring HG2000024 Block Thrust Washer HG2000032...
-
Page 28: Electrical System - Kohler Lp
elecTrical sYsTem - Kohler lp MAIN HARNESS section 8 STT-25CP-LP 2009 ES... - Page 29 section 8 elecTrical sYsTem - Kohler lp ref. part no. description 483623 Wire Harness, STT Air-Cooled 48298 Fuse, 20 AMP 483366 Key, Ignition 462069 Key Assembly w/Fob 48017-04 Nut, Hex 5/8-32 48017-03 Lockwasher, 5/8” Internal 461916 Instrument Panel, Top w/Decals 48798 Key Switch 483957...
-
Page 30: Replacement Decals And Information Plates
replacemenT decals and informaTion plaTes WARNING Operation of this equipment may create sparks that can start fires around dry vegetation. A spark arrestor may be required. The operator should contact local fire agencies for laws or regulations relating to fire prevention requirements. 483900 California Only FORWARD... - Page 31 section 8 replacemenT decals and informaTion plaTes ref. part no. description 483407 Decal, Danger-Spinning Blades 483406 Decal, Warning-Rotating Blades 483044 Decal, Patents 483900 Decal, Warning Spark Arrestor 483200 Decal, 52” Velocity Plus 483201 Decal, 61” Velocity Plus 481568 Decal, Traction Control 481663 Decal, Stripes-LH 481971...
-
Page 32: Electrical Schematic - Kohler Lp
elecTrical schemaTic - Kohler lp RELAY GRN W/BLK STRIPE DIODE GRN W/WHT STRIPE GREEN RED W/YEL STRIPE PINK GRN W/BLK STRIPE MODULE WHITE PLUG BLACK LIGHT BLUE ORANGE BROWN AMPMETER RED W/YEL STRIPE YEL W/RED STRIPE AMPMETER SWITCH BLUE LIGHT BLUE YELLOW SWITCH WHITE...
