Summary of Contents for Health O Meter 2101KL

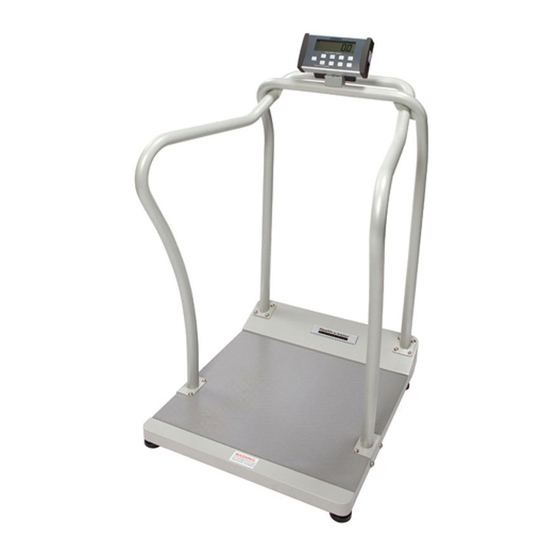

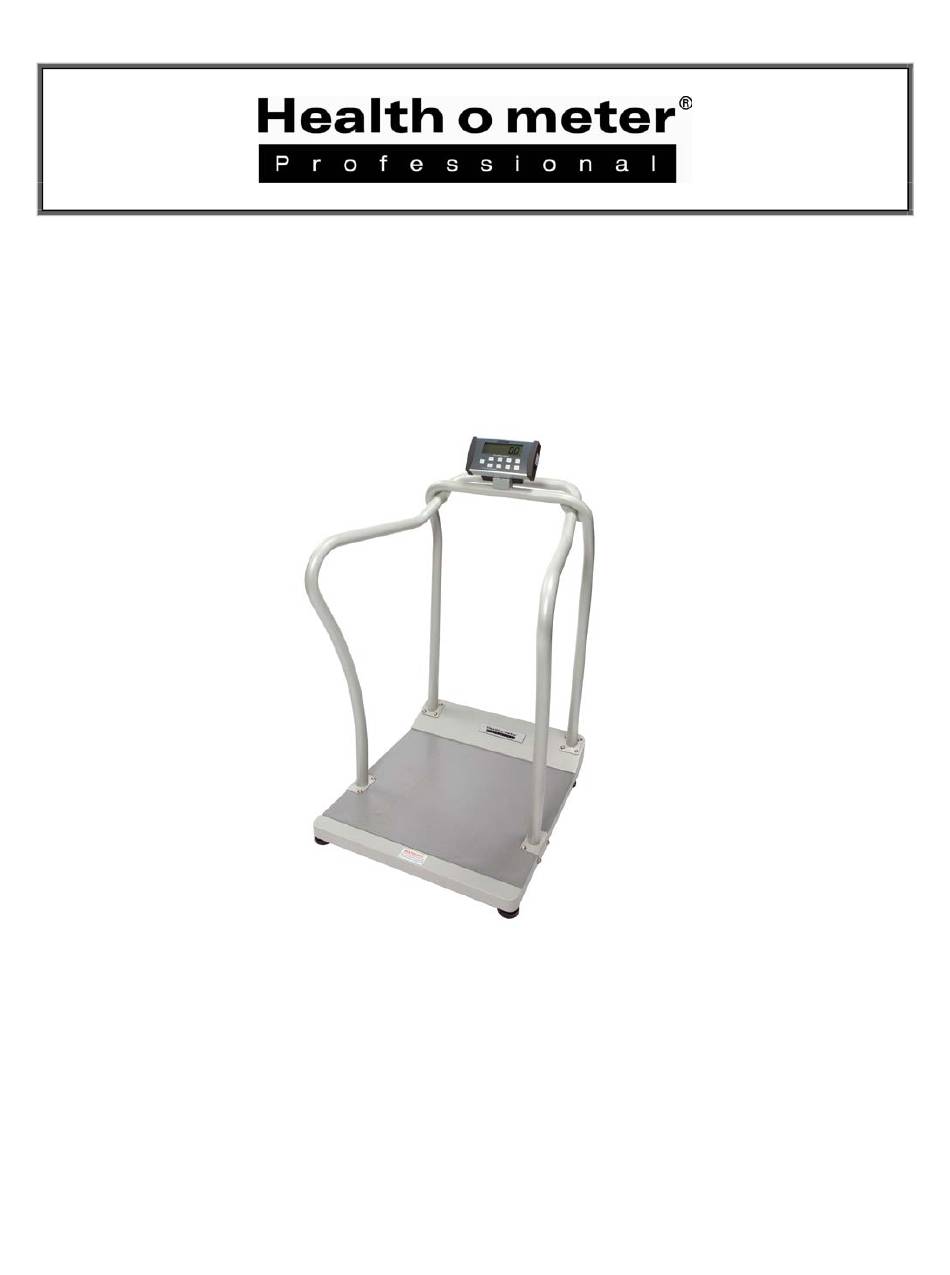

- Page 1 Model 2101KL Digital Handrail Scale User Instructions P/N UM2101KL Rev20170306...
-
Page 2: Table Of Contents
Model 2101KL Thank you for your purchase of this Health o meter® Professional product. Please read this manual carefully, and keep it for easy reference or training. TABLE OF CONTENTS Caution and Warning....................3 Specifications for This Scale ..................4 Certifications / Connectivity / Disposal .............. -
Page 3: Caution And Warning
CAUTION AND WARNING • To prevent injury and damage to your scale, please follow these instructions very carefully. • Assemble and operate the scale per the enclosed user instructions. • Operate this scale exclusively with the AC adapter provided by Health o meter Professional. -
Page 4: Specifications For This Scale
SPECIFICATIONS FOR THIS SCALE General The Model 2101KL Digital Handrail Scale uses highly sophisticated microprocessor technology. Each precision scale is designed to provide accurate, reliable and repeatable weight measurements. In addition, each scale is designed to provide the user with features that make the weighing process simple, fast, and convenient. -
Page 5: Certifications / Connectivity / Disposal
Support, available during normal business hours at 1-800-638-3722. 2101KL Scale Disposal This Health o meter® Professional scale must be disposed of properly as electronic waste. Follow the national, regional or local regulations which apply to you for disposal of electronic... -
Page 6: Assembly Instructions 2101Kl Scale
2101KL ASSEMBLY INSTRUCTIONS Before Assembly Each 2101KL digital handrail scale is shipped disassembled in a single carton. Carefully inspect the carton for shipping damage before unpacking. If damage is found, contact your shipper or a Health o meter® Professional representative immediately at 1-800-815-6615. Claims must be filed with the shipper as soon as possible after receipt of the package. - Page 7 2101KL ASSEMBLY INSTRUCTIONS (CONTINUED) Assembling the 2101KL Scale (Refer to Figures 1-6) Caution: It is recommended that the assembly be performed by two persons. 1. Remove the scale platform from the carton and place scale platform on a flat, level and dry surface.
- Page 8 2101KL ASSEMBLY INSTRUCTIONS (CONTINUED) 16. Place the pivot bracket screw covers over the pivot screws. Fasten the covers to the back of the display using (4) Phillips pan head #5 x 3/8 screws (E). Use Phillips head screwdriver to tighten the screws (see Figures 1 & 4).
- Page 9 2101KL ASSEMBLY INSTRUCTIONS (CONTINUED) Figure 1 Figure 2...
- Page 10 2101KL ASSEMBLY INSTRUCTIONS (CONTINUED) Holes arrays Load cell cable Center handrail Scale platform Figure 3 Figure 4...
- Page 11 2101KL ASSEMBLY INSTRUCTIONS (CONTINUED) Figure 5 Protective metal shield Cable connector Load cell port Figure 6...
-
Page 12: Setup / Batteries
AC adapter into the power source. Warning: To avoid a safety hazard, do not use an unspecified AC adapter. Only use the Health o meter® Professional AC adapter model ADPT30 designed for this scale. Power Adapter Jack 2. -
Page 13: Operating Instructions
OPERATING INSTRUCTIONS Keypad Figure 8 Function Description ON/OFF Power scale on and off. ZERO Zeros the scale prior to a weighing. Holds the weight value of the patient on the display until the button is HOLD/RELEASE pressed again to clear the value. Also moves the cursor from left to right ►... - Page 14 OPERATING INSTRUCTIONS (CONT) Unit of Measure Configuration The UNIT button allows the user to toggle the weight measuring unit between LB and KG. The display can be locked to only measure in LB or KG by following these procedures. KG Lock Instructions 1.
- Page 15 OPERATING INSTRUCTIONS (CONT) 5. After obtaining the patient’s weight, and with the patient remaining on the scale, press the BMI button. 6. The scale will prompt entry of the patient’s height. Use the keypad ▲ and ► buttons to enter the patient’s height.
- Page 16 Parent/Child Function The Parent/Child function on Health o meter® Professional scales provides the convenience of weighing a small child or infant while being held by a parent. Follow these simple steps to subtract the parent’s weight from the total so only the child’s weight is displayed.
-
Page 17: Maintenance
Maintenance The following pages provide instructions for maintenance, cleaning, calibration, and troubleshooting for the 2101KL scale. Maintenance operations other than those described in this manual should be performed by qualified service personnel. Caution: Before first use, or after long periods of non-use, check the scale for proper operation and function. -
Page 18: Calibration
This scale has been factory calibrated, and does not require calibration prior to use. For maintenance, the scale can be calibrated. Calibration of your 2101KL scale is performed using kilograms (KG) or pounds (LB), according to the units of measure used upon entering into the calibration path. -
Page 19: Troubleshooting
TROUBLESHOOTING Troubleshooting Before contacting service personnel, refer to the following instructions to check and to correct any failures. Symptom Possible Cause Corrective Action Scale does not turn on 1. Dead Battery 1. Replace batteries 2. Faulty electrical outlet 2. Use a different outlet 3. -
Page 20: Warranty
What does the Warranty Cover? This Health o meter® Professional scale is warranted from date of purchase against defects of materials or in workmanship for a period of two (2) years. If product fails to function properly, return the product, freight prepaid and properly packed to Pelstar, LLC (see “To Get Warranty Service”, below, for instructions).
