- Page 1 YASKAWA AC Drive Option External Heatsink Installation Kit Installation Manual Model ZPSA-600-EH1-FRx To properly use the product, read this manual thoroughly and retain for easy reference, inspection, and maintenance. Ensure the end user receives this manual. MANUAL NO. TOEP C720600 11B...
- Page 2 This Page Intentionally Blank YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
-
Page 3: Table Of Contents
Gasket and Sealant ............38 YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual... - Page 4 Revision History ............40 YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
-
Page 5: Glossary
• If you damage or lose these instructions, contact a Yaskawa representative or the nearest Yaskawa sales office on the rear cover of the manual, and tell them the document number on the front cover to order new copies. -
Page 6: Overview

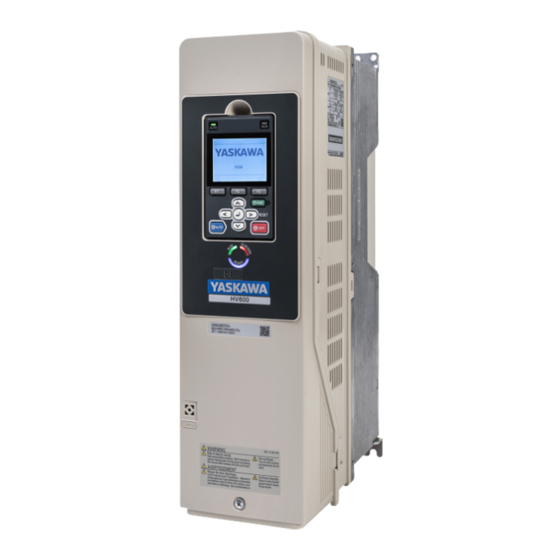

This manual also tells you how to use the mounting brackets included with the drive to do an external heatsink installation. ◆ Compatible Products This installation kit is compatible with these drives: • HV600 • FP605 YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual... -
Page 7: Installation Environment
• Installing the drive between 2000 m to 4000 m (6562 ft to 13123 ft) and grounding the neutral point on the power supply. Contact Yaskawa or your nearest sales representative if you will not ground the neutral point. • 10 Hz to 20 Hz: 1 G (9.8 m/s , 32.15 ft/s... -
Page 8: Receiving
M6 × 12 pan head screws Qty: 4 Qty: 1 Qty: 1 ZPSA-600-EH1-FR4 M6 × 12 pan head screws Qty: 4 Qty: 1 Bracket 1 and bracket 2 are the same product. YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual... -
Page 9: Install The Attachment
2024, 2031, 4021, 4027, 4034 2046, 2059, 4040, 4052, 4065 2075, 2088, 2114, 4077, 4096, 4124 2143, 2169, 4156 2211, 2273, 4180, 4240, 4302 2343, 2396, 4361, 4414 4477, 4515, 4590, 4720 YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual... -
Page 10: Drive Mounting Dimensions And Panel Cut-Out Dimensions 1
5 Install the Attachment ■ Drive Mounting Dimensions and Panel Cut-out Dimensions 1 Figure 5.1 Drive Mounting Dimensions 1 Figure 5.2 Panel Cut-Out Dimensions 1 YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual... -
Page 11: Drive Mounting Dimensions And Panel Cut-Out Dimensions 3
5 Install the Attachment ■ Drive Mounting Dimensions and Panel Cut-out Dimensions 2 Figure 5.3 Drive Mounting Dimensions 2 Figure 5.4 Panel Cut-Out Dimensions 2 YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual... -
Page 12: Drive Mounting Dimensions And Panel Cut-Out Dimensions 5
5 Install the Attachment ■ Drive Mounting Dimensions and Panel Cut-out Dimensions 3 Figure 5.5 Drive Mounting Dimensions 3 Figure 5.6 Panel Cut-Out Dimensions 3 YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual... -
Page 13: Drive Mounting Dimensions And Panel Cut-Out Dimensions 7
5 Install the Attachment ■ Drive Mounting Dimensions and Panel Cut-out Dimensions 4 Figure 5.7 Drive Mounting Dimensions 4 Figure 5.8 Panel Cut-Out Dimensions 4 YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual... - Page 14 5 Install the Attachment ■ Drive Mounting Dimensions and Panel Cut-out Dimensions 5 Figure 5.9 Drive Mounting Dimensions 5 Figure 5.10 Panel Cut-Out Dimensions 5 YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
- Page 15 5 Install the Attachment ■ Drive Mounting Dimensions and Panel Cut-out Dimensions 6 Figure 5.11 Drive Mounting Dimensions 6 Figure 5.12 Panel Cut-Out Dimensions 6 YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
- Page 16 5 Install the Attachment ■ Drive Mounting Dimensions and Panel Cut-out Dimensions 7 Figure 5.13 Drive Mounting Dimensions 7 Figure 5.14 Panel Cut-Out Dimensions 7 YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
- Page 17 5 Install the Attachment ■ Drive Mounting Dimensions and Panel Cut-out Dimensions 8 Figure 5.15 Drive Mounting Dimensions 8 YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
- Page 18 5 Install the Attachment Figure 5.16 Panel Cut-Out Dimensions 8 YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
-
Page 19: Cut An Opening For Cooling Fan Replacement
E - Closing plate C - Drive Figure 5.17 Cooling Fan Replacement Opening You must select the correct screw size for the installation environment. Figure 5.18 Opening Dimensions for Cooling Fan Replacement YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual... -
Page 20: Kit Models And Installation Procedure
ZPSA-600-EH1-FR3 Procedure B 2075, 2088, 2114, 4077, 4096, 4124 ZPSA-600-EH1-FR4 Procedure C 2143, 2169, 4156 2211, 2273, 4180, 4240 Procedure D 4302 Use the mounting bracket supplied with the drive. YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual... -
Page 21: Fp605
Procedure C 2143, 2169, 4156 2211, 2273, 4180, 4240, 4302 Procedure D 2343, 2396, 4361, 4414 4477, 4515, 4590, 4720 Procedure E Use the mounting bracket supplied with the drive. YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual... -
Page 22: Use The Kit (Procedure A)
Figure 5.20. Tighten the screws to a correct tightening torque: • M5 × 12 pan head screws: 1.96 N∙m to 2.53 N∙m (17.35 lbf∙in to 22.39 lbf∙in) YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual... - Page 23 • M5 × 12 pan head screws: 1.96 N∙m to 2.53 N∙m (17.35 lbf∙in to 22.39 lbf∙in) A - Bracket 2 B - M5 × 12 pan head screws Figure 5.21 Install Bracket 2 (Top of the Drive) YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
- Page 24 A - Enclosure panel B - M5 screws Figure 5.23 Install the Drive into the Opening of the Enclosure Panel You must select the correct screw length for the enclosure panel. YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
-
Page 25: Use The Kit (Procedure B)
• M6 × 12 pan head screws: 3.92 N∙m to 4.90 N∙m (34.70 lbf∙in to 43.37 lbf∙in) A - Bracket 1 B - M6 × 12 pan head screws Figure 5.25 Install Bracket 1 (Bottom of the Drive) YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual... - Page 26 Damage to Equipment. Do not remove the top protective cover of model 4065. If you remove the cover, the drive temperature will increase and it can cause damage to the drive. Figure 5.27 Remove the Top Protective Cover YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
- Page 27 A - Enclosure panel B - M6 screws Figure 5.28 Install the Drive into the Opening of the Enclosure Panel You must select the correct screw length for the enclosure panel. YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
-
Page 28: Use The Mounting Bracket Included With The Drive And The Kit (Procedure C)
Figure 5.31. Tighten the screws to a correct tightening torque: • M6 × 12 pan head screws: 3.92 N∙m to 4.90 N∙m (34.70 lbf∙in to 43.37 lbf∙in) YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual... - Page 29 B - M6 × 12 pan head screws Figure 5.31 Install Bracket 2 (Top of the Drive) Remove the top protective cover. A - Top protective cover Figure 5.32 Remove the Top Protective Cover YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
- Page 30 A - Enclosure panel B - M6 screws Figure 5.33 Install the Drive into the Opening of the Enclosure Panel You must select the correct screw length for the enclosure panel. YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
-
Page 31: Use The Mounting Bracket Included With The Drive (Procedure D)
Figure 5.36. Tighten the bolts to a correct tightening torque: • Drive models HV60x2143 to 2273, 4156 to 4240, and FP65x4302: YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual... - Page 32 • Drive models HV60x2211, 2273, 4180, 4240, and FP65x4302 do not have these bolts on the top of the drive. • You will not use the removed bolts for installation. A - Bolts Figure 5.37 Remove the Bolts YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
- Page 33 Figure 5.39 Install the Mounting Bracket (Top of the Drive) Remove the top protective cover. Note: Drive models HV60x2211 to 2273, 4180 to 4302, and FP65x2211, 2273, 4180 to 4414 do not have the top protective cover. YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
- Page 34 Figure 5.41 Install the Drive into the Opening of the Enclosure Panel Refer to the drive manual for more information about the bolt size. You must select the correct bolt length for the enclosure panel. YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
-
Page 35: Use The Mounting Bracket Included With The Drive (Procedure E)
Change the position of the mounting bracket and install it in the position shown in Figure 5.43. Tighten the screws to a tightening torque of 31.38 N∙m to 39.23 N∙m (277.74 lbf∙in to 347.21 lbf∙in). Figure 5.43 Install the Mounting Bracket YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual... - Page 36 Change the position of the mounting bracket and install it in the position shown in Figure 5.45. Tighten the screws to a tightening torque of 31.38 N∙m to 39.23 N∙m (277.74 lbf∙in to 347.21 lbf∙in). Figure 5.45 Install the Mounting Bracket YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
- Page 37 Install the drive in the cut opening of the enclosure panel and use screws to safety it to the enclosure panel. Figure 5.46 Install the Drive into the Opening of the Enclosure Panel YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
-
Page 38: Gasket And Sealant
The gasket must have a width of 7 mm (0.28 in) or more around the opening. Refer to Drive Mounting Dimensions and Panel Cut-out Dimensions on page 9 for more information. A - Enclosure panel C - Mounting screws B - Gasket Figure 5.47 Install a Gasket YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual... - Page 39 When you install the heatsink (cooling fin) to the outside of the enclosure panel, set L8-35 = 0 [Installation Method Selection = IP20/UL Open Type]. Refer to the Technical Reference/ Technical Manual of your drive for more information. YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
- Page 40 Revision History Revision Date of Publication Section Revised Content Number May 2021 Revision: Reviewed and corrected entire documentation Addition: Information on compatible models • FP605 January 2020 First Edition YASKAWA TOEP C720600 11B External Heatsink Installation Kit Installation Manual...
