Page 9

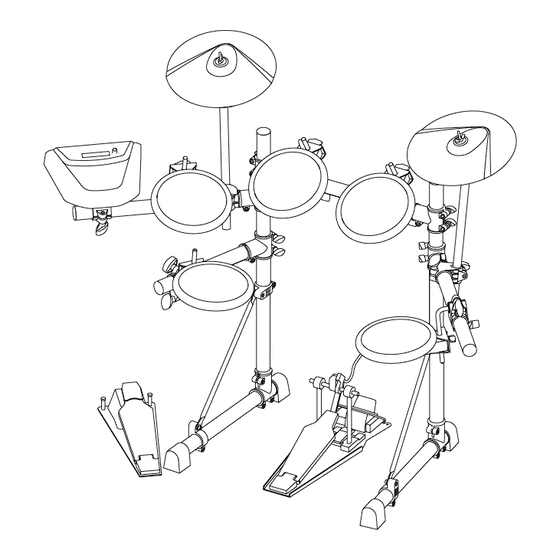

Owner's Manual Thank you, and congratulations on your choice of the Roland Drum System TD-6K. Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” (p. 2–3) and “IMPORTANT NOTES” (p. 3). These sections provide important information concerning the proper operation of the unit.
Page 10
(except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page. • Never use or store the unit in places that are: •...
• Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children. • Never climb on top of, nor place heavy objects on the unit. IMPORTANT NOTES 291a In addition to the items listed under “USING THE UNIT SAFELY”...
KD-7 (Kick Trigger Unit) Pad Face Anchor Bolt Foot Plate Output Jack Mix In Jack High Output Level Control Polarity Switch Setting the Polarity Switch Move the polarity switch to the “(-Roland)” position.
Using the Mix In Jack You can obtain twin pedal performance if you connect the output from a second KD-7 to the Mix In jack on the first KD-7. Adjusting the Output Level Control When the level of a second KD-7 that's been connected to the Mix In jack does not match that of its partner, you can finely adjust the output with the output level control.
Page 14
PD-6 (Pad) Stand Fixing Screw Holder Head Stand Fixing Screw Holder Output Jack Attaching the PD-6 to a Stand Pass the rod through the pipe that is inside the holder. Tighten Loosen When attaching the PD-6s to the mounts, be sure to tighten the stand fixing screws securely.
Page 15
Monaural (1 meter) When you have finished making the connections, proceed with the TD-6's settings. Settings optimized for the TD-6K are provided in factory settings on the TD-6. For more detailed information, refer to the TD-6 Owner's Manual. Crash 1...
Page 16
Information When you need repair service, call your nearest Roland Service Center or authorized Roland distributor in your country as shown below. SINGAPORE AFRICA AFRICA Swee Lee Company 150 Sims Drive, EGYPT SINGAPORE 387381 TEL: 6846-3676 Al Fanny Trading Office...
