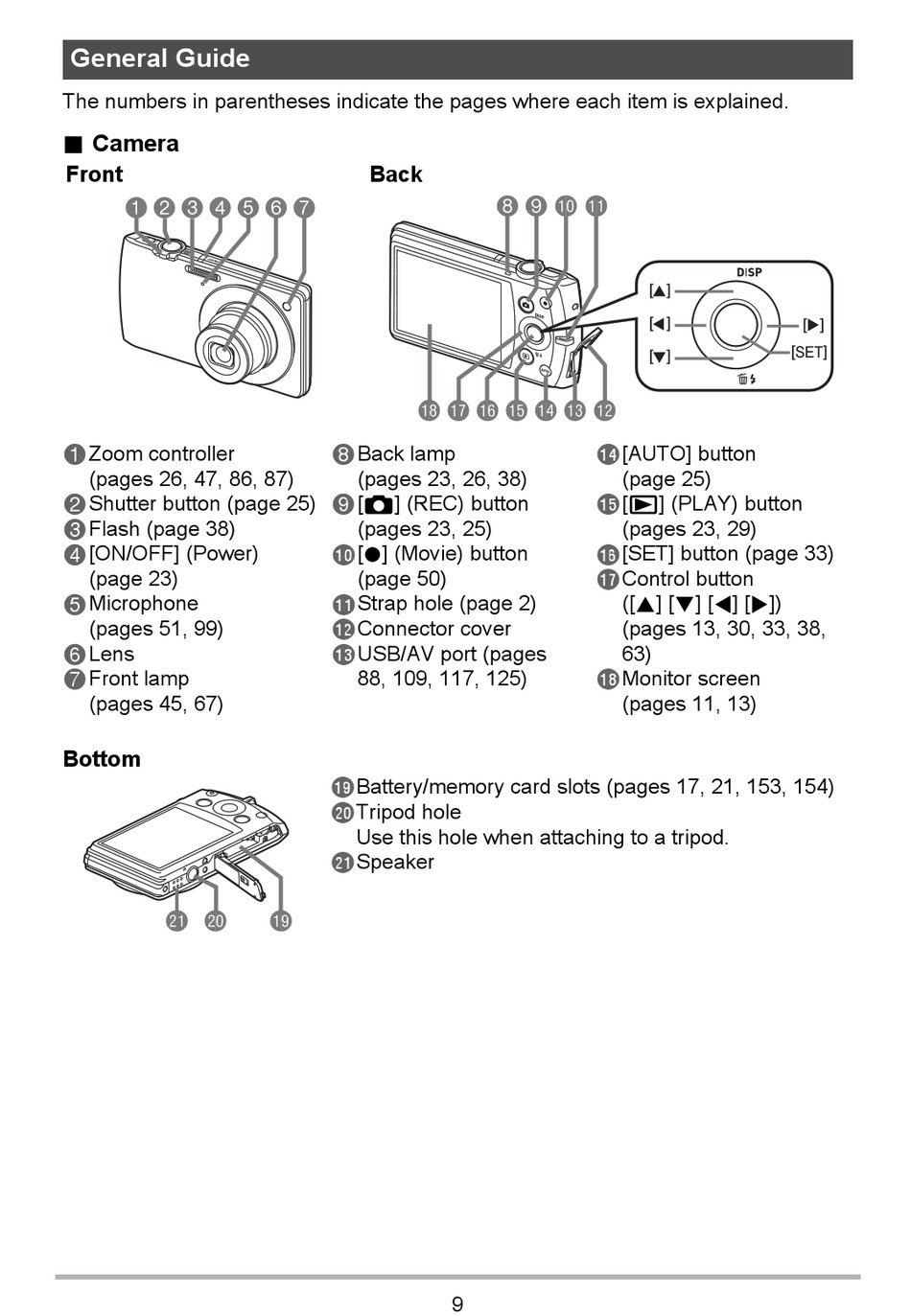

General Guide

The numbers in parentheses indicate the pages where each item is explained.
. Camera
Front
1 2 3 4
Zoom controller
1
(pages 26, 47, 86, 87)
Shutter button (page 25)
2
Flash (page 38)
3
[ON/OFF] (Power)
4
(page 23)
Microphone
5
(pages 51, 99)
Lens
6
Front lamp
7
(pages 45, 67)
Bottom
cl ck
Back
567
Back lamp
8
(pages 23, 26, 38)
[r] (REC) button
9
(pages 23, 25)
[0] (Movie) button
bk
(page 50)
Strap hole (page 2)
bl
Connector cover
bm
USB/AV port (pages
bn
88, 109, 117, 125)
Battery/memory card slots (pages 17, 21, 153, 154)
bt
Tripod hole
ck
Use this hole when attaching to a tripod.
Speaker
cl
bt
8 9 bk bl
bs br bq bp bo bn
9
[ ]
[ ]
[ ]
bm
[AUTO] button
bo
(page 25)
[p] (PLAY) button
bp
(pages 23, 29)
[SET] button (page 33)
bq
Control button
br
([8] [2] [4] [6])
(pages 13, 30, 33, 38,
63)
Monitor screen
bs
(pages 11, 13)
[ ]
[ SET ]
