Use and Care Guide and Installation Instructions
Smart All-In-One Washer and Dryer
Check how to contact us at
point 5 of the Warranty Certificate.
If you have any problems or questions, visit us at www.whirlpool-latam.com
Designed to use only HE
High Efficiency detergents.
W11479674A

Advertisement

Table of Contents
loading

Related Manuals for Whirlpool 7MWFC5090KC

Summary of Contents for Whirlpool 7MWFC5090KC

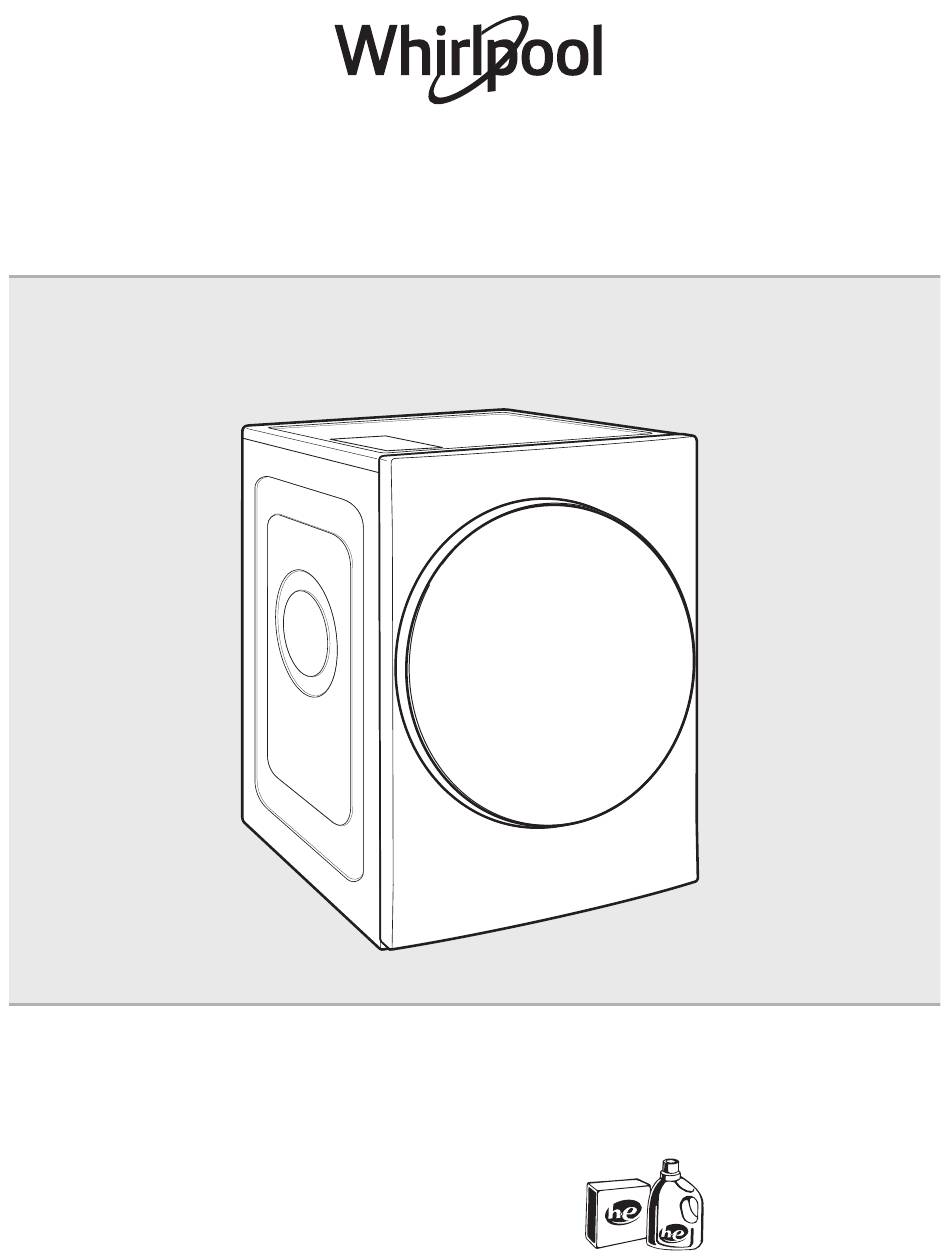

  • Page 1 Use and Care Guide and Installation Instructions Smart All-In-One Washer and Dryer Check how to contact us at point 5 of the Warranty Certificate. If you have any problems or questions, visit us at www.whirlpool-latam.com Designed to use only HE High Efficiency detergents. W11479674A...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SMART ALL-IN-ONE WASHER AND DRYER ......3 SAFETY OF THE SMART ALL-IN-ONE WASHER AND DRYER ...............3 ACCESSORIES ................6 OPERATING INSTRUCTIONS ............7 Control Panel and Features ............7 Cycle Guides ................8 Choosing the Right Detergent ...........13 Using the Smart All-In-One Washer/Dryer .........14 Smart All-In-One Washer/Dryer Maintenance ......16 INSTALLATION INSTRUCTIONS ..........19 Location Requirements ..............19...

  • Page 3: Smart All-In-One Washer And Dryer

    China (dry clothes) 10.1 kg (Washer) 12 A -13 A Message to the user 6 kg (Dryer) 7MWFC5090KC Thank you for purchasing a WHIRLPOOL appliance. Height 85 cm Width 59 cm 63 cm Depth Maximum water supply 800 kPa...

  • Page 6: Accessories

    Customize your new washer/dryer with the following genuine Whirlpool accessory. For more information on options and ordering, visit us at: www.whirlpool-latam.com. Check how to contact us at point 5 of the Warranty Certificate.

  • Page 7: Operating Instructions

    OPERATING INSTRUCTIONS Control Panel and Features Picture for illustrative purposes only Touch Selector Dispenser with 2 compartments (softener and detergent) Touch Screen Door with internal lighting Adjustable feet Buttons Catch Compartment...

  • Page 8: Cycle Guides

    Cycle Guides You can use this Washer/Dryer to wash only, dry only, or wash and dry. This Washer/Dryer has a unique user interface to help you select the best wash cycle for your load. Use the TOUCH SELECTOR to choose the washing and/or drying programs available for your Washer/Dryer. To access the desired program, slide your finger on the edge of the selector clockwise and counterclockwise.
  • Page 9 START /PAUSE key 4. Spin Time To start the selected Washer/Dryer Allows you to change the time program, press the START/PAUSE your clothes will remain in the centrifugation stage. button. If you want to pause the Washer/Dryer operation temporarily, The time can be changed from 1 to 9 use the same button.
  • Page 10 9. Control Lock 11. Delay Wash This function should be used if you Selecting this function, the Washer/ want to program your Washer/Dryer, Dryer will lock any changes in the cycle after the beginning of washing but do not want the cycle to begin or drying to prevent your Washer/ immediately.
  • Page 11 Cycle Temperature Washing Time Rinse Centrifugation Time (min) (quantity) (min) Cold 15 to 120 Warm 30 to 120 Whites 1 to 6 1 to 9 45 to 120 Colors Cold 15 to 45 1 to 9 1 to 4 Cold 15 to 45 Gentle care Warm...
  • Page 12 Cycle Spin Speed Silent Mode Stain Assistant Gentle, Normal and Extra Super Dry, Easy Ironing, Whites Delicate, 30 min, 1 h and 2 h Colors Gentle, Normal and Extra Unavailable Unavailable Gentle care Gentle, Normal and Extra Unavailable Unavailable Clean Washer Normal 30 min Unavailable...

  • Page 13: Choosing The Right Detergent

    Choosing the Right Detergent IMPORTANT: ■ Do not use chlorine bleach in this Use only High Efficiency detergents. The package will be marked Chlorine washer/dryer. Chlorine bleach will “HE” or “High Efficiency.” Low-water washing creates excessive damage it. sudsing with a non-HE detergent. Using non-HE detergent Bleach will likely result in longer cycle times and reduced rinsing ■...

  • Page 14: Using The Smart All-In-One Washer/Dryer

    Using the Smart All-In-One Washer/Dryer First wash cycle without laundry Load laundry into washer/dryer Before washing clothes for the first time, set up the Load & Go™ bulk dispenser (see page 9). Choose the Regular (What to Wash) and Quick (How to Wash) cycle and run it without clothes. Use only HE detergent.
  • Page 15 IMPORTANT: Using the dispenser ■ In case of surplus detergent, the message F0E2 may appear. For the next washings, reduce the quantity of detergent. Use the measuring cup and follow the instructions on the product label for correct dosing. Program your Washer/Dryer The Dispenser is a drawer with 2 compartments (softener detergent ) that automatically stores and distributes the...

  • Page 16: Smart All-In-One Washer/Dryer Maintenance

    Smart All-In-One Washer/Dryer Maintenance CLEANING THE WASHERDRYER EXTERNALLY In order not to damage and increase the life of your Washer/ Dryer: ■ Clean the lid glass weekly, avoiding accumulation of debris. Never use window cleaners to avoid damaging the material used in Washer/Dryer.
  • Page 17 CLEANING THE HOSE’S SCREEN FILTER CLEANING THE BUTTONS CATCH COMPARTMENT (Cont.) 3. Use hose to drain the remaining water into the drain or point of drainage. ■ Remove the lid at the end of the hose. ■ Lower the end of the hose to floor level. ■...
  • Page 18 WINTER STORAGE CARE IMPORTANT: To avoid damage, install and store Washer/ Dryer where it will not freeze. Because some water may stay in hoses, freezing can damage washer/dryer. If storing or moving during freezing weather, winterize your Washer/ Dryer. To winterize Washer/Dryer: 1.

  • Page 19: Installation Instructions

    INSTALLATION INSTRUCTIONS Location Requirements 23 ¼" Proper installation is your responsibility. Check code (590 mm) requirements. Some codes limit, or do not permit, installing Washer/Dryer in garages, closets, mobile homes, or sleeping quarters. Contact your local building inspector. 33¼" Mín. (845 mm) 333⁄4"...
  • Page 20 Location Requirements (cont.) Custom cabinet installation: Closet installation: 3" 12" (76 mm) 48 pulg (305 mm) Mín. (310 cm 12" (305 mm) 24 pulg Min. (155 cm 3" 4" (76 mm) (102 mm) 4" (102 mm) 1" 3" 3" 1" (25 mm) (76 mm) (76 mm)

  • Page 21: Drain System

    Drain System Laundry tub drain system Drain system can be installed using a floor drain, wall standpipe, floor standpipe, or laundry tub. Select method you need. IMPORTANT: To avoid siphoning, only 41⁄2” (114 mm) of drain 4,5" hose should be inside standpipe. Always secure drain hose with (114 mm) cable tie.

  • Page 22: Unpacking The Washer/Drayer

    Unpacking The Washer/Dryer Unpacking 1. With two people, place your Washer/Dryer near the installation site. Do not pull the product through the plastic tapes surrounding the packaging. 2. Cut the plastic tapes with safety scissors. Remove the cardboard box pulling it up. For questions or difficulties in installing and using the product, Check how to contact us at point 5 of the Warranty Certificate.
  • Page 23 Unpacking (cont.) Unpacking (cont.) 8. Open the door as shown and remove the accessories 11.Unscrew the screw by holding a small part of the thread that are inside your Washer/Dryer: in the hole. The User and Care Guide; Quick Guide; Water Inlet Hose;...

  • Page 24: Route Drain Hose

    Route Drain Hose Place drain hose in standpipe Proper routing of the drain hose protects your floor from damage due to water leakage. Read and follow these instructions. Drain hose form Remove drain hose from washer/dryer Place hose into standpipe (shown in picture) or over side of laundry tub.

  • Page 25: Level Washer/Dryer

    Clear water line Secure drain hose Laundry Tub Standpipe Wall 4,5" 4.5" 4,5" 4.5" 4,5" (114 mm) (113 mm) (114 mm) (114 mm) (114 mm) Run water for a few seconds through hose into a laundry tub, drainpipe, or bucket to avoid clogs. Water should run until clear.

  • Page 26: Plug In Washer/Dryer

    Rock washer/dryer to test foot contact Tighten leveling feet Jam nut When washer/dryer is level and all four feet are firmly in Grip washer/dryer from top and rock back and forth, making contact with the floor, use a 1/2” (13 mm) open-end or sure all four feet are firmly on floor.

  • Page 27: Complete Installation Checklist

    Complete Installation Checklist Check electrical requirements. Be sure you have correct elec- trical supply and recommended grounding method. Check that washer/dryer is plugged into a grounded outlet. Check that all parts are now installed. If there is an extra part, go back through steps to see what was skipped.

  • Page 28: Troubleshooting

    TROUBLESHOOTING The following table shows possible causes and solutions for potential problems in your Washer & Dryer. If even following the table solution the problem persists, check how to contact us at point 5 of the Warranty Certificate. Problem Possible Causes Solution Abnormal noise Transport screws have not been...
  • Page 29 SOLUCIÓN DE PROBLEMAS The following table shows possible causes and solutions for potential problems in your Washer & Dryer. If even following the table solution the problem persists, check how to contact us at point 5 of the Warranty Certificate. Problem Possible Causes Solution...
  • Page 30 SOLUCIÓN DE PROBLEMAS The following table shows possible causes and solutions for potential problems in your Washer & Dryer. If even following the table solution the problem persists, check how to contact us at point 5 of the Warranty Certificate. Problem Possible Causes Solution...
  • Page 31 MESSAGES ON THE DISPLAY Your Washer/Dryer can display code messages on the display. Some codes indicate conditions of use that are not necessarily failures. See table below. If the code still persists, check how to contact us at point 5 of the Warranty Certificate. Codes not described in the table below indicate product failure.
  • Page 32 Whirlpool Colombia S.A.S.; en Ecuador: Whirlpool Ecuador S.A.; en El Salvador: detalladas en el presente y en el Manual de Uso del cual este documento es parte Whirlpool El Salvador S.A. de C.V.; en Guatemala: Whirlpool Guatemala S.A.; en Perú: integrante.
  • Page 33 Dirección: Antigua Carretera a Roma Km. 9, Col. El Milagro, Apodaca N.L., México 66634. Centro de Contacto Whirlpool desde cualquier parte de la República al En la Ciudad de Panamá: 8336294 8183-292100 y Soporte KitchenAid al 800 002 2767 Horarios de atención: de lunes...

  • Page 34: Certificate Of Warranty

    – are detailed herein and Whirlpool Colombia S.A.S.; in Ecuador: Whirlpool Ecuador S.A.; in El Salvador: Whirlpool El Salvador S.A. de C.V.; in Guatemala: Whirlpool Guatemala S.A.; in in the applicable User Manual this document is an integral part of.
  • Page 35 KitchenAid Support on 800 002 2767 Opening Hours: Monday to Friday from For Whirlpool-branded products, in Panama City call 833 6294 and from the rest 8:00 a.m. to 7:00 p.m. and on Saturdays from 8:00 a.m. to 5:00 p.m. and Sundays of the country, call the national toll-free N°: 0 8000 570058 Helpline for KitchenAid-...
  • Page 36 Whirlpool El Salvador S.A. de C.V.; Au Guatemala : Whirlpool Guatemala S.A.; Au requises – sont détaillés dans la présente et dans le Guide d’utilisation correspon- Pérou : Whirlpool Peru S.R.L.; À Porto Rico : Whirlpool Corporation. Dans les pays mentionnés précédemment, la garantie offerte par ce certificat de garantie se limite dant où...
  • Page 37 8183-292100 et le soutien de KitchenAid au 800 002 2767 Pour les produits Whirlpool à Panama, composez le 833 6294 et pour le reste du Heures d’ouverture : Du lundi au vendredi de 8 h à 19 h, le samedi de 8 h à 17 h et le pays, composez le numéro national sans frais : 0 8000 570058 Pour le service...
  • Page 38 Individualización del producto garantizado Nombre del comprador Documento de Identidad Dirección/ Nombre del distribuidor Producto: Dirección Modelo: Serie N°: Ciudad y País de compra: Fecha de compra: Factura N°: Fecha de entrega: Marca: Identification of the warranted product Name of purchaser/beneficiary of warranty: Identity Product: Name of distributor/Store: Product:...
  • Page 39 Identification du produit garanti Nom de l’acheteur/bénéficiaire de la garantie : Identification du produit : Nom du distributeur/de la boutique : Produit : Adresse/numéro de téléphone : Modèle : Numéro de série : Ville et pays d’achat : Date d’achat : Numéro de facture : Date de livraison : Marque :...
  • Page 40 W11479674A ©2020 All rights reserved. 08/20...
