FETCO TEAVARIS PLUS
TBS-1221 Single Dilution Teavaris Plus
CONTACT INFORMATION
FETCO® FOOD EQUIPMENT TECHNOLOGIES COMPANY
600 ROSE ROAD
LAKE ZURICH • IL • 60047-0429 • USA
ON THE WEB: fetco.cofee
©2021 FETCO
PATENTS:https://www.fetco.com/pl,pages,patents,74.html
Iced Tea Brewer: TBS-1221,TBS-1222
TABLE OF CONTENTS
Specifications and Requirements ................................... 2
Starting The Brew ........................................................... 4
Enter Programming ......................................................... 4
A PROGRAM .................................................................. 6
B GENERAL ................................................................... 8
C SERVICE INPUTS ...................................................... 9
D SERVICE OUTPUTS .................................................. 9
E CALIBRATION........................................................... 10
F SERVICE MENU ....................................................... 11
User's Guide and Operator Instructions
TBS-1221 and TBS/1222 Iced Tea Brewer

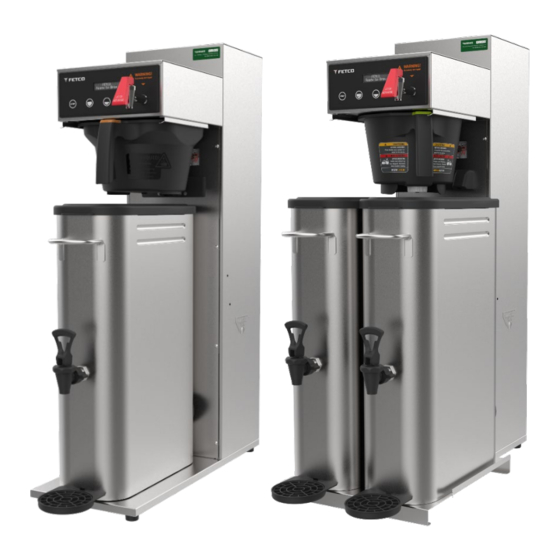

Shown with ITD dispensers-not included
Commercial Beverage Equipment
®
TBS-1222 Dual Dilution Teavaris Plus
.
PHONE: (800) 338-2699 (US & CANADA)
(847) 719-3000 (All Countries)
FAX: (847) 719-3001
EMAIL:sales@fetco.com
orders@fetco.com (to order parts and equipment)
techsupport@fetco.com (all service queries)
fetco.com
F ERROR CODES ........................................................ 12
G COUNTERS .............................................................. 13
H SAVE & EXIT ............................................................ 14
Operator Training ......................................................... 15
Parts Diagrams ............................................................. 18
Small Spray Head Assembly ........................................ 23
Brew Baskets Parts Lists .............................................. 24
Wiring Diagram ............................................................. 25
August 2021
P209
.
