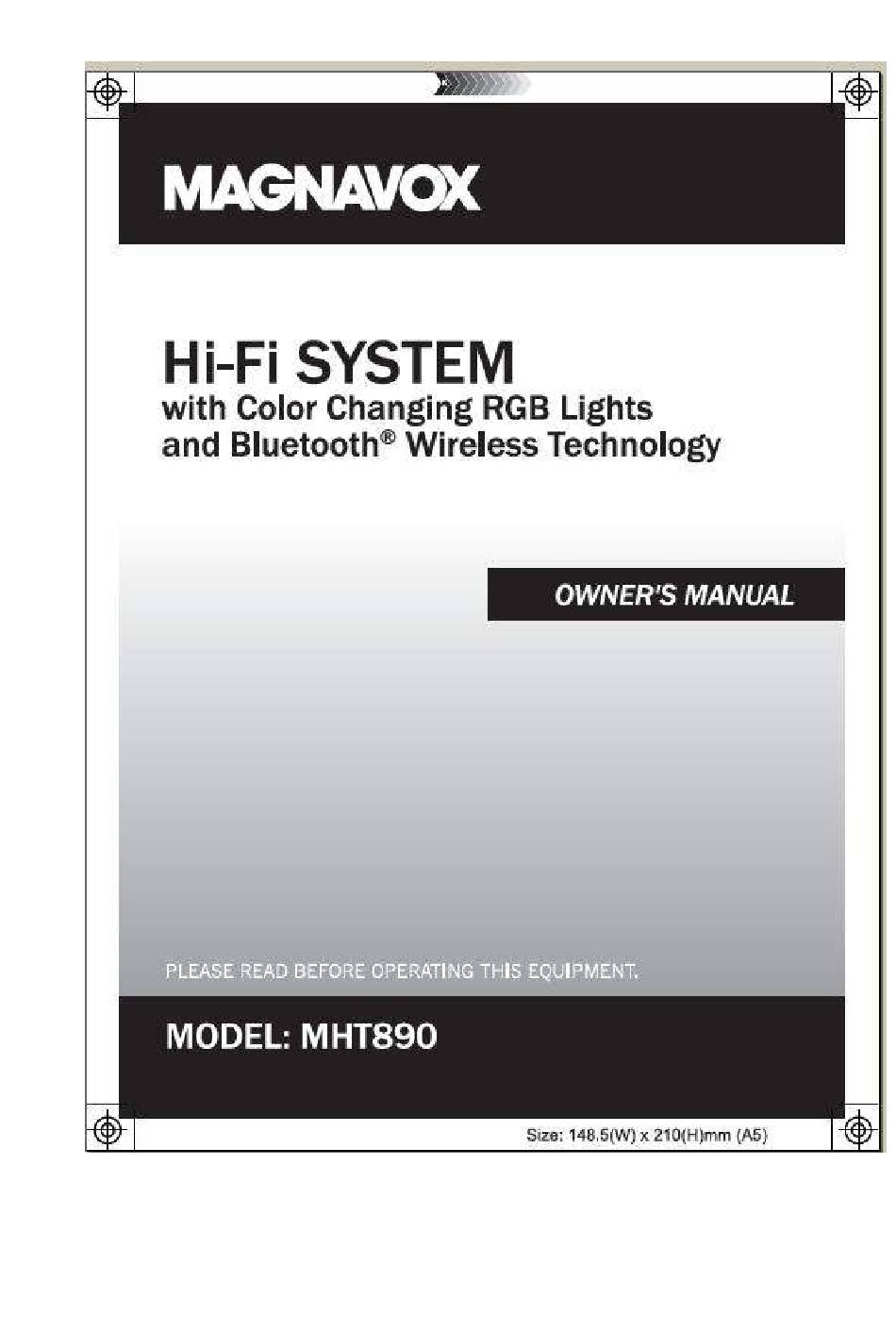

Summary of Contents for Magnavox MHT890
Page 2
Any changes or modifications not expressly approved by the party responsible for com- pliance could void the user's authority to operate the equipment. RF warning for Mobile device: This equiment should be installed and operated with minimum distance 20cm bwtween the radiator & your body.
Page 6
LOCATION OF CONTR0LS Top: 1. LED lights On-Off 2. Microphone Echo Knob 3. USB Port (For music playback) 4. SD Card Slot 5. ROCK Mode (Equalizer) 6. POP Mode (Equalizer) 7. FLAT(OFF)Mode (Equalizer) 8. CLASSIC Mode (Equalizer) 9. JAZZ Mode (Equalizer) 10.
POWER SOURCE: Connect the small plug from the supplied AC/DC Adaptor to the DC 21V (In) Jack on the rear of unit then plug the AC/DC Adaptor to a AC wall outlet having AC 100-240V~; 50/60Hz as illustrated below: NOTES: ...
Page 10
Remote Control: First time use: Remove and discard the insulation film as illustrated below: Replacing the button cell when it is drained as follows: Push and slide out the button cell holder as illustrated below. Replace the button cell with new CR2025 button cell with the polarity ...
Page 11
battery is swallowed, it can cause severe internal burn in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
OPERATION: GENERAL OPERATION: Connect the unit to AC power as previously instructed. Press the POWER Switch to ON position to power on the unit, " " will appear on the display. Press the MODE Button on the unit or Remote Control repeatedly to switch to desired playback mode.
Page 13
skip tracks. Notes: When the external BT Device has searched the unit, our model number “MHT890” will appear on the display of external BT Device. If while pairing you are asked for a code please try "0000" or "1234".
Page 14
will appear on the display and blink. Wait a few seconds until the unit is automatically paired to the external BT Device. The indicator “ ” on the display will stop blinking. After pairing is complete you may now play music with your external BT Device. FM RADIO: Power on the unit as previously instructed.
Page 15
the connected Audio Player is turned to high level.) USB: To play the music in external USB Device: 1.Insert the USB Device into the USB Port on the top of unit as illustrated below: 2. Power on the unit as previously instructed. 3.
Page 16
will appear on the display then the unit will start to play it. To play the 14th track on the USB device, press the “4” + “10+” buttons. “0014” will appear on the display then the unit will start to play it.
Page 17
Power on the unit as previously instructed. The unit will automatically play the first track on the SD CARD Device. During playback: Press the ►II/SCAN Button on the unit or Remote Control to pause, press again to resume normal playback. Short Press the I◄◄...
Page 18
Connect microphone: -Insert the cord of the microphone supplied into the MIC IN. plug on the top of the speaker as illustrated below: -Use the MIC/GT.VOL knob to select the desired microphone volume. -Use the M.ECHO knob to set any desired echo sound effect for the microphone.
Page 19
Line out: As illustrated below, you can connect an external amplifier ( sound bar,active speaker etc.) to the party speaker via the LINE OUT connection on the rear panel.
TROUBLESHOOTING: Check the following before requesting service: SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION AC/DC Adaptor had not Connected the AC/DC No power connected Adaptor to the unit and AC power as page 8 Volume of the unit was set to Increase the volume level minimum position by turning the VOLUME Control Knob on the unit...
Page 21
Radio not function Unit not in radio mode Press the MODE Button on the Unit or Remote Control repeatedly until Radio frequency “XX.X” or “XXX.X” appear on the display Radio reception not good The direction or location no Unwind and extended the good for radio reception FM wire antenna on the rear of unit to its full...
GENERAL SPECIFICATTIONS: Power Source: 21V, 3.42A, Audio Power: Total 70W, RMS Impedance of Speakers: 40W, 6Ω FM Band Converge: 87.5 – 108MHz BT Version: BT Operation Distance: Up to 32 Feet in opera area PACKAGE INCLUDES: 1 x User’s Manual 1 x Remote Control (Uses 1 x CR2025 Button Cell, included) 1 x Aux cable 1 x AC/DC Adapter...
