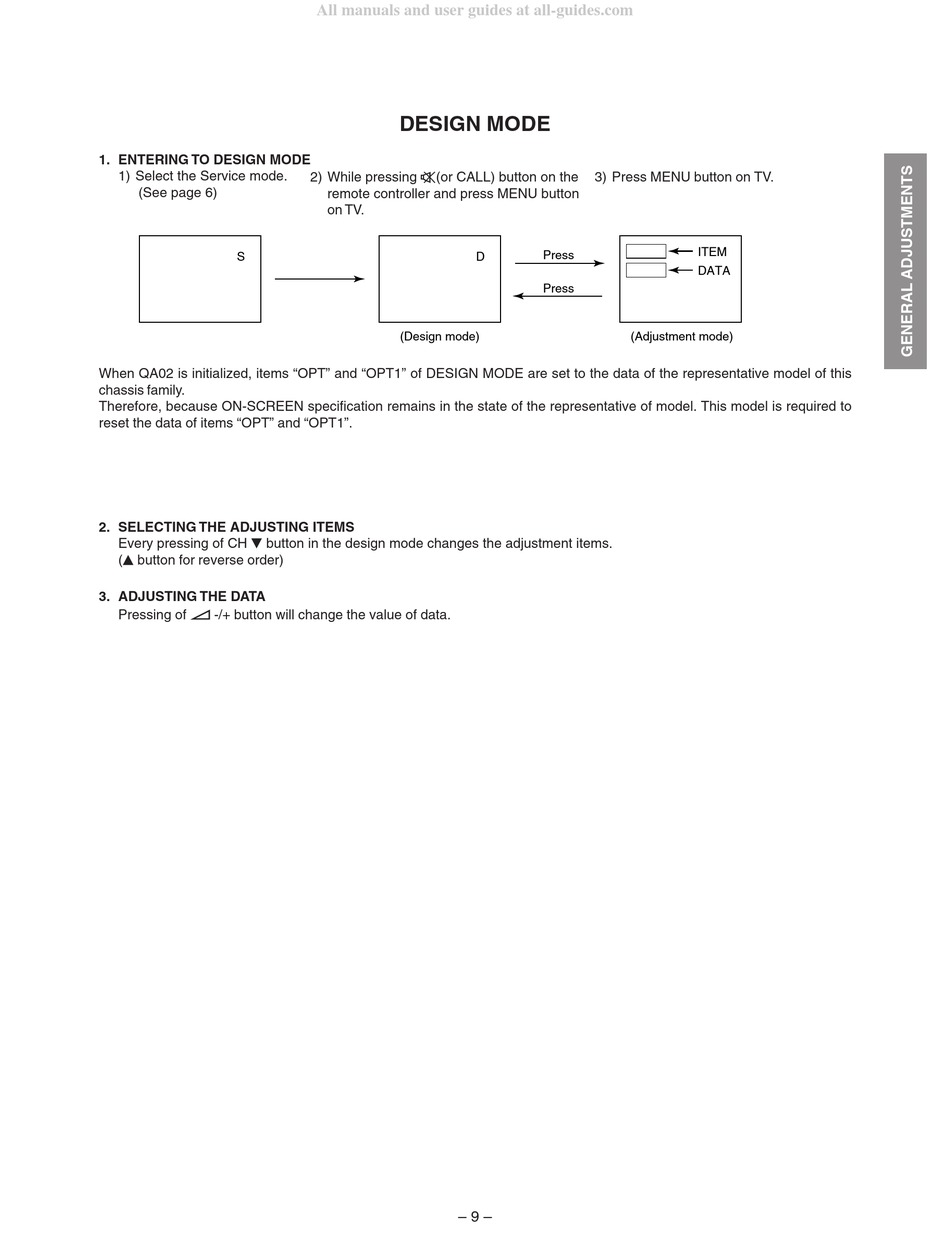

Design Mode - Toshiba S5ER Series Service Manual

1. ENTERING TO DESIGN MODE
1) Select the Service mode.
(See page 6)
S
When QA02 is initialized, items "OPT" and "OPT1" of DESIGN MODE are set to the data of the representative model of this
chassis family.
Therefore, because ON-SCREEN specification remains in the state of the representative of model. This model is required to
reset the data of items "OPT" and "OPT1".
2. SELECTING THE ADJUSTING ITEMS
Every pressing of CH t button in the design mode changes the adjustment items.
(s button for reverse order)
3. ADJUSTING THE DATA
Pressing of ; -/+ button will change the value of data.
All manuals and user guides at all-guides.com

DESIGN MODE

2) While pressing o(or CALL) button on the
remote controller and press MENU button
on TV.
D
(Design mode)
– 9 –
3) Press MENU button on TV.
ITEM
Press
DATA
Press
(Adjustment mode)
