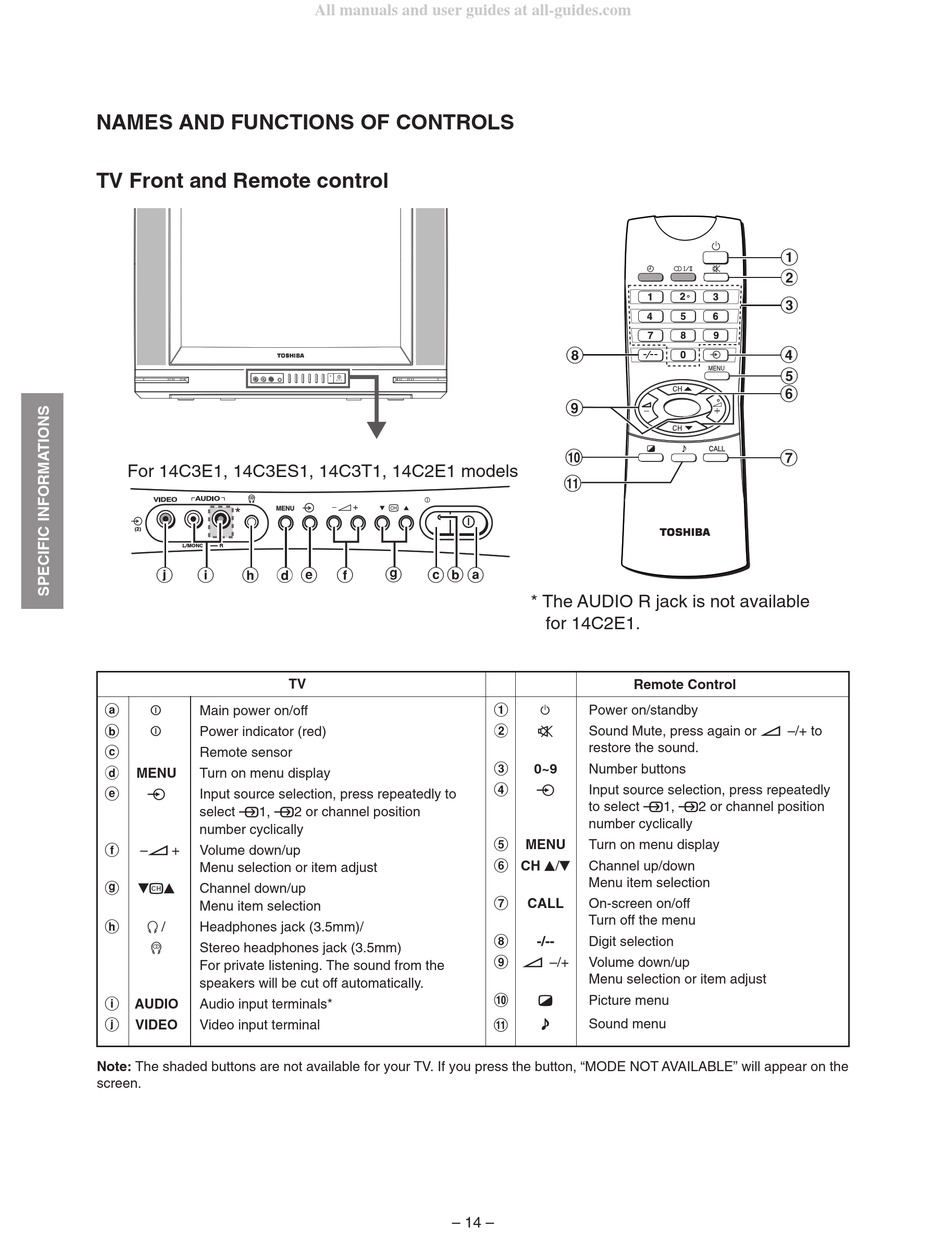

NAMES AND FUNCTIONS OF CONTROLS

TV Front and Remote control
For 14C3E1, 14C3ES1, 14C3T1, 14C2E1 models
*
(2)
L/MONO R
j i
h
a
q Main power on/off
b
q Power indicator (red)
c
Remote sensor
d
MENU Turn on menu display
e
Input source selection, press repeatedly to
a
select A1, A2 or channel position
number cyclically
f
–; + Volume down/up
Menu selection or item adjust
g
Channel down/up
tcs
Menu item selection
h
l / Headphones jack (3.5mm)/
Stereo headphones jack (3.5mm)
L
For private listening. The sound from the
speakers will be cut off automatically.
i
AUDIO Audio input terminals*
j
VIDEO Video input terminal
Note: The shaded buttons are not available for your TV. If you press the button, "MODE NOT AVAILABLE" will appear on the
screen.
All manuals and user guides at all-guides.com
d e f g c b
TV
– 14 –
8
9
!
"
a
* The AUDIO R jack is not available
for 14C2E1.
Remote Control
1
f
Power on/standby
2
Sound Mute, press again or ; –/+ to
o
restore the sound.
3
0~9 Number buttons
4
Input source selection, press repeatedly
a
to select A1, A2 or channel position
number cyclically
5
MENU Turn on menu display
6 CH s/t
Channel up/down
Menu item selection
7
CALL On-screen on/off
Turn off the menu
8
-/-- Digit selection
9 ; –/+
Volume down/up
Menu selection or item adjust
h
!
Picture menu
Sound menu
8
1
2
3
4
5
6
7
