Hyundai H-CMD7075 Instruction Manual

Dvd/mp3/cd receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

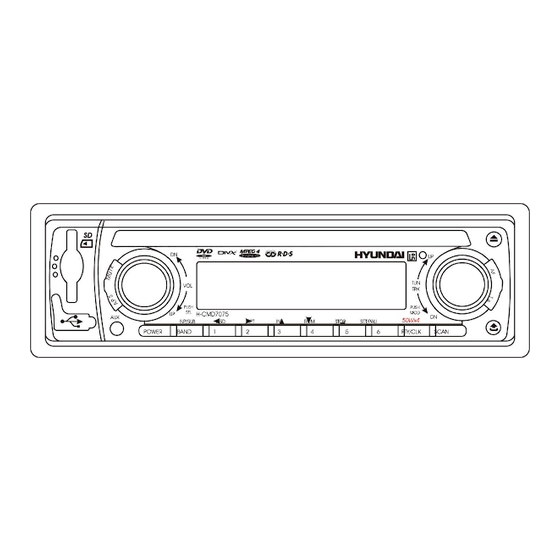

H-CMD7075
DVD/MP3/CD RECEIVER
DVD/MP3/CD-
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for Hyundai H-CMD7075

Summary of Contents for Hyundai H-CMD7075

  • Page 1 H-CMD7075 DVD/MP3/CD RECEIVER DVD/MP3/CD- Instruction manual...

  • Page 2: Table Of Contents

    Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents... 2 Important safeguards ...

  • Page 3: Important Safeguards

    IMPORTANT SAFEGUARDS Using the device at temperature below -10º PASSENGER COMPARTMENT TO THE RECOMMENDED TEMPERATURE! Read carefully through this manual to familiarize you with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating.

  • Page 4: Installation/ Connections

    Installation/ Connections First complete the electrical connections, and then check them for correctness. Installation way (method 1) It is an anti-theft installation way. The chassis wear a metal sliding housing. Please have the wiring connection of the power supply, speakers and antenna as for the requirement of the manual, and then install the metal sliding housing into the car according to the diagram.
  • Page 5 Installation way (method 2) Installation using the screw holes at both sides of the unit. 1. Select a position where the screw holes of the main unit are fitted for aligned, and tighten the screws at 2 positions at each side. Use either truss screws (5 x 8mm) or flush surface screws (4 x 8mm), depending on the shape of the screw holes in the bracket.
  • Page 6 Connection scheme:...
  • Page 7 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker and power cable connections.

  • Page 8: Controls Description

    Controls description Front panel 1. OPEN BUTTON Press it to remove the front panel. 2. TA BUTTON In RADIO mode press it to active the TA function. 3. SCAN BUTTON In RADIO mode press it to start preset stations scanning. 4.
  • Page 9 / RPT BUTTON In menu use it to move to the right. During playback press it and hold for 2 seconds to start repeat playback. / INT BUTTON In menu use it to move upward. During playback press it and hold for 2 seconds to start intro playback (about 10 seconds each track). / RDM BUTTON In menu use it to move downward.
  • Page 10 Rotate it clockwise to increase the volume level; rotate anticlockwise to decrease the volume level. Press it repeatedly to select the mode: VOL => BAS => TRE => BAL => FAD => LOUD => LOC => ST => EQ. Rotate VOL knob to adjust each mode. 20.
  • Page 11 Remote control MODE BUTTON POWER BUTTON BND/TA/SYS BUTTON ERROR BUTTONS ENTER BUTTON STOP/REVERSE BUTTON AMS/RPT BUTTON ST/PROG BUTTON LOC/AF/RDM BUTTON 10. VOL +/- BUTTON 11. PBC BUTTON 12. OSD BUTTON 13. DIGIT AREA 14. PLAY/PAUSE BUTTON 15. MUTE BUTTON 16. TITLE BUTTON 17.

  • Page 12: General Operations

    General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press OPEN button and remove the panel, then press the RESET button to restore the unit to the original factory settings. Power button Press any button to turn the unit on.
  • Page 13 Sound settings Press SEL button shortly and repeatedly to select the mode: VOL => BAS => TRE => BAL => FAD => LOUD => LOC => ST => EQ. Rotate the VOL knob or use VOL +/- buttons to adjust each mode. VOLUME: 00, 02,..., 44, 46 BASS/TREBLE: -6, -5,..., 0, +1, +2,...+5, +6 BALANCE: 12L, 11L,..., L=R, 1R,...,12R...

  • Page 14: Radio Operations

    Radio operations Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. Band select Press the BAND button on the front panel or BND/SYS button on RC repeatedly to select your desired radio band during RADIO mode: FM1, FM2, FM3, AM1, AM2.
  • Page 15 Auto memory store: press APS button on the panel for more than 2 seconds to enter auto store mode. The radio will automatically store the 6 strongest available stations to the 6 preset memories of the current band. To stop auto store, press this button again.
  • Page 16 PTY (Program Type) Press PTY/CLK button on the panel to activate the PTY function. The previous PTY type is shown. Press PTY/CLK once again to enter the MUSIC type or press twice to enter the SPEECH type, then use buttons 1 - 6 to select the desired program type (see the following table).

  • Page 17: Discs Operations

    Discs operations Disc glossary PBC (PlayBack Control) PBC is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image. Title The title is the important part of DVD disc.
  • Page 18 Max. nested directory is 8 levels The max. album number is 99 The max. length of each track is 99 minutes 59 seconds Supported sampling frequency for MP3 disc: 8 KHz – 48 KHz (44.1 KHz preferably) Supported bit-rates of MP3 disc are: 32 - 320 kbps (128 kbps preferably). Following formats are NOT supported *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, files with DRM.
  • Page 19 Loading/ eject a disc Turn the power on. Insert the disc with the printed side facing upward into the slot. Press EJECT button on the panel to eject the disc. Inserting the SD/ MMC card/ USB device Insert the MMC/ SD card or USB device into MMC/ SD compartment or USB socket. Then the playing mode will be changed into MMC/ SD or USB mode automatically.
  • Page 20 Slow playback (for DVD/VCD) During DVD / VCD playback press the SLOW button on the RC to execute the SLOW function. With each consecutive pressing of the SLOW button, the playback speed decreases: X1/2 => X1/3 => X1/4 => X1/5 => X1/6 => X1/7 => Normal. During slow forward, press the PLAY/PAUSE button to resume normal playback.
  • Page 21 Changing angle (for DVD only) If DVD disc supports multi-angle playback, press ANGLE button on RC to play images in different camera angles. If discs doesn't support multi-angle playback, this function will not work. If no operation within 1 second, angle description will disappear. Selecting the subtitle (for DVD only) Press the SUB-T button on RC repeatedly to select the subtitle.

  • Page 22: Mp3 Overview

    MP3 overview Notes on MP3 MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.

  • Page 23: System Setup

    System setup Press SETUP button on the RC to display setup screen, use , ENTER buttons to select the desired item: System, Language, Audio, Video, Digital. System setup TV system Select the TV system in the setting menu (PAL or NTSC). Screen saver The screen saver appears if disc stop last more than 3 minutes.
  • Page 24 Language setup Setting the on-screen display language Select the language to be used for the on-screen display. Setting the audio language Select the language to be used for the audio. You can select a preferred audio from those included on the DVD video disk.
  • Page 25 Digital setup Output mode Select the output mode: LINE OUT: Compress the input signal. The volume is small. RF REMOD: The volume is large. Dynamic range When you select the compressed mode as “line out”, select it to adjust the compression proportion and get the different compressed effect.

  • Page 26: Anti-Theft System

    Anti-theft system This unit is equipped with a slide-down detachable and mask panel. Panel can be detached and taken with you, helping to deter theft. Detaching the front panel Press the PWR button to turn the power off. Press the OPEN button on the front panel. Push the panel to the right and then pull it towards you.

  • Page 27: Cleaning

    Cleaning Discs holding Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 28: Troubleshooting Guide

    Troubleshooting guide Symptom Cause No power. The car ignition is not on. The fuse is blown. Disc cannot be loaded. Presence of disc inside the player. Disc cannot be read. Inserting the disc in upside down. Compact disc is extremely dirty or defective.

  • Page 29: Specification

    Specification General. Power supply: Current consumption/Fuse: Maximum power output: Dimensions (W x H x D) Working temperature range: FM Stereo Radio. Frequency range: Usable sensitivity/ I.F. Frequency: AM Section. Frequency range: Disc player. Formats: Video System/ Audio System Loading System Mounting Angle Video Specification.
  • Page 30 ... 30 ... 31 ... 32 ... 36 ... 40 ... 42 ... 46 ... 54 ... 61 ... 62 ... 63 ... 64...
  • Page 31 12 . 0,75 (AWG18),...
  • Page 35 ACC+/ ISO, 12 (+)/ (+)--- (-)--- (+)--- (-)--- (+)--- ((-)--- (+)--- (-)---...
  • Page 36 OPEN EJECT SCAN ( PTY / CLK / OSD / RPT PTY. (1-6)
  • Page 37 / INT / RDM RDM STOP SET/PAU BAND / NP/ SUB BAND ( POWER 14. AUX SD/MMC MUTE MUTE, SEL, : NTSC => PAL => PAL60 => AUTO. : VOL => BAS => TRE => BAL => FAD => LOUD => LOC => ST => EQ.
  • Page 38 => => USD => SD => AUX. EJECT – OPEN, RESET...
  • Page 39 MODE POWER BND/TA/SYS ENTER STOP/REVERSE AMS/RPT ST/PROG LOC/AF/RDM VOL +/- PLAY/PAUSE MUTE TITLE SUB-T SETUP ANGLE SLOW ZOOM SEEK +/- / AUDIO GOTO (CR 2025 3V),...
  • Page 40 RESET ( OPEN. POWER, POWER VOL+/- : AUX => RADIO => DISK => USB => CARD ( USB, CARD, DISK RESET, MUTE, MOD,...
  • Page 41 => TRE ( ) => BAL ( ) => LOC ( VOLUME: 00, 02,..., 44, 46 BASS/TREBLE: -6, -5,..., 0, +1, +2,...+5, +6 BALANCE: 12L, 11L,..., L=R, 1R,...,12R FADER: 12R, 11R,..., R=F, 1F,..., 12F LOUD: LOC: EQ: CLASS, POP, ROCK, FLAT, OFF SEL, BAND/ SUB, ) =>...
  • Page 42 RDS ( BAND/NP/SUB FM3, AM1, AM2. BND/TA/SYS << -/ >> + 1~6. SEEK +/- SEEK +/- 1~6, : FM1, FM2, SEEK +/-...
  • Page 43 AMS/RPT AMS/RPT. 1-6. AMS/RPT 1~6. AMS/RPT ST/PROG VOL +/- STEREO MONO. SEL, LOC ( VOL +/- (LO ON) (LO OFF). SEL, LOC/AF/RDM AF ( (ON) (OFF). LOC/AF/RDM ON (...
  • Page 44 TA ( (ON) (OFF). BND/TA/SYS PTY ( RDS, PTY/CLK, PTY.
  • Page 45 PBC ( – PBC, –...
  • Page 46 : DVD-video, SVCD/VCD/HDCD/MP3/MP4/WMA/ Picture-CD/JPEG/ DivX/MPEG4. : MP3 (*.mp3) WMA (*.wma) : MP4 (*.avi, DIVX3.11/4.0/5.0/6.0 and XVID) MPEG 2(*.vob) MPEG 1(*.dat) : JPEG (*.jpg) ISO 9660 ISO 9660 + – 448. – 99. Joliet - - 99 : 32 - 320 : *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, : CD/DVD/CDDA/CD-R/-RW/DVD±R/±RW.
  • Page 47 USB/ SD/ MMC SD/ MMC, 2 1 (SD/MMC). FAT 12/ FAT 16/ FAT 32 FAT 12/ 16 ( FAT 32 ( : 32 : 32 (id3tag ver 2.0) USB 2.0. USB: USB 2.0. : 8 M ~ 1 MMC: EJECT USB/ SD , 500 , 500...
  • Page 48 SD/MMC PLAY/ PAUSE PLAY/PAUSE, PLAY/PAUSE STOP STOP/REVERSE DVD, VCD SLOW : 1/2, 1/3, 1/4, 1/5, 1/6, 1/7, ENTER...
  • Page 49 AMS/RPT LOC/AF/RDM Intro INT, ZOOM : X2, X3, X4, 1/2, 1/3, 1/4, AUDIO DVD- ANGLE...
  • Page 50 SUBTITLE ENTER, TITLE ENTER. PBC ( STOP GOTO PBC, GOTO – VCD. ENTER,...
  • Page 51 GOTO, : 1 => 8 => 2 => 0 => 0 => 0. GOTO, : 2 => 3 => 4. : 1 => 8 => 2 => 0 => 0 => 0. DVD/VCD) PN/ SUB/ BAND ENTER ENTER, ENTER ST/PROG button : NTSC =>...
  • Page 52 MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. “.mp3”. “.mp3”, “ MP3” “ ”, ” “ ” 256. VBR, . VBR:...
  • Page 53 CD-R CD-RW, 44,1 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW 1. ID3TAG.
  • Page 54 SETUP ENTER, “ ”.
  • Page 55 : INTERLACE-YUV. 4:3 PS: 4:3. 4:3 LB: 4:3, 16:9: 16:9. 0000.
  • Page 58 SPDIF/ RAW: SPDIF/ PCM:...
  • Page 60 LINE OUT: RF REMOD: “line out”, “Full”, “Off”,...
  • Page 61 PWR, OPEN . 1).
  • Page 63 “ ”. RESET...
  • Page 64 (A-vtd)/ 12 , 8A/ 10A & 1A 178 50 165 / -20º 87.5 - 108.0 / 10.7 522-1620 DVD/SVCD/VCD/MP4/MP3/WMA/CD/HDCD/DVDAudio/MPEG4/DivX/ Picture-CD/Photo-CD/CD-R/CD-RW/DVD±R/JPEG NTSC/PAL / 24 0 - +/-30 16:9 4:3 / 500 1.0 , 75 RMS (+/-3 – 20 . 2000 - +60º...
