Quick Start Guide
Hardened Gigabit Copper to Fiber
Media Converter, Multimode, RJ45/SC
Hardened Gigabit Copper to Fiber
Media Converter, Singlemode, RJ45/SC
Hardened Gigabit Copper to Fiber
Media Converter, RJ45/SFP
Este manual está disponible en español en la página de Tripp Lite: tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR
surge protector in our monthly drawing!
tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
21-09-096-933F71-EN.indd 1
21-09-096-933F71-EN.indd 1

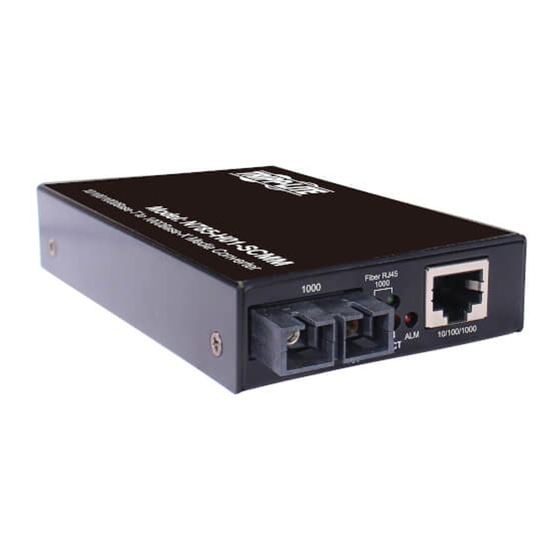

Model: N785-H01-SCMM
Model: N785-H01-SCSM
Model: N785-H01-SFP
Copyright © 2021 Tripp Lite. All rights reserved.
1
®
9/13/2021 9:17:45 AM
9/13/2021 9:17:45 AM
Advertisement
Table of Contents
Related Manuals for Tripp Lite N785-H01-SCMM
Summary of Contents for Tripp Lite N785-H01-SCMM
- Page 1 Media Converter, RJ45/SFP Model: N785-H01-SFP Este manual está disponible en español en la página de Tripp Lite: tripplite.com Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com WARRANTY REGISTRATION Register your product today and be automatically entered to win an ISOBAR ®...
-
Page 2: Product Features
• Local Loop Back (LLB) tests the copper network connection • Remote Loop Back (RLB) tests the fiber network connection • Auto MDI/MDI-X functionality removes the need for crossover cabling Package Contents • N785-H01-SCMM or N785-H01-SCSM or N785-H01-SFP Media Converter • External Power Supply with NEMA 1-15P Plug (Input: 100-240VAC, 50/60 Hz, 0.5A; Output: 12VDC, 1.5A) •... -
Page 3: Optional Accessories
A single media converter can be used for a copper-to- fiber installation. • The following installation instructions refer to the N785-H01-SCMM. Connections are the same for the N785-H01-SCSM, with only the specs being different. See the Specifications section in this manual for details on your media converter. - Page 4 Installation Connect the media converter to a second identical media converter using the appropriate type of fiber cable, making sure to connect the TX port on one unit to the RX port on the other. Note: See the Product Features section in this manual to determine which type of fiber cable is supported by your media converter. Connect the RJ45 port on the second media converter to your network device (workstation, hub, switch, etc.) using a Cat5e/6 cable.
-
Page 5: Led Status Table
Installation Connect fiber cabling matching the transceiver type to the transceiver’s port and to a second media converter with a matching transceiver. Connect the RJ45 port on the second media converter to your network device (workstation, hub, switch, etc.) using a Cat5e/6 cable. Connect the external power supplies that came with each media converter, and plug them into an AC power source. - Page 6 LED Status Table Link Fault Signaling (LFS) The LFS LED will indicate when a cable has been severed or when some other cause of disruption in service has occurred. The LFS function monitors both copper and fiber segments for a total service report. Set DIP Switch 1 (LFS) to ON for normal operational use and to OFF when installing cables or when testing the network connection.
-
Page 7: Specifications
Specifications Specification N785-H01-SCMM N785-H01-SCSM N785-H01-SFP Optical 850 nm 1310 nm Wavelength Network 10/100/1000 Mbps (Gigabit) Speed Mode Multimode Singlemode Transmission 500 m 10 km Distance Duplex Mode Auto MDI/MDIX IEEE 802.3 10Base-T IEEE IEEE 802.3u 100Base-TX/FX Standards IEEE 802.3ab 1000Base-T Supported IEEE 802.3z 1000Base-SX/LX... -
Page 8: Warranty And Product Registration
Product Registration Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* *No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
