Quick Start Guide
Hardened Gigabit
Copper to Fiber
Media Converter,
RJ45/SFP

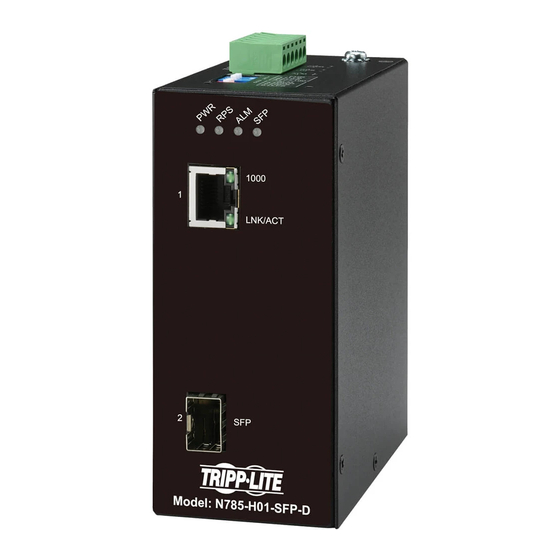

Model: N785-H01-SFP-D
Este manual está disponible en español en la página de Tripp Lite: tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR
®
surge protector in our monthly drawing!
tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
1
Advertisement
Table of Contents
Related Manuals for Tripp Lite N785-H01-SFP-D
Summary of Contents for Tripp Lite N785-H01-SFP-D
- Page 1 RJ45/SFP Model: N785-H01-SFP-D Este manual está disponible en español en la página de Tripp Lite: tripplite.com Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com WARRANTY REGISTRATION Register your product today and be automatically entered to win an ISOBAR ®...
-
Page 2: Product Features
Product Features • Extends a Gigabit Ethernet connection to an open SFP port • Hardened material allows the media converters to withstand high operating temperatures and provide ESD/RFI and surge protection • Open SFP port allows for a variety of SFP transceivers to be used • LED indicators monitor Ethernet and fiber link status • DIP switches allow for Line Loop Back (LLB), Link Fault Signaling (LFS), and Reserve and FX100 functions... -
Page 3: Installation
Installation Notes: • The following installation instructions refer to an installation in which two media converters are used. • To avoid damage due to Electrostatic Discharge (ESD), it is recommended you handle the product while wearing an ESD wrist grounding strap or by touching a conductive surface (such as metal) to discharge any potential ESD prior to handling the product. - Page 4 DIP Switch Function and LED Status Table DIP Switch Setting Switch Number Label Description ON: LLB is enabled OFF: LLB is disabled ON: LFS is enabled OFF: LFS is disabled ON: Port 2 (SFP) speed at 100 Mbps FX100 OFF: Port 2 (SFP) speed at 1000 Mbps Switch Category: ALM (Alarm) ON: Master power alarm reporting is enabled OFF: Master power alarm reporting is disabled...
- Page 5 DIP Switch Function and LED Status Table RJ45 1000M (Green) Copper connection up to 1000 Mbps Copper connection speed at 10/100 1000M (Green) Mbps LNK/ACT Copper port correctly linked (Green) (Blinking) LNK/ACT Copper port link failure (Green) Ethernet link-up - Green: Speed 1000 Mbps - Amber: Speed 100 Mbps SFP (Green/ Amber) Activity (receiving or transmitting data)
- Page 6 Wiring Redundant Power Inputs You can use “Terminal Block (PWR)” for primary power and “Terminal Block (RPS)” for secondary power/redundant power input. The power input diagram is as follows: Insert the terminal block connector accessory, which includes “PWR” and “RPS” into the terminal block receptor. Link Fault Signaling (LFS) When the LFS DIP Switch is enabled (#6), an alarm indicator will illuminate to indicate when a cable has been severed or when some other cause of disruption in service has occurred. The LFS function monitors both copper and fiber segments for a total service report.
-
Page 7: Specifications
Specifications Optical Wavelength Network Speed 10/100/1000 Mbps (Gigabit) Mode N/A (Open SFP) Transmission Distance N/A (Open SFP) Duplex Mode Auto MDI/MDIX IEEE Standards Supported - 802.3 10Base-T - 802.3u 100Base-TX/FX - 802.3ab 1000Base-TX - 802.3z 1000Base-SX/LX - 802.3x Flow Control - 802.3 Auto-Negotiation Power Consumption 5.5W Power Supply Input 20 ~ 57V DC (Terminal Block) Operating Temperature 14 to 140°F / -10 to 60°C Storage Temperature -40 to 185°F / -40 to 85°C Operating Humidity... -
Page 8: Warranty And Product Registration
OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise. Product Registration Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* * No purchase necessary. Void where prohibited. Some restrictions apply. See website for details. Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.
