Owner's Manual
Gigabit Fiber to Ethernet
Media Converters
N785-P01-LC-MM1, N785-P01-SC-MM1,
N785-P01-SC-MM2, N785-P01-SC-SM1,
Este manual esta disponible en español en la página de Tripp Lite:
Ce manuel est disponible en français sur le site Web de Tripp Lite :
PROTECT YOUR INVESTMENT!
Register your product for quicker service
and ultimate peace of mind.
You could also win an
ISOBAR6ULTRA surge protector—
a $100 value!
www.tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
19-03-251-93395E-EN.indd 1
with PoE
Models:
N785-P01-SFP
www.tripplite.com/support
www.tripplite.com/support
Copyright © 2019 Tripp Lite. All rights reserved.
1
3/28/2019 11:50:23 AM
Advertisement
Table of Contents
Related Manuals for Tripp Lite N785-P01-SC-MM1
Summary of Contents for Tripp Lite N785-P01-SC-MM1

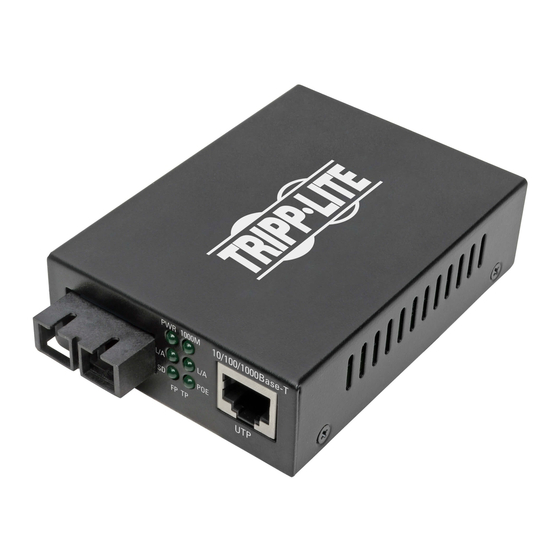

- Page 1 Owner’s Manual Gigabit Fiber to Ethernet Media Converters with PoE Models: N785-P01-LC-MM1, N785-P01-SC-MM1, N785-P01-SC-MM2, N785-P01-SC-SM1, N785-P01-SFP Este manual esta disponible en español en la página de Tripp Lite: www.tripplite.com/support Ce manuel est disponible en français sur le site Web de Tripp Lite : www.tripplite.com/support...
-
Page 2: Package Includes
Optical Fiber Max Distance Model Connector Wavelength Mode from Source N785-P01-LC-MM1 LC 850 nm Multimode 550 m (1804 ft.) N785-P01-SC-MM1 SC 850 nm Multimode 550 m (1804 ft.) N785-P01-SC-MM2 SC 1310 nm Multimode 2000 m (6561 ft.) N785-P01-SC-SM1 SC 1310 nm Singlemode 20 km (12.4 mi.) -
Page 3: Installation
Installation Notes: • To avoid Electrostatic Discharge (ESD) damage, it is recommended you handle the product while wearing an ESD wrist grounding strap, or touch a conductive surface (such as metal) to discharge any potential ESD prior to handling the product. •... -
Page 4: Dip Switch Settings
DIP Switch Settings Note: DIP switches 2 and 4 have no function. DIP Switch 1 – Link Fault Pass Through (LFP) To enable the LFP function, move DIP switch 1 to the ON position. Link Fault Pass Through (LFP) LFP provides constant monitoring of the links connected to the media converter. -
Page 5: Led Functions
LED Functions Color Status Function Green The device is powered on RJ45 port is providing DC 48V to the remote PoE device Green RJ45 port is not providing DC 48V to the remote PoE device Fiber port is receiving optical signal Green Fiber port is not receiving optical signal 1000 Mbps speed... -
Page 6: Warranty And Product Registration
Warranty and Product Registration 2-YEAR LIMITED WARRANTY TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of two (2) years from the date of initial purchase. TRIPP LITE’s obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. - Page 7 19-03-251-93395E-EN.indd 7 3/28/2019 11:50:23 AM...
- Page 8 1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support 19-03-251 93-395E_RevB 19-03-251-93395E-EN.indd 8 3/28/2019 11:50:24 AM...
