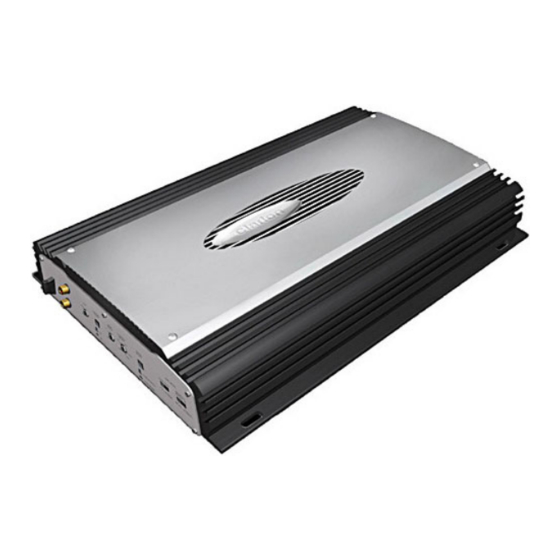

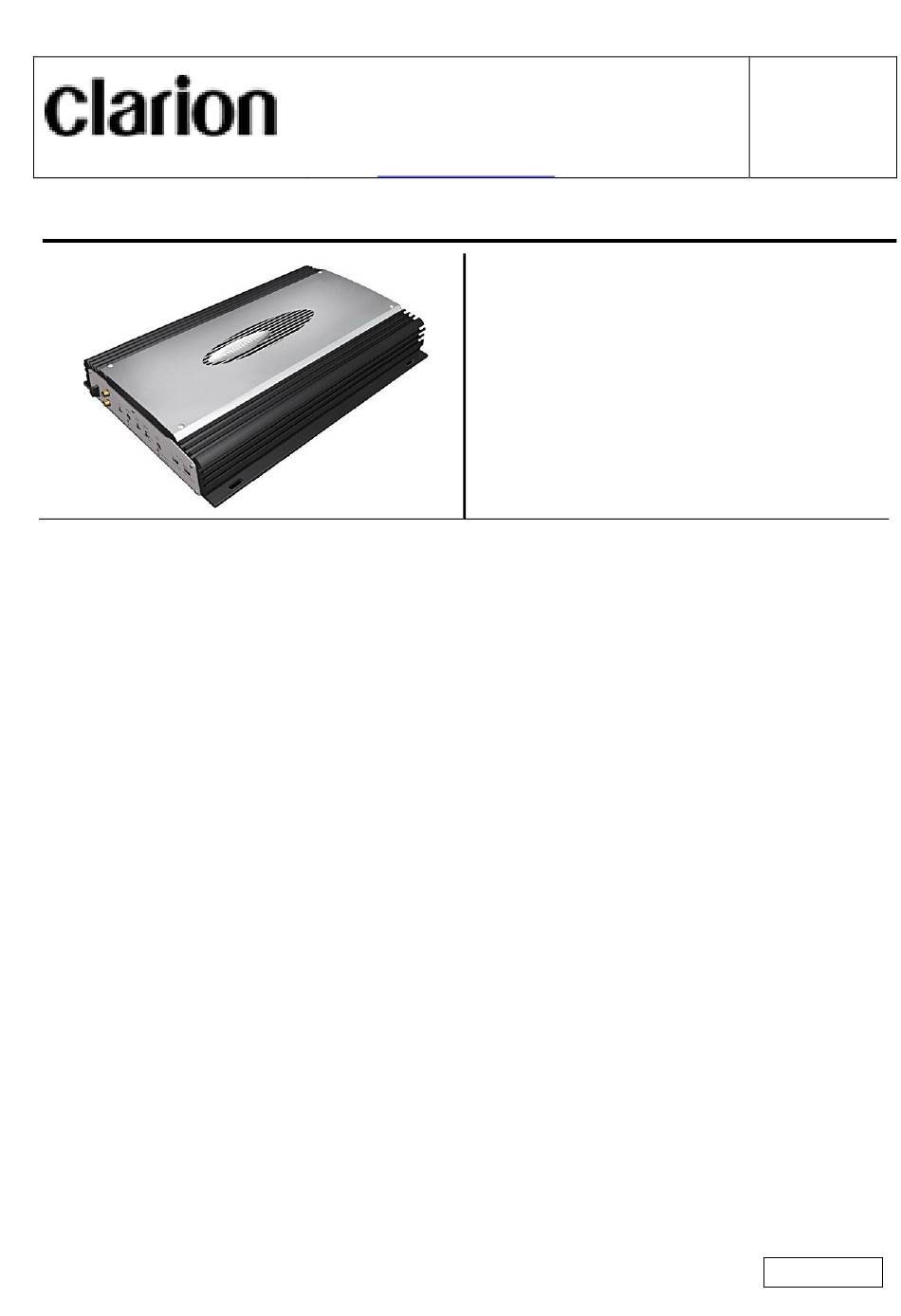

Clarion APA2001 Service Manual

■SPECIFICATIONS
Power output (THD@1%4Ω) :
(THD@1%2Ω) :
T.H.D 4ohm Load
2ohm Load
S/N [Full rated power100Hz] :
Frequency response for -3Db
( 1W output) :
LPF for-3dB
Input Impedance
Idle Current For 4ohm Load
Boost bass
MAX current (2 ohms)THD=1%
Input Sensitivity
Turn-on/off noise :
Thermal Protection
Power Requirement:
NOTE: FOR FURTHER IMPROVEMENT, SPECIFI CATIONS AND
DESIGN ARE SUBJECT TO CHANGE WITHOUT NOTICE.
■ FEATURES
•Maximum Power Output 400 Watts
•Continuous Average Power Output 200 Watts Into 4 Ohms
Crossover
•Typical 2-Ohm Mono Power 1kHz 230 Watts
•Switchable Bass Boost at 0dB/6dB/12dB
•Adjustable 50Hz-250Hz, 12dB/oct. High-/Low-Pass
•Speaker Level Inputs
■TO ENGINEERS IN CHARGE OF REPAIR
OR INSPECTION OF OUR PRODUCTS:
BEFORE REPAIR OR INSPECTION, MAKE SURE TO FOLLOW THE
INSTRUCTIONS SO THAT CUSTOMERS AND ENGINEERS IN
CHARGE OF REPAIR OR INSPECTION CAN AVOID SUFFERING
ANY RISK OR INJURY. REMODELING FOR WHICH WE SHALL
NOT BE LIABLE. THE ONUS OF PRODUCT LIABLITY (PL) SHALL
NOT BE OUR RESPONSIBILITY IN CASES WHERE AN ACCIDENT
OR FAILURE IS AS A RESULT OF UNSPECIFIED PARTS BEING
USED OR DUE TO NEGLIGENCE DURING REPAIR.
1. USE SPECIFIED PARTS.
CLARION CO. LTD.
50, KAMITODA, TODA-SHI, SAITAMA 335-8511, JAPAN
PHONE (81) 48-443-1111; FAX (48) 433-6996
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
CLARION CORPORATION OF AMERICA
661 W REDONDO BEACH BLVD, GARDENA, CA 90247, USA
PHONE (310) 327-9100; FAX (310) 327-1999
WEBSITE HTTP://WWW.CLARION.COM
256W 1KHz IN
364W 1KHz IN
<0.45% 1W Output
<0.5% 1W Output
>70dB
15Hz-39KHz 1KHz/0dB
28Hz - 243Hz 100Hz/0dB
Line in 20K
Line in 470 ohm
0.8A
6.2dB, 11.8dB 50Hz/0dB
47.2A 1KHz IN
Line in 195mV-6.6V
High in 395mV-13V
OK
88℃
13.8V DC
Service Manual
MONO AMPLIFIER
APA2001
Model
THE SYSTEM USES PARTS WITH SPECIAL SAFETY FEATURES
AGAINST FIRE AND VOLTAGE. USE ONLY PARTS WITH
EQUIVALENT CHARACTERISTICS WHEN REPLACING THEM.
2.PLACE THE PARTS AND WIRING BACK IN THEIR ORIGINAL
POSITIONS AFTER REPLACEMENT OR RE-WIRING.
FOR PROPER CIRCUIT CONSTRUCTION, USE OF INSULATION
TUBES, BONDING, GAPS TO PWB, ETC, IS INVOLVED. THE
WIRING CONNECTION AND ROUTING TO THE PWB ARE
SPECIALLY PLANNED USING CLAMPS TO KEEP AWAY FROM
HEATED AND HIGH VOLTAGE PARTS. ENSURE THAT THEY ARE
PLACED BACK IN THEIR ORIGINAL POSITIONS AFTER REPAIR
OR INSPECTION.
3.CHECK FOR SAFETY AFTER REPAIR.
CHECK THAT THE SCREWS, PARTS AND WIRES ARE PUT
BACK SECURELY IN THEIR ORIGINAL POSITION AFTER
REPAIR. ENSURE FOR SAFETY REASONS THERE IS NO
POSSIBILITY OF SECONDARY PROBLEMS AROUND THE
REPAIRED SPOTS.
4.CAUTION IN REMOVAL AND MAKING WIRING CONNECTION TO
THE PARTS FOR THE AUTOMOBILE. DISCONNECT THE
BATTERY TERMINAL AFTER TURNING THE IGNITION KEY OFF.
IF WRONG WIRING CONNECTIONS ARE MADE WITH THE
BATTERY CONNECTED, A SHORT CIRCUIT AND/OR FIRE MAY
OCCUR.
5. CAUTIONS REGARDING CHIPS.
DO NOT REUSE REMOVED CHIPS EVEN WHEN NO
ABNORMALITY IS OBSERVED IN THEIR APPEARANCE.
ALWAYS REPLACE THEM WITH NEW ONES. (THE CHIP
PARTS INCLUDE RESISTORS, CAPACITORS, DIODES,
TRANSISTORS, ETC). THE NEGATIVE POLE OF TANTALUM
CAPACITORS IS HIGHLY SUSCEPTIBLE TO HEAT, SO USE
SPECIAL CARE WHEN REPLACING THEM AND CHECK THE
OPERATION AFTERWARDS.
6. CAUTIONS IN HANDLING FLEXIBLE PWB BEFORE WORKING
WITH A SOLDERING IRON MAKE SURE THAT THE IRON TIP
TEMPERATURE IS AROUND 270 ℃. TAKE CARE NOT TO APPLY
THE IRON TIP REPEATEDLY (MORE THAN THREE TIMES) TO
THE SAME PATTERNS. ALSO TAKE CARE NOT TO APPLY THE
TIP WITH FORCE.
7. TURN THE UNIT OFF DURING DISASSEMBLY AND PARTS
REPLACEMENT. RECHECK ALL WORK BEFORE YOU APPLY
POWER TO THE UNIT NOTE: FOR FURTHER
IMPROVEMENT, SPECIFICATIONS AND DESIGN ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
- 1 -
PUBLISHED BY
SERVICE DEPT.
MAR 2005
PRINTED IN TAIWAN
VERSION A1 SINCE S/N
05020001
APA2001
