Summary of Contents for GlucoRx X6

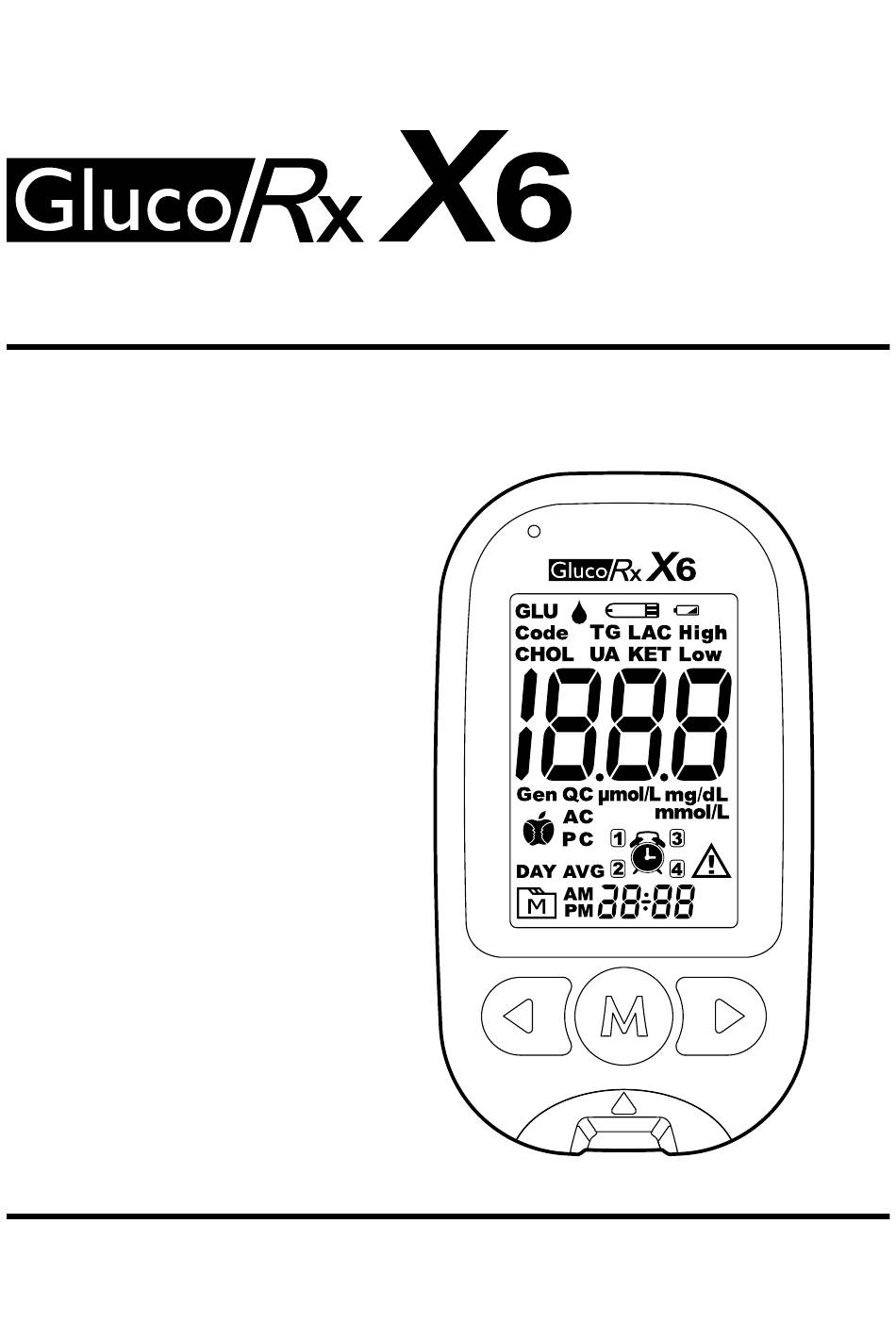

  • Page 1 Multi-Functional Monitoring System Owner’s Manual...
  • Page 2 Version 1.0 2021/08 311-4216200-006...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Important Safety Precautions Meter Overview Display Screen Test Strip Letter Indicator Guide Setting Your Meter Quality Control Tests Prepare For Blood Tests Perform Blood Tests Blood Glucose Tests β-Ketone Tests Lactate Tests Total Cholesterol Tests Triglycerides Tests Uric Acid Tests Review Test Results Data Transfer via Bluetooth...
  • Page 4 System. This manual provides important information to help you to use the system properly. Before you begin, please read the following contents thoroughly and carefully. If you have other questions regarding this product, please contact GlucoRx Customer Care or your place of purchase. Intended Use...

  • Page 5: Important Safety Precautions

    8. Proper maintenance and control solution tests are essential to the longevity of your device. If you are concerned about the accuracy of your measurement, please contact GlucoRx Customer Care or your place of purchase for assistance. 9. Severe dehydration and excessive water loss may cause readings that are lower than actual values.
  • Page 6 other than blood will lead to incorrect results. 12. If you are experiencing symptoms that are inconsistent with your test results and you have followed all the instructions in this owner’s manual, contact your healthcare professional. 13. Before using this device to test blood glucose, β-ketone, lactate, total cholesterol, triglycerides or uric acid, read all instructions thoroughly and practice the test.

  • Page 7: Meter Overview

    Meter Overview Bluetooth Indication Light Bluetooth is available for alternative data transmission Display Screen Left Scroll Button (◄) Enter Day Average and adjust value decrement. M Button (M) Enter the meter memory. Right Scroll Button (►) Bluetooth function and adjust value increment. Test Strip Slot with Strip Indication Light Insert test strip here to turn the meter on for testing.

  • Page 8: Display Screen

    Display Screen 19 18 Ketone Symbol Code High / Low Symbol Total Cholesterol Symbol Low Battery Symbol Test Result Lactate Symbol Measuring Mode Test Strip Symbol Gen – any time of day AC – before meal Triglycerides Symbol PC – after meal Blood Drop Symbol Auto QC Mode Blood Glucose Symbol...

  • Page 9: Test Strip

    Test Strip Absorbent Hole Test Strip Handle Confirmation Window Contact Bars NOTE ● The front side of the test strip should face up when inserting into the test strip slot. Test results may be inaccurate if the contact bar is not fully inserted into the test strip slot. ● The GlucoRx X6 Multi-Functional Monitoring System should only be used with GlucoRx X6 test strips. Using other test strips with this meter can produce inaccurate results.

  • Page 10: Letter Indicator Guide

    Letter Indicator Guide Supplied for glucose strips in GlucoRx X6 kit Refer to this letter indicator guide when necessary.

  • Page 11: Setting Your Meter

    Setting Your Meter Setting your meter to the correct date and time will ensure the accuracy of your test results. Follow the steps below when you first start using the meter. When you change the meter battery or start using the meter again after taking the batteries out for a period of time (ie 3 months), you should check and update the following settings: Entering the Settings Mode (a)
  • Page 12 NOTE ● The meter comes with a set of default target range. Please consult your doctor to determine a target range that works best for you and customise the target range accordingly. ● This function is applicable to blood glucose testing ONLY. ●...

  • Page 13: Quality Control Tests

    ● to practice the testing process; or ● if you have dropped or think you may have damaged the meter. Test strips (c), control solution (supplied in GlucoRx X6 kit for glucose strips) (d), lancing device (e) or sterile lancets (f) may not be included in the kit.
  • Page 14 NOTE ● The control solution range printed on the test strip vial is for control solution use only. It is not a recommended range for your blood test levels. ● For any control solution test, your device will tag this measurement as QC test automatically.

  • Page 15: Prepare For Blood Tests

    If the codes do not match, stop the test and contact GlucoRx Customer Care for assistance.

  • Page 16: Perform Blood Tests

    Perform Blood Tests To perform a blood test, you need: (b), (c), (e) and (f). 1. Turn on your meter by inserting a test strip Wait for the meter to display the “ ”, “ ”, and either “GLU”/ “KET”/ “LAC”/ “CHOL”/ “TG”/ “UA”. 2.
  • Page 17 Discard the used test strip and retest with a new one. ● If you have trouble filling the confirmation window, please contact your health care professional or GlucoRx Customer Care for assistance. 6. Read Your Result The result of your test will appear after the meter counts down to 0.

  • Page 18: Blood Glucose Tests

    Blood Glucose Tests Your meter provides you with three measuring modes: General, AC and PC. You can switch between each mode by: ● Insert a test strip to turn on the meter. The screen will display “ ”, a flashing “ ”...
  • Page 19 Result Readings INDICATION MESSAGE WHAT IT MEANS LIGHT Result is < 0.56 mmol/L APPLICABLE Out of measurement range. Result is between 0.56 to 3.8 SOLID RED mmol/L ('Example' only) SOLID Result is Result is Result is GREEN between 3.8 to between 3.8 between 3.8 to 7.1 mmol/L...

  • Page 20: Β-Ketone Tests

    β-Ketone Tests Your meter provides you with one measuring mode: General. ● Insert a test strip to turn on the meter. The screen will display “ ”, a flashing “ ” and “KET”. ● After obtaining the first drop of blood, wipe it off. Squeeze again to obtain another drop of whole blood sample for the test.
  • Page 21 Result Readings MESSAGE WHAT IT MEANS Result is < 0.1 mmol/L Out of measurement range. Result is between 0.1 to 8.0 mmol/L ('Example' only) Result is > 8.0 mmol/L Out of measurement range. Please consult your doctor to determine a target range that works best for you.

  • Page 22: Lactate Tests

    Lactate Tests Your meter provides you with one measuring mode: General. ● Insert a test strip to turn on the meter. The screen will display “ ”, a flashing “ ” and “LAC”. ● After obtaining the first drop of blood, wipe it off. Squeeze again to obtain another drop of whole blood sample for the test.

  • Page 23: Total Cholesterol Tests

    Total Cholesterol Tests Your meter provides you with one measuring mode: General. ● Insert a test strip to turn on the meter. The screen will display “ ”, a flashing “ ” and “CHOL”. ● After obtaining the first drop of blood, wipe it off. Squeeze again to obtain another drop of whole blood sample for the test.
  • Page 24 Result Readings MESSAGE WHAT IT MEANS Result is < 2.5 mmol/L Out of measurement range. Result is between 2.5 to 10.3 mmol/L ('Example' only) Result is > 10.3 mmol/L Out of measurement range. Please consult your doctor to determine a target range that works best for you.

  • Page 25: Triglycerides Tests

    Triglycerides Tests Your meter provides you with one measuring mode: General. ● Insert a test strip to turn on the meter. The screen will display “ ”, a flashing “ ” and “TG”. ● After obtaining the first drop of blood, wipe it off. Squeeze again to obtain another drop of whole blood sample for the test. Reference Values The triglycerides readings deliver plasma equivalent results displayed in millimoles of triglycerides per liter of blood (mmol/L). Triglycerides Levels (mmol/L)* Desirable < 1.70 mmol/L Borderline High...
  • Page 26 Result Readings MESSAGE WHAT IT MEANS Result is < 0.79 mmol/L Out of measurement range. Result is between 0.79 to 6.77 mmol/L ('Example' only) Result is > 6.77 mmol/L Out of measurement range. Please consult your doctor to determine a target range that works best for you.

  • Page 27: Uric Acid Tests

    Uric Acid Tests Your meter provides you with one measuring mode: General. ● Insert a test strip to turn on the meter. The screen will display “ ”, a flashing “ ” and “UA”. ● After obtaining the first drop of blood, wipe it off. Squeeze again to obtain another drop of whole blood sample for the test. ● The measurement unit used for indicating the concentration of blood or plasma can either have a weight dimension (mg/dL) or a molarity (µmol/L). The approximate calculation rule for conversion between mg/dL and µmol/L is: E.g.
  • Page 28 Result Readings MESSAGE WHAT IT MEANS Result is < 3 mg/dL (178 μmol/L) Out of measurement range. ('Example' only) Result is between 3 to 20 mg/dL (178 to 1189 μmol/L) ('Example' only) Result is > 20 mg/dL (1189 μmol/L) Out of measurement range. Please consult your doctor to determine a target range that works best for you.

  • Page 29: Review Test Results

    Review Test Results Your meter stores the most recent 1000 test results along with respective dates and times in its memory. To enter memory mode, start with the meter switched off. 1. Press and release M. “ ” will appear on the display and the first reading you see is the last test result with the date, time and measuring mode.

  • Page 30: Data Transfer Via Bluetooth

    Pairing with your mobile device 1. Turn on the Bluetooth function on your mobile device. 2. Follow the instructions on the GlucoRx BGMs app to pair the device. (E.g. Search to find your meter and then add it into the app).
  • Page 31 Bluetooth Indicator on the Meter BLUETOOTH INDICATOR ON THE STATUS METER The Bluetooth function is on and waiting for Flashing Blue connection. Solid Blue The Bluetooth connection is established. NOTE ● Your meter will be unable to perform a test while it is in Bluetooth mode. ● Please make sure your device supports Bluetooth Smart Technology, the Bluetooth setting on your device is turned on and your meter is within the receiving range before transferring the data.

  • Page 32: Maintenance

    Maintenance Meter Cleaning and Disinfecting ● Wipe your meter exterior with soft damp cloth or mild cleaning agent, then dry the device with soft dry cloth. Do NOT use organic solvents to clean the meter. ● Do NOT rinse or immerse in water or other liquids. ●...

  • Page 33: Batteries

    ● Keep test strips away from children since the vial cap and strip may be a choking hazard. If swallowed, urgently see a doctor for help. For more information, please refer to the test strip insert. Batteries Your meter comes with two 1.5V AAA size alkaline batteries. Low Battery Signal Your meter will display one of the messages below to alert you when the meter power is getting low...
  • Page 34 NOTE ● Replacing the batteries does not affect the test results stored in your meter memory. ● All batteries should be kept away from children. If swallowed, seek medical assistance immediately. ● Batteries may leak chemicals if left unused for a long time. Remove the batteries if you are not going to use your meter for an extended period of time (i.e.

  • Page 35: System Troubleshooting

    System Troubleshooting If you follow these recommended actions but the problem persists, please call GlucoRx Customer Care: Error Messages MESSAGE WHAT IT MEANS WHAT TO DO The batteries are too Replace the batteries low. immediately. A used test strip is Repeat with a new test strip.
  • Page 36 The code chip is not Make sure the code chip inserted before testing you are using supports the or the meter does parameter being tested. If not support certain the problem persists, please parameters. contact GlucoRx Customer Care for help.
  • Page 37 Test strip inserted upside Insert the test strip with contact bars down or incompletely. end first and facing up. Please contact GlucoRx Customer Defective meter or test strips. Care. 2. If the test does not start after applying the sample:...
  • Page 38 Meter and test strip not Please contact GlucoRx Customer working properly. Care.

  • Page 39: Symbol Information

    Symbol Information SYMBOL REFERENT SYMBOL REFERENT Authorised In vitro diagnostic representative medical device in the European Community Consult instructions Manufacturer for use Temperature limit Caution Use-by date Humidity limitation Batch code CE mark Serial number RoHS compliance Catalogue number This device does not belong to household waste and must be returned to a collection point for recycling electric and electronic devices according to local laws.

  • Page 40: Specifications

    Specifications Model No: GlucoRx X6 Dimensions: 102.5 (L) x 59.6 (W) x 21.8 (H) mm Weight: 89 g (without batteries) Power Source: Two 1.5V AAA alkaline batteries Display: LCD with backlight Memory: 1000 External Output: Strip Port Cable / Bluetooth...
  • Page 41 Measurement Range: Blood Glucose Test: 0.56 to 44.4 mmol/L β-Ketone Test: 0.1 to 8.0 mmol/L Lactate Test: 0.3 to 22 mmol/L Total Cholesterol Test: 2.5-10.3 mmol/L Triglycerides Test: 0.79 to 6.77 mmol/L Uric Acid Test: 3 to 20 mg/dL (178 to 1189 μmol/L) Expected service life: 5 years Operating Altitude: Up to 2000m, for indoor use Degree of Pollution: Pollution degree 2...
  • Page 44 Distributed by GlucoRx Ltd. Unit 1C Henley Business Park, Pirbright Road, Guildford, Surrey, GU3 2DX, UK Customer Careline: 01483-755133 www.glucorx.co.uk TaiDoc Technology Corporation B1-7F, No.127, Wugong 2nd Rd., Wugu Dist., 24888 New Taipei City, Taiwan For self-testing. www.taidoc.com MedNet EC-REP GmbH Borkstraβe 10, 48163 Mϋnster, Germany...
