Pittsburgh 61523 Owner's Manual & Safety Instructions

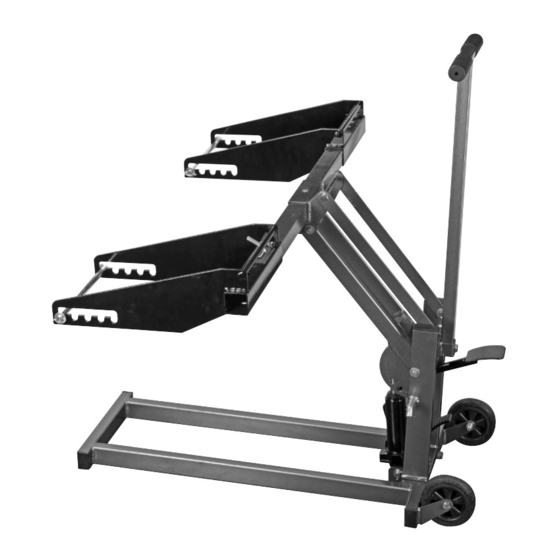

300 lb. high lift riding mower/atv jack
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual (or month and year of purchase if product has no number). Keep this manual and the
receipt in a safe and dry place for future reference.
Item
Rated Capacity
Maximum Lift Height 24"
Axle Width
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2022 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
61523
300 lb
36"– 50.5"
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
22c

Advertisement

Table of Contents
loading

Related Manuals for Pittsburgh 61523

Summary of Contents for Pittsburgh 61523

  • Page 1 (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference. Item 61523 Rated Capacity 300 lb Maximum Lift Height 24"...

  • Page 2: Important Safety Information

    The operator must understand that common sense and caution are factors, which cannot be built into this product, but must be supplied by the operator. SAVE THESE INSTRUCTIONS. Page 2 For technical questions, please call 1-888-866-5797. 61523...
  • Page 3 Secure each Pin with an R-Clip (6). R-Clip ( 6 ) Upper Ram Pin ( 24 ) Ram ( 21 ) Washer ( 19 ) Lower Ram Pin ( 7 ) Step 2: Install Ram 61523 For technical questions, please call 1-888-866-5797. Page 3...
  • Page 4 Hold Washer (19) over end of Extension Beam Pin and secure it with R-Clip (6). Extension Beam Pin ( 34 ) Upper Lift Arm (29) Extension Beam ( 33 ) Washer ( 19 ) R-Clip ( 6 ) Step 4: Attach Extension Beam Page 4 For technical questions, please call 1-888-866-5797. 61523...
  • Page 5 Replace the Washer over the end of each Wheel Bracket Rod and use an R-Clip to secure the end of each Rod in place. R-Clip (36) Washer (35) Wheel Bracket Rod (37) Wheel Bracket (38) Step 6: Attach Wheel Bracket Rods 61523 For technical questions, please call 1-888-866-5797. Page 5...
  • Page 6 8. Insert the Handle (27) into the bracket on the Lift Arm/Shaft Assembly and align the holes. Secure in place using the Handle Bolt (12) and Washer (13). Handle (27) Washer (13) Handle Bolt (12) Step 8: Install Handle Page 6 For technical questions, please call 1-888-866-5797. 61523...
  • Page 7 Width Pin Wheel Bracket Width Pin Foot Pedal Safety Lock Lever Fluid Fill Hole Release Pedal Fluid Fill Plug Safety Lock Levers in Safety Lock Levers in LOCKED position. UNLOCKED position. 61523 For technical questions, please call 1-888-866-5797. Page 7...
  • Page 8 3. Place the two Safety Lock Levers in the horizontal, 6. When not in use, store Jack in a safe, unlocked position to disengage the locking dry location out of reach of children. mechanism. Refer to Components on page 7. Page 8 For technical questions, please call 1-888-866-5797. 61523...

  • Page 9: Cleaning, Maintenance, And Lubrication

    Ram may be low on fluid. Check the fluid level and refill if needed. Ram may require bleeding - see facing page. Unit may have too much hydraulic fluid inside. Check fluid level and adjust if needed. 61523 For technical questions, please call 1-888-866-5797. Page 9...

  • Page 10: Please Read The Following Carefully

    Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Specify UPC 193175472281 when ordering parts. Page 10 For technical questions, please call 1-888-866-5797. 61523...

  • Page 11: Assembly Diagram

    Assembly Diagram 61523 For technical questions, please call 1-888-866-5797. Page 11...
  • Page 12 Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
