Pittsburgh 62590 Owner's Manual & Safety Instructions

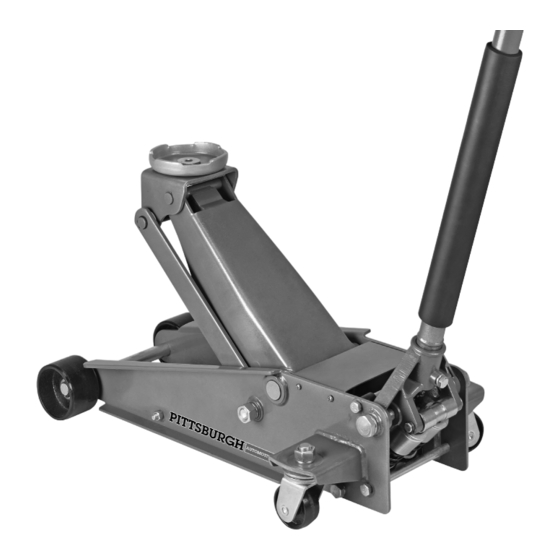

3 ton floor jack with rapid pump
Hide thumbs

Advertisement

Quick Links

Download this manual
Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
Item
Weight Capacity
Maximum Height
Minimum Height
Meets 2005 ANSI/ASME
PALD standards.
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2015 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
62590
3 Tons (6,000 lb.)
18-3/8"
4-3/4"
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
REV 15b

Advertisement

loading

Related Manuals for Pittsburgh 62590

Summary of Contents for Pittsburgh 62590

  • Page 1 (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference. REV 15b Item 62590 Weight Capacity 3 Tons (6,000 lb.) Maximum Height 18-3/8"...

  • Page 2: Table Of Contents

    Indicates a hazardous situation which, if not avoided, could result in death or serious injury. Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. Addresses practices not related to personal injury. Page 2 For technical questions, please call 1-888-866-5797. Item 62590...

  • Page 3: Safety

    Thoroughly test the Jack for proper operation. tires before lifting vehicle. If it does not work properly, bleed air from its hydraulic system as stated on page 5. SAVE THESE INSTRUcTIONS. Item 62590 For technical questions, please call 1-888-866-5797. Page 3...

  • Page 4: Setup

    Fill plug) Handle Lift Arm Front Handle Socket Wheel Set Screw Rear caster Safety Valve cover DO NOT OpEN U-Joint OR ADJUST Fluid Fill plug Hydraulic Unit Figure A Page 4 For technical questions, please call 1-888-866-5797. Item 62590...

  • Page 5: Operation

    2. Remove the Fluid Fill Plug. 4. Replace the Fill Plug and Cover Plate. 3. Add high grade hydraulic fluid into the fill hole slowly until the fluid reaches the top of the hole. Item 62590 For technical questions, please call 1-888-866-5797. Page 5...
  • Page 6 4. Lower the Jack completely. Then, store in a load high enough to clear the jack stands, safe, dry location out of reach of children. then carefully remove jack stands. Page 6 For technical questions, please call 1-888-866-5797. Item 62590...

  • Page 7: Maintenance

    Reinstall the Fluid Fill Plug. 4. AFTER EAcH USE, wipe dry with a clean cloth. Store the Jack in a safe, dry location out of reach of children and other non-authorized people. Item 62590 For technical questions, please call 1-888-866-5797. Page 7...
  • Page 8 Jack may be low on fluid. Check the fluid level and refill if needed. Jack may require bleeding - see instructions on Bleeding on page 5. Unit may have too much hydraulic fluid inside; check fluid level and adjust if needed. Page 8 For technical questions, please call 1-888-866-5797. Item 62590...
  • Page 9 Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Item 62590 For technical questions, please call 1-888-866-5797. Page 9...

  • Page 10: Parts Lists And Assembly Diagrams

    Cover Plate Bolt Hex Nut Spring Washer Spring Washer Handle Base Bolt Lower Handle Spring Washer Hex Bolt Rubber Bumper Upper Handle Handle Base Handle Foam Retaining Ring Bolt Roller Page 10 For technical questions, please call 1-888-866-5797. Item 62590...
  • Page 11 Low Pressure Pump Core Base O-Ring O-Ring Fluid Fill Plug Low Pressure Pump Piston Cone Valve Spring Spring Spring Sleeve Bolt Spring Base O-Ring Retaining Ring Sealing Bolt Valve Steel Ball Item 62590 For technical questions, please call 1-888-866-5797. Page 11...

  • Page 12: Warranty

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
