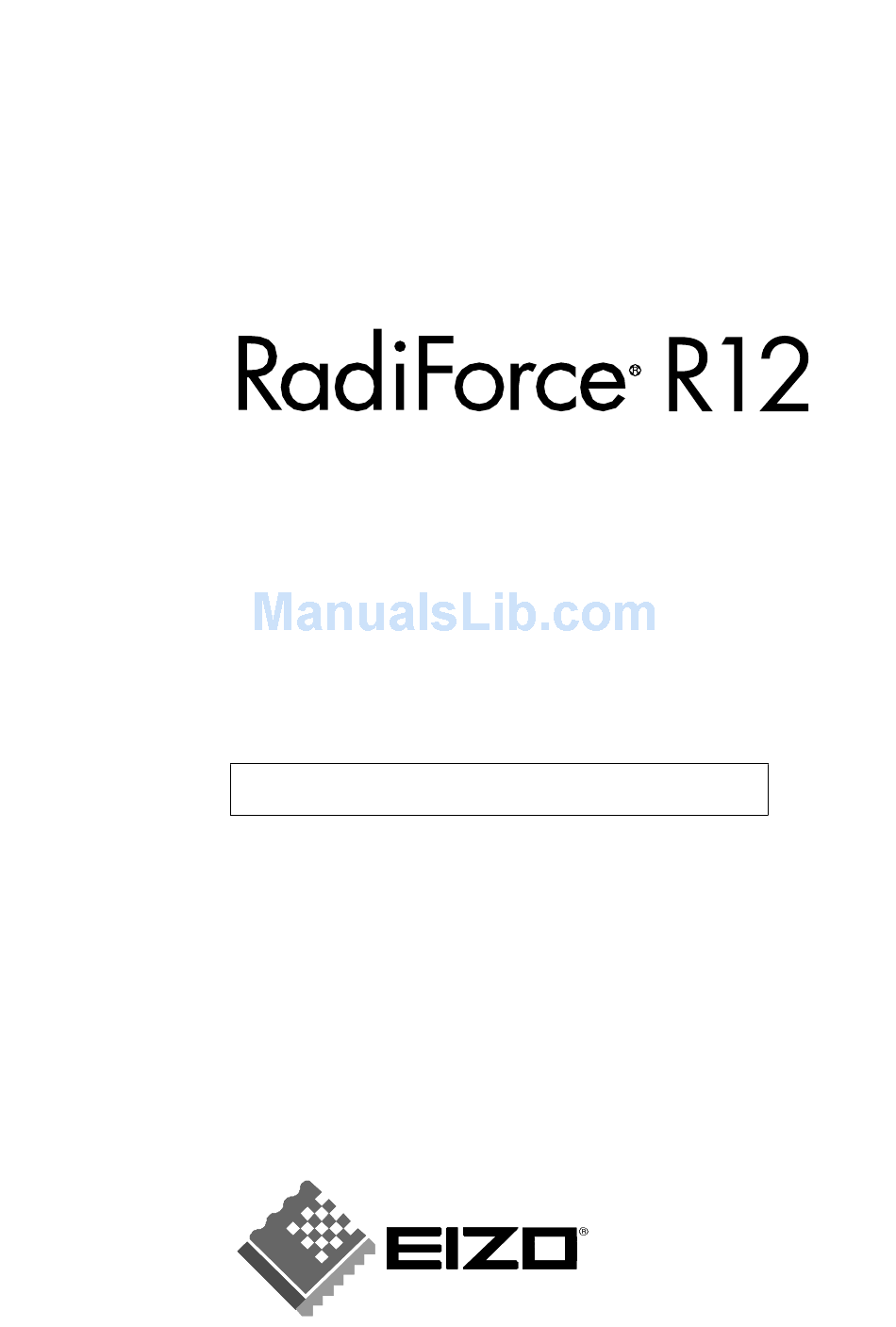

User's Manual
Color LCD Monitor
It shall be assured that the final system is in compliance to
IEC60601-1-1 requirements.

Advertisement

Table of Contents
loading

Related Manuals for Eizo RadiForce R12

Summary of Contents for Eizo RadiForce R12

  • Page 1 User’s Manual Color LCD Monitor It shall be assured that the final system is in compliance to IEC60601-1-1 requirements.

  • Page 2: Safety Symbols

    • This is a monitor intended for use in a medical setting. Copyright© 2004 EIZO NANAO CORPORATION All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO CORPORATION.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PRECAUTIONS ... 4 1. INTRODUCTION ... 9 1-1. Features ...9 1-2. Package Contents...9 1-3. Controls & Connectors ...10 2. CABLE CONNECTION ... 12 2-1. Before Connecting ...12 2-2. Connecting the signal cable (For the computer employing D-Sub or DVI connector) ...13 2-3.

  • Page 4: Precautions

    English PRECAUTIONS IMPORTANT! • This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside the region to which it was originally shipped, the product may not perform as stated in the specifications. •...
  • Page 5 WARNING If the unit begins to emit smoke, smells like something is burning, or makes strange noises, disconnect all power connections immediately and contact your dealer for advice. Attempting to use a malfunctioning unit may result in fire, electric shock, or equipment damage.
  • Page 6 English WARNING Use the enclosed power cord and connect to the standard power outlet of your country. Be sure to remain within the rated voltage of the power cord. Not doing so may result in fire or electric shock. To disconnect the power cord, grasp the plug firmly and pull. Tugging on the cord may damage and result in fire or electric shock.
  • Page 7 WARNING Do not touch a damaged LCD panel directly with bare hands. The liquid crystal which leaks from the panel is poisonous if it enters the eyes or mouth. If any part of the skin or body comes in direct contact with the panel, please wash thoroughly.

  • Page 8: Lcd Panel

    English LCD Panel In order to suppress the luminosity change by long-term use and to maintain the stable luminosity, please use the monitor with the brightness below 160 cd/m (BRIGHTNESS approximately 70 %). The screen may have defective pixels. These pixels may appear as slightly light or dark area on the screen.

  • Page 9: Introduction

    Tuning Utility Disk). • The utility software “ScreenManager Pro for LCD” (for Windows) which can control the monitor from a PC with a mouse or keyboard, is included (refer to the EIZO LCD Utility Disk). • The height adjustable stand incorporated •...

  • Page 10: Controls & Connectors

    English 1-3. Controls & Connectors Front FineContrast Menu Control Panel (1) ScreenManager Main Power Switch (3) SIGNAL1-2 Input Signal Selection Button (4) MODE (5) AUTO Auto Adjustment Button (6) ENTER Enter Button Control Buttons (Left, Down, Up, Right) Power Button Power Indicator Blue Yellow /...
  • Page 11 Rear Bottom (10) Height Adjustable Stand (Detachable) (11) Security Lock Slot (12) DVI-I Input Connector x 2 (SIGNAL 1, SIGNAL 2) (13) USB Upstream Port (x 1) (14) USB Downstream Ports (x 2) (15) Power Connector The LCD monitor has the capability of the Portrait/Landscape display. (The panel pivots in the clockwise direction 90°.) For the Portrait display, use the software for the portrait.

  • Page 12: Cable Connection

    English 2. CABLE CONNECTION 2-1. Before Connecting Before connecting your monitor to the PC, change the display screen settings (resolution p. 49) and frequency) in accordance with the charts below. NOTE • When your computer and display support VESA DDC, the suitable resolution and the refresh rate are set by just plugging your display into the computer without any manual settings.

  • Page 13: Connecting The Signal Cable (For The Computer Employing D-Sub Or Dvi Connector)

    2-2. Connecting the signal cable (For the computer employing D-Sub or DVI connector) NOTE • Be sure that the power switches of both the PC and the monitor are OFF. Plug the signal cable into the connector at the rear of the monitor and the other end of the cable into the video connector on the PC.

  • Page 14: Digital Input

    English Digital Input Signal Cable Signal Cable (FD-C35/FD-C39 enclosed) Plug the power cord into the power connector on the rear of the monitor. Lead the power cord and signal cable into the cable holder at rear of the monitor. NOTE •...
  • Page 15 USB compliant PC or another hub with the USB cable. After connecting the USB cable, the USB function can be set up automatically. For further details about the “ScreenManager Pro for LCD”, refer to the readme.txt in the “EIZO LCD Utility Disk” CD-ROM. English 2. CABLE CONNECTION...

  • Page 16: Connecting The Signal Cable (For The Computer Employing Adc)

    English 2-3. Connecting the signal cable (For the computer employing ADC) NOTE • Be sure that the power switches of both the PC and the monitor are OFF. Plug the signal cable into the connector at the rear of the monitor and the other end of the cable into the video connector on the PC.
  • Page 17 Lead the power cord and signal cable into the cable holder at rear of the monitor. NOTE • The cables are recommended to lead with slight sag for the smooth motion of the stand and the Portrait/Landscape display. Cable Holder Plug the other end of the cord into a power outlet.
  • Page 18 English Press the power button while pressing the Input Signal Selection button. The Input Selection menu is appeared on the screen. Change SIGNAL 1 (DVI-I Connector) in the Input Selection menu to “ADC”. Press Enter button to complete the setting and the menu closes. Switch on the PC's power.

  • Page 19: Connecting Two Pcs To The Monitor

    2-4. Connecting Two PCs to the Monitor Two PCs can be connected to the monitor through the Signal 1 and the Signal 2 on the back of the monitor. Connecting Examples (Ex.1) Analog D-Sub mini 15 (Ex.2) Analog D-Sub mini 15 (Ex.3) Digital Selecting the Active Input...
  • Page 20 English The Priority Input Signal This function is used to select which PC will have priority to control the monitor when utilizing two PCs. The monitor constantly checks the input signals and switches automatically in accordance with the “Input Priority” setting (see table below). Once a priority is set, whenever a change of signal is detected at the selected input, the monitor will switch the input to that signal.

  • Page 21: Screenmanager

    3. ScreenManager 3-1. How to use the ScreenManager ScreenManager allows you to adjust screen performance though the main menu and select a FineContrast mode easily. [Ex.] Custom FineContrast Menu NOTE • Main Menu and FineContrast Menu cannot be activated at the same time. Entering the ScreenManager Press the Enter Button once to display the main menu of the ScreenManager.

  • Page 22: Screenmanager Adjustments And Settings

    English 3-2. ScreenManager Adjustments and Settings. The following table shows all the ScreenManager’s adjustment and setting menus. “*” indicates adjustments of analog input only and “**” indicates digital input only. Main menu Screen Clock Phase Position Resolution Range Adjustment Smoothing Signal Filter Color (Custom) Brightness...

  • Page 23: Finecontrast

    3-3. FineContrast This function allows you to select the best suited mode for screen display. To select the Mode Pressing the Mode button allows you to select the best suited mode for screen display from 6 FineContrast modes; “Custom”, “sRGB”, “CAL”, “Text”, “DICOM-CL” and “DICOM-BL”.

  • Page 24: Useful Functions

    English 3-4. Useful Functions Adjustment Lock Use the “Adjustment Lock” function to prevent any accidental changes. Locked function Unlocked function [To lock] (1) Switch off the monitor’s power by the power button on the control panel. (2) Press on the Auto adjustment button while switching on the monitor’s power. [To unlock] (1) Switch off the monitor’s power by the power button on the control panel.

  • Page 25: Power Indicator Setting

    (3) The Sync Switch setting has been cancelled. EIZO Logo Disappearing Function When switching on the Power Button on the control panel, the EIZO logo is displayed for a while. If you desire to display or undisplay this logo, use this function. (Default is logo appearing.)

  • Page 26: Adjustment

    Run the “Screen adjustment program”. Having read the “Readme.txt” file, run the “Screen adjustment program” in the enclosed EIZO LCD Utility Disk. Step by step, adjustment is provided by the wizard guide. (If using the Windows, the program can be directly run from the menu screen of the CD-ROM.)
  • Page 27 NOTE • If the user’s operating system has no utility disk (e.g. OS/2), we recommend setting the desktop pattern to that as shown in the diagram on the following. Adjust by using <Screen> menu in the ScreenManager. (1) Vertical bars appear on the screen →...
  • Page 28 English (3) The screen position is not incorrect. → Use the <Position> adjustment. The correct displayed position of the monitor is decided because the number and the position of the pixels are fixed. The <Position> adjustment moves the image to the correct position. Select <Position>...
  • Page 29 English Adjust the output signal range (Dynamic Range) of the signal. → Use the <Range Adjustment> (p.49) of <Screen> menu. This controls the level of output signal range to display the whole color gradation (256 colors). [Procedure] Select the <Range Adjustment> in the ScreenManager and press the Auto Adjustment button on the control panel to adjust the Range Adjustment.

  • Page 30: Displaying Low Resolutions

    English 4-2. Displaying Low Resolutions The lower resolutions are enlarged to full screen automatically. Using the <Screen Size> function in the <Others> menu enables to change the screen size. Enlarge the screen size when displaying a low resolution. → Select the <Screen Size>. Select the <Screen Size>...
  • Page 31 English Set the brightness of the black area surrounding the displayed image. → Set the <Border Intensity>. In the <Enlarge> mode or <Full Screen> mode, the outer area (border) is usually black. Select <Border Intensity> in the <Others> menu and adjust by using the Right and Left Buttons.

  • Page 32: Color Adjustment

    English 4-3. Color Adjustment Color settings of each FineContrast mode can be adjusted and saved by using the <Color> menu of the ScreenManager. In the analog input, perform the “Range Adjustment” (p.29) before making the color adjustments. Adjustment items The adjustable items and displayed icons on the ScreenManager depend on the selected FineContrast mode.
  • Page 33 Adjustment Contents Menu Function Descriptions Brightness To set the brightness of the screen Temperature To set the color temperature (p.49) NOTE • The values shown in the Kelvin are available only as a reference tool. • Adjusting the <Gain> turns the <Temperature> adjustment "Off". •...
  • Page 34 English Unlock Function after Calibration The calibration is available when using the specified optional calibration kit. (p.47) After the calibration in FineContrast CAL mode, the brightness adjustment function is automatically locked. Unlock function is available by using ScreenManager. How to unlock (1) Select the <Unlock>...

  • Page 35: Power-Save Setup

    4-4. Power-save Setup The <PowerManager> menu in the ScreenManager enables to set the power-save setup. NOTE • Do your part to conserve energy, turn off the monitor when you are finished using it. Disconnecting the monitor from the power supply is recommended to save energy completely.

  • Page 36: Making Use Of Usb (Universal Serial Bus)

    English 5. MAKING USE OF USB (Universal Serial Bus) This monitor provides a hub which supports the USB standard. When connecting to a USB compliant PC or another hub, the monitor functions as a hub to which the USB compliant peripherals can be easily connected. Required system environment •...
  • Page 37 Cable Monitor Keyboard ScreenManager Pro for LCD (for Windows) For further details about the “ScreenManager Pro for LCD (for Windows)”, refer to the EIZO LCD Utility Disk. Mouse Downstream Downstream ports: Connect the cables from USB compliant peripherals such as a mouse, keyboard, etc.

  • Page 38: Attaching An Arm

    English 6. ATTACHING AN ARM The LCD monitor can be used with an arm by removing the tilt stand and attaching the arm or stand to the LCD monitor. NOTE • If you will use the arm or stand of other manufacturers, confirm the followings to the manufacturers before selecting.
  • Page 39 English Attach an arm stand to the LCD monitor securely. Arm-stand M4 Mounting Screws: M4 x 15 (mm) BZn/Fe 6. ATTACHING AN ARM...

  • Page 40: Troubleshooting

    English 7. TROUBLESHOOTING If a problem persists even after applying the suggested remedies, contact an EIZO dealer. • No picture problems → See No.1 ~ No.2 • Imaging problems → See No.3 ~ No.14 • Other problems → See No.15 ~ No.20 •...
  • Page 41 Problems 3. Display position is incorrect. 4. Screen image is smaller or larger than the actual screen images. 5. Vertical bars of distortion appear. 6. The characters and images have several vertical bars on their right side. 7. Horizontal bars of distortion appear.
  • Page 42 English Problems 10. The screen is too bright or too dark. 11. Afterimages appear. 12. The screen has defective pixels (e.g. slightly light or dark). 13. Fingerprints remain on the screen. 14. The noise appears on the screen. 15. The <Smoothing> cannot be selected.
  • Page 43 Check that the USB cable is correctly connected. Check the downstream ports by connecting the peripherals to other downstream ports. If the problem is solved by doing this, contact an EIZO dealer. (For details, refer to the manual of the PC.) Try executing the following method.

  • Page 44: Cleaning

    English 8. CLEANING Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime. NOTE • Never use thinner, benzene, alcohol (ethanol, methanol, or isopropyl alcohol), abrasive cleaners, or other strong solvents, as these may cause damage to the cabinet or LCD panel.

  • Page 45: Specifications

    9. SPECIFICATIONS LCD Panel Dot Pitch Horizontal Scan Frequency Vertical Scan Frequency Resolution Dot Clock (Max.) Display Colors Display Area Power Supply Power Consumption Input Connector Analog Input Signal (Sync) Analog Input Signal (Video) Input Signal (Digital) Signal registration Plug & Play Dimensions with stand without stand...
  • Page 46 English Certifications and Standards Classification of Equipment Default Settings FineContrast Mode Brightness Temperature Smoothing PowerManager Screen Size Input Priority Off Timer Menu Settings Beep Language Beeper Settings Short beep Long beep 4 short beeps 2 short beeps every 15 sec. 9.

  • Page 47: Pin Assignment

    Dimensions FRONT Pin Assignment DVI-I Connector 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Pin No. Signal Pin No. TMDS Data2- TMDS Data2+ TMDS Data2/4 Shield DDC Clock (SCL) DDC Data (SDA) Analog Vertical Sync...

  • Page 48: Glossary

    English 10. GLOSSARY Afterimage The Afterimage is particular to LCD monitors when the monitor screen is left on for a long period without use. The “Afterimage” can be removed gradually by changing the displayed image. Clock With the analog input signal display, the analog signal is converted to a digital signal by the LCD circuitry.
  • Page 49 The LCD panel consists of a fixed number of pixel elements which are illuminated to form the screen image. The EIZO R12 display panel consists of 1280 horizontal pixels and 1024 vertical pixels. At a resolution of 1280 x 1024, all pixels are displayed as a full screen.
  • Page 50 English MEMO MEMO...

  • Page 51: Appendix/Anhang/Annexe

    APPENDIX/ANHANG/ANNEXE Preset Timing Chart for Analog input Timing-Übersichten für Analog Eingang Synchronisation des Signaux pour Analog numerique Based on the signal diagram shown below 26 factory presets have been registered in the monitor's microprocessor. Der integrierte Mikroprozessor des Monitors unterstützt 26 werkseitige Standardeinstellungen (siehe hierzu die nachfolgenden Diagramme).

  • Page 52: Fcc Declaration Of Conformity

    Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. - AC Cord - Shielded Signal Cable (enclosed) This Class B digital apparatus complies with Canadian ICES-003.
  • Page 53 DE BRAN CHE SWICO. http://www.swico.ch Recycling Information for customers in USA: All recycling information is placed in the EIZO Nanao Technologies, Inc’s website. http://www.eizo.com/contact/index.html Återvinnings information för kunder i Sverige: All information om återvinning finns på Eizo Europe AB:s hemsida:...
