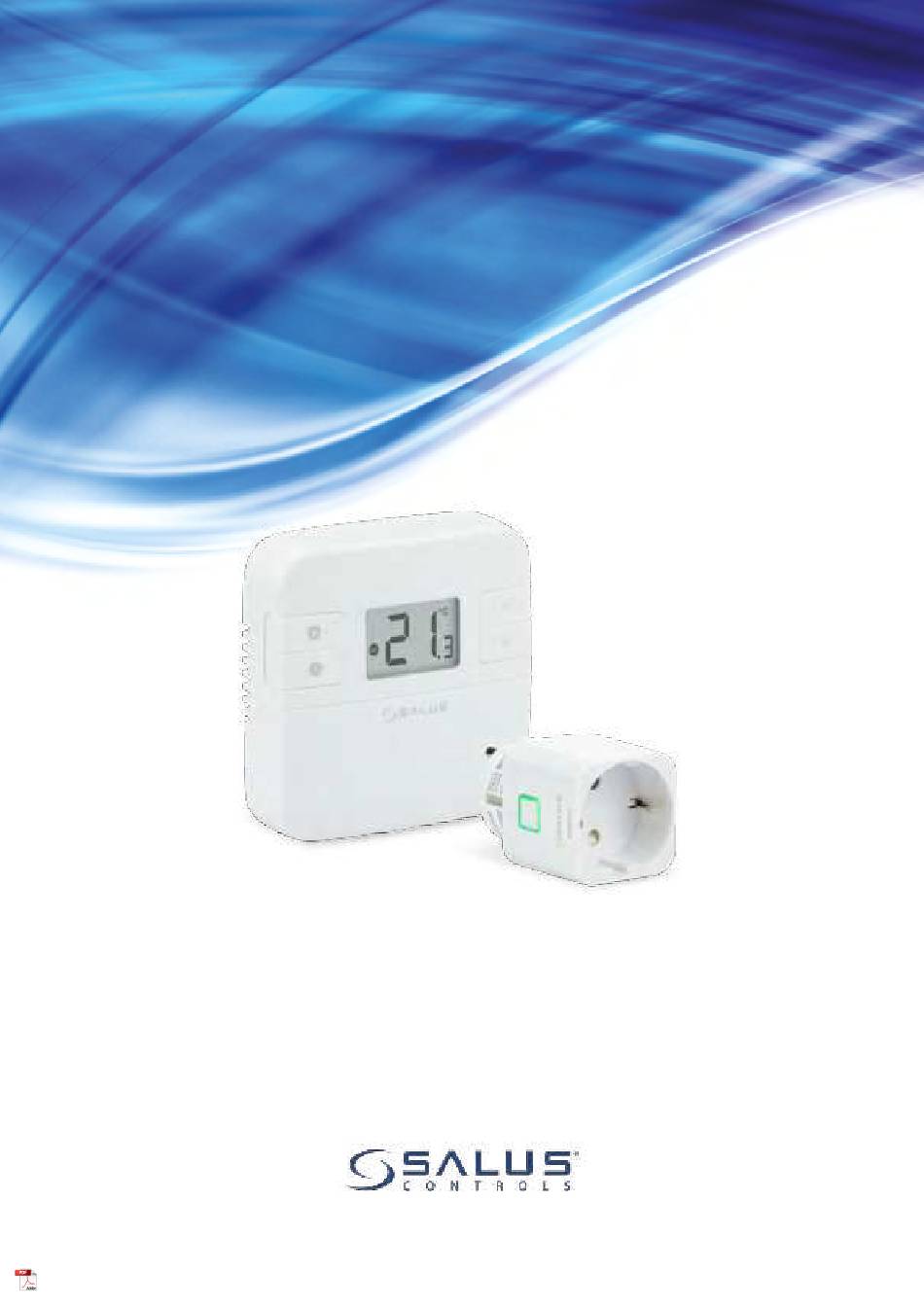

- Page 1 RT310SPE THERMOSTAT - FULL USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ................................4 1.1 Product Compliance ..................................4 1.2 Safety Informations ..................................4 2. Product Overview ...............................5 2.1 Package content ....................................6 2.2 Proper thermostat location ................................6 2.3 Wall mounting ....................................7 3. SPE868 smart plug receiver ............................8 3.1 Smart plug LED indication ................................8 3.2 Connection description ..................................9 4. -
Page 4: Introduction
1. Introduction 1.1 Product Compliance This product complies with the essential requirements and other relevant provisions of Directives 2014/53/EU and 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.saluslegal.com. 1.2 Safety Informations •... -
Page 5: Product Overview
2. Product Overview The RT310 room thermostat simply switches the heating system on and off as necessary. It works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching it off once this set temperature has been reached. Recommended for controlling e.g. -
Page 6: Package Content
2.1 Package content 1) RT310TX thermostat 2) SPE868 smart plug receiver 2) 2x AA batteries 3) Short instruction 4) Mounting screws 2.2 Proper thermostat location Please note: The ideal position to thermostat mounting is about 1,5m under floor level far from heating or cooling sources. Thermostat can’t be exposed to sunlight or any extreme conditions like for example draft. -
Page 7: Wall Mounting
2.3 Wall mounting Content used for thermostat mounting: RT310 front Backplate Wiring configuration (two screws at the bottom) How to mount the thermostat to the wall: Fix the backplate Align the front housing Fit the front housing. at the top edge Press lightly. -
Page 8: Spe868 Smart Plug Receiver
3. SPE868 smart plug receiver The SALUS SPE868 Plug gives you control of the electrical heating. SPE868 must be used in conjunction with the wireless RT series thermostats. The ther- mostat communicates wirelessly with the SPE868 smart plug receiver. The receiver should be supplied with 230VAC, the maximum load of the receiver is 16A. -
Page 9: Connection Description
3.2 Connection description RT310TX 16 (5) A SPE868 2 x AA Legend: Symbols explanation: L, N - power supply 230V Pump - fuse... -
Page 10: Before You Start (First Power Up)
4. Before you start (first power up) 4.1 LCD icon description 1. Heating Mode indication 4. Low battery status 2. Cooling Mode */Frost protection 5. Temperature unit mode indication 6. Room / setpoint temperature 3. RF signal indicator (only in RT310RF) 4.2 Button description 1. -
Page 11: First Power Up Sequence And Configuration
4.3 First power up sequence and configuration To power up the thermostat you have to put the batteries inside. Then thermostat will display following sequence: Remove the protection foil and insert After that, thermostat will 2xAA batteries by removing front automatically power up and it will cover. -
Page 12: User Settings
5. User settings 5.1 Manual mode - changing temperature setpoint In manual mode, the thermostat maintains a constant temperature set by the user. To set temperature setpoint follow steps below: Press to set the new First, thermostat is displaying actual temperature setpoint. -
Page 13: Frost Protection Mode
5.2 Frost protection mode In this mode the setpoint temperature is automatically set to frost setpoint to prevent pipes from freezing. If the room temperature is lower than the frost setpoint, frost protection will be enabled. To set frost protection mode follow steps below: Press button to turn Snowflake icon will be displayed if... -
Page 14: Heat/Cool Mode
5.4 Heat/Cool mode * User can set thermostat for heating or cooling. In HEAT mode thermostat is displaying flame icon all the time. When thermostat is in HEAT mode and thermostat is CALLING for HEAT – the flame icon is flashing. In COOL mode thermostat is displaying snowflake icon all the time. When thermostat is switched to the COOLING mode and the thermostat is CALLING for COOL –... -
Page 15: Installer Mode
6. Installer mode To enter installer parameters please follow steps below. Please refer to parameters table description before any changes. Use button to move through parameters. Use for adjustements. Every change/selection confirm by button. 3 sec 3 sec 3 sec Press and hold button to move through simultanously for about 3 seconds to... -
Page 16: Rt310Tx Thermostat Pairing With The Spe868 Smart Plug Receiver
The word PAIRING in the user settings means the function of synchronizing the transmitter with the receiver again, if it has been removed. WARNING! IN THE SET RT310SPE THE THERMOSTAT IS FACTORY PAIRED WITH THE SPE868 RECEIVER! In order to pair the devices correctly, you must first prepare the receiver for synchronization! -
Page 17: Rt310Tx Thermostat Pairing With Few Other Receivers
8. RT310TX thermostat pairing with few other receivers The word PAIRING in the user settings means the function of synchronizing the transmitter with the receiver again, if it has been removed. REMEMBER! If the thermostat is already paired with any receiver, you will have to pair it again with other receivers. - Page 18 AFTER A SUCCESSFUL PAIRING, THE RECEIVER’S LEDS WILL GLOW CONSTANTLY RED: SPE868 PLUG SR868 RELAY RXRT510 RECEIVER TEST / PAIRING TEST / PAIRING 3 sec Press and hold TEST / PAIRING Thermostat will go back to the button for 3 seconds to end pairing main screen and it has been paired process.
-
Page 19: Test The Pairing Process
SPE868 will go back to normal work to return to the main screen. mode. If you purchased an SPE868 or RT310TX and intend pairing with other devices in the 5x5 range, please refer to the Receiver Units manual or the relevant manuals available at www.salus-controls.eu... -
Page 20: Reset Function
10. Reset function To RESET RT310 thermostat please follow steps below: When you want to change the batteries your device will use the internal memory to backup your settings. You have 30 seconds to TEST / PAIRING change the batteries before losing your settings. -
Page 21: Cleaning And Maintenance
11. Cleaning and Maintenance The RT310SPE requires no special maintenance. Periodically, the outer casing can be wiped clean using a dry cloth (please DO NOT use solvents, po- lishes, detergents or abrasive cleaners, as these can damage the thermostat). There are no user serviceable parts within the unit; any servicing or repairs could only be carried out by Salus Controls or their appointed agents. -
Page 22: Warranty
SALUS Controls warrants that this product will be free from any defect in materials or workmanship, and shall perform in accordance with its specification, for a period of five years from the date of installation. SALUS Controls sole liability for breach of this warranty will be (at its option) to repair or replace the... - Page 24 SALUS Controls is a member of the Computime Group. Maintaining a policy of continuous product development SALUS Controls plc reserve the right to change specification, design and materials of products listed in this brochure without prior notice. Ver. 2 Issued: 27 I 2021 Soft version: 2.1...
