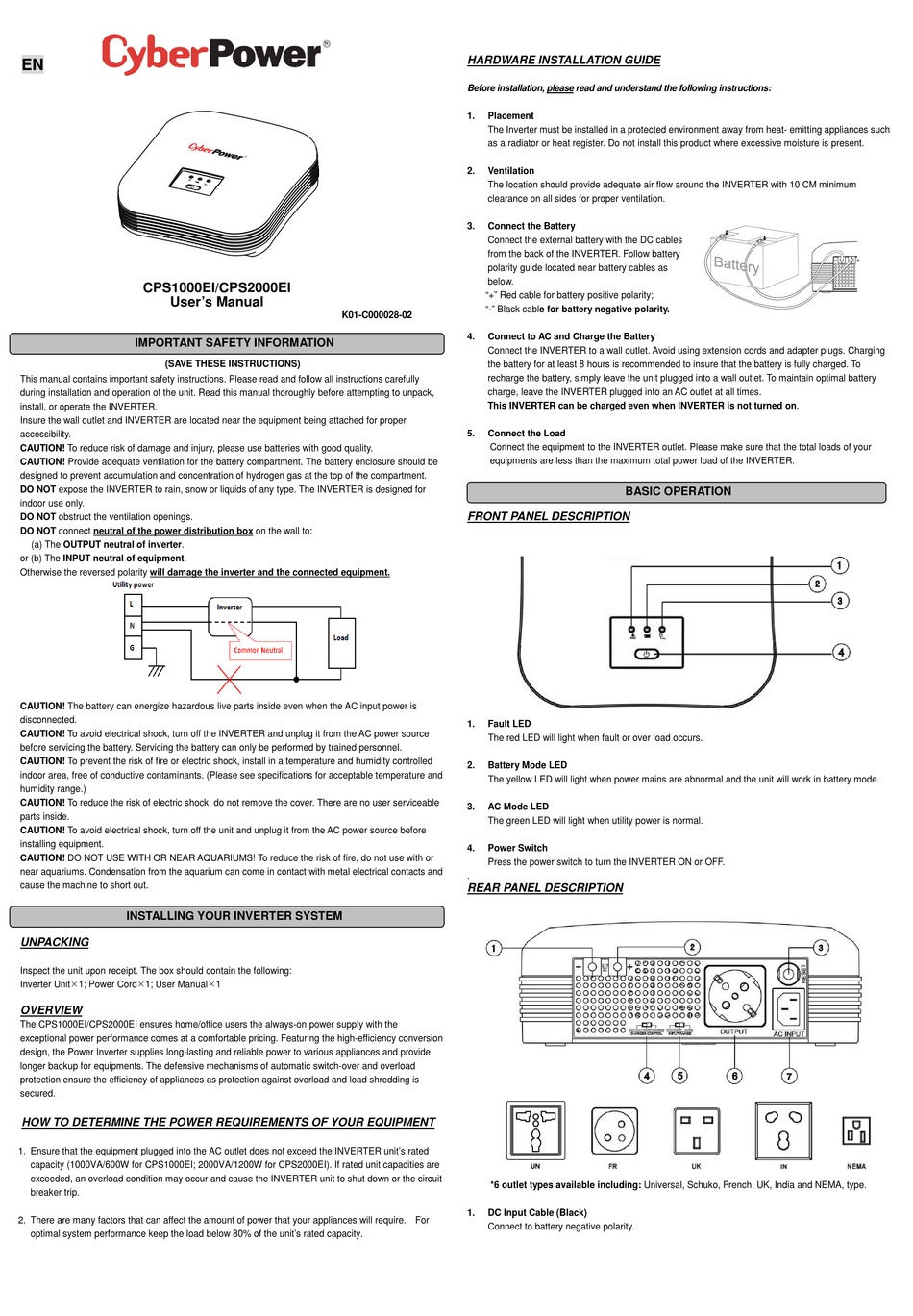

CPS1000EI/CPS2000EI
User's Manual
IMPORTANT SAFETY INFORMATION
(SAVE THESE INSTRUCTIONS)
This manual contains important safety instructions. Please read and follow all instructions carefully
during installation and operation of the unit. Read this manual thoroughly before attempting to unpack,
install, or operate the INVERTER.
Insure the wall outlet and INVERTER are located near the equipment being attached for proper
accessibility.
CAUTION! To reduce risk of damage and injury, please use batteries with good quality.
CAUTION! Provide adequate ventilation for the battery compartment. The battery enclosure should be
designed to prevent accumulation and concentration of hydrogen gas at the top of the compartment.
DO NOT expose the INVERTER to rain, snow or liquids of any type. The INVERTER is designed for
indoor use only.
DO NOT obstruct the ventilation openings.
DO NOT connect neutral of the power distribution box on the wall to:
(a) The OUTPUT neutral of inverter.
or (b) The INPUT neutral of equipment.
Otherwise the reversed polarity will damage the inverter and the connected equipment.
CAUTION! The battery can energize hazardous live parts inside even when the AC input power is
disconnected.
CAUTION! To avoid electrical shock, turn off the INVERTER and unplug it from the AC power source
before servicing the battery. Servicing the battery can only be performed by trained personnel.
CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled
indoor area, free of conductive contaminants. (Please see specifications for acceptable temperature and
humidity range.)
CAUTION! To reduce the risk of electric shock, do not remove the cover. There are no user serviceable
parts inside.
CAUTION! To avoid electrical shock, turn off the unit and unplug it from the AC power source before
installing equipment.
CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire, do not use with or
near aquariums. Condensation from the aquarium can come in contact with metal electrical contacts and
cause the machine to short out.
INSTALLING YOUR INVERTER SYSTEM
UNPACKING
Inspect the unit upon receipt. The box should contain the following:
Inverter Unit1; Power Cord1; User Manual1
OVERVIEW

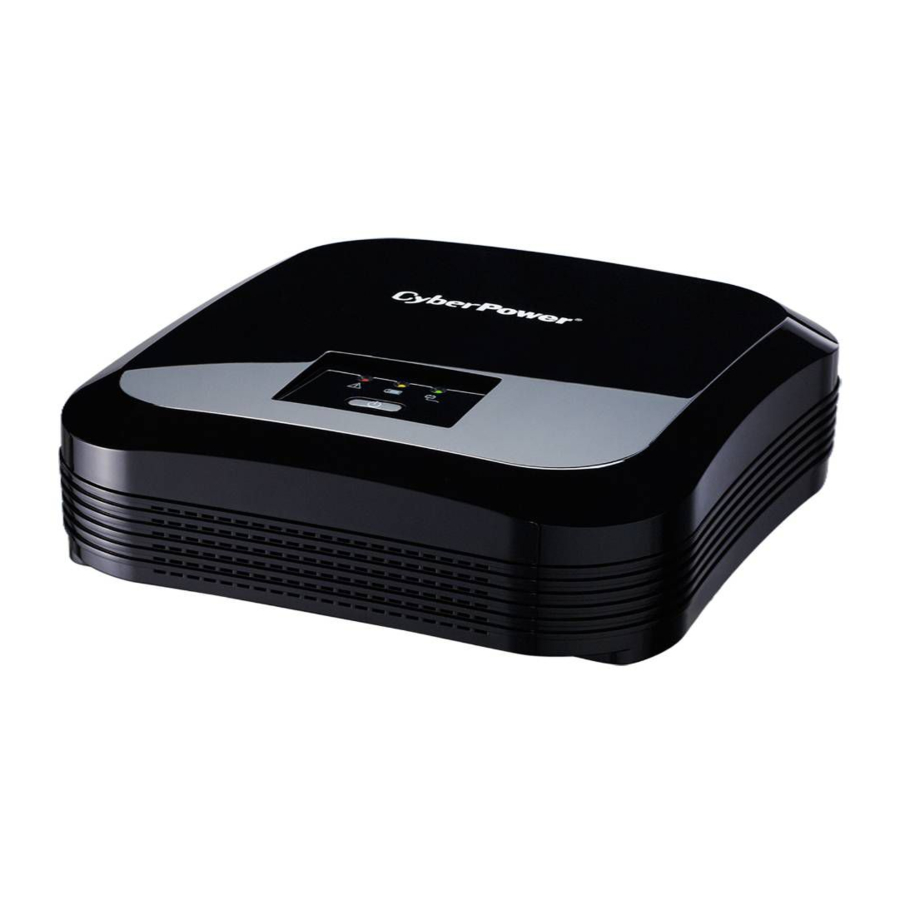

The CPS1000EI/CPS2000EI ensures home/office users the always-on power supply with the
exceptional power performance comes at a comfortable pricing. Featuring the high-efficiency conversion
design, the Power Inverter supplies long-lasting and reliable power to various appliances and provide
longer backup for equipments. The defensive mechanisms of automatic switch-over and overload
protection ensure the efficiency of appliances as protection against overload and load shredding is
secured.
HOW TO DETERMINE THE POWER REQUIREMENTS OF YOUR EQUIPMENT
1. Ensure that the equipment plugged into the AC outlet does not exceed the INVERTER unit's rated
capacity (1000VA/600W for CPS1000EI; 2000VA/1200W for CPS2000EI). If rated unit capacities are
exceeded, an overload condition may occur and cause the INVERTER unit to shut down or the circuit
breaker trip.
2. There are many factors that can affect the amount of power that your appliances will require. For
optimal system performance keep the load below 80% of the unit's rated capacity.
HARDWARE INSTALLATION GUIDE
Before installation, please read and understand the following instructions:
1. Placement
The Inverter must be installed in a protected environment away from heat- emitting appliances such
as a radiator or heat register. Do not install this product where excessive moisture is present.
2. Ventilation
The location should provide adequate air flow around the INVERTER with 10 CM minimum
clearance on all sides for proper ventilation.
3. Connect the Battery
Connect the external battery with the DC cables
from the back of the INVERTER. Follow battery
polarity guide located near battery cables as
below.
"+" Red cable for battery positive polarity;
"-" Black cable for battery negative polarity.
K01-C000028-02
4. Connect to AC and Charge the Battery
Connect the INVERTER to a wall outlet. Avoid using extension cords and adapter plugs. Charging
the battery for at least 8 hours is recommended to insure that the battery is fully charged. To
recharge the battery, simply leave the unit plugged into a wall outlet. To maintain optimal battery
charge, leave the INVERTER plugged into an AC outlet at all times.
This INVERTER can be charged even when INVERTER is not turned on.
5. Connect the Load
Connect the equipment to the INVERTER outlet. Please make sure that the total loads of your
equipments are less than the maximum total power load of the INVERTER.
FRONT PANEL DESCRIPTION
1. Fault LED
The red LED will light when fault or over load occurs.
2. Battery Mode LED
The yellow LED will light when power mains are abnormal and the unit will work in battery mode.
3. AC Mode LED
The green LED will light when utility power is normal.
4. Power Switch
Press the power switch to turn the INVERTER ON or OFF.
.
REAR PANEL DESCRIPTION
*6 outlet types available including: Universal, Schuko, French, UK, India and NEMA, type.
1. DC Input Cable (Black)
Connect to battery negative polarity.
