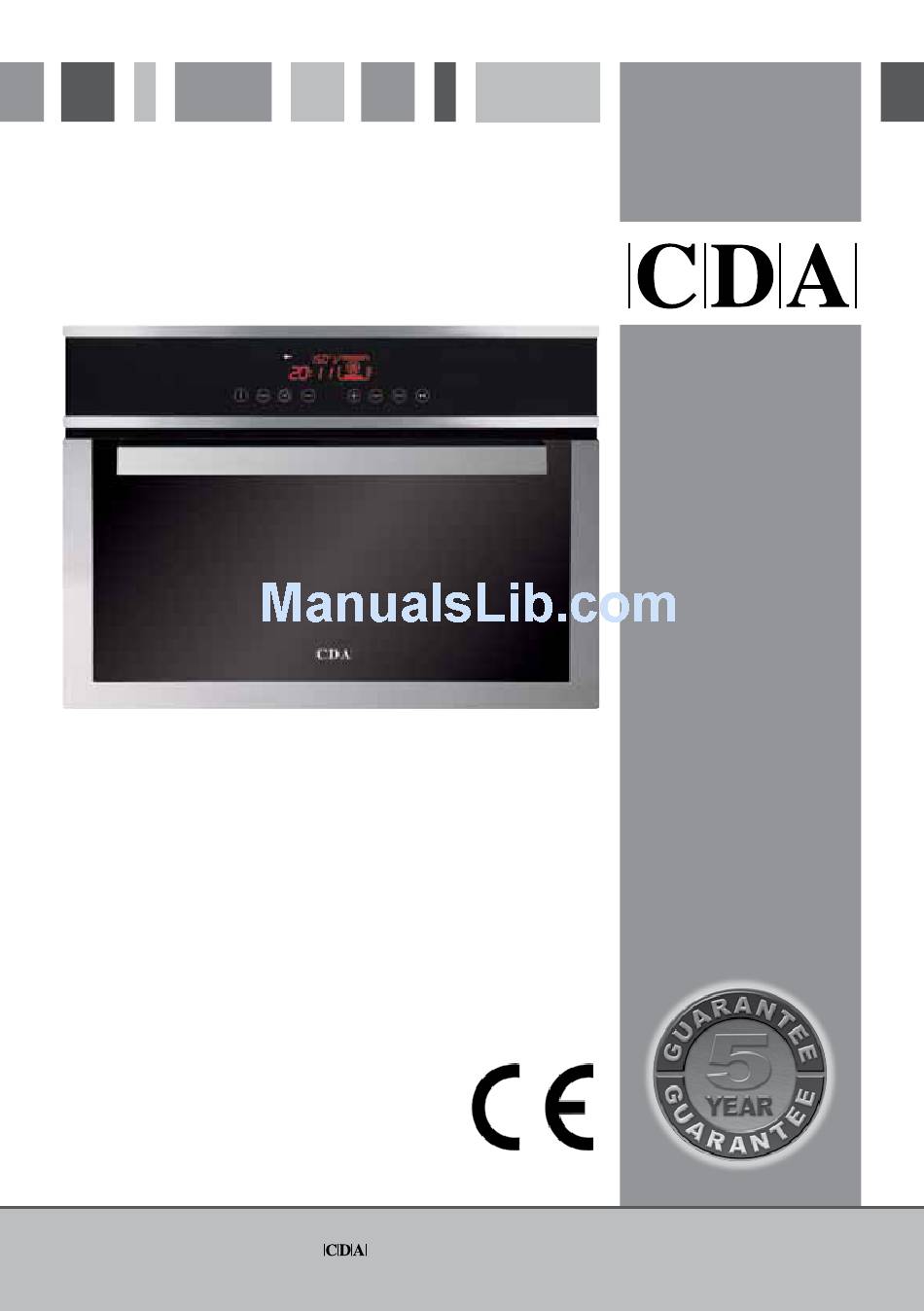

- Page 1 Manual for Installation, Use and Maintenance Passionate about style Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
-
Page 2: User Information
• Keep the oven door closed whilst grilling. Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. -
Page 3: Using The Touch Control
Important Read the user instructions carefully before using the oven for the first time. Clean the oven regularly. Remove spills as soon as they occur. Always use oven gloves when removing shelves and trays from the ovens. Do not allow children near the oven when in use. Do not lean on the oven door, or place heavy items on the door. -
Page 4: Using Your Oven
Using your oven Fig.2 Display Control panel Shelf supports The Control Panel and Display Fig.3 Power This key switches on the oven or cancels the programme Pyro This key activates the pyrolytic cleaning programmes Clock This key activates the timer selection Plus and Minus These keys select the programme type, increase or decrease the times and temperatures. - Page 5 The Control Panel and Display Fig.4 Childlock on Pyrolytic cleaning programmes Automatic programme Booster Clock display Temperature//weight of food Temperature indicator Oven function display Shelf support indicator Timer display Delayed programme set Cooking time set...
-
Page 6: Child Lock
General Settings and Use Clock To set the clock when the time is flashing (for example, when the oven is first switched on) touch shows on the display, then touch oven will beep twice to confirm the selection and the clock will stop flashing. - Page 7 General Settings and Use To programme the oven Touch Touch until the required programme shows on display. The oven function display will suggest which level to put the shelf according to the programme. Touch to confirm. The oven will start cooking immediately. Touch to activate temperature selection (to change from the preset temperature), touch temperature shows on display, then touch...
- Page 8 General Settings and Use Oven functions Each of the oven functions uses different elements within the oven to offer you the best choice of cooking every time. These are explained below. 1. Defrost – preset 35˚ (range available 35-75˚ ) Recommended shelf level 1 Using the fan and a limited amount of heat, this oven function circulates the air around the oven cavity, speeding up the natural defrost process.
- Page 9 General Settings and Use 8. Fan Assisted Oven – preset 175˚ (range available 75-220˚ ) Recommended shelf level 1 or 2 Using the fan to circulate the heat produced by the top and bottom heating elements, this function circulates the heat around the oven to give an even temperature throughout. This function is recommended for quiches and pies baked in a metal, preferably non-stick, dish.
-
Page 10: Auto Cook Programmes
Auto Cook Programmes This oven has 15 preset automatic cooking programmes which specify cooking time and mode based on the food type and weight. The programmes are listed below along with detailed programme information and recommendations. Touch Touch to activate the auto cook selection. P01 will show on the display. Touch until the required programme (P01-P15) shows on the display, then touch... - Page 11 Auto Cook Programmes Preset and weight Programme Stuffed tomatoes 1.5 (0.5 - 2.5) Grilled red peppers 1.5 (0.5 - 2.5) Grilled hake or cod 1.5 (0.5 - 2.5) Salmon in beer 1.5 (0.5 - 2.5) Trout with mushrooms Langoustines Roast pork Roast lamb Roast veal Roast game...
- Page 12 Pyrolysis Programmes This oven can clean itself by a process known as pyrolysis, heating the cavity to a temperature of 420˚ C . This will burn off the residue from spattering and spillages caused by cooking. Pyrolytic programmes should be used when the oven smokes during preheating or cooking or if the oven smells even when cold.
-
Page 13: Cleaning And Maintenance
The light bulb must only be replaced by authorised service personnel. In the event of light bulb failure, contact CDA Customer Care. -
Page 14: Care And Maintenance
Care and Maintenance Cleaning the interior of the door Open the door completely and insert two of the red stoppers supplied with the oven, as shown in figure 7. Then insert the other two red stoppers in the A slots, as shown in figure 8. - Page 15 Care and Maintenance Clean the panes of glass using a soft sponge and washing up liquid. Do not soak the glass in water. Do note use abrasive cleaning products, metallic scrapers or scouring sponges. These could scuff the surface and cause the glass to shatter.
-
Page 16: Troubleshooting
The oven display will show error codes if there is a fault with the appliance. These are detailed below. Before calling CDA Customer Care, take note of the error code as this will help when attempting to resolve the problem. -
Page 17: Installation
Installation Important If the oven is being installed into a built under oven housing unit ensure that the front rail at the top of the unit is not installed as it could restrict ventilation. Ensure that air can flow freely around the housing area. If the oven is being installed into a fully enclosed built-under oven housing unit it may be necessary to cut a small slot in the top of the plinth fitted under the unit. -
Page 18: Mains Electricity Connection
Mains Electricity Connection Warning! This appliance must be earthed We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulations. This appliance is intended to be connected to fixed wiring and is not suitable for connection to a 13A plug or 13A supply. - Page 20 Passionate about style Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
