Summary of Contents for Garmin 22

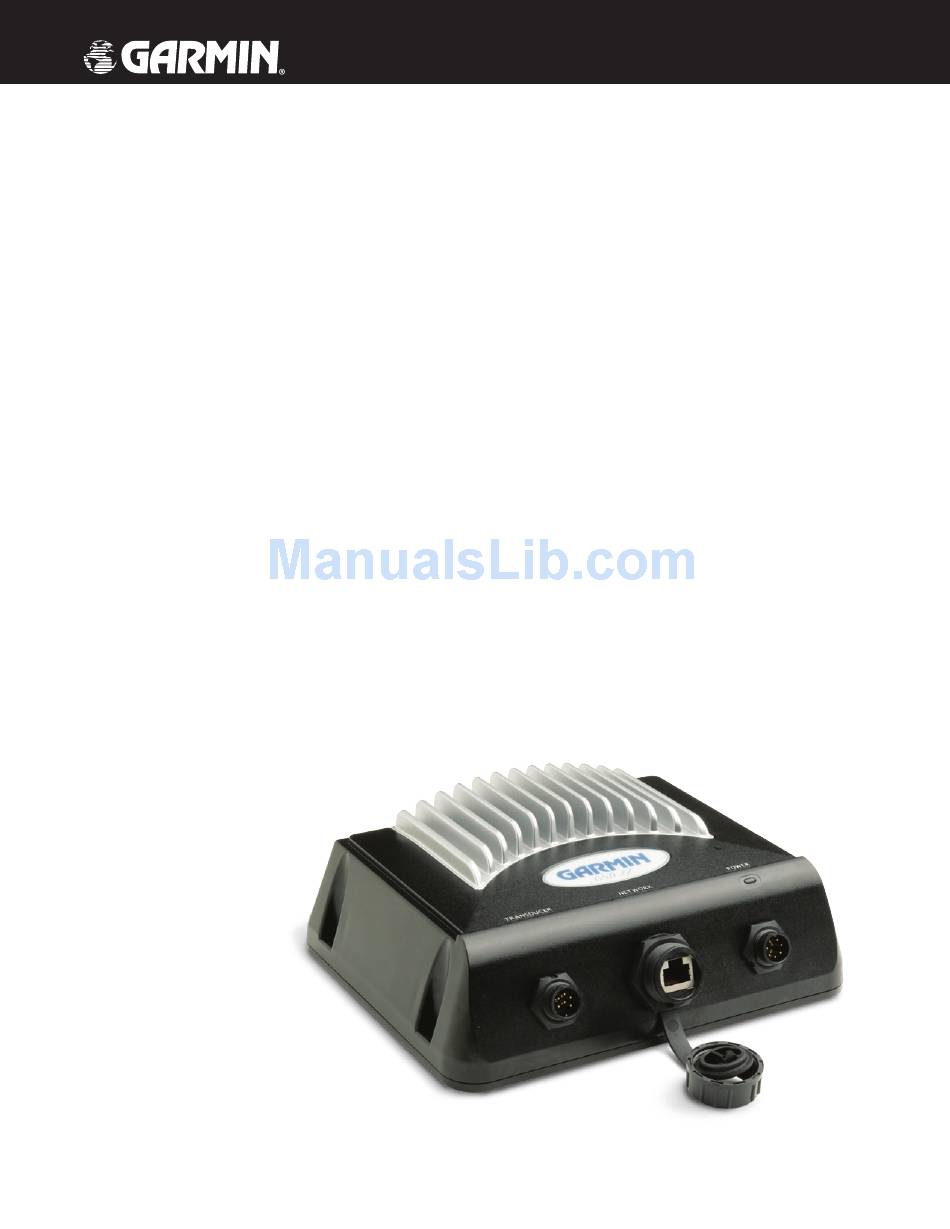

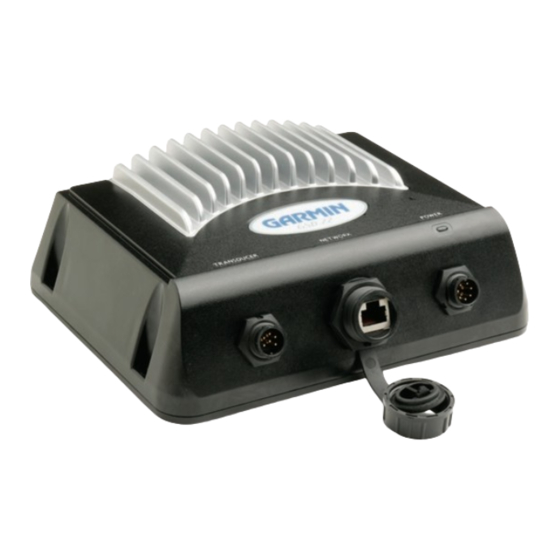

- Page 1 GSD 22 Sounder Module installation instructions...
-
Page 2: Safety Information
Limited Warranty This Garmin product is warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Garmin will at its sole option repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost. -
Page 3: Included Equipment
It can interface to multiple head units, providing complete sounder control from multiple stations, including transmit frequency, range, and gain adjustments. To get successful results from your GSD 22, take time to read through this installation guide. If any items are missing, contact your Garmin dealer immediately. -
Page 4: Installation Instructions
To install the power, transducer, and network cables: 1. Align the notch and locking ring tab on the black Power cable with the POWER port on the front of the GSD 22. Carefully press the cable in until it is firmly seated. Do not force the cable, as this may damage the pins! 2. - Page 5 NSTALLATION NSTRUCTIONS GSD 22 Sonar Module...
- Page 6 Garmin Marine Network components use specialized Garmin Network cables. For some installations, it may be necessary to drill 1.25" (31.7 mm) holes to route the connector end of the cables. Garmin rubber grommets are provided to cover the installation holes (see below). Wiring instructions are found on the following pages.
- Page 7 The following diagrams shows the Garmin Marine Network with a GSD 22 Sounder Module connected. The GARMIN Marine Network with a Single MFD and a GSD 22 GARMIN MARINE RADAR GARMIN GDL 30/30A MARINE WEATHER/AUDIO SATELLITE RECEIVER GPS 17 The GARMIN Marine Network with Multiple Units and a GSD 22...
-
Page 8: Blink Codes
Blink Codes When the unit is installed, it switches on when the display unit is powered on (or the GSD 22 remote power line is pulled low, with power applied). The two-color (Green/Red) LED on the GSD 22 indicates the current operational status of the module. Codes are:... -
Page 9: Specifications
4,000 /5,000/16,000 watts (peak to peak) (Dependent on transducer type.) Frequency: 50/200 kHz Depth: 5,000 foot max depth* * Depth capacity is dependent on transducer type, water salinity, bottom type, and other water conditions. Data Output Source: CANet or Garmin Marine Network GSD 22 Sonar Module PECIFICATIONS NSTALLATION NSTRUCTIONS... - Page 10 © Copyright 2006 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 East 151 Street, Olathe, Kansas 66062, U.S.A. Garmin (Europe) Ltd. Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9DL, U.K. Garmin Corporation No. 68, Jangshu 2 Road, Shijr, Taipei County, Taiwan www.garmin.com...
