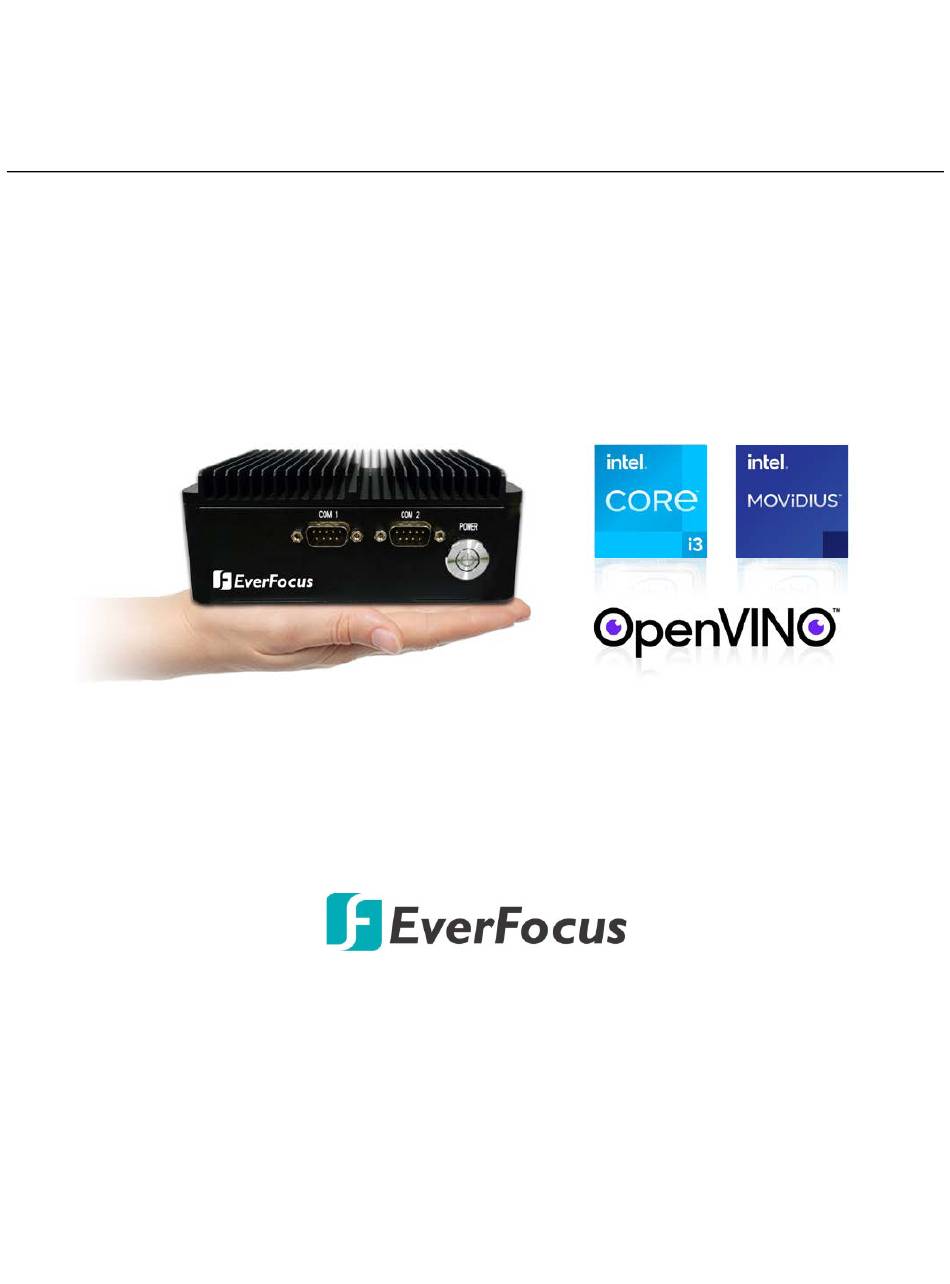

- Page 1 8th Generation Intel® Core™ i3 AI Box User’s Manual Copyright © EverFocus Electronics Corp. Release Date: March 2021...
- Page 2 Copyright All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form or by any means without written permission of the EverFocus Electronics Corporation. Microsoft Windows is a registered trademark of Microsoft Corp.
- Page 3 All cautions and warnings on the device should be noted. All cables and adapters supplied by EverFocus are certified and in accordance with the material safety laws and regulations of the country of sale. Do not use any cables or adapters not supplied by EverFocus to prevent system malfunction or fires.
- Page 4 FCC Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Caution: There is a danger of explosion if the battery is incorrectly replaced.
- Page 5 RoHS Requirements 設備名稱 (Equipment): AI Box，型號（型式）/ Type designation (Type): eIVP-WHU-AI-D0000 單元Ｕnit 限用物質及其化學符號 Restricted substances and its chemical symbols 六價鉻 多溴聯苯 多溴二苯醚 鉛 汞 鎘 Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBBs) (PBDEs) 印刷電路板及電...
-
Page 6: Table Of Contents
TABLE OF CONTENTS Introduction ..........................1 Features .......................... 2 Dimensions ........................2 Packing List ........................2 Optional Accessories ....................... 3 Physical Description ......................3 SSD/HDD Installation ......................4 Jumpers and Connectors on the Motherboard ..............6 List of Jumpers ........................ 7 3.1.1 Clear CMOS Jumper, Auto Power Button Selection (JP2) ........... - Page 7 4.4.3 SATA Configuration ....................30 4.4.4 Hardware Monitor ....................31 4.4.4.1 Smart Fan Mode Configuration ................32 4.4.5 SIO Configuration ...................... 36 4.4.5.1 Serial Port1 Configuration..................37 4.4.5.2 Serial Port2 Configuration..................38 4.4.6 Power Management ....................39 4.4.7 Digital IO Port Configuration ..................40 Setup Submenu: Chipset ....................
-
Page 8: Introduction
Chapter 1. Introduction The eIVP-WHU-AI-D0000 is EverFocus’ most compact AI Box featuring a modern design that fits in with any space-oriented environment. Just like a mini superhero, the eIVP-WHU-AI-D0000 combines all the necessary hardware units that an AI Box should have. Except for the high performance Intel®... -
Page 9: Features
Note: 1. Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the shipping process. -
Page 10: Optional Accessories
1.4 Optional Accessories Part Number / Item 4501DEMSR320801 Innodisk mSATA 32G 4710M4S0AGSAR02 Innodisk DDR4 16G 4501DEMSR640801 Innodisk mSATA 64G 4710M4S0AGSAR01 Innodisk DDR4 16G WT Adapter,I:100- 4501DEMSR010801 Innodisk mSATA 1TB 4B01XUD12060AT2 240V,O:12V/5A,60W 1.5 Physical Description Name Description Serial Port Two optional serial ports (RS-232/422/485). -
Page 11: Ssd/Hdd Installation
Chapter 2. SSD/HDD Installation You can install one 2.5” SATA SSD/HDD into the system. Make sure the AI Box is power-off. Unscrew the four screws on the bottom cover to remove the bottom cover. Slide the bottom cover towards the rear panel side and then lift-up the bottom cover. - Page 12 Connect the internal SATA and power cables to the 2.5" SSD/HDD. Screw back the 2.5" SATA drive bracket. Slide back the bottom cover and then screw the cover back to the system.
-
Page 13: Jumpers And Connectors On The Motherboard
Chapter 3. Jumpers and Connectors on the Motherboard Users can use the jumpers and connectors to configure different applications. Component Side... -
Page 14: List Of Jumpers
Solder Side 3.1 List of Jumpers You can refer to the jumpers listed as below to configure your application. Label Function Clear CMOS Jumper, Auto Power Button Selection 3.1.1 Clear CMOS Jumper, Auto Power Button Selection (JP2) Clear CMOS Jumper... -
Page 15: List Of Connectors
3.2 List of Connectors You can refer to the connectors listed as below to configure your application. Label Function LCD Port COM Port1 / COM Port2 Front Panel M.2 (E-Key) Connector Mini-Card Slot (Full Size) / mSATA SATA Port... -
Page 16: Lpc Port (Cn1)
3.2.1 LPC Port (CN1) Pin Name Signal Type Signal Level LAD0 IN / OUT +3.3V LAD1 IN / OUT +3.3V LAD2 IN / OUT +3.3V LAD3 IN / OUT +3.3V +V3.3S +3.3V LFRAME# LRESET# +3.3V LCLK SMB_DATA / 12C_SDA... -
Page 17: Com Port1 / Com Port2 (Cn2)
3.2.2 COM Port1 / COM Port2 (CN2) Pin Name Signal Type Signal Level DCDA DCDB ±9V ±9V DTRA ±9V DTRB ±9V DSRA DSRB RTSA ±9V RTSB ±9V CTSA CTSB RIA / +5V / +12V IN / PWR +5V / +12V... - Page 18 COM Port1 RS-422 Pin Name Signal Type Signal Level RS422_TX- ±5V RS422_TX+ ±5V RS422_RX+ RS422_RX- COM Port1 RS-485 Pin Name Signal Type Signal Level RS485_D- ±5V RS485_D+ ±5V Note: COM1 RS-232/422/485 can be set by BIOS settings. Default is RS-232.
-
Page 19: Front Panel (Cn3)
3.2.3 Front Panel (CN3) Pin Name Signal Type Signal Level EXT_PWRBTN# SATA_LED- SATA_LED+ BUZZER- BUZZER+ PWR_LED+ HWRST#... -
Page 20: E-Key Connector (Cn4)
3.2.4 M.2 E-Key Connector (CN4) Pin Name Signal Type Signal Level +V3.3A +3.3V USB2P_5 IN/OUT +V3.3A +3.3V USB2N_5 IN/OUT PCIE1_TXN DIFF DIFF PCIE1_RXP DIFF... - Page 21 PCIE1_RXN DIFF PCIE1_CLKP DIFF PCIE1_CLKN DIFF SUSCLK BUF_PLT_RST# PCIE_CLK_REQ1# W_DISABLE2# PCIE_WAKE# W_DISABLE1# +V3.3A +3.3V +V3.3A +3.3V...
-
Page 22: Mini-Card Slot (Full-Size) / Msata (Cn6)
3.2.5 Mini-Card Slot (Full-Size) / mSATA (CN6) Pin Name Signal Type Signal Level PCIE_WAKE# +3.3VSB / +3.3V +3.3V +1.5V +1.5V PCIE_CLK_REQ# PCIE_REF_CLK- DIFF PCIE_REF_CLK+ DIFF W_DISABLE# +3.3V PCIE_RST# +3.3V PCIE_RX+ / mSATARX+ DIFF +3.3VSB / +3.3V +3.3V PCIE_RX- / mSATARX- DIFF +1.5V... - Page 23 USB_D- DIFF USB_D+ DIFF +3.3VSB / +3.3V +3.3V +3.3VSB / +3.3V +3.3V SATAXPCIE0 +1.5V +1.5V +3.3VSB / +3.3V +3.3V...
-
Page 24: Sata Port (Cn7)
3.2.6 SATA Port (CN7) Pin Name Signal Type Signal Level SATA_TX+ DIFF SATA_TX- DIFF SATA_RX- DIFF SATA_RX+ DIFF 3.2.7 LAN (RJ-45) Port1 / Port2 (CN8) Pin Name Signal Type Signal Level LAN1_MDI0_P DIFF LAN1_MDI0_N DIFF LAN1_MDI1_P DIFF LAN1_MDI1_N DIFF... -
Page 25: Output For Sata Hdd (Cn9)
3.2.8 +5V Output for SATA HDD (CN9) Pin Name Signal Type Signal Level +V5S 3.2.9 HDMI Port1 / Port2 (CN10) Pin Name Signal Type Signal Level HDMI1_TX2+ DIFF HDMI1_TX2- DIFF HDMI1_TX1+ DIFF HDMI1_TX1- DIFF HDMI1_TX0+ DIFF HDMI1_TX0+ DIFF HDMI1_CLK+... -
Page 26: Dual Usb 3.2 Gen 2 (Port1 / Port2) (Cn11)
HDMI2_TX1+ DIFF HDMI2_TX1- DIFF HDMI2_TX0+ DIFF HDMI2_TX0- DIFF HDMI2_CLK+ DIFF HDMI2_CLK- DIFF DDC2_CLK DDC_DATA HDMI2_HPD 3.2.10 Dual USB 3.2 Gen 2 (Port1 / Port2) (CN11) Pin Name Signal Type Signal Level +V5SB USB2_2_DN DIFF USB2_2_DP DIFF USB3_2_RXN DIFF USB3_2_RXP... -
Page 27: External +12V Input (Cn12)
USB3_2_TXP DIFF +V5SB USB2_3_DN DIFF USB2_3_DP DIFF USB3_3_RXN DIFF USB3_3_RXP DIFF USB3_3_TXN DIFF USB3_3_TXP DIFF 3.2.11 External +12V Input (CN12) Pin Name Signal Type Signal Level +12V +12V 3.2.12 DDR4 SO-DIMM Slot (CN14) Standard Specification. -
Page 28: Fan Connector (Cn15)
3.2.13 FAN Connector (CN15) Pin Name Signal Type Signal Level +VI2C +12V TACH 3.2.14 RTC Battery Connector (CN17) Pin Name Signal Type Signal Level +3.3V +3.3V 3.2.15 Digital IO Port (CN18) Pin Name Signal Type Signal Level DIO_0 IN/OUT... -
Page 29: Usb 2.0 Port1, 2 (Cn19)
3.2.16 USB 2.0 Port1, 2 (CN19) Pin Name Signal Type Signal Level +5VSB +5VSB USB1_D- DIFF USB2_D- DIFF USB1_D+ DIFF USB2_D+ DIFF... -
Page 30: Function Block
3.3 Function Block... -
Page 31: Ami Bios Setup
Chapter 4. AMI BIOS Setup 4.1 System Test and Initialization The system uses certain routines to perform testing and initialization during the boot up sequence. If an error, fatal or non-fatal, is encountered, the system will output a few short beeps or display an error message. -
Page 32: Ami Bios Setup
4.2 AMI BIOS Setup The AMI BIOS ROM has a pre-installed Setup program that allows users to modify basic system configurations, which is stored in the batter y-backed CMOS RAM and BIOS NVRAM so that the information is retained when power is turned off. -
Page 33: Setup Submenu: Advanced
4.4 Setup Submenu: Advanced... -
Page 34: Trusted Computing
4.4.1 Trusted Computing Options Summary Disable Security Device Support Optimal Default, Failsafe Default Enable Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. Disable... - Page 35 Disable Storage Hierarchy Optimal Default, Failsafe Default Enable Enable or Disable Storage Hierarchy. Disable Endorsement Hierarchy Optimal Default, Failsafe Default Enable Enable or Disable Endorsement Hierarchy. TCG_1_2 TPM2.0 UEFI Spec Version Optimal Default, Failsafe Default TCG_2 Select the TCG2 Spec Version Support, TCG_1_2: Compatible mode for Win8/Win10.
-
Page 36: Cpu Configuration
4.4.2 CPU Configuration Options Summary Optimal Default, Failsafe Default Active Processor Cores Number of cores to enable in each processor package. Disable Intel (VMS) Virtualization Technology Optimal Default, Failsafe Default Enable When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. -
Page 37: Sata Configuration
4.4.3 SATA Configuration Options Summary Disable SATA Controller(s) Optimal Default, Failsafe Default Enable Enable or Disable SATA Device. Disable mSATA Port Optimal Default, Failsafe Default Enable Enable or Disable SATA Port. Optimal Default, Failsafe Default Disable Port1 Enable Enable or Disable SATA Port. -
Page 38: Hardware Monitor
4.4.4 Hardware Monitor... -
Page 39: Smart Fan Mode Configuration
4.4.4.1 Smart Fan Mode Configuration Auto Duty-Cycle Mode Options Summary Auto RPM MOde Fan Mode Optimal Default, Failsafe Default Auto Duty-Cycle Mode Smart Fan Mode Select. Temperature Source CPU (external) Optimal Default, Failsafe Default System Select the monitored temperature source for this fan. - Page 40 Auto RPM Mode Options Summary Temperature Auto fan speed control. Fan speed will follow different temperature by different RPM 1-100. RPM Percentage...
- Page 41 Manual Duty Options Summary Manual Duty Mode Optimal Default, Failsafe Default Manual mode fan control, user can write expected duty cycle (PWM fan type) 1-100.
- Page 42 Manual RPM Mode Options Summary Manual RPM Mode 3000 Optimal Default, Failsafe Default Manual mode fan control, user can write expected RPM count 500-1000.
-
Page 43: Sio Configuration
4.4.5 SIO Configuration... -
Page 44: Serial Port1 Configuration
4.4.5.1 Serial Port1 Configuration Options Summary Disable Use This Device Optimal Default, Failsafe Default Enable Enable or Disable this Logical Device. Use Automatic Settings Optimal Default, Failsafe Default Possible: IO=3F8h; IRQ=4 IO=2F8h; IRQ=3 Allows user to change Device's Resource settings. New settings will be reflected on This Setup Page after System restarts. -
Page 45: Serial Port2 Configuration
4.4.5.2 Serial Port2 Configuration Options Summary Disable Use This Device Optimal Default, Failsafe Default Enable Enable or Disable this Logical Device. Use Automatic Settings Optimal Default, Failsafe Default Possible: IO=3F8h; IRQ=4 IO=2F8h; IRQ=3 Allows user to change Device's Resource settings. New settings will be reflected on This Setup Page after System restarts. -
Page 46: Power Management
4.4.6 Power Management Options Summary Optimal Default, Failsafe Default ATX Type Power Mode AT Type Select system power mode. Last State Optimal Default, Failsafe Default Restore AC Power Loss Always On Always Off IO Restore AC power loss. Disable... -
Page 47: Digital Io Port Configuration
4.4.7 Digital IO Port Configuration Options Summary Output DIO Port* Input Set DIO as Input or Output. High Optimal Default, Failsafe Default Output Level Set output level when DIO pin is output. -
Page 48: Setup Submenu: Chipset
4.5 Setup Submenu: Chipset 4.5.1 System Agent (SA) Configuration... -
Page 49: Pch-Io Configuration
4.5.2 PCH-IO Configuration Options Summary SATA Optimal Default, Failsafe Default MiniCard Slot Function PCIe Select function enabled for Full size MiniCard Slot (CN6) -
Page 50: Serial Io Configuration
4.5.2.1 Serial IO Configuration Options Summary Disabled Optimal Default, Failsafe Default I2C3 Controller Enabled Enable/Disable Serial IO Controller. -
Page 51: Setup Submenu: Security
4.6 Setup Submenu: Security Change User/Administrator Password You can set an Administrator Password or User Password. An Administrator Password must be set before you can set a User Password. The password will be required during boot up, or when the user enters the Setup utility. -
Page 52: Secure Boot
4.6.1 Secure Boot Options Summary Disabled Optimal Default, Failsafe Default Secure Boot Enabled Secure Boot feature is Active if Secure Boot is Enabled, Platform Key (PK) is enrolled and the System is in User mode. The mode change requires platform reset. -
Page 53: Key Management
4.6.1.1 Key Management Options Summary Disabled Optimal Default, Failsafe Default Factory Key Provision Enabled Secure Boot feature is Active if Secure Boot is Enabled, Platform Key (PK) is enrolled and the System is in User mode. The mode change requires platform reset. - Page 54 Restore DB defaults Restore DB variable to factory defaults. Details Export Platform Key (PK) Update Delete Details Export Key Exchange Keys Update Append Delete Details Export Authorized Signatures Update Append Delete Details Export Forbidden Signatures Update Append Delete Update...
-
Page 55: Setup Submenu: Boot
4.7 Setup Submenu: Boot Options Summary Disabled Quiet Boot Optimal Default, Failsafe Default Enabled Enable or disable showing boot logo. Disabled Optimal Default, Failsafe Default Lunch PXE ROM Enabled Controls the execution of UEFI and Legacy Network OpROM. -
Page 56: Bbs Priorities
4.7.1 BBS Priorities... -
Page 57: Setup Submenu: Exit
4.8 Setup Submenu: Exit... -
Page 58: Specification
Chapter 5. Specification System ® Intel 8th Generation Core™ i3 SoC Processor i3-8145UE (2C, 2.2GHz, up to 3.9GHz) Main Memory DDR4 2400MHz SO-DIMM x 1 (Max. 32GB) BIOS AMI BIOS Wake on LAN Supported Watchdog Timer 255 Levels Power Input... - Page 59 FAX: +81 3 5820-1018 www.everfocus.com www.everfocus.co.jp sales@everfocus.com info@everfocus.co.jp Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed and und hergestellt mit qualitativ manufactured with high quality materials hochwertigen Materialien und and components which can be recycled Komponenten, die recycelt und wieder and reused.
