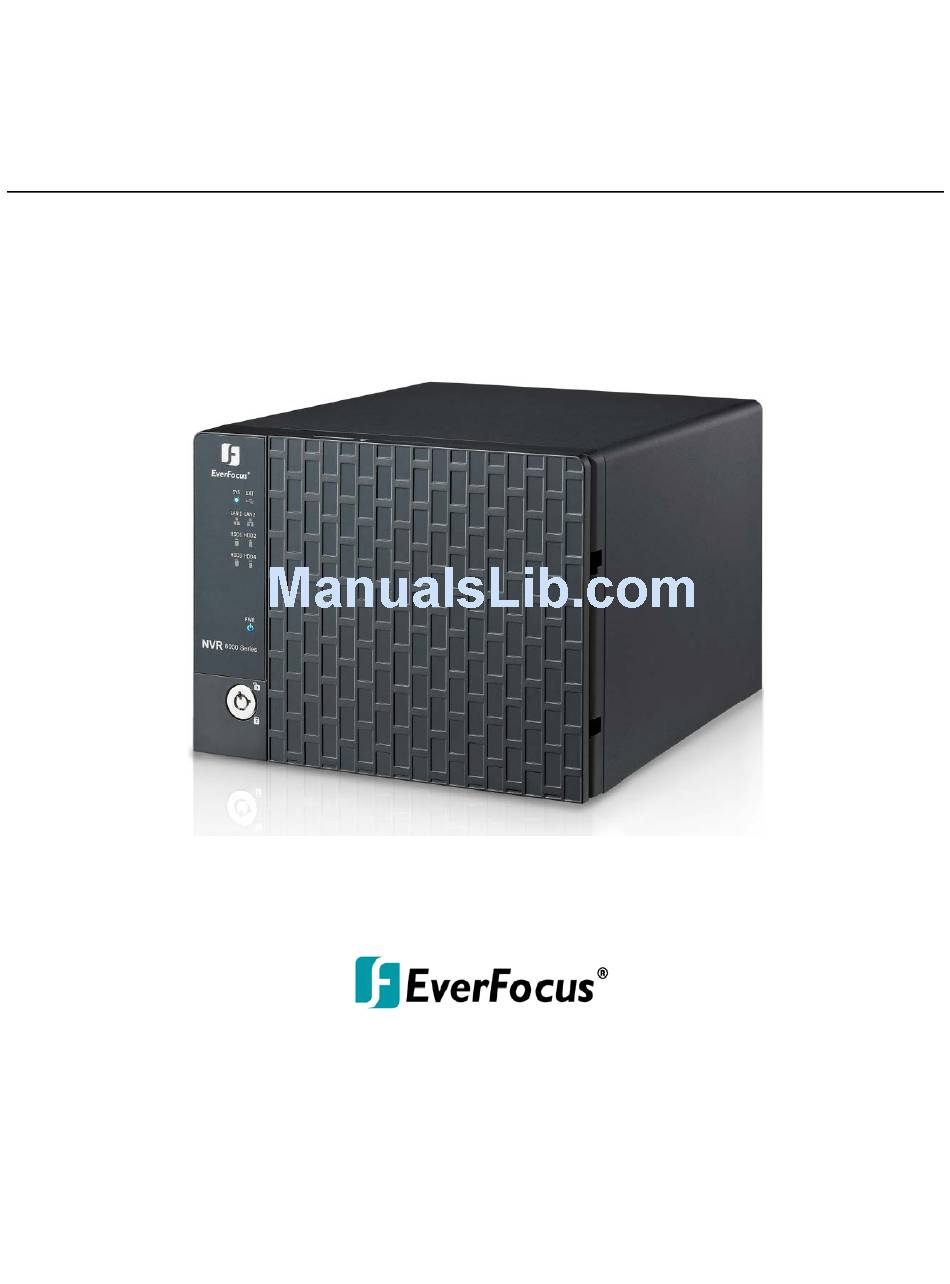

NVR 8004X
4CH / 8CH / 16CH Tower NVR with 4HDD Bays
User's Manual
Copyright © EverFocus Electronics Corp,
Release Date: July, 2013
Notice: This content is subject to be changed without notice.

Advertisement

Table of Contents
loading

Related Manuals for EverFocus NVR 8004X

Summary of Contents for EverFocus NVR 8004X

  • Page 1 NVR 8004X 4CH / 8CH / 16CH Tower NVR with 4HDD Bays User’s Manual Copyright © EverFocus Electronics Corp, Release Date: July, 2013 Notice: This content is subject to be changed without notice.
  • Page 2 All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form or by any means without written permission of the EverFocus Electronics Corporation. Release Date: July, 2013 QuickTime is a registered trademark of the Apple Computer, Inc.

  • Page 3: Safety Precautions

    Warranty Based on the RMA policy, EverFocus Electronics Corporation ("EverFocus") will repair or replace, at no charge to the purchaser, any merchandise found to be defective in material or workmanship. The NVR hardware is covered with a 2-year limited hardware warranty.
  • Page 4 Read Instructions  All the safety and operating instructions should be read before the unit is operated. Retain Instructions  The safety and operating instructions should be retained for future reference. Heed Warnings  All warnings on the unit and in the operating instructions should be adhered to. Follow Instructions ...
  • Page 5 This Product is RoHS compliant. Your EverFocus product is designed and manufactured with high quality materials and WEEE components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS Introduction ........................1 1.1 Overview ........................2 1.2 Features ........................2 1.3 Packing List .........................3 1.4 Optional Accessory .....................3 1.5 Front Panel .........................4 1.6 Rear Panel ........................5 Installation .........................6 2.1 Hard Disk Drive Installation ..................6 2.1.1 Hard Disk Compatibility List ................8 2.2 Basic Connection ......................9 2.3 USB Dongle Connection ....................10 2.4 Turning On / Off the Power..................10...
  • Page 7 4.3.2 Motion ......................46 4.3.3 Other ......................48 4.4 Hard Disk ........................52 4.4.1 Disk ........................52 4.4.2 Lock / Format ....................53 4.5 Network........................54 4.5.1 LAN ........................54 4.5.2 Email ......................57 4.5.3 DDNS ......................58 4.5.4 FTP .........................61 4.5.5 Alarm Server ....................62 4.6 Schedule ........................63 4.6.1 Express Setup ....................63 4.6.2 Holidays ......................64 4.6.3 Schedule......................65 4.7 System Setting ......................68...

  • Page 8: Introduction

    The channel number of the NVR depends on the dongle you purchase. The dongle options include 4CH / 8CH / 16CH. Contact the local EverFocus office or agents if you want to upgrade the dongle or increase the number of channels on your current dongle.

  • Page 9: Overview

    1.2 Features • Linux embedded – free from PC crash and virus attack • Support EverFocus of IP cameras and ONVIF IP cameras • Support mobile client – iOS and Android • Support megapixel camera recording and H.264 compression format •...

  • Page 10: Packing List

    Note: 1. Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the shipping process.

  • Page 11: Front Panel

    NVR8004X 1.5 Front Panel Figure 1-2 No. Name Description SYS: Indicates the system is working. EXT: Indicates the NVR is connected to the external storage device or USB dongle. LAN1 / LAN2: Indicates the NVR is connected to the network. HDD1~4: Indicates the internal HDD is activating, but the LED Status LED indicators will light up only if you install the HDDs before turning on...

  • Page 12: Rear Panel

    NVR8004X 1.6 Rear Panel Figure 1-3 No. Name Description Reset Insert a tool into the reset hole to reset the NVR. VGA Port The function is currently reserved. The USB3.0 ports for connecting to a dongle, mouse or USB3.0 Port external storage device.

  • Page 13: Installation

    NVR8004X Chapter Installation 2.1 Hard Disk Drive Installation 1. Make sure the NVR is power-off, and open the cover on the front panel of the NVR. 2. Press the release latch, and the locking arm pops up. Release Latch Locking Arm Figure 2-1 3.
  • Page 14 NVR8004X 4. Insert 2.5” or 3.5” HDD in the tray. HDD Tray Figure 2-3 5. Secure the HDD with the supplied 4 screws to the tray. a. 3.5” HDD: Figure 2-4 b. 2.5” HDD: Figure 2-5 6. Push the HDD tray into the drive bay of the NVR with the locking arm unlatched. Figure 2-6...

  • Page 15: Hard Disk Compatibility List

    NVR8004X 7. Close the locking arm until you hear a click. Figure 2-7 8. Close the cover of the NVR. 2.1.1 Hard Disk Compatibility List Please use the hard disk models recommended in the list below to ensure your hard disks will be compatible.

  • Page 16: Basic Connection

    NVR8004X 2.2 Basic Connection The instructions below describe the connection for the NVR8004X. Front View Rear View Power Supply USB3.0 USB2.0 Internal HDDs (Optional) Network Dongle / Mouse / USB Memory Stick IP Camera Web Remote PowerVideo Plus Client (CMS) Figure 2-8 1.

  • Page 17: Usb Dongle Connection

    NVR8004X 2.3 USB Dongle Connection Please connect your USB Dongle before powering on the NVR. If you turn on the NVR without connecting the USB Dongle, the following window will pop up when accessing the NVR’s web page. Please insert the USB Dongle and click Yes to continue the NVR. Figure 2-9 This message window will pop up as long as the NVR cannot detect the USB Dongle.

  • Page 18: Connecting The Nvr To The Network

    NVR8004X 2.5 Connecting the NVR to the Network There are three methods to connect the NVR to the network: Router or LAN Connection, Direct High‐Speed Connection and One‐to‐One Connection. For more information of the network, please refer to Appendix A. Network Overview. 2.5.1 Router or LAN Connection This is the most common connection in which the NVR is connected to a router and allows...
  • Page 19 Once you have a straight through cable, plug one end into the LAN port on the back  of the recorder and the other into the router. Log into the EverFocus NVR menu and go to the Network Setting Menu.  To let the router automatically assign an address: ...
  • Page 20 NVR8004X Take the values for Subnet Mask and Default Gateway and input them into the  NVR; these values should be exactly the same in both devices. However, you should change the last number of the IP address. For example, if the IP address of the computer is 192.168.2.101, the NVR’s IP address should be 192.168.2.50.

  • Page 21: Direct High-Speed Connection

    Once you have a straight through cable plug one end into the LAN port on the back of  the recorder and the other into the high speed modem. Log into the EverFocus NVR menu and go to the Network Setting Menu.  Input the Static IP address, the Subnet Mask, and the Gateway that you obtained ...

  • Page 22: One-To-One Connection

     NVR and the other into the network card on the back of the computer. Log into the EverFocus NVR menu and go to the Network Setting Menu.  You must use the Static IP option for this type of connection.
  • Page 23 NVR8004X Go to Start. Double-click on Control Panel.  Figure 2-14 Click Network and Internet Connection.  Figure 2-15 Click Network Connections.  Figure 2-16...
  • Page 24 NVR8004X Right-click on Local Area Connection and select Properties.  Figure 2-17 Click on Internet Protocol (TCP/IP) and then click Properties.  Figure 2-18 Select Use the following IP address. Assign an IP address of 192.168.1.2, a  Subnet Mask of 255.255.255.0, and a Default Gateway of 192.168.1.1 and then click OK.
  • Page 25 NVR8004X To access the NVR from the computer, simply open Internet Explorer and in the  address bar type: http://192.168.1.3 Figure 2-19 Select Use the following IP address. Assign an IP address of 192.168.1.2, a  Subnet Mask of 255.255.255.0, and a Default Gateway of 192.168.1.1 and then click OK.

  • Page 26: Checking The Dynamic Ip Address

    You can look up the IP address and access the Web interface of the NVR using the IP Utility (IPU) program, which is contained in the CD. It can also be downloaded from EverFocus’ Website: http://www.everfocus.com/tools.cfm. Please connect the NVR in the same LAN of your computer.
  • Page 27 NVR8004X 4. Type the user ID and password. Click OK. Note: 1. The default user ID is admin and the default password is 11111111. 2. If you select more than one NVRs that have the same user ID / password, you will be able to log in several NVRs at once.
  • Page 28 9. When first connecting to the NVR’s IP address, the following dialog may appear. Please check the “Always trust content from this publisher” box and click the Run button to run the EverFocus Viewer application. Figure 2-24 10. You may need to turn User Account Control off if you still can’t see the Remote Live View.

  • Page 29: Remote Access To The Nvr

    NVR8004X Chapter 3. Remote Access to the NVR 3.1 Accessing the NVR Follow the steps below to access the NVR from a computer. Open an Internet Explorer window and in the address bar type the IP address. Local connection: http:// (IP address from the NVR’s Network Menu): IP port used e.g.
  • Page 30 When first connecting to the NVR’s IP address, the following dialog may appear. Please check the “Always trust content from this publisher” box and click the Run button to run the EverFocus Viewer application. Figure 3-2 You may need to turn User Account Control off if you still can’t see the Remote Live View, please see the step below.

  • Page 31: Installing Java Runtime

    NVR8004X 3.2 Installing JAVA Runtime You need to install the latest JAVA software for stable operation. 1. When first connecting to the NVR’s IP address, the following dialog will show up if you didn’t install the JAVA software or its latest version on your computer. Figure 3-4 2.

  • Page 32: Browser Security Setting

    NVR8004X 3.3 Browser Security Setting 3.3.1 Installing ActiveX Controls Follow the steps below to install the ActiveX Controls when you first connect to the NVR’s IP address. If you do not see the images below, your security settings may be too high. If so, go to “Section 3.3.2 Enabling ActiveX Controls.”...

  • Page 33: Enabling Activex Controls

    NVR8004X 3.3.2 Enabling ActiveX Controls Note this section is only necessary if you DO NOT see the image (Figure 3-6) popping up when you first connect to the NVR. 1. At the top of the Internet Explorer Window, click on Tools and then select Internet Options.
  • Page 34 NVR8004X 3. In the Security Settings window, scroll to “ActiveX controls and plug-ins”. Figure 3-11 Set the controls as follows: “Enable”:  Allow previously unused ActiveX controls to run without prompt (Internet Explorer 7 only)  Allow scriptlets (IE7 only) ...
  • Page 35 NVR8004X 5. Close the window so you are back at the login screen. 6. Click the Refresh button to reload the page. Figure 3-12 7. You may need to run the EverFocusViewer application when prompted to do so. Figure 3-13 8.

  • Page 36: Remote Live View And Configuration

    NVR8004X Chapter 4. Remote Live View and Configuration Live View: Figure 4-1 No. Name Description Menu Bar For configuring the NVR. Layout Click a desired layout. Sub / Main Click to switch between the Main stream and Sub stream. Click the Speaker button to transfer audio to the client side from NVR if there is a speaker on the PC and a microphone and preamp attached to the NVR, and audio recording is enabled on the NVR.

  • Page 37: Menu Bar

    NVR8004X Channel Buttons Click on the number to display the channel in full screen. Black Circle: Indicates the NVR is recording in sub-stream. Red Circle: Indicates the NVR is recording in main-stream. White: Indicates the live view is in a normal status. Status Highlight Orange: Indicates a motion is being detected.

  • Page 38: Camera

    NVR8004X 4.1 Camera Users can automatically search and add the cameras in the Auto Search setting page, or add the cameras manually in the Add Camera Manually and Advanced Setting pages. In the Camera Setting page, users are able to configure the detailed settings and PTZ settings of the cameras.

  • Page 39: Add Camera Manually

    NVR8004X 4.1.2 Add Camera Manually You can also add the IP camera manually by typing its IP Address, Port, ID, Password and other settings. Figure 4-4 Address: Type the IP address of the camera. Port: The default port is 80. ID: Enter the account username of the camera.
  • Page 40 NVR8004X To successfully add the IP camera, you need to click the Save button in this page. You can also configure the detailed settings as follows. Figure 4-5 【 Main / Sub Stream 】 You can separately configure the settings for the Main and Sub Streams.

  • Page 41: Advanced Setting

    NVR8004X 4.1.3 Advanced Setting The Advanced Setting is for users to view, add, delete or modify the cameras in the Camera List. Figure 4-6 Add: Click the button to add camera manually. To add the cameras, please see 4.1.2 Basic Setting.

  • Page 42: Camera Setting

    NVR8004X 4.1.4 Camera Setting Users can configure the detailed camera settings, PTZ and tracking functions in this setting page. 4.1.4.1 Camera Figure 4-7 Connected Channel: Check the box to enable the connection between the camera and the NVR. If the box is unchecked, the system will disconnect the camera and stop recording. Mask Channel: Check the box to mask the camera’s live view on the screen, but the recording function is still on.
  • Page 43 NVR8004X Hallway Mode (9:16): The option only appears when the selected camera is equipped with the Hallway Display function. Click the Rotate button to rotate the live image. This function allows users to monitor vertically-oriented areas such as hallway, corridors and aisles.

  • Page 44: Ptz

    NVR8004X 4.1.4.2 PTZ You can set up the Preset, Auto Pan, Tracking, Pattern and Tour settings in this page. Figure 4-8 【 Camera (1~16) 】 : Shows the PTZ camera live view. You need to select the PTZ camera from the Channel Number drop-down list in the Camera setting page (see 4.1.4.1 Camera) before configuring the PTZ settings.
  • Page 45 NVR8004X Preset: Click the Preset button to set up the Preset Position or the Auto Pan function. Figure 4-10 Preset: You can configure up to 192 preset positions in this field. To set up a Preset Positions: 1. Adjust the camera view to a desired position using the direction button. You can select the pan / tilt speed from the Speed drop-down list for controlling the direction buttons.
  • Page 46 NVR8004X Auto Pan: You can only configure one Auto Pan sequence. The configured Auto Pan (A to B Pan) sequence will always be numbered as “1”. The number “2” will always be an endless pan around the given (not preconfigured) X/Y tilt axis. Figure 4-11 Endless Mode: The Endless Mode is always numbered as “99”...
  • Page 47 NVR8004X Tracking : Click the Tracking button to set up the tracking function which is functional only when the selected PTZ camera is equipped with the tracking function. Figure 4-12 To set up the Auto Tracking function: Auto Tracking Start Point: Check the box to enable a camera position to which the camera will return to after a tracking operation.
  • Page 48 NVR8004X Note: Please note that if enabling the Pan/Tilt Limits function, the position of the Start Point should be within the range of the Pan/Tilt Limits, or there will be a pop-up message showing “Setting error: Start Point is not inside Pan/Tilt Limits”. Zoom control on tracking: ...
  • Page 49 NVR8004X Pattern Tour : Figure 4-13 Pattern: You are given 90 seconds to move the camera (via the PTZ buttons) to different positions (and different zoom / focus / Iris positions). The camera then saves that sequence under the Pattern No.
  • Page 50 NVR8004X Tour: You can combine up to 16 preconfigured camera positions and patterns into one long sequence. Up to 16 Tour sequences can be set up. To set up a Pattern Sequence: 1. Select a number from the Tour No drop-down list. 2.

  • Page 51: Record

    NVR8004X 4.2 Record You can configure the basic recording settings on the hard disk. Figure 4-15 Record Overwrite: Check the box to overwrite the hard disk when it is full. Note that unless this box is checked, or the NVR will stop recording when the hard disk is full. The use of record overwrite is strongly recommended.

  • Page 52: Event

    Network Alarm: Check the box to send out a network alarm to a client PC when Disconnect event occurs. This feature works with EverFocus’ CMS software. You will need to configure the Alarm Server for the NVR to send network alarms to the client PC (see 4.5.5 Alarm Server).

  • Page 53: Motion

    Network Alarm: Check the box to send out a network alarm to a client PC when motion occurs. This feature works with EverFocus’ CMS software. You will need to configure the Alarm Server for the NVR to send network alarms to the client PC (see 4.5.5 Alarm Server).
  • Page 54 NVR8004X To Edit the Motion Grids: Click the Edit Motion Grid button, the Motion Setting menu appears. Figure 4-18 Click on the image and the grid will be displayed. To set up a motion area, drag a rectangle with your mouse (from top to bottom / upper- left to lower-right).

  • Page 55: Other

    Network Alarm: Check the box to send out a network alarm to a client PC. This feature works with EverFocus’ CMS software. You will need to configure the Alarm Server for the NVR to send network alarms to the client PC (see 4.5.5 Alarm Server).
  • Page 56 Network Alarm: Check the box to send out a network alarm to a client PC when HD fails. This feature works with EverFocus’ CMS software. You will need to configure the Alarm Server for the NVR to send network alarms to the client PC (see 4.5.5 Alarm Server).
  • Page 57 Network Alarm: Check the box to send out a network alarm to a client PC when HD is off. This feature works with EverFocus’ CMS software. You will need to configure the Alarm Server for the NVR to send network alarms to the client PC (see 4.5.5 Alarm Server).
  • Page 58 NVR8004X 4.3.3.6 Network Loss Figure 4-24 Log: Check the box to record alarm events to log data.

  • Page 59: Hard Disk

    NVR8004X 4.4 Hard Disk The Disk menu is used to review the NVR’s hard drive settings and status. No value in this menu can be configured by the operator. 4.4.1 Disk Figure 4-25 Record Time (Start): Shows the earliest recording time of the NVR. Record Time (End): Shows the latest or most current time on the NVR.

  • Page 60: Lock / Format

    NVR8004X 4.4.2 Lock / Format You can control the percentage of the hard disk space reserved for Locked Event Recordings. You can also format the hard disk if necessary. Figure 4-26 Maximum Lock (%): Sets the maximum percentage of the hard disk space reserved for Locked Event Recordings.

  • Page 61: Network

    NVR8004X 4.5 Network The NVR allows you to use a Web browser to remotely view and manage the system. You can also receive live video streaming from the NVR using your smartphone. Please download our mobile applications: MobileFocus for Android and iOS mobile device or MobileFocusHD for iPad.
  • Page 62 NVR8004X Subnet Mask: Displays the subnet mask for your network so the NVR will be recognized within the network. If DHCP is selected, this value will be assigned automatically. Gateway: Displays the gateway on your network for the NVR to use when communicating with any devices not on the local network.
  • Page 63 NVR8004X obtain a list of the IP addresses of their recommendation of the best servers to use for your location. 2. If you are connecting through a router, make sure that you have ‘opened up’ all the required network ports in the port forwarding section of your router’s setup options. That is, you have directed the router to send any incoming traffic using those IP ports to the LAN IP address of the NVR.

  • Page 64: Email

    NVR8004X 4.5.2 Email Figure 4-28 SMTP Server: Assign the SMTP (e-mail) server’s name. Note that for more reliable email service, use the server’s IP address. SMTP Port: Assign the port number used by the SMTP server. Authentication: Check this box if the SMTP server requires authentication (user name / password).

  • Page 65: Ddns

    NVR8004X 4.5.3 DDNS DDNS (Dynamic Domain Name System) is a service used to map a domain name to the dynamic IP address of a network device. You can set up the DDNS service for remote access to the NVR. Figure 4-29 DDNS assigns a domain name (URL) to the NVR, so that the user does not need to go through the trouble of checking if the IP address assigned by DHCP Server has changed.
  • Page 66 + < > " ; : . , Note: 1. It is not necessary to append the HTTP port number to the DDNS name. The EverFocus DDNS server not only keeps track of your NVR’s IP address, but also keeps track of the ports.
  • Page 67 NVR8004X 4.5.3.1 www.dyndns.org Figure 4-31 DDNS Service: Select www.dyndns.org from the drop-down list. Host name: Host name created through the dyndns account. User name: User name of the dyndns account. Password: Password of the dyndns account. Setup Steps: 1. Apply for a host name from www.dyndns.org. 2.

  • Page 68: Ftp

    NVR8004X 4.5.4 FTP Set up the FTP server settings to enable the FTP function. The function is for users to upload the motion recordings or snapshots from sub stream to the FTP server. You can choose to upload either the recordings or snapshots, please see 4.3.2 Motion. Figure 4-32 FTP Server: Enter the IP address or the host name of the FTP server.

  • Page 69: Alarm Server

    NVR8004X 4.5.5 Alarm Server You can send out the alarm notifications to EverFocus’s CMS software. Please also consult the CMS’s user manual for network alarm settings. Figure 4-33 Server IP1~3: IP address of client PC. The network alarm can be transmitted to up to 3 addresses.

  • Page 70: Schedule

    NVR8004X 4.6 Schedule You can set up the recording schedule with the desired time, event types or FPS. 4.6.1 Express Setup You can set up a weekly recording schedule for the NVR to automatically record videos. Figure 4-35 Weekend Start: Select a start date and time for the weekend. Weekend End: Select an end date and time for the weekend.

  • Page 71: Holidays

    NVR8004X 4.6.2 Holidays In addition to set up a weekly recording schedule, you can also set up a holiday recording schedule to automatically record videos on a specific day of the year. Figure 4-36 Date Type: Select Holiday or Others if you have configured the settings in 6.8.1 Express Setup.

  • Page 72: Schedule

    NVR8004X 4.6.3 Schedule You can set up the camera recording mode by time of day on specific days of the week and/or holidays and other days. Please note that after the configuration, you have to check the Schedule Record box in the Record setting page to enable the schedule recording mode.
  • Page 73 NVR8004X Select a camera first and double-click on desired start time block (no number on it) on a time bar. The selected time block will show a new sequence number on it and all the following blocks will turn to gray. This means the grey time blocks has been set to No Recording mode.
  • Page 74 NVR8004X Apply to Days: This button can be used to copy schedules to other days. Select which days you wish to copy to. "Select All" selects all days, “Clear All” deselects all days. Click “OK” to copy the settings or "Cancel" to exit without copying. Figure 4-39 Apply to Cameras: This button can be used to copy schedules to other cameras.

  • Page 75: System Setting

    NVR8004X 4.7 System Setting You can configure the general settings for the NVR in this menu. 4.7.1 Date / Time You can set up the date and time for the NVR. Figure 4-41 Date: Click to bring up the on-screen keyboard to set up the date. Time: Click to bring up the on-screen clock to set up the time.

  • Page 76: Daylight Saving

    NVR8004X 4.7.2 Daylight Saving You can configure the settings for NVR to automatically adjust to daylight saving time. Figure 4-42 Daylight Saving: Check the box to enable automatic daylight saving time (DST). Start Date: Set the start date for daylight saving time. Start Time (hh:mm): Set the time when daylight saving time begins.

  • Page 77: User Group

    NVR8004X 4.7.3 User Group This setting page is used for configuring the privilege of the three access levels: Administrator, Manager and Operator. Check the boxes under an access level to enable the privileges of that access level. For example, if you check the Clear Log box under the Operator access level, only the Operator has the privilege to clear log.

  • Page 78: User Management

    NVR8004X 4.7.4 User Management You can create multiple user accounts (max: 20 user accounts) with different privileges. The NVR has default user accounts which you can choose to copy, edit, add or delete, and the default password is 11111111. Figure 4-44 Copy: Click the button to copy the settings of an existing user account to a new user account.
  • Page 79 NVR8004X You can further configure each user account and its settings individually, see the steps below: 1. Click on a user account (Figure 4-44). 2. Click the Add, Copy or Edit button, and the following page appears. Figure 4-45 User Name: Click to bring up the keyboard and input the desired user name. User Group: Select a user group (access level).
  • Page 80 NVR8004X Figure 4-46...

  • Page 81: Ekb200

    4.7.5 EKB200 You can connect an EKB200, which is EverFocus’ USB keyboard, to the USB port on the computer to remotely control the Iris, focus or the pre-configured PTZ control functions of the connected cameras. For details on how to configure the PTZ control functions on the Web interface, including Preset Position, Auto Pan, Tour and Pattern, please refer to 4.1.4.2 PTZ.
  • Page 82 NVR8004X 【Key No】 The control key number on the keyboard. 【Action】 Select an item from the drop-down list to define the function for each key on the keyboard. Set Preset: You can use the joystick on the keyboard to select a position and then press ...

  • Page 83: Miscellaneous

    NVR8004X 4.7.6 Miscellaneous You can upgrade the latest firmware, restore the factory default settings to the NVR, upload / save the NVR configuration settings from / to the USB / computer or change the language in this setup menu. Figure 4-49 Remote Reboot: Click Reboot Now to restart the NVR via the Network.

  • Page 84: System Information

    NVR Name: Displays the DDNS name if configured. Network ID: The ID number for EverFocus’ CMS as set up in the Alarm Server menu. 【Status】 Disk (1~4): Displays the status of the internal hard disks. Normal hard disk operation is...

  • Page 85: Log

    NVR8004X 4.8.2 You can choose, display or export log data using this menu. Figure 4-51 Start Date / End Date: Click to bring up the on-screen keyboard to set up the start / end date. Start Time / End Time: Click to bring up the on-screen clock to set up the start / end time. Log Type: Select the desired log types.

  • Page 86: Copy

    NVR8004X 4.9 Copy 4.9.1 Copy You can archive the recordings or log data (event and motion) to the computer. Figure 4-53 Camera: Select the desired cameras. Data Type: You can copy the recordings of selected cameras from main stream or sub stream. Start Date / Time: Click to bring up the on-screen keyboard / clock to select the start date / time.

  • Page 87: Quick Archive

    NVR8004X 4.9.2 Quick Archive Figure 4-54 【Configurations】 Archive Interval: Click the Archive Interval drop-down list and select an interval time (1, 5, 10, 15, 20, 30 or 60 minutes), and click Apply. For example, if you set up 60 minutes for the Archive Interval, the NVR will archive the recordings 60 minutes ago from the current time to the storage device.

  • Page 88: Search

    NVR8004X 4.10 Search You can search the recordings for playing back by using the Search menu. On the left side of the Search menu, select Time Search or Event Search to enter to the setup menu. Figure 4-55 4.10.1 Time Search Figure 4-56 Start Date: Click to bring up the on-screen keyboard to select the date.

  • Page 89: Event Search

    NVR8004X 4.10.2 Event Search Figure 4-57 Start Date / End Date: Click to bring up the on-screen keyboard to select the start / end date. Start Time / End Time: Click to bring up the on-screen clock to select the start / end time. Camera: Select the desired cameras to be searched.

  • Page 90: Ptz

    You can use the PTZ Control Panel to control the connected PTZ cameras, to set Preset setting and to activate the configured PTZ settings. You can also connect to an EverFocus’ EKB200 keyboard to a computer to control the PTZ camera.
  • Page 91 10. To operate the Auto Pan function, click the Auto Pan button. 11. To operate the Pattern function, click the Pattern button. The Pattern is the “0” Tour in EverFocus and Pelco PTZ cameras. 12. To operate the Tour function: a.

  • Page 92: Specifications

    NVR8004X Chapter Specifications Model Name NVR8004X-04 NVR8004X-08 NVR8004X-16 System Operating System Embedded Linux Number of Channels 4 CH 8 CH 16 CH Playback Channels 4 CH 8 CH 16 CH 2 GB Dual Streams Remote Live View Live View, Preset/Go, PTZ, Snapshot, Multi-view, Digital PTZ, Control Bandwidth Monitoring EAN3120, EAN3220, EAN3300, EDN3160, EDN3260, EDN3340,...
  • Page 93 10 / 100 / 1000 Mbps (RJ45) Web Browser Windows (IE 8, 9, 10, Chrome, Firefox, Safari), MAC (TBD) 1. EverFocus’ CMS: Power Video Plus (Windows AP) Other Remote 2. EverFocus’ mobile app: MobileFocus for iOS and Android devices Application MobileFocusHD for iPad.

  • Page 94: Appendix A: Network Overview

    NVR8004X Appendix Appendix A: Network Overview This chapter will give you a basic instruction on how to set up the NVR for network connection. It is highly recommended that you have a working knowledge of what a network is and how it works.
  • Page 95 NVR8004X Gateway Address Addressees are either local or remote. A gateway address is composed of four octets separated by decimal points. The gateway address is used to uniquely identify the device on the LAN that has access to the communications links connecting to other LANs, WANs and/or the Internet (access to the ‘remote’...
  • Page 96 This makes it much simpler to host a website, email server, or other type of server connection. Everfocus suggests using a static IP address. If this is not available, you will need to use a dynamic IP address. This is explained below.
  • Page 97 NVR8004X Pre-Installation Everfocus’ NVR can operate using one of three types of networking connections. Simple One to One Connection: A simple one to one connection is the simplest type of network connection. It uses a cross-over cable to make a direct connection from one computer to another (or in this case a computer to a NVR).

  • Page 98: Appendix B: Linksys & D-Link Port Forwarding

    NVR8004X Appendix Appendix B: Linksys & D-Link Port Forwarding Typical Linksys Port Forwarding This section will cover a few simple configurations for the Linksys router. This chapter is only to offer some help to the installer and end user. Please understand we DO NOT support this product and will not give tech support on it.
  • Page 99 NVR8004X Click on the “Applications & Gaming” tab. Applications and Gaming allows you to set up public services on your network, such as web servers, ftp servers, e-mail servers, or other specialized Internet applications. (Some Internet applications may not require any forwarding) To forward a port, enter the information on each line for the criteria required.
  • Page 100 NVR8004X Typical D-Link Port Forwarding This section will cover a few simple configurations for the D-Link router. This chapter is only to offer some help to the installer and end user. Please understand we DO NOT support this product and will not give tech support on it. If you need additional technical support on this router you must call D-Link.
  • Page 101 NVR8004X Click Virtual Servers on the left to bring up the following screen. Virtual Servers allows users who are connecting remotely to access services on the router’s Local Network. The functions of each field are described below. Virtual Server - Select Enabled or Disabled Name - Enter the name referencing the virtual service Private IP - The IP address of the device running the local services.
  • Page 102 TEL: +91 22 6128 8700 FAX: +91 22 6128 8705 www.everfocus.in sales@everfocus.in Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed and und hergestellt mit qualitativ manufactured with high quality materials hochwertigen Materialien und and components which can be recycled Komponenten, die recycelt und wieder and reused.
