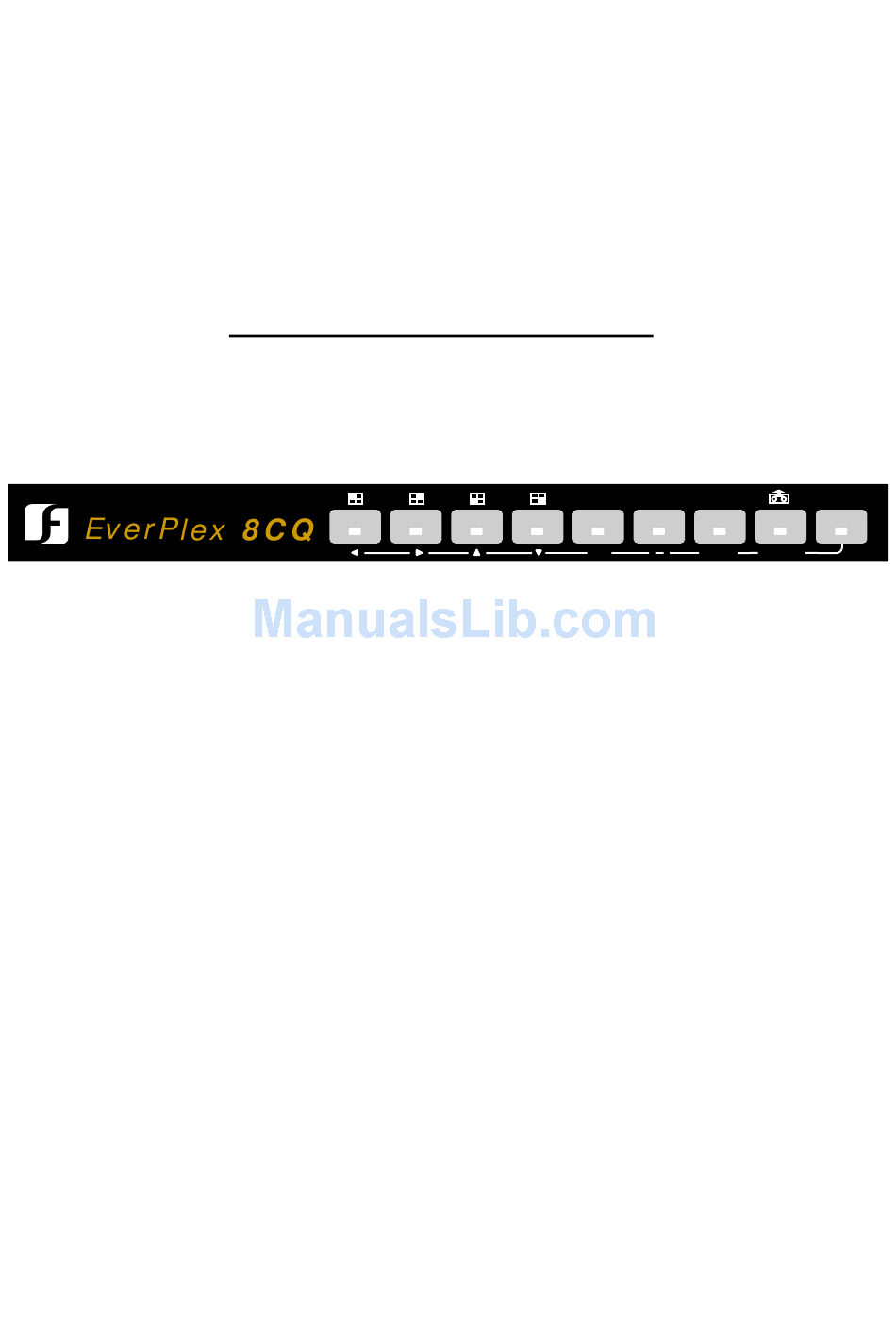

- Page 1 EverPlex 8 C Q USER'S MANUAL NEXT. DEFAULT Real Time Color Quad Processor High Resolution, Broadcast Quality Playback Zoom Function RS232 Remote Control Connect Up To 8 Cameras...
-
Page 2: Table Of Contents
Table of Content Notice......................... 1 Safety Warning....................2 Introduction ....................... 3 Specification....................... 4 Chapter I Functional Description............... 5 1. Front Panel Kepads ..................5 1.1 Full Screen ....................5 1.2 Page A/B Switch..................5 1.3 Sequential Switch ..................5 1.4 VCR Play Back....................5 1.5 Set ......................6 1.5.1 Date, Time setting, and OSD display on/off setting .......7 1.5.2 Alarm Records ..................7... -
Page 3: Notice
Notice This manual is presented to the users of EverPlex 8CQ by EverFocus Electronics Corp. With years of engineering researches, EverFocus has spared no effort to provide the high quality products to the worldwide users. For the policy of continual product improvement, EverFocus reserves the right to make changes to the product specifications and documentation without notice. -
Page 4: Safety Warning
Never spill liquid of any kind on the unit. Service: Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage of other hazards. Refer all servicing to qualified service personnel. EverFocus Electronics Corp. -
Page 5: Introduction
Independent brightness, contrast, color and tint adjustments for every channel. Built-in timer and and title generator. Alarm input with built-in buzzer. Programmable Quad and 8 channel auto switcher output at the same time. Playback Zoom and Freeze function. RS232 Remote Control. User-friendly front panel design. EverFocus Electronics Corp. -
Page 6: Specification
8 alarm inputs and 1 alarm reset input Alarm output: 2 Alarm Out (1 Normally Open, 1 Normally Closed) Dimension: 239 x 166 x 55 mm Power source: AC 10~24V or DC 12V Power consumption: 17W max. EverFocus Electronics Corp. -
Page 7: Chapter I Functional Description
Press the same key again, To stop the zoom function and back to the normal playback video. B FREEZE function Press the SEQ key during zoom mode, To freeze the current frame, press any key again will de-freeze the video and perform the corresponding function for that key. EverFocus Electronics Corp. -
Page 8: Set
Press next page to select the page to set. NEXT P. Press the default to set the default setting if they are available. DEFAULT Press the +/- keys to set the value. Press the cursor key to select the item to set. EverFocus Electronics Corp. -
Page 9: Date, Time Setting, And Osd Display On/Off Setting
C : the channel number from 1 to 8 which invokes the alarm A : Alarm type, 'S' - alarm from sensor input, 'V' - alarm from video loss detection DATE, TIME - the date and time when the alarm happens EverFocus Electronics Corp. -
Page 10: Set The Brightness, Contrast, Color, Tinit For Each Channel In
Set the Brightness, Contrast, Color, Tint for each channel in Page B PAGE B BRIGHT: BRIGHT: CONTRAST:27 CONTRAST:27 COLOR: COLOR: TINT: TINT: BRIGHT: BRIGHT: CONTRAST:27 CONTRAST:27 COLOR: COLOR: TINT: TINT: 1.5.5 Set the camera titles for Page A CH1: CH2: CH3: CH4: EverFocus Electronics Corp. -
Page 11: Set The Camera Titles For
QUAD A, B to turn each QUAD ON or OFF in the sequential switching SWITCH TIME : The time period to switch for each switching item REFRESH MODE : to set the screen refresh by 'FRAME' or by 'FIELD' EverFocus Electronics Corp. -
Page 12: Set Alarm Parameters
2. KEY LOCK stays ON until we turn it OFF by pressing the SET key ALARM HOLD TIME : the time period to buzz (if buzzer is on) and send alarm out signal when an alarm in EverFocus Electronics Corp. -
Page 13: Chapter Ii Back Panel Connection
Alarm Out Normally Open Alarm Out Normally Closed TXD * Alarm Reset RXD * GROUND ALARM IN 8 ALARM IN 4 ALARM IN 7 ALARM IN 3 ALARM IN 6 ALARM IN 2 ALARM IN 5 ALARM IN 1 EverFocus Electronics Corp. -
Page 14: Alarm Out
There are two ways to do the alarm out connection: 2.1.1 Normally Open Connection (use pin # 1 and # 9) RELAY Alarm out EverPlex 8CQ 2.1.2 Normally Closed Connection (use pin # 1 and # 2) RELAY Alarm out EverPlex 8CQ EverFocus Electronics Corp. -
Page 15: Alarm In And Alrm Reset
3. turn on the buzzer if the buzzer setting is on. When more alarms come up in the alarming status, the monitor screen will switch to quad display to show all the channels which have alarms in. EverFocus Electronics Corp. -
Page 16: Alarm Reset
9 pin connectors. EverPlex 8CQ will send the alarm message to the host via RS232 when any alarm occurs. 10~24 VAC VIDEO INPUT PAGE B PAGE A PLAY BACK REC. OUT MONITOR ALARM I/O DC12V 15-PIN MALE CONNECTOR 9-PIN D-SUB CONNECTOR EverFocus Electronics Corp. -
Page 17: The Pin Assignment Of The 9 Pin D-Sub Connector
EverPlex 8CQ Remote Control Command Table ASCII CODE FUNCTION Keypad in front panel Full Screen 1 Full Screen 2 Full Screen 3 Full Screen 4 PAGE A PAGE B Sequential Switching VCR Play Back Reset EverPlex 8CQ to Quad display none EverFocus Electronics Corp. -
Page 18: Alarm Message Sent Via Rs232
Channel 8 Full Screen Page B Quad Screen Page B Quad Screen Page B Quad Screen NOTE: To record all 8 cameras into VCR thru record out, turn on Quad A and Quad B simultaneously in sequential switching mode. EverFocus Electronics Corp. - Page 19 EverFocus Electronics Corp. 8F-4, No.79 Sec. 1 Shin-Tai Wu Road, Hsi-Chi, Taipei Hsien, Taiwan : 886-2-26982334 : 886-2-26982380 Suite 102, 2975 Huntington Drive San Marino, CA. 91108 U.S.A. : (626) 844-8888 : (626) 844-8838 Toll free : 1-(888) 383-6287 or...
