Vespa would like to thank you
for choosing one of its products. We have prepared this manual to help you to get the very best from your vehicle. Please read it carefully before riding
the vehicle for the first time. It contains information, tips and precautions for using your vehicle. It also describes features, details and devices to assure
you that you have made the right choice. We believe that if you follow our suggestions, you will soon get to know your new scooter and it will serve you
well for a long time to come. This booklet forms an integral part of the vehicle; should the vehicle be sold, it must be transferred to the new owner.

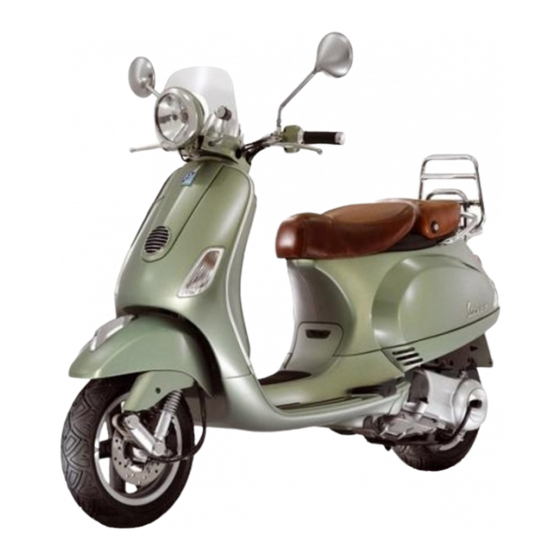

Vespa LXV 125 ie
Ed. 1

Advertisement

Table of Contents
loading

Related Manuals for VESPA LXV 125 ie 2013

Summary of Contents for VESPA LXV 125 ie 2013

  • Page 1 Vespa would like to thank you for choosing one of its products. We have prepared this manual to help you to get the very best from your vehicle. Please read it carefully before riding the vehicle for the first time. It contains information, tips and precautions for using your vehicle. It also describes features, details and devices to assure you that you have made the right choice.
  • Page 2 The instructions given in this manual are intended to provide a clear, simple guide to using your vehicle; this booklet also details routine maintenance procedures and regular checks that should be carried out on the vehicle at an authorised Dealer or Service Centre. The booklet also contains instructions for simple repairs.
  • Page 3 Personal safety Failure to completely observe these instructions will result in serious risk of personal injury. Safeguarding the environment Sections marked with this symbol indicate the correct use of the vehicle to prevent dam- aging the environment. Vehicle intactness The incomplete or non-observance of these regulations leads to the risk of serious damage to the vehicle and sometimes even the invalidity of the guarantee.

  • Page 5: Table Of Contents

    INDEX VEHICLE..................Catalytic silencer............... 32 Dashboard................Stand..................33 Analogue instrument panel............10 Automatic transmission............. 33 Keyswitch.................. 11 Safe driving................34 Locking the steering wheel............ 12 MAINTENANCE................37 Releasing the steering wheel..........12 Engine oil level................38 Switch direction indicators............13 Engine oil level check............
  • Page 6 Troubleshooting................ 70 TECHNICAL DATA..............75 Tool kit..................80 SPARE PARTS AND ACCESSORIES........81 Warnings................... 82 SCHEDULED MAINTENANCE............ 83 Scheduled servicing table............84...

  • Page 7: Vehicle

    Vespa LXV 125 ie Chap. 01 Vehicle...
  • Page 8 01_01...

  • Page 9: Dashboard

    Dashboard (01_01) A = Starter button B = Throttle grip C = Front brake lever D = Run-Off switch E = Instrument panel F = Headlight switch G = Rear brake lever H = Turn indicator switch I = Horn button...

  • Page 10: Analogue Instrument Panel

    01_02 Analogue instrument panel (01_02) A = Fuel gauge...

  • Page 11: Keyswitch

    B = High-beam warning light C = Turn indicator warning light D = Trip Counter E = Speedometer F = Low fuel warning light G = Low engine oil pressure warning light H = Engine control telltale light I = Immobilizer LED warning light Keyswitch (01_03) The key switch «A»...

  • Page 12: Locking The Steering Wheel

    Locking the steering wheel (01_04) Turn the handlebar to the left (as far as it will go), turn the key to «LOCK» and remove the key. CAUTION NEVER TURN THE KEY TO «LOCK» OR «OFF» WHILE RIDING. 01_04 Releasing the steering wheel (01_05) Reinsert the key and turn it to «OFF».

  • Page 13: Switch Direction Indicators

    Switch direction indicators (01_06) Lever «H» towards «1» = left turn indicators ON; Lever «H» towards «2» = right turn indicators ON; Lever «H» goes back into position «0» automatically and the turn indicators stay ON; press lever «H» to turn them off. 01_06 Horn button (01_07) Press the «I»...

  • Page 14: Start-Up Button

    CAUTION DO NOT PLACE, TRANSPORT OBJECTS AND/OR CLOTHES OVER THE FRONT HEADLIGHT ASSEMBLY, WHEN THE HEADLIGHT IS TURNED ON OR OFF. FAILURE TO FOLLOW THIS PRECAUTION MAY CAUSE OVERHEATING AND THE SUBSEQUENT FUSION OF THE GLASS. 01_08 Start-up button (01_09) To start the engine press push button «A»...

  • Page 15: Engine Stop Button

    Engine stop button (01_10) The engine can be started when the emergency stop switch «D» is in position «1» RUN; if the emergency stop switch «D» is in position «0» OFF the engine cannot be started or it stops if it was running. CAUTION WHILE RIDING OPERATE THE ENGINE STOP SWITCH ONLY IN CASE OF EMER- 01_10...

  • Page 16: Immobilizer Device Enabled Indicator Led

    WARNING LOOSING THE RED KEY PREVENTS ANY REPAIRS OF THE 'PIAGGIO IMMO- BILIZER' SYSTEM AND THE ENGINE CONTROL UNIT. WARNING 01_12 KEEP THE 'CODE CARD' AND THE RED HANDGRIP KEY IN A SAFE PLACE (NOT ON YOUR VEHICLE). 01_13 Immobilizer device enabled indicator led (01_14) Activation of the «PIAGGIO IMMOBILIZER»...

  • Page 17: Operation

    Operation Every time the starter key is removed in the "OFF" or "LOCK" position, the safety system activates the immobilizer system. Turning the key to "ON" disables the engine lock, provided that the safety system recognises the code transmitted by the key. If the code is not recognised, turn the key first to "OFF"...
  • Page 18 Procedure start-red key Insert the red ignition key in the switch key (in "OFF" position) and turn it to "ON". After 1 - 3 seconds, turn the key to «OFF » again and pull it out. Intermediate step-blu key Within ten seconds after pulling out the red key, insert the black key and promptly turn it to «ON».

  • Page 19: Fuel Tank

    Saddles fitted to this scooter are upholstered in Authentic Leather, and are a stylish accessory to emphasise an already exclusive product such as your Vespa. As leather is a natural and vivid material, it tends to get "very opaque" aspect as time goes by, an aspect typical of Authentic Leather.

  • Page 20: Opening The Saddle

    To prevent the waterproof cover from being taken away when the scooter is left un- attended, fasten it with hook next to the saddle hinge. Opening the saddle (01_17) Insert the key into the saddle lock «A», turn it anticlockwise and tip the saddle forward. 01_17 Identification (01_18, 01_19) Identification registration numbers are made up of a prefix and a number, stamped on...

  • Page 21: Rear Top Box Opening

    Chassis number The number «A» is stamped near the battery compartment. Remove the helmet com- partment to read it. 01_18 Engine number The engine number «B» is stamped near the rear left shock absorber lower support. 01_19 Rear top box opening (01_20) Turn the key to «OFF».

  • Page 22: Helmet Anti-Theft Device

    Helmet Anti-theft Device (01_21) Access the antitheft device where a helmet can be hooked by tipping the saddle. CAUTION IN ORDER TO AVOID ENDANGERING THE STABILITY WHEN RIDING, DO NOT RIDE THE SCOOTER WITH THE HELMET INSERTED INTO THE ANTITHEFT DE- VICE.

  • Page 23: Use

    Vespa LXV 125 ie Chap. 02...

  • Page 24: Checks

    Checks (02_01) Before using the vehicle, check: 1. That the fuel tank is full. 2. Rear hub oil level. 3. Engine oil level (see the «Engine oil level» section). 4. That the tyres are properly inflated. 5. The correct functioning of headlights, rear light and turn indicators. 02_01 6.

  • Page 25: Tyre Pressure

    CAUTION DO NOT BRING NAKED FLAMES OR CIGARETTES NEAR THE MOUTH OF THE FUEL TANK: FIRE HAZARD. ALSO AVOID INHALING HARMFUL VAPOURS. FUEL TANK CAPACITY Fuel tank (reserve) ~8.3 ± 0.5 l (~2.5 l) Tyre pressure (02_03) Check tyre pressure as indicated in the scheduled maintenance table. CAUTION TYRE PRESSURE SHOULD BE CHECKED WHEN TYRES ARE COLD.INCOR- RECT TYRE PRESSURE CAUSES ABNORMAL TYRE WEAR AND MAKES RID-...

  • Page 26: Shock Absorbers Adjustment

    TYRE INFLATION PRESSURE Front tyre pressure 1.6 bar Rear tyre pressure (with 2.0 bar (2.3 bar) passenger) TYRES Front tyre Tubeless, 110/70 - 11'' 45L Rear tyre Tubeless, 120/70 - 10'' 54L Shock absorbers adjustment (02_04, 02_05) The preloading of the spring can be adjusted to 4 positions using the ring nut located in the lower part of the shock absorbers and the specific spanner supplied.

  • Page 27: Running In

    CAUTION RIDING THE VEHICLE WITH THE SPRING PRELOADING NOT CORRECTLY SET FOR THE RIDER AND POSSIBLE PASSENGER, COULD REDUCE THE COM- FORT OF THE RIDE AND THE PRECISION OF THE STEERING. WARNING 02_05 WE RECOMMEND WEARING GLOVES WHILE CARRYING OUT THIS OPERA- TION IN ORDER TO AVOID INJURIES.

  • Page 28: Starting Up The Engine

    Starting up the engine (02_06, 02_07, 02_08, 02_09, 02_10) The vehicle is equipped with automatic transmission with direct drive, so that starting is effected by turning the throttle grip to idle speed; to start-off from a stationary posi- tion, progressively twist the throttle grip. The vehicle is equipped with an electrical fuel pump that switches on automatically as soon as the engine is started.

  • Page 29: Precautions

    WARNING THE SYSTEM IS DESIGNED TO INHIBIT STARTING THE VEHICLE WHEN ONE ATTEMPTS TO START THE ENGINE WITH THE THROTTLE GRIP OPEN, THUS PREVENTING AN INCORRECT MANOEUVRE. THEREFORE KEEP THE THROT- TLE GRIP ON IDLE SPEED OR PARTIALLY OPEN IF NECESSARY. 02_09 02_10 Precautions...

  • Page 30: Difficult Start Up

    WARNING AFTER A LONG DISTANCE COVERED AT THE MAXIMUM SPEED, DO NOT STOP THE ENGINE IMMEDIATELY, BUT LET IT RUN AT IDLE FOR A FEW SECONDS. WARNING DO NOT RIDE THE SCOOTER AT MAXIMUM REVS FOR A LONG TIME; EVEN THOUGH THE ENGINE IS PROVIDED WITH AN ELECTRONIC REVOLUTION LIMITER, DO NOT DO ACCELERATE AT MAX REVS FOR A LONG TIME AS THIS COULD CAUSE OVERHEATING AND THE CATALYTIC CONVERTER CAN BE...

  • Page 31: Stopping The Engine

    Stopping the engine (02_12, 02_13) After the vehicle has been stopped, turn the ignition key «A» to position «2» OFF or put the engine stop switch «D» on «0» OFF. CAUTION DO NOT SHUT OFF THE ENGINE WHILE THE VEHICLE IS MOVING. UNBURNED FUEL COULD ENTER THE CATALYTIC CONVERTER AND BURN, CAUSING THE 02_12 CONVERTER TO OVERHEAT AND POSSIBLY DESTROYING IT.

  • Page 32: Catalytic Silencer

    WARNING THIS ACCESSORY IS NOT A THEFT PREVENTION GUARANTEE, IT IS ONLY A DETERRENT. Catalytic silencer (02_15) CAUTION TAMPERING WITH THE CATALYTIC SILENCER MAY CAUSE SEVERE DAMAGE TO THE ENGINE. CAUTION 02_15 WHEN PARKING THE VEHICLE, DUE TO THE HIGH TEMPERATURES THE CAT- ALYTIC CONVERTER CAN REACH, ALWAYS BE CAREFUL THAT THE MUF- FLER DOES NOT COME INTO CONTACT WITH FLAMMABLE MATERIALS, TO AVOID SERIOUS BURNS.

  • Page 33: Stand

    Stand (02_16) Lower the projection of the centre stand by kicking the bracket while pulling the vehicle backward, holding onto the handlebars. 02_16 Automatic transmission To ensure simple, pleasurable riding, the vehicle is equipped with automatic trans- mission with regulator and centrifugal clutch. The system is designed to give the best possible performance in terms of both acceleration and consumption, on level ground and uphill, thanks to the adjustments made to engine speed and transmitted torque.

  • Page 34: Safe Driving

    Safe driving WARNING SOME SIMPLE TIPS ARE PROVIDED BELOW WHICH WILL ENABLE YOU TO USE YOUR VEHICLE ON A DAILY BASIS MORE EASILY AND SAFELY. < Your ability and your knowledge of the vehicle form the basis of safe riding. We rec- ommend trying out the vehicle in traffic-free zones to get to know your vehicle completely.
  • Page 35 8. Any elaboration that modifies the vehicle's performances, such as tampering with original structural parts is strictly forbidden by law, and renders the vehicle not con- forming to the approved type and therefor dangerous to ride. CAUTION RIDING UNDER THE INFLUENCE OF ALCOHOL, DRUGS OR CERTAIN MEDI- CINES CAN BE EXTREMELY DANGEROUS FOR ONESELF AND FOR OTHERS.

  • Page 37: Maintenance

    Vespa LXV 125 ie Chap. 03 Maintenance...

  • Page 38: Engine Oil Level

    Engine oil level Four stroke engine oil is used in the engines in order to lubricate the timing bodies, the bench bearings and the thermal group. An insufficient quantity of oil can seri- ously damage the engine. In all four-stroke engines, a loss of efficiency in oil performance and certain consumption should be considered normal.

  • Page 39: Engine Oil Top-Up

    03_02 ENGINE OIL CAPACITY: Engine oil ~ 1.100 cm³ Engine oil top-up (03_03) The oil should be topped up after having checked the level and in any case by adding oil without ever exceeding the MAX. level. Take your vehicle to an Authorised Service Centre to have the engine oil checked and if necessary, topped-up as indi- cated in the scheduled maintenance table.

  • Page 40: Warning Light (Insufficient Oil Pressure) (03_04

    Warning light (insufficient oil pressure) (03_04) The vehicle is equipped with a warning light that comes on when the key is turned to «ON». However, this light should switch off once the engine has been started. If the light comes on while braking, at idle speed or while turning a corner, it is nec- essary to check the oil level and top it up if required.
  • Page 41 WARNING EXCESSIVE OIL LEVEL AT TOP-UPS CAN LEAD TO SCALE FORMATION AND VEHICLE MALFUNCTION. CAUTION 03_07 USED OILS CONTAIN SUBSTANCES HARMFUL TO THE ENVIRONMENT. FOR OIL REPLACEMENT, CONTACT AN AUTHORISED SERVICE CENTRE WHICH IS EQUIPPED TO DISPOSE OF USED OILS IN AN ENVIRONMENTALLY FRIENDLY AND LEGAL WAY.

  • Page 42: Hub Oil Level

    Hub oil level (03_08, 03_09, 03_10) Make sure there is oil in the rear hub checking this at the intervals specified in the scheduled maintenance table. To check the rear hub oil level, proceed as follows: -Park the vehicle on level ground and rest it on its centre stand. - Unscrew the oil dipstick «A»...
  • Page 43 Recommended products AGIP GEAR SAE 80W-90 Lubricant for gearboxes and transmissions. API GL-4 REPLACEMENT 1) Remove the oil dipstick. 2) Unscrew the oil drainage screw «B» and drain out all the oil. 3) Screw back the drainage screw and refill the hub using the recommended oil quan- tity and type.

  • Page 44: Tyres

    Tyres (03_11) Periodically check the inflation pressure of each tyre (when cold). Tyres are fitted with wear indicators; tyres should be replaced as soon as these indi- cators become visible on the tyre tread. Also check that the tyres do not show signs of splitting at the sides or irregular tread wear;...

  • Page 45: Spark Plug Dismantlement

    Spark plug dismantlement (03_12, 03_13, 03_14) In order to inspect the spark plug, follow the operation described when the engine is cold: - Lift the saddle and remove the helmet compartment. Remove the spark plug inspec- tion cover «A» by unscrewing the screw «B». - From the engine compartment, release clamp «C», pull cover «D»...

  • Page 46: Removing The Air Filter

    CAUTION PROCEED WITH CAUTION. DO NOT DAMAGE THE TONGUES OR THEIR SEATS. HANDLE THE PAINTED AND PLASTIC COMPONENTS CAREFULLY. DO NOT SCRATCH OR DAMAGE THEM. RECOMMENDED SPARK PLUG Spark plug NGK CR8EB Alternative spark plug DENSO U24ESR-NB Electrode gap 0.7 to 0.8 mm Removing the air filter (03_15, 03_16) Remove the side fairing by undoing the screw «A»...

  • Page 47: Air Filter Cleaning

    03_16 Air filter cleaning (03_17) 1. Wash the sponge with water and mild soap. 2. Dry it with a clean cloth and short blasts of compressed air. 3. Impregnate the sponge with a mixture of 50% petrol and 50% specified oil. 4.

  • Page 48: Checking The Brake Oil Level

    Checking the brake oil level (03_18) The brake fluid reservoir is equipped with a sight glass «A» made of transparent ma- terial; the quantity of liquid contained in the sight glass indicates the level of liquid in the reservoir. When the sight glass «A» is full, the level inside the reservoir exceeds the MIN level; when it is partially full, the level drops to the MIN level;...

  • Page 49: Battery

    HYGROSCOPIC, THAT IS, IT ABSORBS HUMIDITY FROM THE SURROUNDING AIR. IF THE HUMIDITY IN THE BRAKING FLUID EXCEEDS A CERTAIN VALUE, IT WILL LEAD TO INEFFICIENT BRAKING. NEVER USE BRAKING FLUID KEPT IN CONTAINERS THAT HAVE ALREADY BEEN OPENED, OR PARTIALLY USED. Recommended products AGIP BRAKE 4 Brake fluid.

  • Page 50: Use Of A New Battery

    CAUTION IN ORDER TO AVOID DAMAGING THE ELECTRICAL SYSTEM, NEVER DISCON- NECT THE WIRING WHILE THE ENGINE IS RUNNING. DO NOT TIP THE VEHICLE TOO MUCH IN ORDER TO AVOID DANGEROUS LEAKAGE OF THE BATTERY ELECTROLYTE. Use of a new battery (03_21) To install a new battery: 1.

  • Page 51: Long Periods Of Inactivity

    Sealed, 12 V / 10 Ah Long periods of inactivity Battery performance will be poor if the vehicle is not used for a long time. This is the result of the natural phenomenon of battery discharging, and may be due to residual absorption by vehicle components with constant power consumption.

  • Page 52: Fuses

    WARNING USED BATTERIES ARE HARMFUL FOR THE ENVIRONMENT. COLLECTION AND DISPOSAL SHOULD BE CARRIED OUT IN COMPLIANCE WITH REGULA- TIONS IN FORCE. Fuses (03_22, 03_23, 03_24, 03_25, 03_26, 03_27) The electrical system is protected by: - a 20A and a 15A fuse in terminal block «A» located in the battery compartment under the saddle;...
  • Page 53 CAUTION MODIFICATIONS OR REPAIRS TO THE ELECTRICAL SYSTEM, PERFORMED INCORRECTLY OR WITHOUT STRICT ATTENTION TO THE TECHNICAL SPEC- IFICATIONS OF THE SYSTEM CAN CAUSE MALFUNCTIONING AND RISK OF FIRE. CAUTION 03_24 PROCEED WITH CAUTION. DO NOT DAMAGE THE TONGUES OR THEIR SEATS. HANDLE THE PAINTED AND PLASTIC COMPONENTS CAREFULLY.
  • Page 54 03_27 FUSES Fuse No. 1 Capacity: 20A Protected circuits: battery- powered recharge system and fuse No. 4. Live power supply to fuses No. 2, 3 and 5. Location:battery compartment. Fuse No. 2 Capacity: 7.5A Protected circuits: live power supply to injection load solenoid, Immobilizer aerial, ECU.
  • Page 55 turn indicator control device, stop light, starter relay. Location:steering cover. Fuse No. 4 Capacity: 10 A Protected circuits: battery- powered headlight solenoid, antitheft-device pre-installation. Location:steering cover. Fuse No. 5 Capacity: 7.5A Protected circuits: live power supply to daylight running light, dashboard lighting.
  • Page 56 Quantity: 1 Front side light bulb Type: All glass Power: 12V 5W Quantity: 1 Front turn indicator light bulb Type: Spherical Power: 12V - 10W Quantity: 1 RHS + 1 LHS Rear turn indicator light bulb Type: Spherical Power: 12V - 10W Quantity: 1 RHS + 1 LHS Stop and tail light bulb Type: Spherical...

  • Page 57: Front Light Group

    Quantity: 5 Instrument panel lighting bulbs Type: All glass Power: 12V 1.2W Quantity: 4 Front light group (03_28, 03_29, 03_30, 03_31) To reach the headlight bulbs proceed as follows: - Undo the two screws «A» that are supporting the unit. Retrieve the nut «B» from the rear screw.
  • Page 58 THE PRESENCE OF DROPS OF WATER, ON THE OTHER HAND, COULD INDI- CATE THAT WATER IS INFILTRATING. CONTACT THE AFTER-SALES SERVICE NETWORK. CAUTION PROCEED WITH CAUTION. DO NOT DAMAGE THE TONGUES OR THEIR SEATS. HANDLE THE PAINTED AND PLASTIC COMPONENTS CAREFULLY. DO NOT SCRATCH OR DAMAGE THEM.
  • Page 59 03_29 03_30 03_31...

  • Page 60: Head Light Adjustment

    Head light adjustment (03_32, 03_33) Proceed as follows: 1. Place the vehicle, in running order and with the tyres inflated to the prescribed pressure, on a flat surface 10-m away from a white screen situated in a shaded area, making sure that the longitudinal axis of the scooter is perpendicular to the screen; 2.

  • Page 61: Rear Optical Unit

    03_35 Rear optical unit (03_36, 03_37) To replace the taillight bulb: 1. Remove the two screws «A». 2. Take out the bulb holder «B» from its fitting by turning it anticlockwise. 3. Press the bulb, turn it anticlockwise and then take it out. To refit, proceed in reverse order.

  • Page 62: Rear Turn Indicators

    Rear turn indicators (03_38, 03_39) To replace the bulbs: 1. Remove the turn indicator from its fitting by undoing the screw «A». 2. Take out the bulb holder «B» from its fitting by turning it anticlockwise. 3. Press the bulb, turn it anticlockwise and then take it out. To refit, proceed in reverse order.

  • Page 63: Number Plate Light

    Number plate light (03_40, 03_41) To remove the license plate bulb proceed as follows: - Slide off the bulb holder «A» from its seat by operating from the inside of the license plate holder. - Slide off bulb «B». CAUTION 03_40 DO NOT PULL THE ELECTRICAL WIRING TO EXTRACT THE BULB HOLDER.

  • Page 64: Front Disc Brake

    To remove the rear-view mirror loosen the lock nut indicated in the figure and turn the supporting stem anticlockwise. 03_42 Front disc brake (03_43) The brake disc and pad wear is automatically compensated, therefore it has no effect on the functioning of the front and rear brakes. For this reason it is not necessary to adjust the brakes.

  • Page 65: Rear Drum Brake

    TER REPLACING THE BRAKE PADS, DO NOT USE THE SCOOTER UNTIL YOU HAVE OPERATED THE BRAKE LEVER SEVERAL TIMES IN ORDER TO ALLOW THE PLUNGERS TO SETTLE AND THE LEVER STROKE TO BE SET TO THE CORRECT POSITION. CAUTION THE PRESENCE OF SAND, MUD, SNOW MIXED WITH SALT, ETC. ON THE ROAD, CAN DRASTICALLY REDUCE THE LIFE OF THE BRAKE PADS.

  • Page 66: Puncture

    Puncture (03_45) The vehicle is equipped with Tubeless tyres (without inner tube). In the event of a puncture, Tubeless tyres - unlike tyres with inner tubes - go flat very slowly, resulting in a greater steering safety. In the event of a puncture, an emergency repair can be carried out using an "inflate and repair"...

  • Page 67: Inactivity Of The Vehicle

    Inactivity of the vehicle (03_46) We recommend carrying out the following operations: 1. Clean the scooter thoroughly and then cover it with a canvas; 2. With engine off and piston at the bottom dead centre, remove the spark plug, add 1÷2 cm³...
  • Page 68 CAUTION DETERGENTS CAN POLLUTE WATER. THE VEHICLE MUST BE WASHED AT A WASH STATION EQUIPPED WITH A SPECIAL WATER PURIFICATION SYSTEM. CAUTION DO NOT USE A HIGH-PRESSURE WATER JET MACHINE TO CLEAN THE EN- GINE AND/OR VEHICLE; HOWEVER, IF NO OTHER MEANS ARE AVAILABLE, IT IS THEN NECESSARY TO: •...
  • Page 69 INFORMATION ON THIS MATTER, CONTACT AN AUTHORISED SERVICE CEN- TRE. WARNING CLEAN YOUR SCOOTER FREQUENTLY SO AS TO AVOID POSSIBLE DIRT OR MUD DEPOSITS THAT COULD CAUSE MALFUNCTIONING IN THE THROTTLE GRIP TRANSMISSION AND/OR OTHER COMPONENTS. WARNING To avoid the appearance of oxidations, wash the vehicle every time it is used in certain areas or in special conditions of: ·...

  • Page 70: Troubleshooting

    CLEANING CHROME-PLATED PARTS After cleaning chrome-plated parts, polish them with a specific product for chrome- plated, aluminium or stainless steel surfaces. To prevent corrosion, apply a protective spray on all the metal surfaces, including chrome- and nickel-plated ones. Apply spray oil and wax with moderation and make sure to wipe off excess product immediately.
  • Page 71 STARTING DIFFICULTIES (SEE «STARTER PROBLEMS» SECTION) Lack of fuel in tank. Refuelling Injection system fault Contact an Authorised Service Centre Fuel pump fault Contact an Authorised Service Centre Flat battery Recharge the battery. * IMPORTANT: DO NOT USE THE SCOOTER TO THE COMPLETE EXHAUSTION OF FUEL;...
  • Page 72 LACK OF COMPRESSION Loose spark plug. Screw in the spark plug tightly Cylinder head loose, piston gas Contact an Authorised Service rings worn. Centre. Valve stuck Contact an Authorised Service Centre. HIGH CONSUMPTION AND LOW PERFORMANCE Clogged or dirty air filter Try to blow out with compressed air, otherwise replace the filter INSUFFICIENT BRAKING...
  • Page 73 AUTOMATIC TRANSMISSION PROBLEMS CVT rollers and/or drive belt Contact an Authorised Service damaged Centre.

  • Page 75: Technical Data

    Vespa LXV 125 ie Chap. 04 Technical data...
  • Page 76 04_01...
  • Page 77 ENGINE TECHNICAL DATA Type Single-cylinder, 4-stroke Cubic capacity 124 cm³ Bore x stroke 57.0 x 48.6 mm Max. power 7.9 kW at 8,250 rpm MAX. torque 9.6 Nm at 6,500 rpm Compression ratio 10.6 ± 0.5: 1 Valve clearance intake 0.10 exhaust 0.15 Timing system 2 valves, single overhead...
  • Page 78 Ignition advance Three-dimensional map managed by control unit Spark plug NGK CR8EB Alternative spark plug DENSO U24ESR-NB Electrode gap 0.7 to 0.8 mm Fuel system Electronic injection with Ø 28 mm throttle body, single injector Fuel Unleaded petrol (95 RON) Exhaust silencer Absorption-type exhaust muffler with catalytic converter.
  • Page 79 Rear brake Ø 110-mm drum brake with mechanical control activated by handlebar left-side lever. Wheel rim type Light alloy wheel rims. Front wheel rim 11'' x 2.50 Rear wheel rim 10'' x 3.00 Front tyre Tubeless, 110/70 - 11'' 45L Rear tyre Tubeless, 120/70 - 10'' 54L Front tyre pressure...

  • Page 80: Tool Kit

    Tool kit (04_02) Wrenches: box-spanner (16 mm); one twin screwdriver; one spanner for shock ab- sorbers. The tools are located under the seat in a specific container. 04_02...

  • Page 81: Spare Parts And Accessories

    Vespa LXV 125 ie Chap. 05 Spare parts and accessories...

  • Page 82: Warnings

    Warnings (05_01) WARNING IT IS RECOMMENDED THAT "ORIGINAL PIAGGIO SPARE PARTS" BE USED, AS THESE ARE THE ONLY ONES OFFERING YOU THE SAME QUALITY AS- SURANCE AS THOSE INITIALLY FITTED ON THE VEHICLE. IT SHOULD BE REMEMBERED THAT USING NON-ORIGINAL SPARE PARTS 05_01 CAUSES YOUR WARRANTY RIGHTS TO EXPIRE.

  • Page 83: Scheduled Maintenance

    Vespa LXV 125 ie Chap. 06 Scheduled maintenance...

  • Page 84: Scheduled Servicing Table

    Scheduled servicing table (06_01) Adequate maintenance is fundamental to ensuring long-lasting, optimum operation and performance of your vehicle. To this end, a series of checks and maintenance operations (at the owner's expense) have been suggested, which are included in the summary table on the following page. Any minor faults should be reported without delay to an Authorised Service Centre or Dealer without waiting until the next scheduled service to solve it.
  • Page 85 Km x 1,000 Brake levers Brake fluid ** Engine oil * Hub oil Headlight direction adjustment Brake pads Sliding shoes / CVT rollers Tyre pressure and wear Vehicle road test Odometer gear Suspension Steering Transmission I: INSPECT AND CLEAN, ADJUST, LUBRICATE OR REPLACE, IF NECESSARY C: CLEAN, R: REPLACE, A: ADJUST, L: LUBRICATE * Check level every 3,000 km ** Replace every 2 years...
  • Page 86 Product Description Specifications AGIP BRAKE 4 Brake fluid. Synthetic fluid SAE J 1703 -FMVSS 116 - DOT 3/4 - ISO 4925 - CUNA NC 956 DOT 4 eni i-Ride PG 5W-40 Synthetic based lubricant for high-performance JASO MA, MA2 - API SL - ACEA A3 four-stroke engines.
  • Page 87 TABLE OF CONTENTS Air filter: 46, 47 Fuel: 19 Maintenance: 37, 83 Tank: 19 Fuses: 52 Mirrors: 63 Technical Data: 75 Top box: 21 Transmission: 33 Turn indicators: 62 Battery: 49, 50 Tyre pressure: 25 Brake: 48, 64, 65 Horn: 13 Puncture: 66 Tyres: 44 Hub oil: 42...
  • Page 88 The descriptions and images in this publication are given for illustrative purposes only and are not binding. While the basic characteristics as described and illustrated in this booklet remain unchanged, Piaggio & C. S.p.A. reserves the right, at any time and without being required to update this publication beforehand, to make any changes to components, parts or accessories, which it considers necessary to improve the product or which are required for manufacturing or construction reasons.
