VESPA LXV 50 Manual

Hide thumbs Also See for LXV 50:
Table of Contents

Advertisement

Quick Links

See also: Service Station Manual
Vespa would like to thank you
for choosing one of its products. We have prepared this manual to help you to get the very best from your scooter. Please read it carefully before riding
the scooter for the first time. It contains information, tips and precautions for using your scooter. It also describes features, details and devices to assure
you that you have made the right choice. We believe that if you follow our suggestions, you will soon get to know your new vehicle and it will serve you
well for a long time to come. This booklet forms an integral part of the scooter; should the scooter be sold, it must be transferred to the new owner.

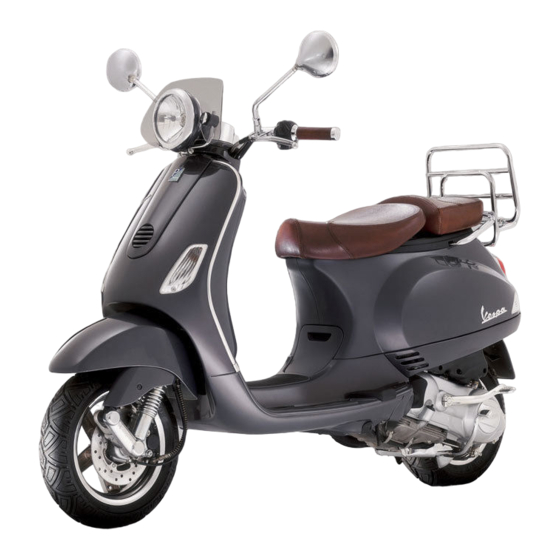

Vespa LXV 50

Advertisement

Table of Contents
loading

Related Manuals for VESPA LXV 50

Summary of Contents for VESPA LXV 50

  • Page 1 Vespa would like to thank you for choosing one of its products. We have prepared this manual to help you to get the very best from your scooter. Please read it carefully before riding the scooter for the first time. It contains information, tips and precautions for using your scooter. It also describes features, details and devices to assure you that you have made the right choice.
  • Page 2 The instructions given in this manual are intended to provide a clear, simple guide to using your scooter; this booklet also details routine maintenance procedures and regular checks that should be carried out on the vehicle at an authorised Dealer or Service Centre. The booklet also contains instructions for simple repairs.
  • Page 3 Personal safety Failure to completely observe these instructions will result in serious risk of personal injury. Safeguarding the environment Sections marked with this symbol indicate the correct use of the vehicle to prevent dam- aging the environment. Vehicle intactness The incomplete or non-observance of these regulations leads to the risk of serious damage to the vehicle and sometimes even the invalidity of the guarantee.

  • Page 5: Table Of Contents

    INDEX VEHICLE..................Checking the brake oil level............31 Dashboard................Battery..................32 Analogue instrument panel............Checking the electrolyte level..........33 Key switch................. 10 Long periods of inactivity............33 Locking the steering wheel............ 10 Fuses..................34 Releasing the steering wheel..........10 Front light group................ 36 Switch direction indicators............

  • Page 7: Vehicle

    Vespa LXV 50 Chap. 01 Vehicle...

  • Page 8: Dashboard

    01_01 Dashboard (01_01) A = Starter button B = Throttle grip C = Front brake lever D = Instrument panel E = Light switch...

  • Page 9: Analogue Instrument Panel

    F = Front brake lever G = Turn indicator switch H = Horn button 01_02 Analogue instrument panel (01_02) A = Fuel gauge...

  • Page 10: Key Switch

    B = High-beam warning light C = Turn indicator warning light D = Odometer E = Speedometer F = Low fuel warning light G = Low oil pressure warning light H = Headlight warning light Key switch (01_03) LOCK = Ignition disabled, extractable key, steering lock engaged front glove-box locked.

  • Page 11: Switch Direction Indicators

    CAUTION DO NOT TURN THE KEY TO «LOCK» OR «OFF» WHILE RIDING. Switch direction indicators (01_04) To set the left turn indicators flashing, move lever «B» to the left; to set the right turn indicators flashing, move it to the right. The lever automatically returns to the central position and the indicators remain on.

  • Page 12: Light Switch

    Saddles fitted to this scooter are upholstered in Authentic Leather, and are a stylish accessory to emphasise an already exclusive product such as your Vespa. As leather is a natural and vivid material, it tends to get "very opaque" aspect as time goes by, an aspect typical of Authentic Leather.

  • Page 13: Opening The Saddle

    Periodically, especially during rainy seasons, apply commercially available water- proofing products (footwear spray). Do not apply shoe polish or wax on the saddle so as not to stain your clothes. In case of forced and prolonged exposure to water, dry the saddle far from any heat source, do not to use alcohol, solvent-based products and pay special care when refuelling.

  • Page 14: Identification

    Identification (01_10, 01_11) The identification numbers consist of a prefix stamped on the chassis and on the en- gine, followed by a number. They should always be given when requesting spare parts. We recommend that you check that the prefix and chassis number stamped on the vehicle correspond with those in the vehicle documents.

  • Page 15: Use

    Vespa LXV 50 Chap. 02...

  • Page 16: Checks

    Checks Before using the vehicle, check: 1. That the petrol tank and oil reservoir are full. 2. The oil level in the rear hub. 3. That the tyres are correctly inflated. 4. That the headlight, rear light and turn indicators are in working order. 5.
  • Page 17 CAUTION DO NOT BRING NAKED FLAMES OR CIGARETTES NEAR THE MOUTH OF THE FUEL TANK: FIRE HAZARD. ALSO AVOID INHALING HARMFUL VAPOURS. IMPORTANT: NEVER EMPTY THE MIXER OIL RESERVOIR. CAUTION THE USE OF OILS AND SPARK PLUGS OTHER THAN THOSE RECOMMENDED CAN SHORTEN THE LIFE OF THE ENGINE.

  • Page 18: Tyre Pressure

    Tyre pressure CAUTION TYRE PRESSURE SHOULD BE CHECKED WHEN TYRES ARE COLD.INCOR- RECT TYRE PRESSURE CAUSES ABNORMAL TYRE WEAR AND MAKES RID- ING DANGEROUS. TYRES MUST BE REPLACED WHEN THE TREAD REACHES THE WEAR LIMITS SET FORTH BY LAW. Characteristic Front tyre pressure 1.6 bar Rear tyre pressure...

  • Page 19: Starting Up The Engine

    Starting up the engine (02_03) The scooter is fitted with automatic transmission with a regulator and centrifugal clutch. Therefore always start the engine with the throttle at a minimum; to start-off from still, progressively twist the throttle grip. The vehicle is equipped with a fuel valve and a starter that switch on automatically as soon as the engine is started.

  • Page 20: Difficult Start Up

    Difficult start up (02_04) If there is a problem you can follow the instructions below: 1. Engine flooded. Place the vehicle on its centre stand and check that the rear wheel is off the ground. Open the throttle fully and press the starter button for five seconds and then stop for five seconds.

  • Page 21: Stopping The Engine

    Stopping the engine (02_05) Stop acceleration, then turn the key switch "D" to "OFF " to turn off the engine (ex- tractable key). CAUTION DUE TO THE HIGH TEMPERATURES THE CATALYTIC CONVERTER CAN REACH, ALWAYS TAKE CARE, WHEN PARKING THE SCOOTER, THAT THE 02_05 EXHAUST DOES NOT COME INTO CONTACT WITH FLAMMABLE MATERIALS, TO AVOID SERIOUS BURNS.

  • Page 22: Automatic Transmission

    CAUTION DO NOT SWITCH OFF THE ENGINE WHILE THE VEHICLE IS MOVING. UN- BURNED FUEL COULD ENTER THE CATALYTIC CONVERTER AND BURN, CAUSING IT TO OVERHEAT AND POSSIBLY DESTROYING IT. Automatic transmission To ensure simple, pleasurable riding, the vehicle is equipped with automatic trans- mission with regulator and centrifugal clutch.
  • Page 23 < Your ability and your knowledge of the vehicle form the basis of safe riding. We rec- ommend trying out the vehicle in traffic-free zones to get to know your vehicle completely. ALWAYS DRIVE WITHIN YOUR LIMITS 1. Before riding off, remember to put on your helmet and fasten it correctly. 2.
  • Page 24 CAUTION DO NOT FORGET THAT DRIVING IN A STATE OF DRUNKENNESS, OR WHEN UNDER THE EFFECT OF DRUGS OR CERTAIN MEDICINES, CAN BE EXTREME- LY DANGEROUS FOR ONESELF AND FOR OTHERS. CAUTION ANY CHANGES TO THE VEHICLE PERFORMANCE AS WELL AS ALTERATIONS TO ORIGINAL STRUCTURAL PARTS IS STRICTLY FORBIDDEN BY LAW, AND RENDERS THE VEHICLE NO LONGER CONFORMING TO THE APPROVED TYPE AND DANGEROUS FOR RIDING.

  • Page 25: Maintenance

    Vespa LXV 50 Chap. 03 Maintenance...

  • Page 26: Hub Oil Level

    Hub oil level (03_01, 03_02, 03_03) To check the hub oil level, proceed as follows: 1. Place the scooter on its stand on a level surface; 2. Unscrew the dipstick «A», dry it with a clean rag and then reinsert it, screw- ing it tightly into place;...

  • Page 27: Tyres

    SAE 80W/90 Oil that exceeds the requirements of API GL3 specifications Characteristic Rear hub oil Quantity: approx. 85 cc Tyres (03_04) Periodically check the inflation pressure of each tyre (when cold). Tyres are fitted with wear indicators; tyres should be replaced as soon as these indi- cators become visible on the tyre tread.

  • Page 28: Spark Plug Dismantlement

    Spark plug dismantlement (03_05, 03_06) Remove cover «A» after unscrewing the corresponding screw. Detach the spark plug shielded cap and remove the plug with the box-spanner supplied. When refitting the plug, tighten it manually, being sure to insert it at the right angle; Use the wrench only to fasten it.

  • Page 29: Removing The Air Filter

    Removing the air filter (03_07, 03_08) Remove the side fairing unscrewing the 2 screws marked A. Remove the air cleaner cap «D» after having unscrewed the 5 fixing screws «C», then remove the filtering element. Clean with water and shampoo, afterwards dry with compressed air and submerge in a recommended oil and petrol mixture in ratio of 50%.

  • Page 30: Intake Plug

    03_10 Intake plug (03_11) Remove the cap of the transmission cover operating on the corresponding release slots with a plain slot screwdriver. Wash the sponge in water and soap without re- moving it from its seat. Dry it with compressed air before refitting it taking care to do so at the correct angle. CAUTION WARNING! SHOULD THERE BE ANY PROBLEMS WHEN ADJUSTING IDLE SPEED, IT MAY...

  • Page 31: Checking The Brake Oil Level

    Checking the brake oil level (03_12, 03_13) The brake fluid reservoir is equipped with a sight glass «A» made of transparent ma- terial; the quantity of liquid contained in the sight glass indicates the level of liquid in the reservoir. When the sight glass «A»...

  • Page 32: Battery

    PARTS OF THE VEHICLE. THE BRAKING CIRCUIT FLUID IS HYGROSCOPIC, WHICH MEANS THAT IT ABSORBS MOISTURE FROM THE SURROUNDING AIR. IF MOISTURE CONTAINED IN THE BRAKE FLUID EXCEEDS A CERTAIN VALUE, THIS WILL RESULT IN INEFFICIENT BRAKING. Battery (03_14) To access the battery, tilt the saddle forwards, then remove the battery compartment access door by unscrewing the star-shaped screw "A"...

  • Page 33: Checking The Electrolyte Level

    ER TOO MUCH IN ORDER TO AVOID DANGEROUS LEAKAGE OF BATTERY ELECTROLYTE Checking the electrolyte level The electrolyte level, which should be checked regularly, must always be at the max- imum level. To reach this level, use only distilled water. Should it become necessary to top up the battery with water too frequently, check the scooter's electrical system because the battery is being overloaded, causing it to lose power quickly.

  • Page 34: Fuses

    N.B. THE BATTERY MUST BE CHARGED WITH A CURRENT EQUAL TO 1/10 OF THE RATED CAPACITY OF THE BATTERY AND FOR NOT LONGER THAN 10 HOURS. CONTACT AN AUTHORISED SERVICE CENTRE TO CARRY OUT THIS OPERA- TION SAFELY. WHEN REFITTING THE BATTERY MAKE SURE THE LEADS ARE CORRECTLY CONNECTED TO THE TERMINALS.
  • Page 35 ER TOO MUCH IN ORDER TO AVOID DANGEROUS LEAKAGE OF BATTERY ELECTROLYTE Electric characteristic Fuse Fuse valve: 7.5 A BULBS High/low beam light bulb Type: Spherical Power: 12V 35/35W Quantity: 1 Front tail light bulb Type: All glass Power: 12V 5W Quantity: 1 Front turn indicator bulb Type: Spherical...

  • Page 36: Front Light Group

    Stop and tail light bulb Type: Spherical Power: 12V 21/5W Quantity: 1 12V - 2W warning light bulbs Type: All glass Function: Turn indicators Quantity: 2 12V - 2W warning light bulbs Type: All glass Function: Turn indicators, engine oil, fuel reserve, taillight, high- beam light Quantity: 5 Instrument panel light bulbs...

  • Page 37: Headlight Adjustment

    N.B. IF MISTING IS NOTICED ON THE INSIDE OF THE HEADLAMP GLASS, THIS DOES NOT INDICATE A FAULT AND IS RELATED TO THE HUMIDITY AND/OR TO LOW TEMPERATURES. THE PHENOMENON SHOULD QUICKLY DISAPPEAR WHEN THE LIGHT IS SWITCHED ON. THE PRESENCE OF DROPS OF WATER, ON THE OTHER HAND, COULD INDI- CATE THAT WATER IS INFILTRATING.

  • Page 38: Front Direction Indicators

    03_20 Front direction indicators (03_21) In order to replace the front turn indicator bulbs remove the light taking off the retaining screws, then remove the bulb holder form its support; gently turn the bulb around 30º and remove it. Follow the process in reverse order to refit. 03_21 Rear optical unit (03_22) To access the rear taillight bulb it is necessary to remove the 2 fixing screws «D».

  • Page 39: Rear Turn Indicators

    THE PRESENCE OF DROPS OF WATER, ON THE OTHER HAND, COULD INDI- CATE THAT WATER IS INFILTRATING. CONTACT THE PIAGGIO AFTER-SALES SERVICE NETWORK. Rear turn indicators (03_23) To gain access to the turn indicator bulbs, remove the fastening screws «E». The bulbs have a bayonet coupling, to remove them press gently and twist anticlock- wise about 30°.

  • Page 40: Idle Adjustment

    Idle adjustment (03_25) The idle speed is adjusted by means of the idle speed adjuster screw «A» located on the carburettor. To do this, proceed as shown in the diagram. Turn the register for adjusting the clear- ance of the throttle control transmission «B», then replace the rubber protection cap. Adjust the idle speed with the rear wheel off the ground (vehicle on stand) and with a warm engine.

  • Page 41: Rear Drum Brake

    BOTH PADS IS IN THE REGION OF 1.5 MM, BOTH PADS MUST BE CHANGED. IT IS RECOMMENDED TO CARRY OUT THIS OPERATION AT AN AUTHORISED SERVICE CENTRE AS SOON AS POSSIBLE. AFTER FITTING NEW BRAKE PADS DO NOT USE THE VEHICLE UNTIL YOU HAVE ACTIVATED THE BRAKE LEVER REPEATEDLY TO POSITION THE PADS AND RESTORE THE LEVER STROKE TO ITS CORRECT POSITION.

  • Page 42: Puncture

    Puncture (03_28) The vehicle is equipped with Tubeless tyres. When there is a puncture, Tubeless tyres - unlike tyres with inner tubes - go flat very slowly. This offers greater riding safety. A tyre that goes flat very slowly can be repaired with an "Inflate and Repair" spray. Tyres should be later fully repaired or replaced at an Authorised Service Centre.
  • Page 43 for bodywork soaked in lots of water and "shampoo" (2-4% of car shampoo in water). Then rinse abundantly with water, and dry with a shammy cloth. For the outside of the engine, use petroleum, a brush and clean cloths. Petroleum can damage paintwork. Remember that any polishing with silicone wax must always be preceded by washing CAUTION DETERGENTS POLLUTE WATER.
  • Page 44 WARNING CLEAN YOUR SCOOTER FREQUENTLY SO AS TO AVOID POSSIBLE DIRT OR MUD DEPOSITS THAT COULD CAUSE MALFUNCTIONING IN THE THROTTLE GRIP TRANSMISSION AND/OR OTHER COMPONENTS. CLEANING CHROME-PLATED PARTS After cleaning chrome-plated parts, polish them with a specific product for chrome- plated, aluminium or stainless steel surfaces.
  • Page 45 Filters, jets or carburettor dirty or Contact an Authorised Service clogged. Centre. Insufficient battery charge Kick-start. Recharge the battery. IGNITION PROBLEM No spark from spark plug. Due to Check that the electrodes are the presence of high voltage, this properly adjusted (0.7÷ 0.8 mm). check should only be carried out by Check that the electrodes are an expert.
  • Page 46 INEFFICIENT BRAKING Oil on drum or disc. Worn Pads/ Contact an Authorised Service Shoes Centre incorrect rear brake adjustment Adjust INEFFICIENT SUSPENSION Oil leak; worn limit switch bumpers; Contact an Authorised Service worn shock absorber attachment Centre points IRREGULAR AUTOMATIC TRANSMISSION Deteriorated roller container or Contact an Authorised Service belt.
  • Page 47 STARTER LEVER DOES NOT RETURN TO CORRECT POSITION Presence of dirt Clean and grease...

  • Page 49: Technical Data

    Vespa LXV 50 Chap. 04 Technical data...
  • Page 50 04_01 TECHNICAL DATA Engine Two-stroke, single cylinder Piaggio Hi-PER2 Cubic capacity 49.4 cc Bore x stroke 40 X 39.3 mm Compression ratio 9.9 ±0.5 : 1...
  • Page 51 Length 1800 mm Width 740 mm Wheelbase 1280 mm Overall height 1180 mm Petrol tank Plastic, with a capacity of ~ 9 l (including a ~2.3 l reserve) Fuel Unleaded petrol Start up Electrical and kick starter Lubrication With blend and variable oil variable according to the engine revolutions and the throttle valve opening by means of a pump controlled by the...

  • Page 52: Kit Equipment

    right of the handlebar) and fixed calliper. Rear brake Ø110 mm drum brake Front wheel rim Die-cast aluminium alloy; 2.50 x11" Rear wheel rim Die-cast aluminium alloy; 3.00 x 10" Front tyre Tubeless; 110/70-11" Rear tyre Tubeless; 120/70-10" Kerb weight 98 ±...

  • Page 53: Spare Parts And Accessories

    Vespa LXV 50 Chap. 05 Spare parts and accessories...

  • Page 54: Warnings

    Warnings (05_01) WARNING IT IS ALSO RECOMMENDED THAT "ORIGINAL PIAGGIO SPARE PARTS" BE USED, AS THESE ARE THE ONLY ONES OFFERING YOU THE SAME QUALITY ASSURANCE AS THOSE INITIALLY FITTED ON THE VEHICLE. IT SHOULD BE REMEMBERED THAT USING NON-ORIGINAL SPARE PARTS CAUSES YOUR WARRANTY RIGHTS TO EXPIRE.

  • Page 55: Programmed Maintenance

    Vespa LXV 50 Chap. 06 Programmed maintenance...

  • Page 56: Scheduled Maintenance Table

    Scheduled maintenance table Adequate maintenance is fundamental to ensuring long-lasting, optimum operation and performance of your vehicle. To this end, a series of checks and maintenance operations (at the owner's expense) have been suggested, which are included in the summary table on the following page. Any minor faults should be reported without delay to an Authorised Service Centre or Dealer without waiting until the next scheduled service to solve it.
  • Page 57 Tyre pressure and wear - check Vehicle and brake test - road test AFTER 5000 KM, 25000 KM, 35000 KM AND 55000 KM Hub oil level - check Spark plug/electrode gap - replacement Air filter - clean Oil mixer/throttle linkage - adjustment Brake control levers - greasing Brake pads - check condition and wear Brake fluid level - check...
  • Page 58 Odometer cable - greasing Driving belt - check Steering - adjustment Brake control levers - greasing Brake pads - check condition and wear Brake fluid level - check Transmission elements - lubrication Safety locks - check Suspensions - check Electrical system and battery - check Headlight - adjustment Tyre pressure and wear - check Vehicle and brake test - road test...
  • Page 59 Brake fluid level - check Electrical system and battery - check Tyre pressure and wear - check SAS box (sponge) (**) - cleaning Vehicle and brake test - road test (**) See regulations in the «Secondary air system» section 20000 K 40000 K FTER M AND...
  • Page 60 Transmission elements - lubrication Safety locks - check Suspensions - check Electrical system and battery - check Headlight - adjustment Tyre pressure and wear - check Vehicle and brake test - road test 30000 K FTER Hub oil - change Spark plug/electrode gap - replacement Air filter - clean Idle speed - adjustment...
  • Page 61 Transmission elements - lubrication Safety locks - check Suspensions - check Electrical system and battery - check Headlight - adjustment Tyre pressure and wear - check SAS box (sponge) (**) - cleaning Vehicle and brake test - road test (**) See regulations in the «Secondary air system» section 60000 K FTER Hub oil - change...
  • Page 62 Brake control levers - greasing Brake pads - check condition and wear Flexible brake tubes - replacement Brake fluid level - check Transmission elements - lubrication Safety locks - check Suspensions - check Electrical system and battery - check Headlight - adjustment Tyre pressure and wear - check SAS box (sponge) (**) - cleaning Vehicle and brake test - road test...
  • Page 63 Product Description Specifications AGIP CITY TEC 2T Mixer oil synthetic oil for 2-stroke engines: JASO FC, ISO-L-EGD...

  • Page 64: Selènia Moto Rider

    Product Description Specifications AGIP GP 330 Grease for brake levers, throttle White calcium complex soap-based spray grease with NLGI 2; ISO-L-XBCIB2 Selènia Moto Rider (06_01) PIAGGIO-GILERA rides with SELENIA MOTO RIDER The technology and quality of FL Selenia for a range of high performance products. Thanks to the co-operation between FL Selenia and Piaggio Engineering, the Selenia Moto Rider products give the Piaggio/Gilera scooters protection and safety in every operating situation.
  • Page 65 TABLE OF CONTENTS Start-up: 12 Air filter: 29 Identification: 14 Instrument panel: 9 Technical Data: 49 Top box: 14 Battery: 32 Transmission: 22 Brake: 31, 40, 41 Key switch: 10 Turn indicators: 39 Keys: 13 Tyre pressure: 18 Tyres: 27 Disc brake: 40 Light switch: 12 Fuses: 34...
  • Page 66 The descriptions and illustrations given in this publication are not binding. While the basic features as described and illustrated in this manual remain unchanged, PIAGGIO - GILERA reserves the right, at any time and without being required to update this publication beforehand, to make any changes to components, parts or accessory supplies, which it considers necessary to improve the product or which are required for manufacturing or construction reasons.
