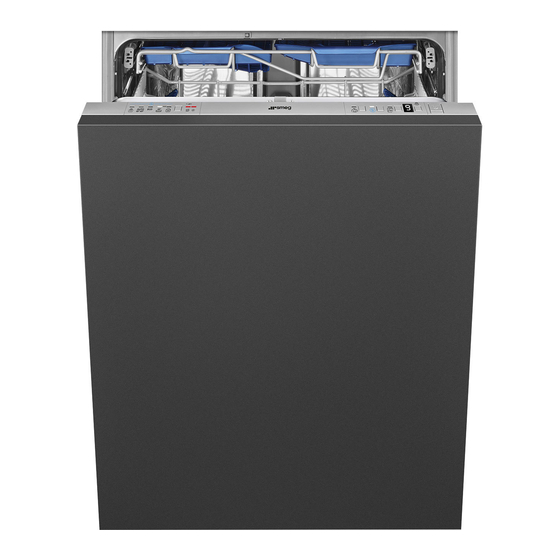

Smeg Universale STL67237L User Instructions
  1. Manuals
  2. Brands
  3. Smeg Manuals
  4. Dishwasher
  5. Universale STL67237L
  6. User instructions

Smeg Universale STL67237L User Instructions

Hide thumbs Also See for Universale STL67237L:

Advertisement

Quick Links

Download this manual
Contents
1. Description of the controls _______________________________ 2
2. Operating instructions __________________________________ 11
3. Cleaning and maintenance ______________________________ 27
4. Troubleshooting ______________________________________ 33
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need use your dishwasher safely, correctly and in the
most satisfactory manner.
Following the cleaning instructions provided here will keep your
dishwasher's performance at peak levels in the long term.
USER INSTRUCTIONS: these consist of recommendations for using the
appliance, a description of its controls and of the correct cleaning and
maintenance procedures.
1

Advertisement

loading

Related Manuals for Smeg Universale STL67237L

Summary of Contents for Smeg Universale STL67237L

  • Page 1 Contents 1. Description of the controls _______________________________ 2 2. Operating instructions __________________________________ 11 3. Cleaning and maintenance ______________________________ 27 4. Troubleshooting ______________________________________ 33 Thank you for choosing one of our products. You are advised to read this manual carefully; it contains all the information you need use your dishwasher safely, correctly and in the most satisfactory manner.

  • Page 2: Description Of The Controls

    User instructions 1. Description of the controls Upper panel All the dishwasher controls are grouped on the upper panel. Switch-on, programming, switch-off, etc. procedures are only possible when the door is open. The panel shown is only a guideline example: the form of the lights and buttons may vary depending on the model.
  • Page 3 User instructions SETTING THE WASHING PROGRAM AND SWITCHING ON After identifying the most suitable program with the aid of the programs table:  Press the ON/OFF button (1) and wait for the PROGRAM INDICATOR LIGHT (2) to illuminate;  Keep pressing the PROGRAM SELECTION button (3) until the indicator light corresponding to the desired program illuminates;...
  • Page 4 User instructions PROGRAMS TABLE DURATION CONSUMPTION PROGRAMME LOAD CROCKERY AND PROGRAM NUMBER CUTLERY PROGRESS MINUTES WATER POWER & SYMBOL LITRES KWh (1) 1 SOAK Recommended for rinsing 0,02 dishes while waiting for Cold prewash another wash cycle. 2 AUTO Wash cycle for normally When the "...
  • Page 5 User instructions EXPRESS TIME PROGRAMS (see relevant section for explanation of functioning modes) DURATION CONSUMPTION PROGRAMME LOAD CROCKERY AND PROGRAM NUMBER E CUTLERY PROGRESS MINUTES SYMBOL WATER POWER LITRES KWh (1) EXPRESS Quick wash cycle for 27’ lightly soiled dishes, Wash at 38°C 0,70 washed immediately after...
  • Page 6 User instructions NOTES AND REFERENCES Only run the soak program with half loads. Options cannot be used with the soak program. Dry assist is activated automatically if the selected program is compatible with the option. Standard programme under EN 50242. The DRY ASSIST option must be enabled.
  • Page 7 User instructions Washing programs Before starting a washing program make sure that: The water supply tap is open.  The softener container contains regenerating salt.  The correct amount of detergent has been added to the  dispenser. The baskets have been correctly loaded. ...
  • Page 8 User instructions DRY ASSIST The door opens automatically, allowing the dishes to be dried perfectly even at low rinse temperatures, and therefore significant energy savings. The door opens automatically by a few centimetres at the end of the wash cycle. The dishwasher remains inactive between the final rinse and the end of the cycle to allow the load to be properly dried (the display shows the time remaining to the end of the cycle).
  • Page 9 User instructions CANCELLING THE CURRENT PROGRAM To cancel the currently selected program open the door and hold  down the PROGRAM SELECTION (3) button for a few seconds until the indicator lights for programs 4 and 5 illuminate simultaneously (marked "end"). Close the door.
  • Page 10 User instructions If the door has to be opened while washing is in progress, the program will be interrupted. The relative light will keep flashing and a beeper will signal that the cycle has not been completed. You must wait about 1 minute before closing the door to restart the program.

  • Page 11: Operating Instructions

    User instructions 2. Operating instructions Once the dishwasher has been correctly installed, prepare for use as follows:  Adjust the water softening system; Add the regenerating salt;   Add the rinse aid and detergent. Using the water softening system The amount of scale contained in the water (water hardness index) can cause whitish staining on the dry dishes, which tend to...
  • Page 12 User instructions Do not use table salt as it contains insoluble substances which, over  time, may damage the water softening system.  When necessary, refill the regenerating salt container before starting the washing program. In this way, the excess saline solution will be immediately removed by the water;...
  • Page 13 User instructions WATER HARDNESS TABLE WATER HARDNESS SETTINGS German French degrees (°dH) degrees (°dH) All lights off 0 – 6 0 – 11 (no salt) 7 – 10 12 – 18 One light on 11 – 15 19 – 27 Two lights on 16 –...
  • Page 14 User instructions ADDING THE RINSE AID The rinse aid helps the dishes dry faster and prevents the formation of scale deposits and staining; it is automatically added to the water during the final rinse cycle, from the container situated on the inner side of the door. To add rinse aid: Open the dispenser by pressing and lifting the tab on the cover.
  • Page 15 User instructions ADJUSTING THE RINSE AID DISPENSER MODE Press and hold the PROGRAM SELECTION (3) button, after approximately 15 seconds the salt light flashes, keep it pressed until the rinse aid light (5) flashes and the program indicator lights (2) indicate the current setting.
  • Page 16 User instructions ADDING THE DETERGENT To open the detergent dispenser cover, lightly press button P. Add the detergent or tablet and close the cover by sliding it until it stops, indicated by a click. The dispenser will open automatically during the wash cycle. Only add the detergent (also in tablet form) if the dispenser is dry When a program with hot prewash is selected (see program table), ...
  • Page 17 User instructions The introduction of detergent into the rinse aid dispenser, even in liquid form, will damage the dishwasher. General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading.
  • Page 18 User instructions WARNING!  Make sure that the dishes are securely in place so that they cannot tip over or obstruct the rotation of the spray arms during the washing cycle. Do not place very small objects in the baskets as these could fall and ...
  • Page 19 User instructions Using the baskets The dishwasher has a capacity of 13 place-settings, including serving dishes. LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling. All types and combinations of loads are permitted, provided that the dishes, pots and pans are arranged with all the soiled surfaces...
  • Page 20 User instructions LOADING THE LOWER BASKET Carefully load flat plates, soup plates, dessert and serving dishes, positioning them vertically. Pots, pans and their covers must be loaded upside down. When loading soup plates and dessert bowls, be sure to leave a gap between them. Loading examples: UPPER BASKET The upper basket should be loaded with small or medium-sized items...
  • Page 21 User instructions CUTLERY BASKET The basket is suitable for all types of cutlery, except long items that may interfere with the upper spray arm. The cutlery should be arranged in the spaces in the upper racks to allow the water to pass effectively between the items.
  • Page 22 User instructions EXAMPLES OF LOADING FOR INTENSIVE DIRT 13 Standard place setting If the bottom basket inserts are of the fold-down type, they should be laid flat for easier loading.
  • Page 23 User instructions UPPER BASKET EQUIPMENT (depending on the model) Cutlery tray For knives, spoons (tea and dessert) and long objects. The ends are designed to hold long stemmed glasses. - It can be removed by pressing and pushing the release levers (B) at the same time.
  • Page 24 User instructions Fold-down shelves For mugs, cups and long objects. The ends are designed to hold long stemmed glasses When not used they can be moved to a vertical position (until a click is heard). Shelves with expandable wings For small objects, mugs and cups. They can be used either closed or open (pull the upper, sliding part).
  • Page 25 User instructions Fold-down tines These can be secured in a vertical position, resting on the bottom of the basket if unused, or placed in an intermediate position, as required. The single tine on the right is ideal for supporting long stemmed glasses.
  • Page 26 User instructions ADJUSTING THE UPPER BASKET The height of the top basket can be adjusted to allow large dishes or pans to be placed in the bottom basket. The adjustment procedure may be type A or B, depending on the dishwasher model purchased.

  • Page 27: Cleaning And Maintenance

    User instructions 3. Cleaning and maintenance Before carrying out any work, always unplug the appliance from the electrical supply or switch off the all-pole disconnection device. General warnings and recommendations Evitare l'utilizzo di detergenti abrasivi o acidi. Le superfici esterne e la controporta della lavastoviglie andranno pulite ad intervalli regolari con uno straccio morbido inumidito o con un normale detergente per superfici verniciate.
  • Page 28 User instructions PULIZIA DEL GRUPPO FILTRANTE E' opportuno procedere periodicamente all'ispezione del filtro  centrale C e, se necessario, pulirlo. Per estrarlo occorre afferrare le linguette, ruotare in senso antiorario e sollevare verso l'alto; spingere da sotto il filtro centrale D per estrarlo dal micro filtro; ...
  • Page 29 User instructions BEFORE STARTING THE DISHWASHER AFTER PROLONGED DISUSE:  Check that there are no deposits of sludge or rust inside the water pipe: if there are, allow the water to run from the water supply tap for a few minutes. Plug the power cord back into the socket.
  • Page 30 User instructions If the dishes fail to dry or remain dull, check that: there is rinse aid inside the special container;  the rinse aid dispenser setting is correct;  the detergent used is of good quality and has not lost its effectiveness ...
  • Page 31 User instructions If the door does not close: 1 - Check the position of the door lock catch (D) 2 - If necessary, raise it by adjusting the plastic screw (V) next to the catch. 3 - Check the condition of the lock hook (G); if it has not triggered (reference N), the door opens and closes normally.
  • Page 32 User instructions If after following the above troubleshooting instructions the problem persists, call the nearest After-Sales Centre. WARNING: any operations performed on the appliance by unauthorised persons are not covered by the warranty and shall be paid for by the user.

  • Page 33: Troubleshooting

    User instructions 4. Troubleshooting The dishwasher is capable of signalling a number of faults through the simultaneous illumination of several indicator lights, with the following meanings: FAULT DESCRIPTION Acquastop failure The anti-flooding system has been activated (for the relevant models only). The system is tripped in case of water leaks.
  • Page 34 User instructions FAULT DESCRIPTION Turbine flow-regulator malfunction (for the relevant models only) The appliance is not able to "measure" the amount of water loaded accurately. Interrupt the program and switch off the dishwasher. Switch the dishwasher back on, program it again and start the washing cycle.
