S tep
Install
Anti-Tip
Device
(continued)
Wood Construction:
• Place the bracket against the back wall, into the
right rear corner of the installation location.
• See Dimension A, position the bracket the
correct distance from the right side. Mark the 2
small screw holes for fastening the bracket to
the floor and remove the bracket.
• Drill two, 1/8" diameter pilot holes.
• Fasten the bracket securely to the floor and wall
using all 4 screws provided.
10

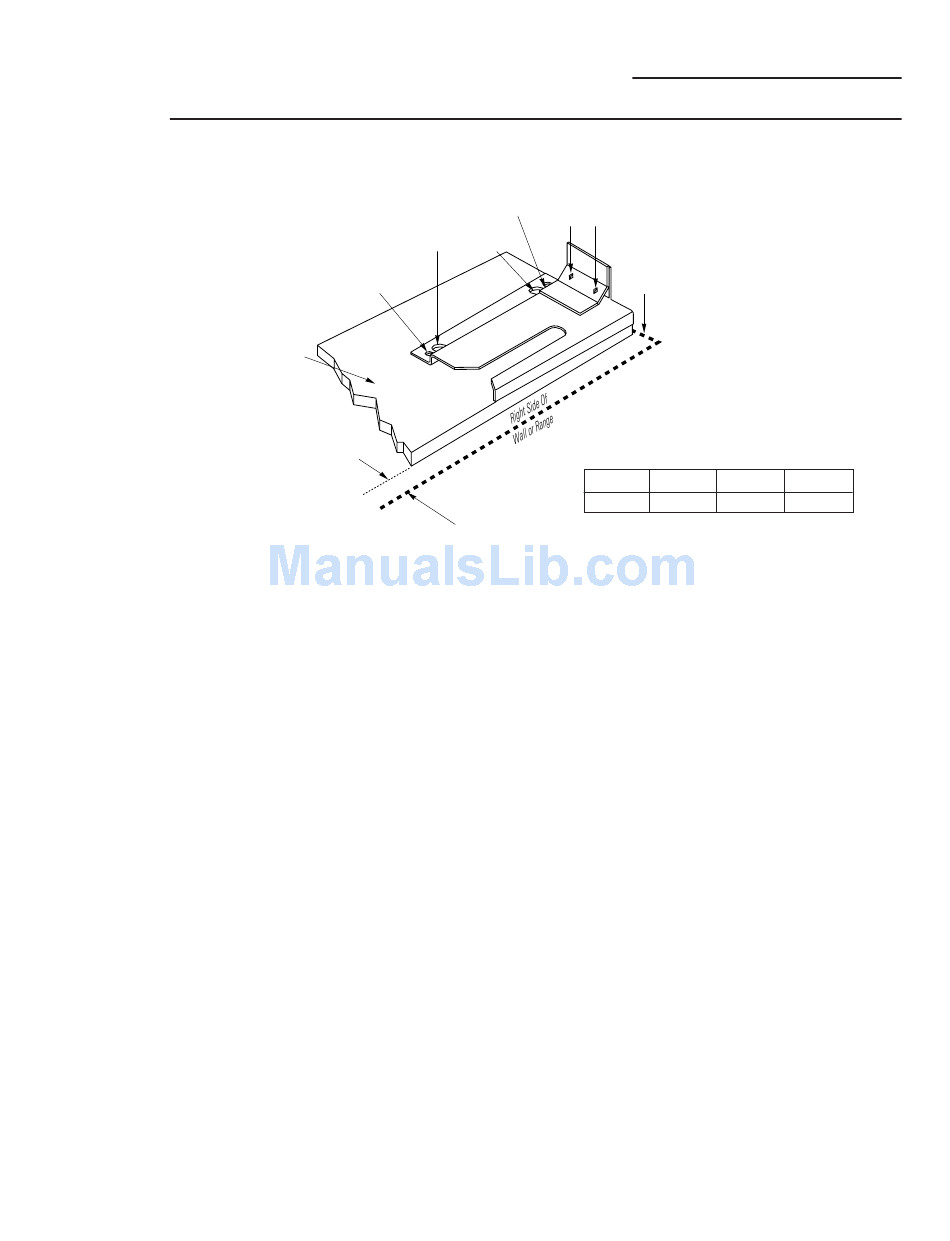

Small Hole For Wood
Installations (2 Total)
(2) Large Holes For
Concrete Installations
Small Holes For Wood
Installations (2 Total)
Wood
Slide
Strip
Installation
Professional Ranges
(2) Wood Screws into
Back Wall
(All Installations)
Back
Wall
A=
Models
Dimension A
Concrete or Cement Construction:
Hardware Required (not supplied):
[2] sleeve anchors, lag bolts and washers.
• Place the bracket against the back wall, into the
right rear corner of the installation location.
• See Dimension A, position the bracket the
correct distance from the right side. Mark the 2
large holes for fastening the bracket to the floor
and remove the bracket.
• Drill recommended size holes for the hardware.
• Install the sleeve anchors into the holes and then
install the lag bolts through the bracket. The
bolts must be properly tightened as recom-
mended for the hardware.
• Fasten the bracket securely to the floor.
• Drive wood screws into the back wall.
Dimension A
1/2" 5/8" 1/4"
ZDP48 ZDP36 ZDP30
