Troy-Bilt 2600 PSI Quick Start Manual

WARNING Failure to read and follow the operator's
manual and all operating instructions could
result in death, serious injury, and/or property
damage.
WARNING Fuel and its vapors are extremely
flammable and explosive which could cause
burns, fire or explosion resulting in death,
serious injury and/or property damage. Turn
pressure washer engine OFF and let it cool at least
2 minutes before removing fuel cap. Let spilled fuel
evaporate before starting engine. Always allow space for
fuel expansion.
WARNING Starter cord kickback (rapid retraction)
will pull hand and arm toward engine faster
than you can let go which could cause broken
bones, fractures, bruises, or sprains resulting
in serious injury. NEVER pull starter cord without first
relieving spray gun pressure. Pull starter cord slowly
until resistance is felt, then pull rapidly. Firmly grasp
spray gun with both hands when using high pressure
spray to avoid injury when spray gun kicks back.
You will need:
• Utility knife • Unleaded fuel • Garden hose, 50 (15 m) feet or less
Unpack pressure washer
1. Remove everything from carton except pressure washer.
2. Open carton completely by cutting each corner from top to bottom.
3. Ensure you have all included items prior to assembly. If items are
damaged or missing, call 1-888-611-6708.
Attach Handle and Accessory Tray
1. Place handle (a) onto handle supports connected to main unit. Make
sure holes in handle align with holes on handle supports.
2. Insert handle bolts (f) through holes from inside of unit
and attach a plastic knob (d) from outside of unit. Tighten by hand.
By loosening both knobs to the middle section of the attachment
bolt, the upper handle can fold forward to store flat atop the cold
engine.
1
NOTICE DO NOT fold the handle down while the engine is hot.
3. Place nubs on the lower soft grip (k) assembly into holes on underside
of handle (a). Line up tabs with slots on the upper soft grip (j) assembly
and snap together.
2
4. Place accessory tray (b) over holes on handle (viewing from front of
unit). Push the four tree clips (g) into the holes until they sit flat against
the accessory tray.
3
5. Insert multi–colored spray tips and other supplied accessories in
spaces provided in accessory tray.
Add engine oil and fuel
NOTICE You MUST properly fill engine with oil before attempting to start
pressure washer.
NOTICE DO NOT use E85 fuel.
NOTICE DO NOT mix oil with fuel.
1. Move pressure washer outdoors to a flat, level surface.
2. Clean area around oil fill and remove oil fill cap/dipstick (A).
3. Using oil funnel (optional), slowly pour supplied bottle of oil (e) into
oil fill, frequently checking oil level. Do not over fill.
4. Replace and fully tighten oil fill cap/dipstick.
5. Clean area around fuel fill cap, remove cap (B).
6. Slowly add clean, fresh, UNLEADED fuel. Be careful not to overfill.
To allow for fuel expansion, do not fill above the bottom of the fuel
tank neck.
7. Replace fuel cap. Let any spilled fuel evaporate before starting
engine.
© 2010 Every effort has been made to ensure that the information in this document is accurate and correct. However, we reserve the right to alter or otherwise improve the product and this document at any time without prior notice and without incurring obligation.
*This pressure washer is rated in accordance to the Pressure Washer Manufacturers Association (PWMA) standard PW101 (Testing and Rating Performance of Pressure Washers).

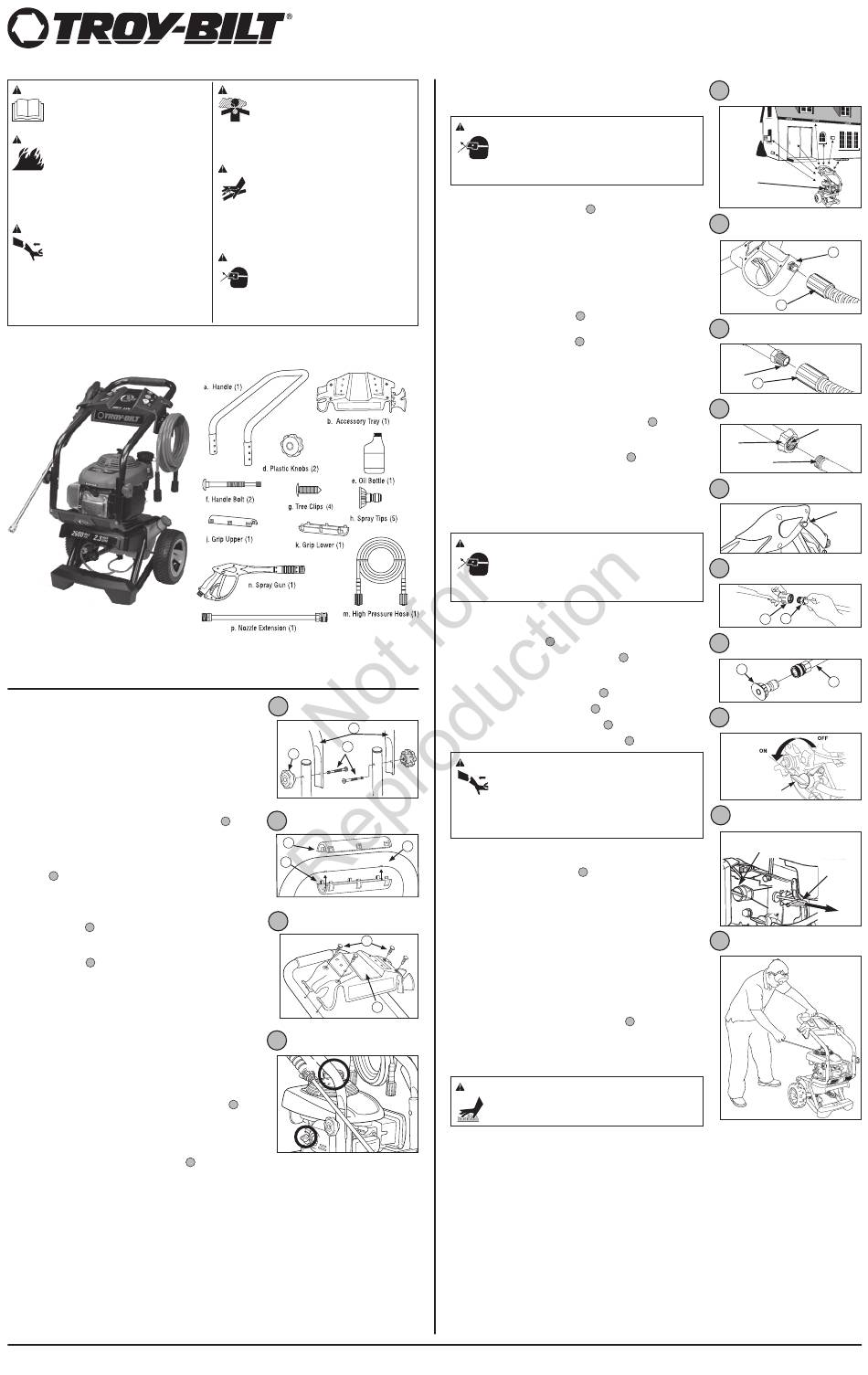

Quick Start Guide
2600 PSI* Pressure Washer
WARNING Running engine gives off carbon
monoxide, an odorless, colorless, poison
gas. Breathing carbon monoxide could result
in death, serious injury, nausea or fainting.
Operate this product ONLY outdoors. DO NOT operate
this product inside any building or enclosure, even if
windows and doors are open.
WARNING High water pressure could cut through
skin resulting in serious injury. Spray gun
traps high water pressure, even when engine
is stopped and water is disconnected. NEVER
aim spray gun at people, animals, or plants. ALWAYS
point spray gun in safe direction, press red button and
squeeze spray gun trigger to release high pressure,
every time you stop engine.
WARNING Risk of eye injury. Spray could splash
back or propel objects resulting in serious
injury. Always wear indirect vented (chemical
splash) safety goggles marked to comply with
ANSI Z87.1 when using or in vicinity of this equipment.
NEVER substitute safety glasses or dry-condition
goggles for indirect vented safety goggles.
Items Included:
Operator's Manual (not shown)
• Safety goggles (indirect vented type)
1
a
f
d
2
1
j
k
3
4
B
4
A
4
Move pressure washer
to safe operating location
WARNING Risk of eye injury. Spray could splash back or propel
objects resulting in serious injury. Always wear indirect
vented (chemical splash) safety goggles marked to
comply with ANSI Z87.1 when using or in vicinity of this
equipment. NEVER substitute safety glasses or dry-condition goggles
for indirect vented safety goggles.
1. Move pressure washer outdoors to a flat, level surface. Running
engines give off carbon monoxide.
2. Keep at least 5 ft. (152 cm) clearance on all sides of pressure washer
including overhead to reduce the risk of exhaust heat or exhaust
gases igniting nearby combustible material.
Connect spray gun
NOTICE Remove and discard the shipping caps from the pump's high
pressure outlet and water inlet before attaching hoses
1. Uncoil high pressure hose (m) and attach one end of hose to base of
spray gun (n). Tighten by hand.
2. Attach other end of high pressure hose (m) to high pressure outlet
(C) on pump. Tighten by hand.
Connect water supply
NOTICE If inlet screen is damaged or missing. DO NOT use pressure
washer, call 1-888-611-6708.
1. Before connecting garden hose to water inlet, inspect inlet screen.
Clean screen if it contains debris or have it replaced if damaged. DO
NOT run pressure washer if inlet screen is damaged.
2. Run cold water through garden hose for 30 seconds to clean out any
debris. Connect the garden hose (E) (not to exceed 50 feet (15 m) in
length) to the water inlet (D). Tighten by hand.
Start pressure washer
NOTICE You MUST connect and turn on water supply fully before
starting engine.
1. Put on safety goggles.
WARNING Risk of eye injury. Spray could splash back or propel
objects resulting in serious injury. Always wear indirect
vented (chemical splash) safety goggles marked to
comply with ANSI Z87.1 when using or in vicinity of this
equipment. NEVER substitute safety glasses or dry-condition goggles
for indirect vented safety goggles.
2. Turn on water supply.
3. Push red button (F) on spray gun and pull trigger until water comes
out in a steady stream.
4. Attach nozzle extention (p) to spray gun (n).
5. Choose desired quick-connect spray tip (h), pull back on collar of
nozzle extention (p). Insert spray tip and release collar. Tug on spray
tip to make sure it is securely in place.
6. Turn fuel valve (G) to "On" position.
7. Pull choke rod (H) to "Closed" position.
8. Move engine stop switch (J) to "On" position.
WARNING Starter cord kickback (rapid retraction) will pull hand
and arm toward engine faster than you can let go which
could cause broken bones, fractures, bruises, or sprains
resulting in serious injury. NEVER pull starter cord without
first relieving spray gun pressure. Pull starter cord slowly until
resistance is felt, then pull rapidly. Firmly grasp spray gun with both
hands when using high pressure spray to avoid injury when spray gun
kicks back.
a
9. When starting engine, position yourself as recommended and grasp
starter grip handle and pull slowly until you feel some resistance.
Then pull rapidly to start engine.
10. After each starting attempt, where engine fails to run, always point
gun in safe direction, press red button and squeeze spray gun trigger
to release high pressure.
NOTICE When engine starts, slowly move choke rod to "Open" position
as engine warms. If engine falters, move choke rod to "Closed" position,
g
then to "Open" position.
11. Point gun toward surface to be cleaned. Push red button and pull
trigger to begin spraying.
Stop pressure washer
1. Let engine idle for 2 minutes.
b
2. Move engine stop switch (J) to "Off" position.
3. Turn off water supply.
4. Point spray gun in safe direction, press red button, and squeeze
spray gun trigger to relieve retained high water pressure.
WARNING Contact with muffler area could cause burns resulting
in serious injury. DO NOT touch hot parts and AVOID hot
exhaust gases.
5. Disconnect garden hose from pump.
6. Disconnect high pressure hose from pump and gun for storage. For
long term storage instructions, see operator's manual.
7. Remove safety goggles.
Have Questions?
Do not return to store. We can help.
Call Customer Service Toll-Free 1-888-611-6708
or visit our website, www.troybilt.com
5
6
7
8
8
9
10
11
12
13
13
14
13
5
Exhaust Port
Pointed away from
dwelling openings
6
n
m
7
j
C
m
8
Inlet Screen
D
E
9
F
10
p
n
11
h
p
12
G
13
J
H
OFF
Closed
ON
14
